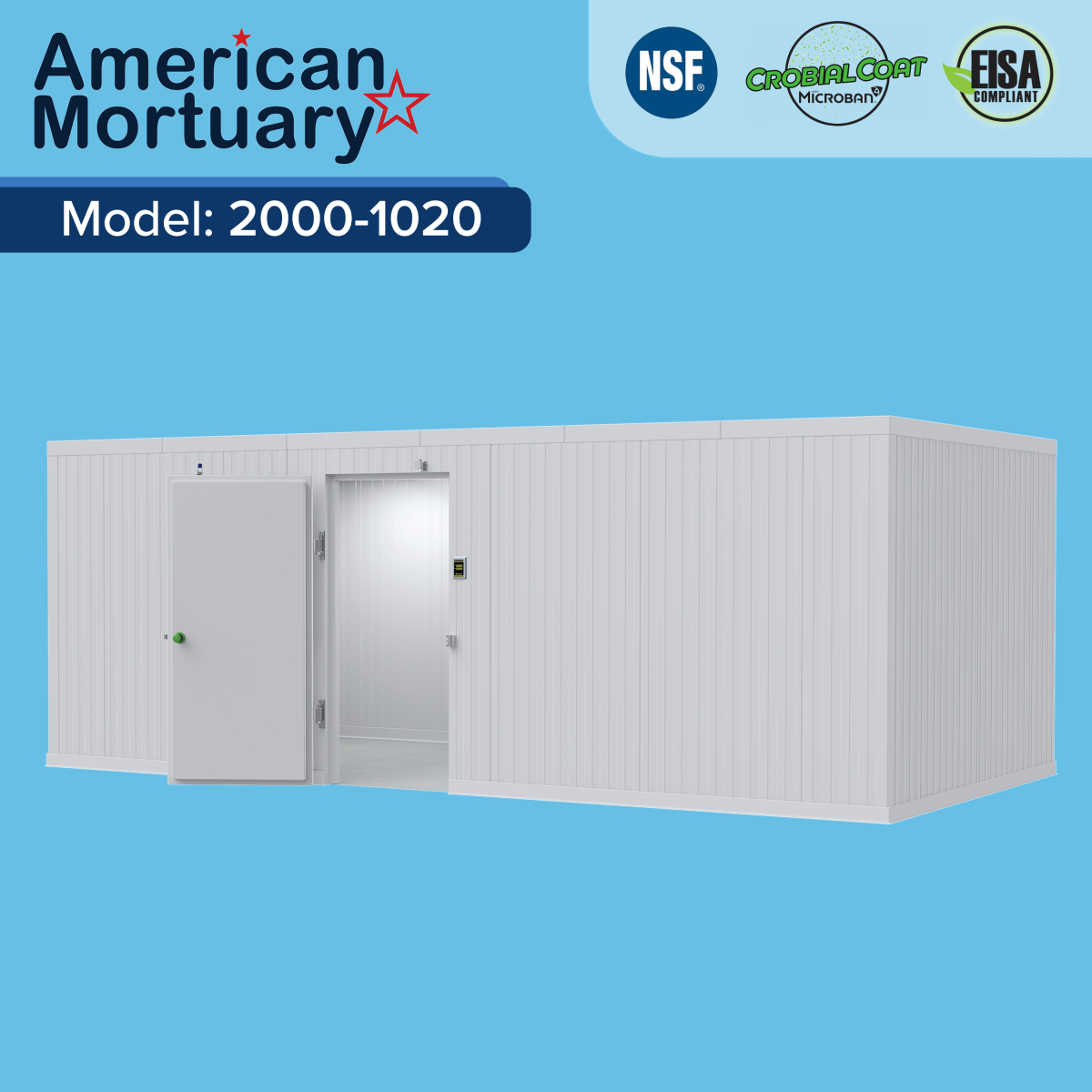

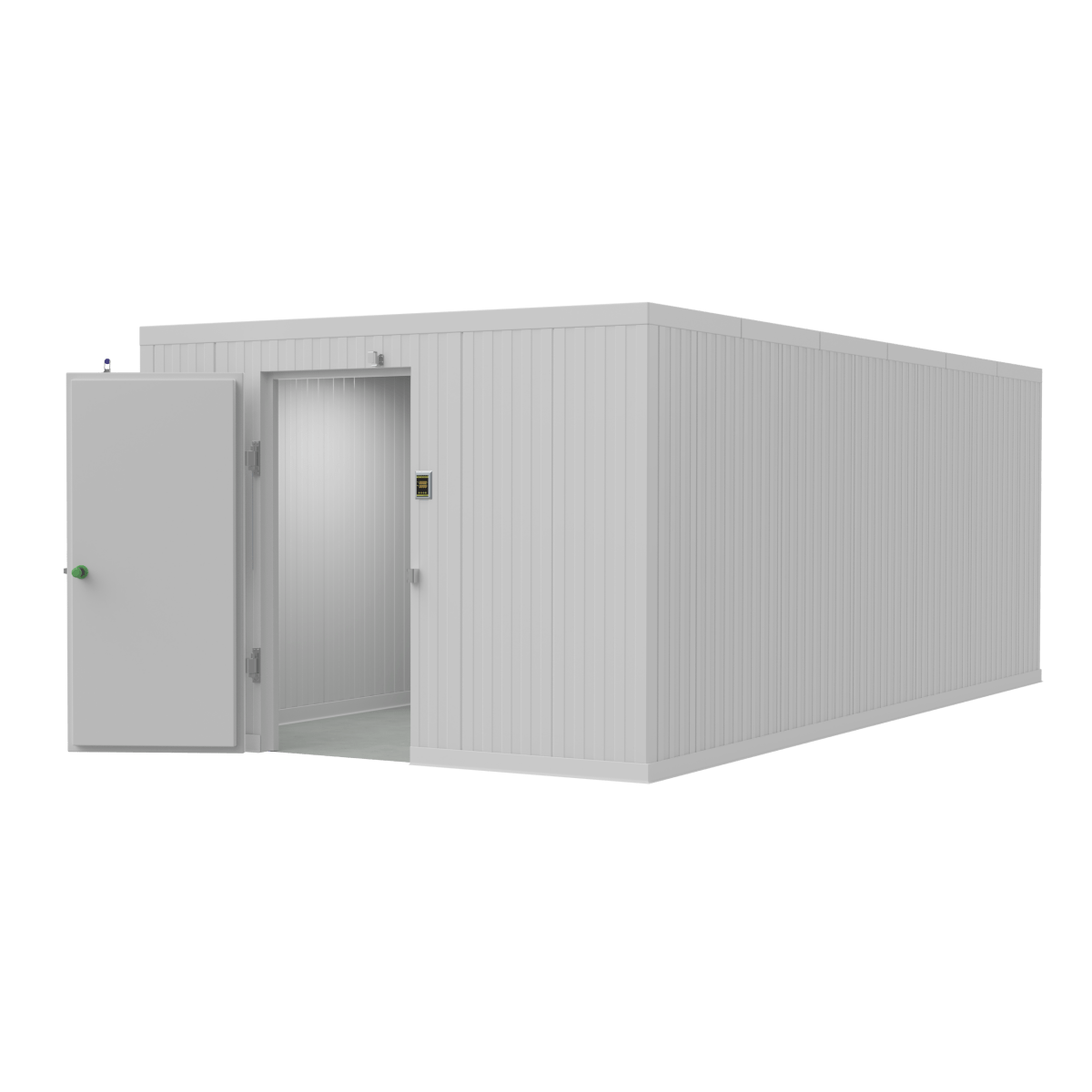

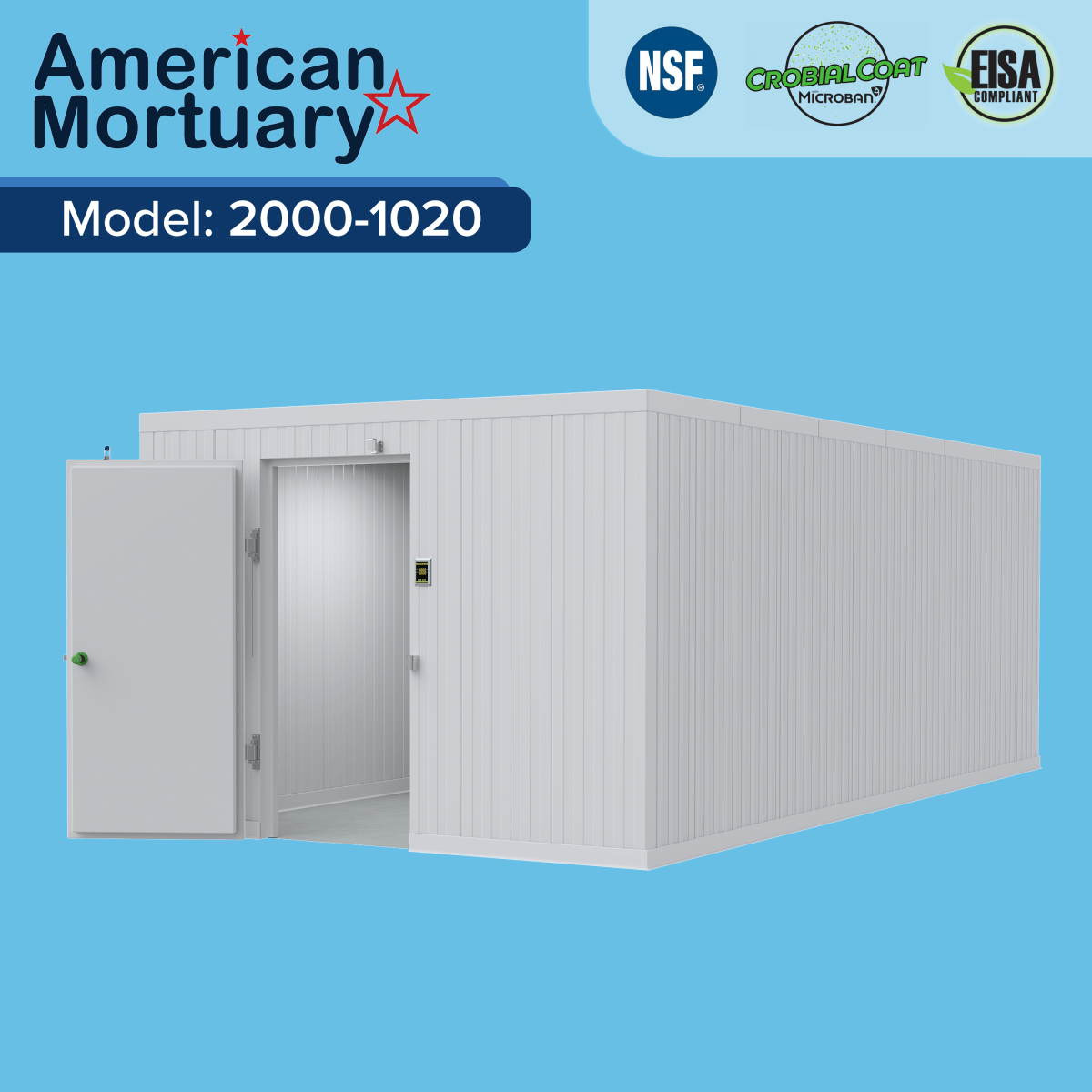

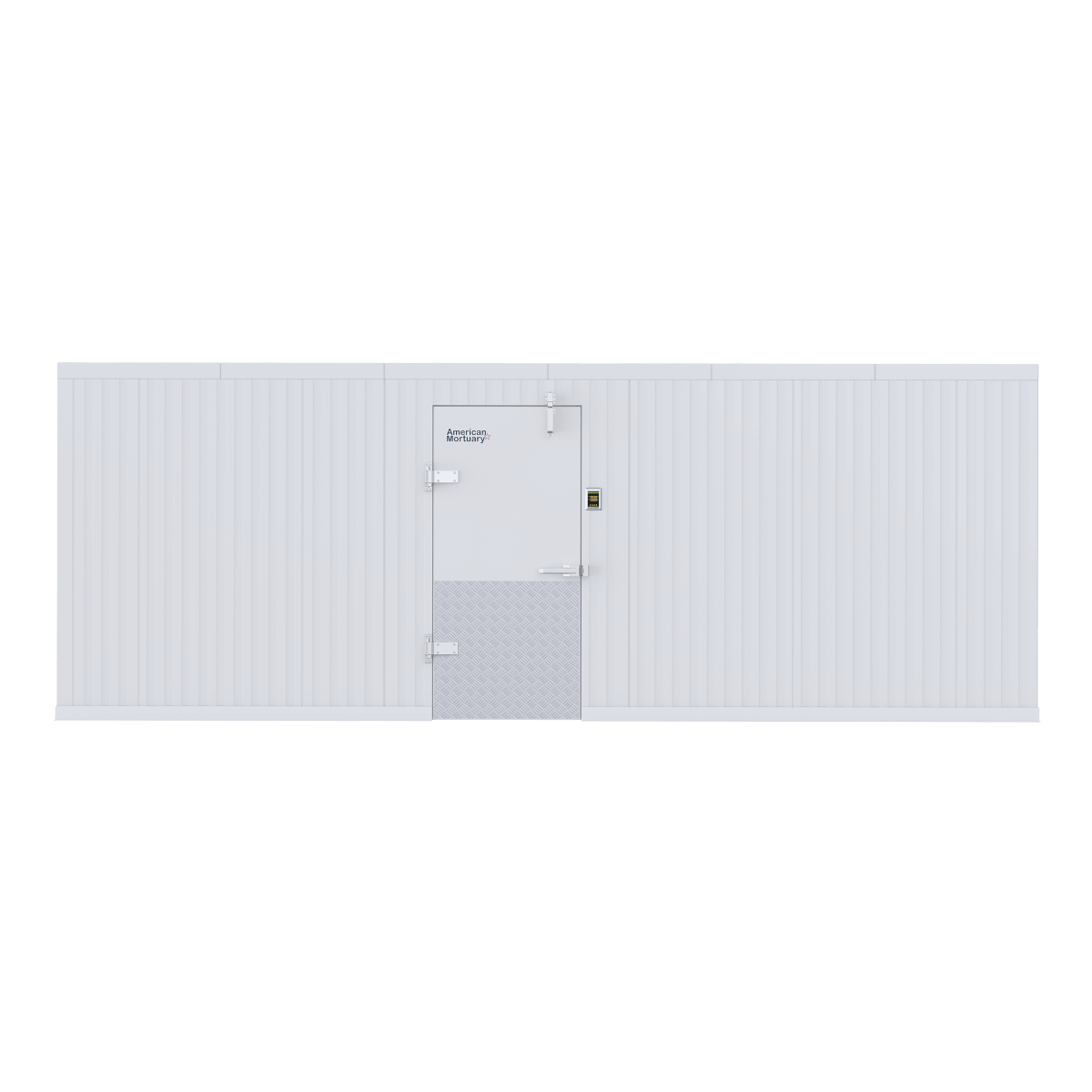

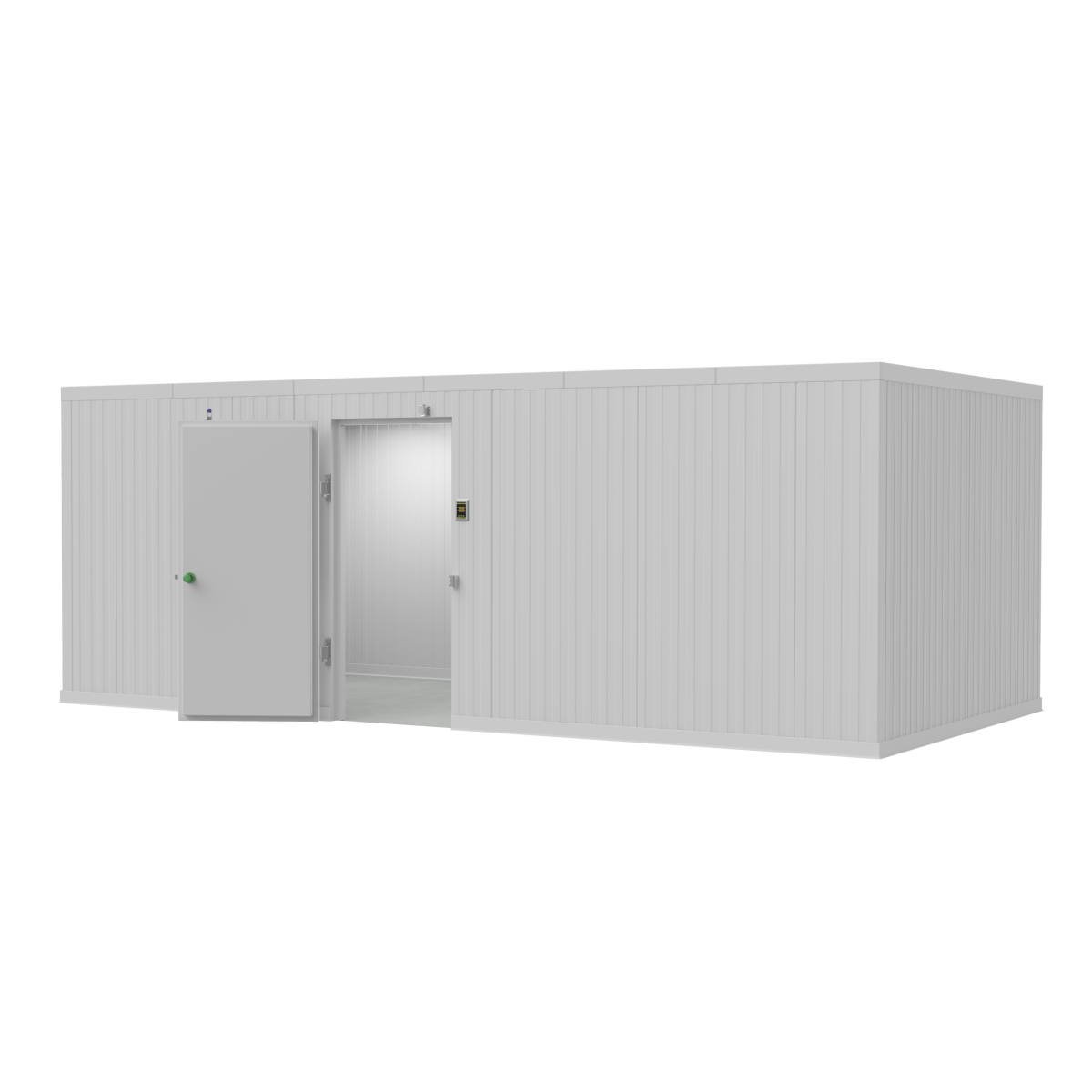

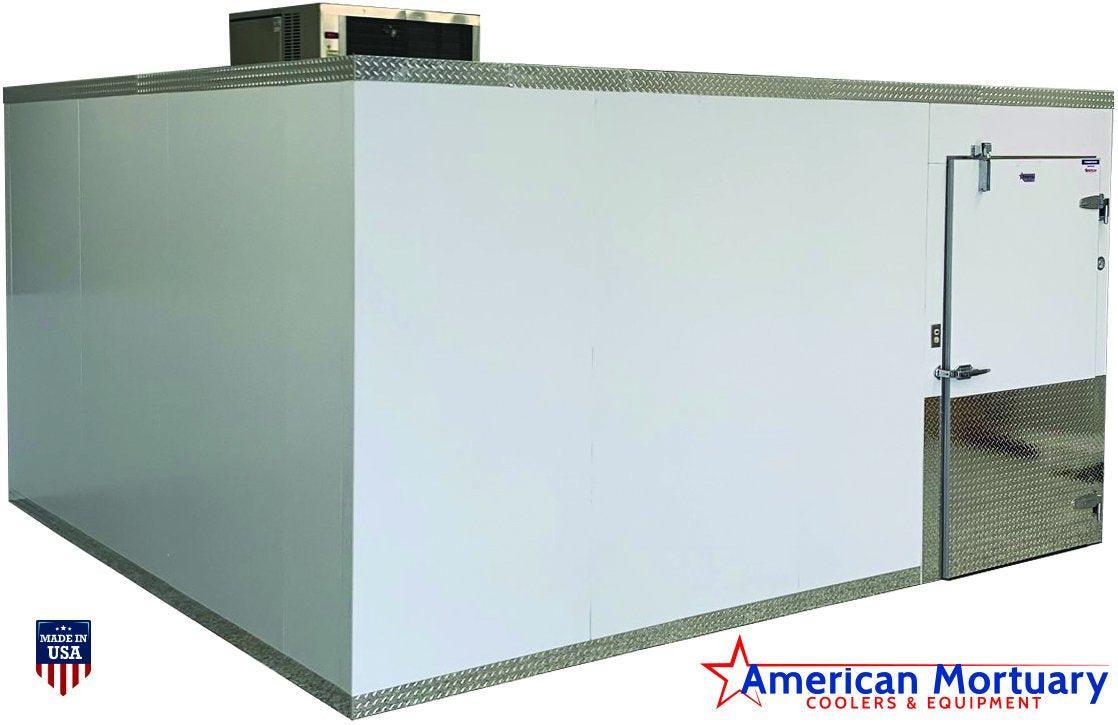

10 x 20 Walk-In Mortuary Cooler by American Mortuary

American Mortuary presents the 10 x 20 Walk-In Mortuary Cooler.

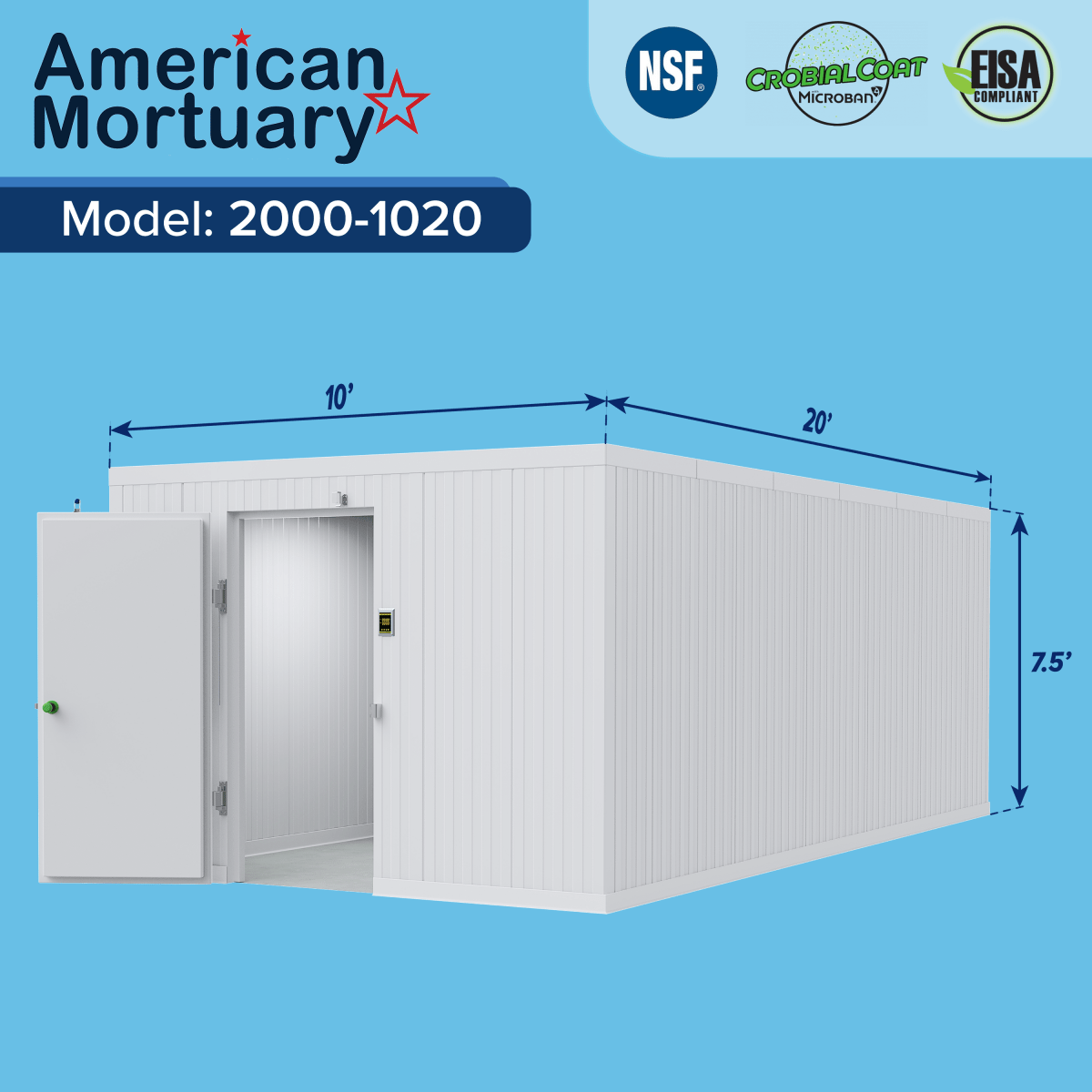

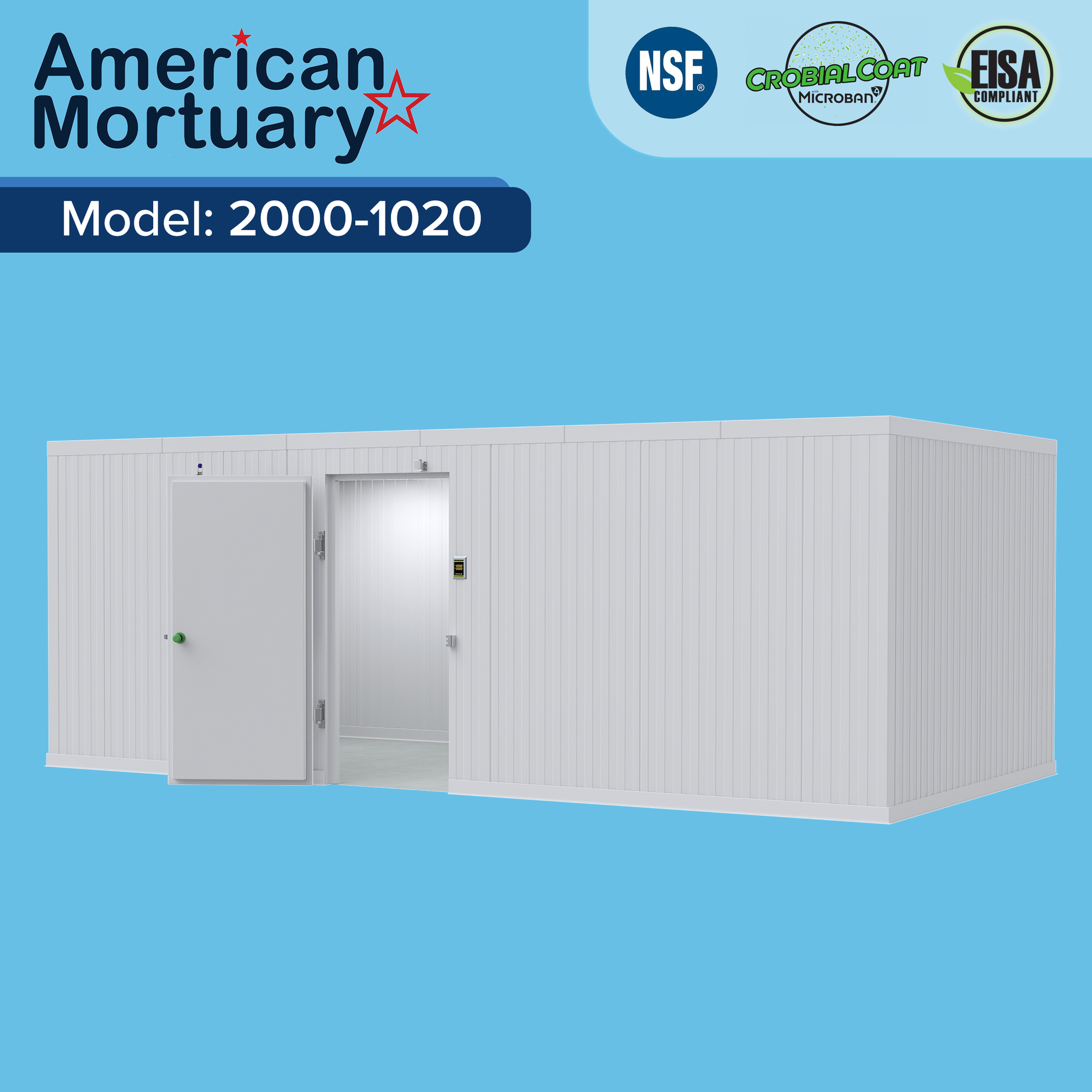

Measurements & Thickness for 10 x 20 Walk-In Mortuary Cooler
External (O.D.): 10' 0" x 20' 0" x 7' 4" - w x d x h

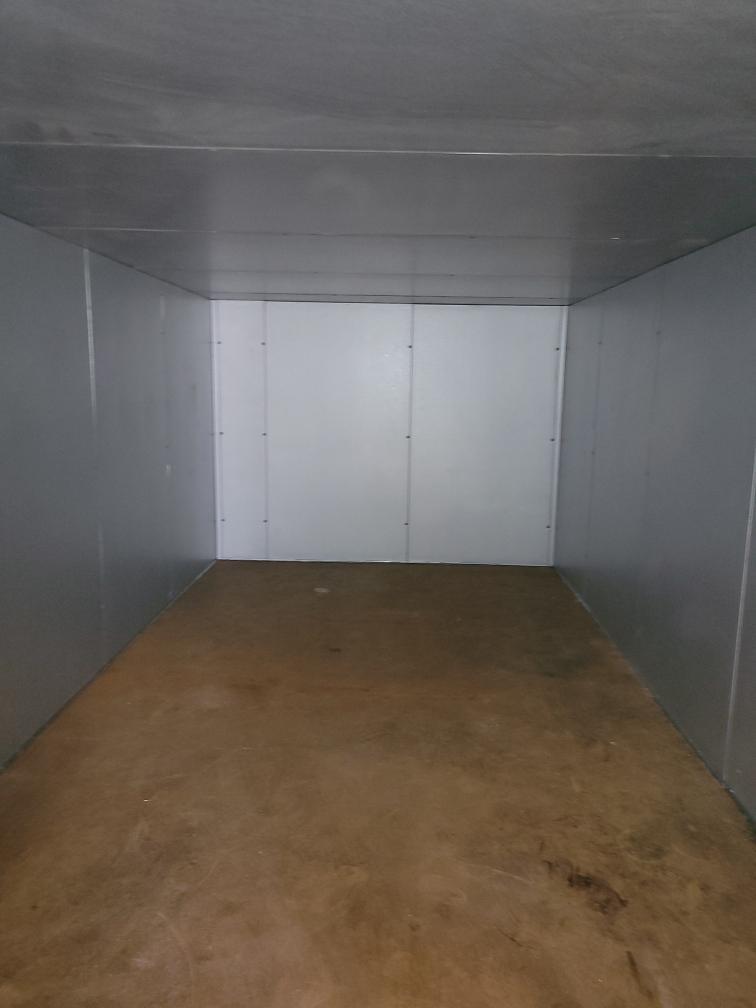

Internal (I.D.): 9' 5" x 19' 5" x 7' 1/2" - w x d x h

10 x 20 Walk-In Mortuary Cooler: Expertly Crafted Finishing Details
Wall Construction: Acrylume/Embossed: 26 Gauge - both interior and exterior
Ceiling Construction: Acrylume/Embossed: 26 Gauge - both interior and exterior
Wall Panel Thickness: 3.5" UL Listed Class 1
Ceiling Panel Thickness: 3.5" UL Listed Class 1

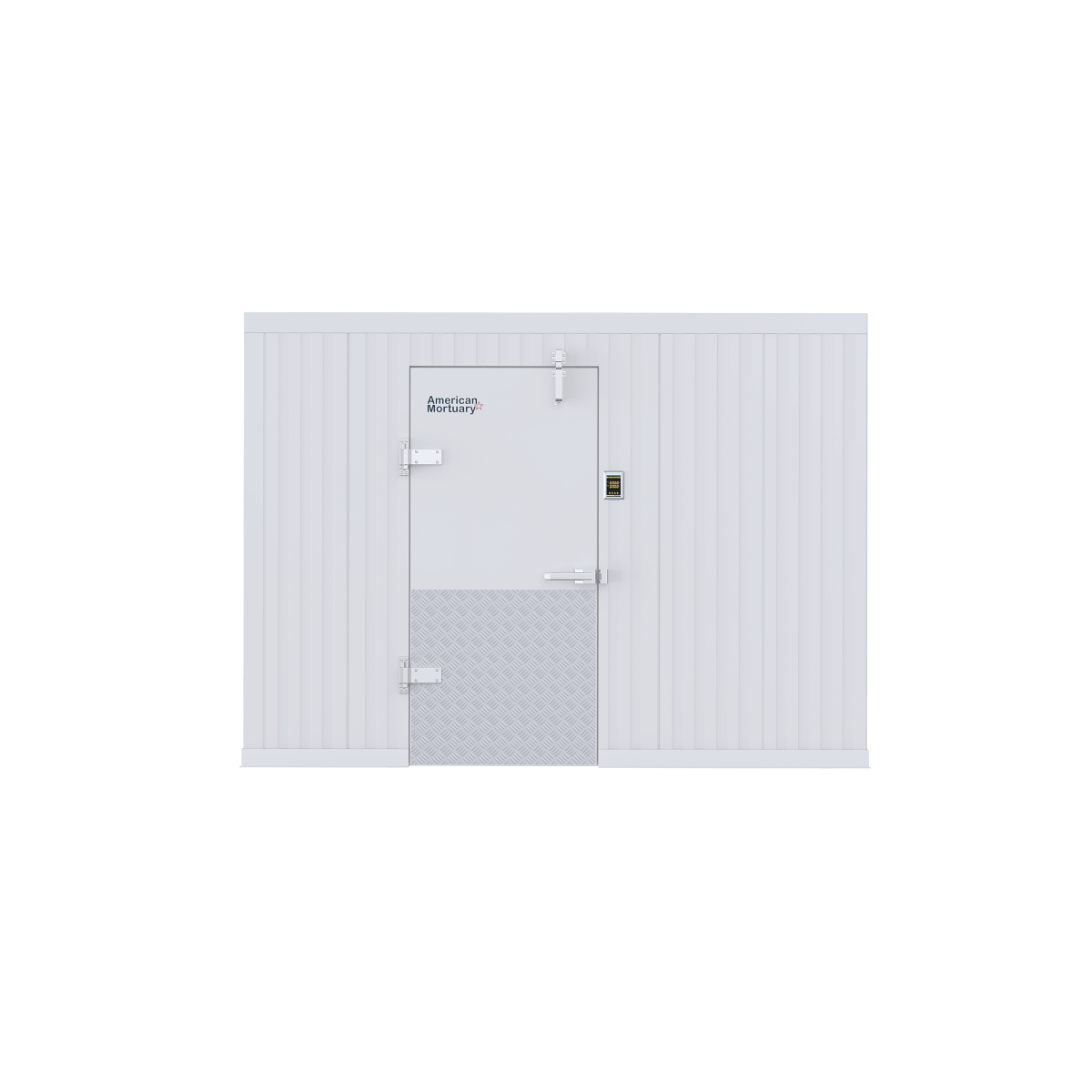

10 X 20 Mortuary Cooler Standard Features Include 1 Finished Door Opening:
36" x 78" hinged self-closing overlap cooler door

Qty 1 Latch  Brushed Chrome

QTY 1  Frost-Free Push Handle

Qty 1 Gasket- Magnetic

10 x 20 Refrigeration Specifications & Technical Information

Included Option: Two-Piece Condenser and Evaporator System

Upgraded options are available as a single-piece drop-in unit for an additional charge. Select from the drop down menu at the time of order.

Condensing Unit for Holding Cooler (Installed externally)

- Manufacturer: HTPG - RUSSELL DOE
-  Description: NEXT-GEN MINI-CON CONDENSING UNIT: EXTENDED MEDIUM TEMPERATURE:
- SCROLL COMPRESSOR: 208-230/1/60: FLOODED: NO DEFROST PROVISIONS:
ADJUSTABLE LOW PRESSURE CONTROL

1 x Evaporator (Internal Fan)
-Manufacturer: HTPG - RUSSELL DOE
- Description: Air defrost LOW-PROFILE WITH DUAL SPEED EC MOTOR : coil
- Model: RL6A094ADARE
x Extras: None
x Electrical: 115/1/60, Fan amps 1.6, Defrost amps N/A

Install Accessories Included (other installation items may be required and provided by the customer)

Qty 33 LAG SCREW 3/8-7 X 6 HEX HEAD GRADE A ZINC

Qty 2  LIGHT LED 45W 48" (switch and wiring is provided by the customer)

QTY 33  WASHER USS F/W 3/8

QTY 8 ALIGNMENT STRIP FOR 3.5" WOOD RAIL (96")

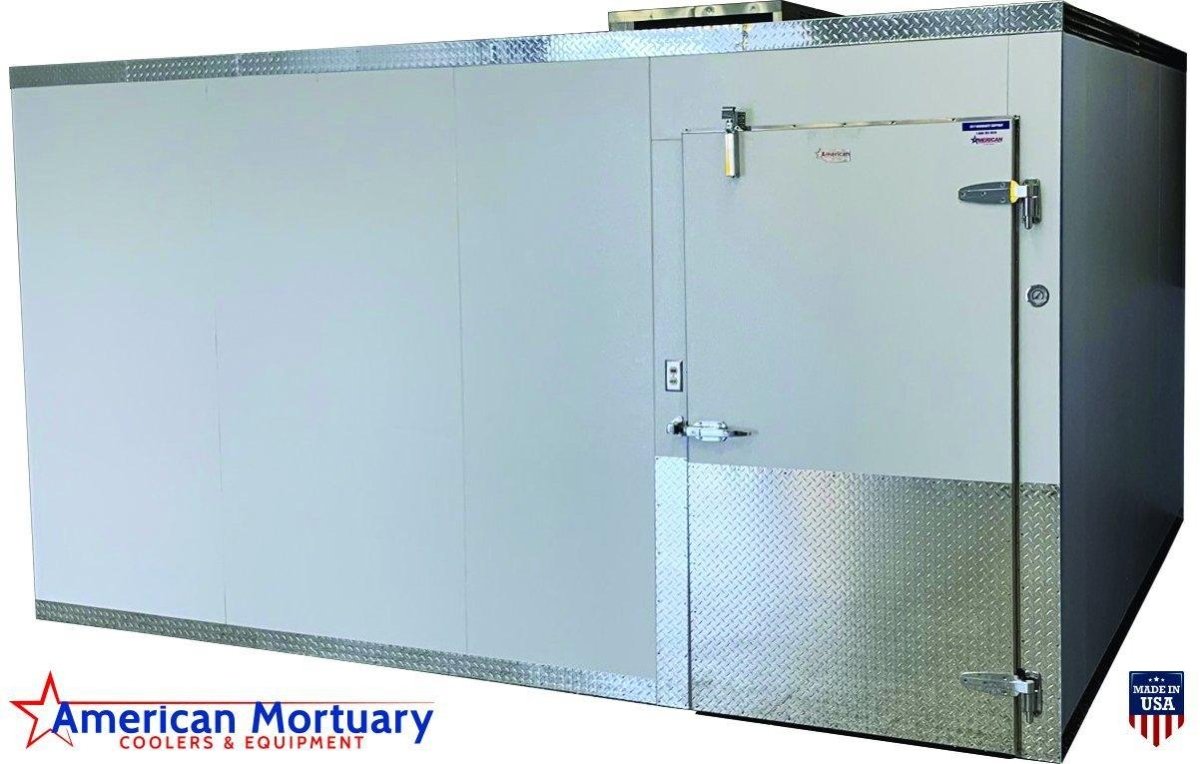

Additional information regarding American Mortuary Coolers Model# 1020

- The listed price excludes any relevant sales tax. For details on states where sales tax applies, please reach out to your customer service representative.

- Production schedules can affect lead times. For the most precise lead time, consult your customer service representative.

- Unless mentioned in the quote or specifically requested, structural or seismic calculations and materials are not included.

-The refrigeration layout depicted in the plan view is for reference only; actual installation should be directed by a refrigeration contractor or architectural plans.

-Additional materials may be necessary for the installation, which will be the responsibility of the installer or the customer.

- A licensed installer is required to carry out the installation.

- Actual freight costs may vary from the estimate provided. (The estimate reflects the shipping amount paid during online order checkout).

- All American Mortuary Walk-In Coolers must be placed on a level concrete or hard masonry surface. While floors are not included, they can be added for an extra fee. An unlevel installation may prevent the cooler from maintaining proper air circulation, potentially voiding the warranty.

- The mortuary coolers are engineered to sustain a temperature of 35°F when the surrounding environment is at 95°F, assuming products are introduced at 35°F with moderate foot traffic. It's essential to consider humidity and temperature; improper setup or failure to enhance refrigeration systems will void the warranty. Returns and warranty claims will not be accepted.

- White glove service is offered in the contiguous United States. For more details about this service, please contact us via email at sales@mymortuarycooler.com or call 1-888-792-9315.

-The Mortuary Cooler by American Mortuary has dimensions of 10 x 20 and a sturdy thickness suitable for long-term storage of bodies.



The cost of refrigeration is not included in the price. Our selection of refrigeration equipment provides various options for your needs.
