Choose Your Configuration

Select your build and door orientation in the product options above before adding to your order.

1. Cooler Box Only? — Full System vs. Shell Only

• No — I need the full system: the complete cooler — insulated box, three heavy-duty roller-rack shelves, and self-contained refrigeration. Turnkey and ready to run.
• Yes — cooler shell only (no racking, no refrigeration, no other options): the insulated cam-lock cooler box / shell only, for facilities replacing a worn shell while reusing existing shelving and refrigeration. Ships without shelving, refrigeration, or accessories.

2. Door Hinge Orientation

• Left-Hand Hinge or Right-Hand Hinge — determined facing the front of the unit. Confirm in narrow rooms or where wall clearance is limited.

Extra-Wide Bariatric Clearance — No Walk-In Required

Facilities searching for a 3-body extra wide cadaver cooler are usually solving three problems at once: the existing unit is too narrow for larger cases, a walk-in system isn't an option, and the install needs to work on existing power without a plumber, electrician, or contractor. The Model 3BX is built for exactly that.

Three-body storage. 36-inch bariatric interior clearance. Three individual roller-rack shelves. 100% self-contained — no drainage, no special electrical, no plumbing, no HVAC tie-in. Standard 110V. Built in Johnson City, Tennessee, with a 15-year panel and door warranty — factory direct.

What 36 Inches Means in Daily Operation

Standard upright coolers are built to 30-inch interior width. The 3BX runs at 36 inches — a 20% wider interior that changes working conditions three ways: it accepts 27-inch cadaver trays (standard units take 23"), it gives staff room to position correctly at each tier (reducing the angled movements that accumulate into injury risk), and it cuts the adjustments needed per transfer in repeated daily loading cycles.

No Drainage. No Special Electrical. No Contractor.

• No drainage required — 100% self-contained sealed system; condensate managed internally. No floor drain, drain line, or plumber.
• Standard 110V outlet — no dedicated circuit or electrician for most conditioned installs. Verify outlet condition, breaker rating & compatibility before ordering.

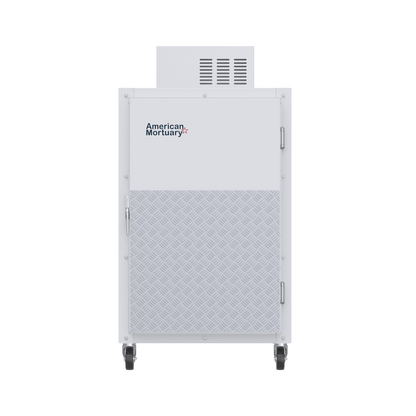

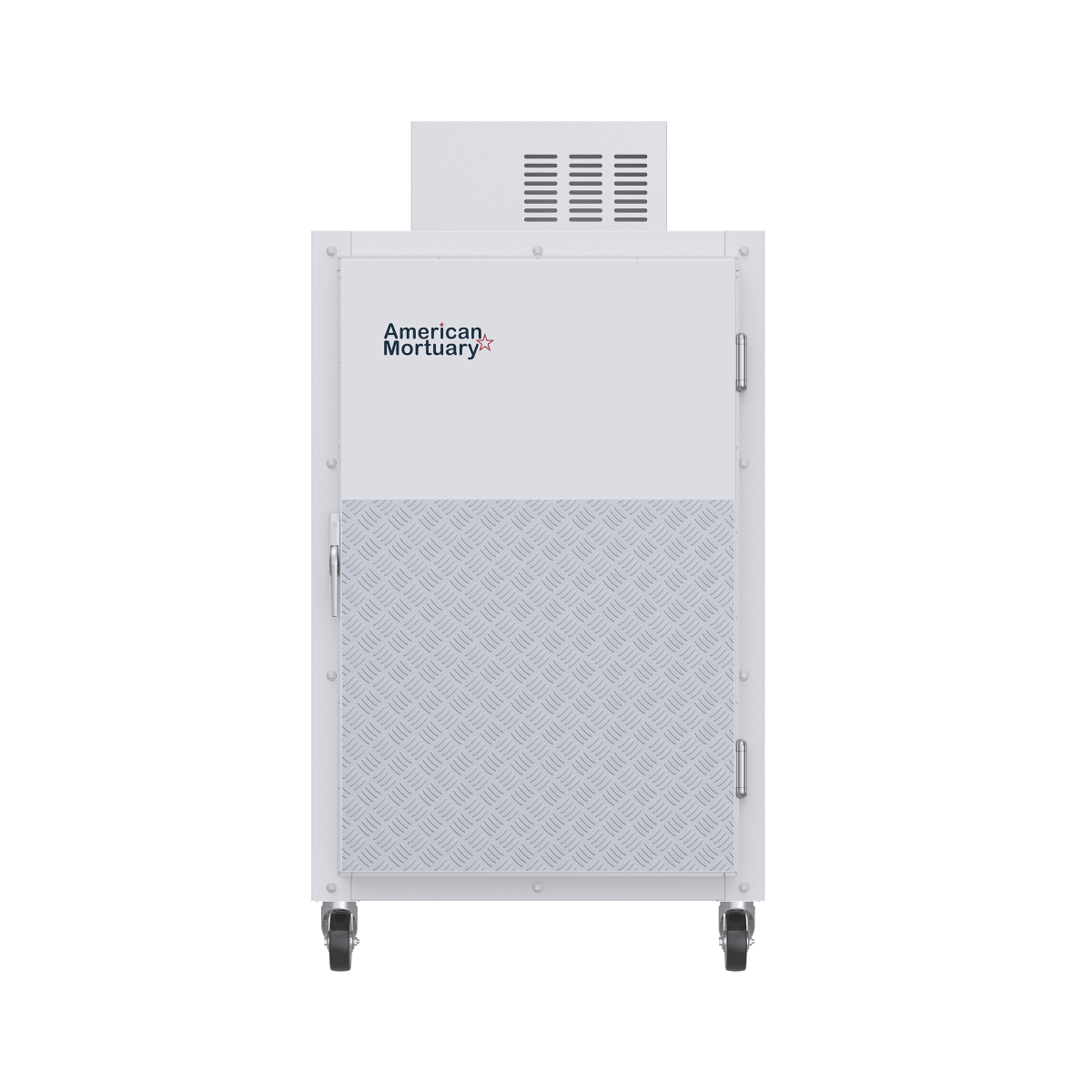

• No HVAC tie-in — drop-in self-contained refrigeration, compressor on top; no mechanical-room access or split-system coordination.

For facility directors and procurement officers, a purchase that needs no plumber, electrician, or HVAC contractor moves through approval faster and installs sooner.

Ambient Temperature — Confirm Before Ordering

The standard compressor is rated for conditioned rooms at or below 80°F ambient — covering most prep rooms, morgue storage, and pathology departments with standard climate control.

Key Performance Features

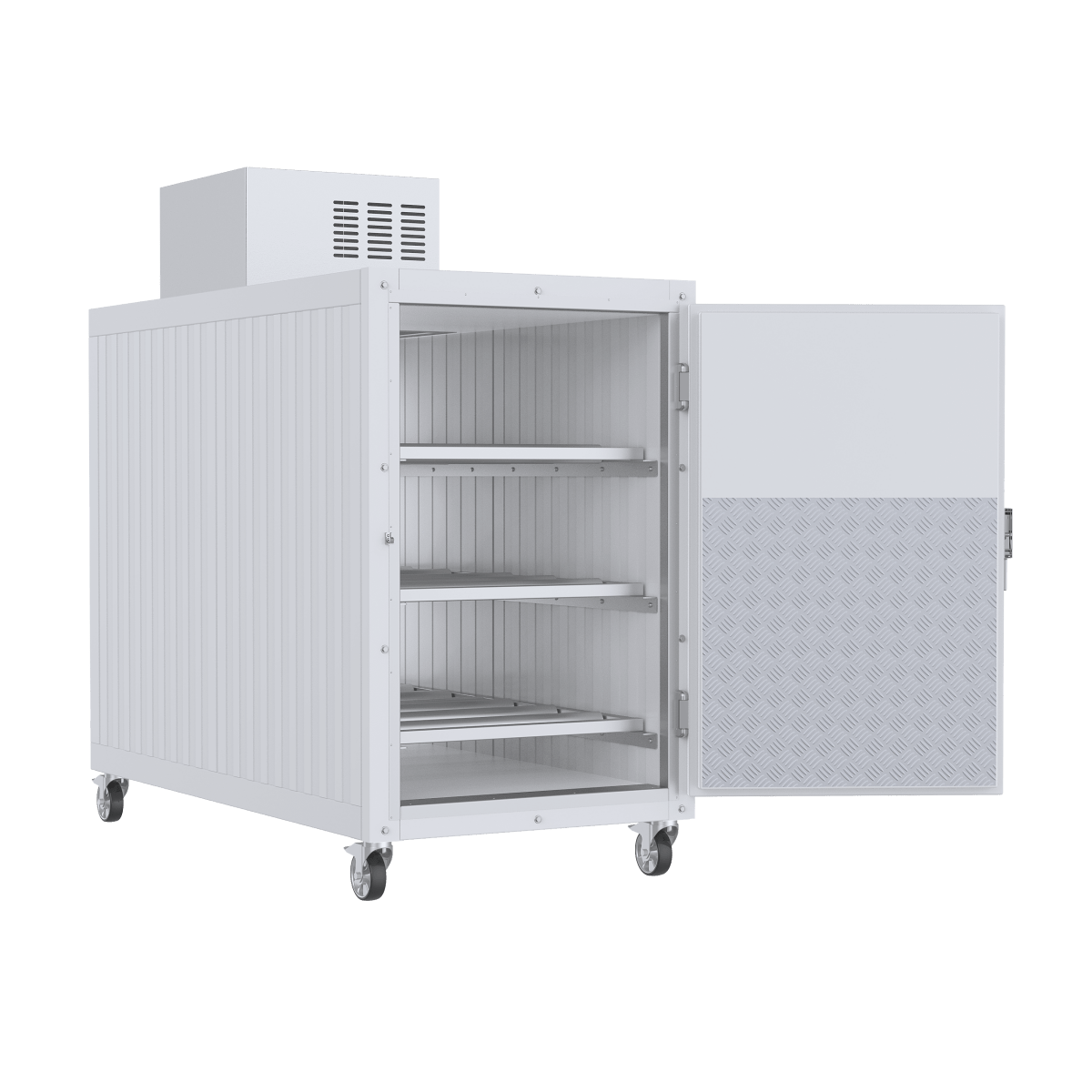

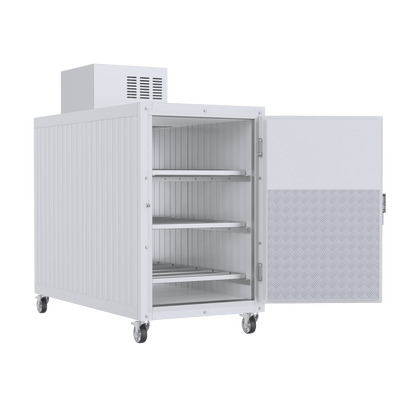

• 36-inch extra-wide bariatric interior — 86"D × 36"W × 60"H; the 36" opening accepts 27" cadaver trays and larger remains.

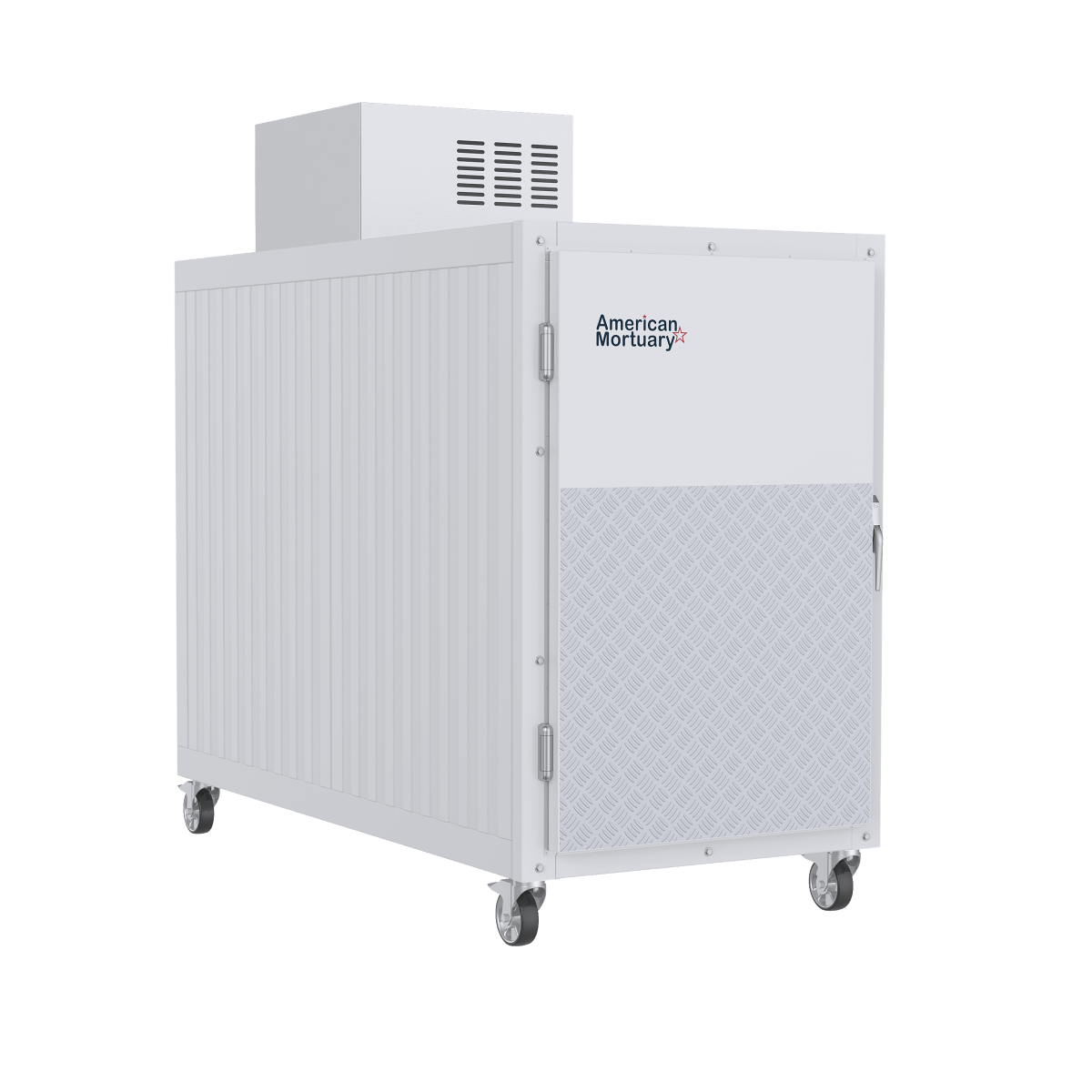

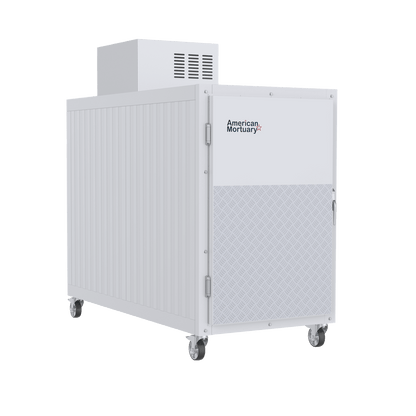

• Three individual roller-rack shelves — roller-bearing rails reduce friction and staff strain per transfer at each tier.
• Self-contained drop-in refrigeration — digital thermometer, easy-adjust controller, 34–38°F, fully sealed (no condensate management).
• 110V self-contained cooling — standard outlet for conditioned installs; no special electrical.
• Custom door swing — left or right hand — specify at order, determined facing the front.
• Optional accessories — four 6" heavy-duty casters (repositionable mobile configuration) and/or interior light.
• Heavy-duty chrome hardware & pressure-bonded polystyrene insulation — USA-manufactured for demanding morgue use.

Technical Specifications

Standard 3-Body vs. Model 3BX Extra Wide

Standard cases the norm? The 3-Body Standard Upright is more cost-efficient. Stepping up to 4-body at the same 36" clearance? The 4BX Extra-Wide 4-Body.

Warranty

• 15-year warranty on insulation panels & doors
• 5-year warranty on mechanical components
• 2-year warranty on parts & labor / core compressor parts

All coverage subject to written warranty terms, correct installation, proper environmental conditions, and normal professional use. Mechanical warranty requires installation within the rated ambient temperature environment; facilities above 80°F must order the appropriate compressor upgrade to maintain full coverage. Backed directly by American Mortuary Coolers, Johnson City, Tennessee.

Shipping & Logistics

• Assembled or unassembled — depends on order, freight route, and receiving access.
• Forklift required at delivery for facilities without a loading dock, whether shipped assembled or unassembled (due to unit size).
• Assembled shipments: casters are mandatory for structural balance in transit.
• Unassembled shipments: customer moves panels from the freight drop to the install site.
• Freight estimates: checkout charges are estimates; may adjust for remote/residential delivery, limited access, fuel surcharges, or accessory weights.

Lab & Government Procurement

Factory-direct pricing with warranty support from the team that builds the unit. We serve funeral homes, rural county & hospital morgues, coroner & ME/forensic facilities, crematories, and government buyers across all 50 states — with RFP/bid support, W-9 on file, net terms, and export documentation (HS code 8418.50.00.80). General: cool@mymortuarycooler.com · Procurement/PO: procurement@mymortuarycooler.com · Request W-9 · Export docs.
