American 4 Body Dual-Door Upright Mortuary Cooler – Compact

The 4 body dual-door compact upright mortuary cooler holds four bodies in two 2-body compartments so each door opens only half the cabinet; 115V plug-in, 34–40°F, American Mortuary Coolers, from $15,835.05.

Refrigeration manuals and startup guide

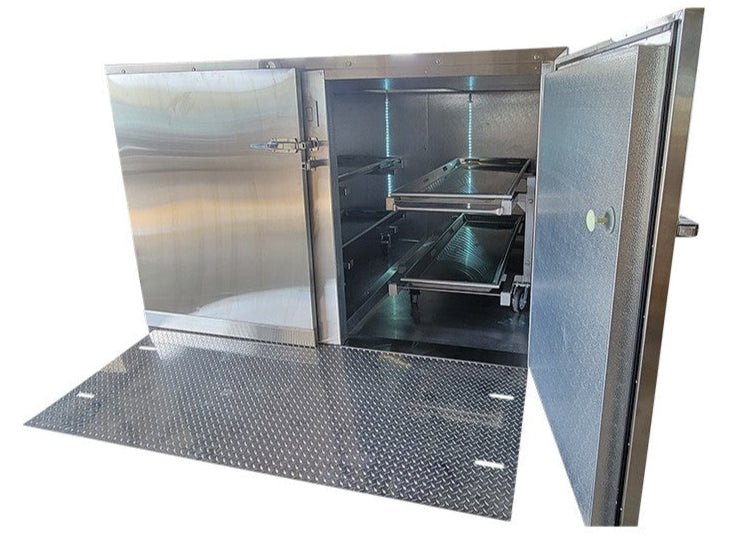

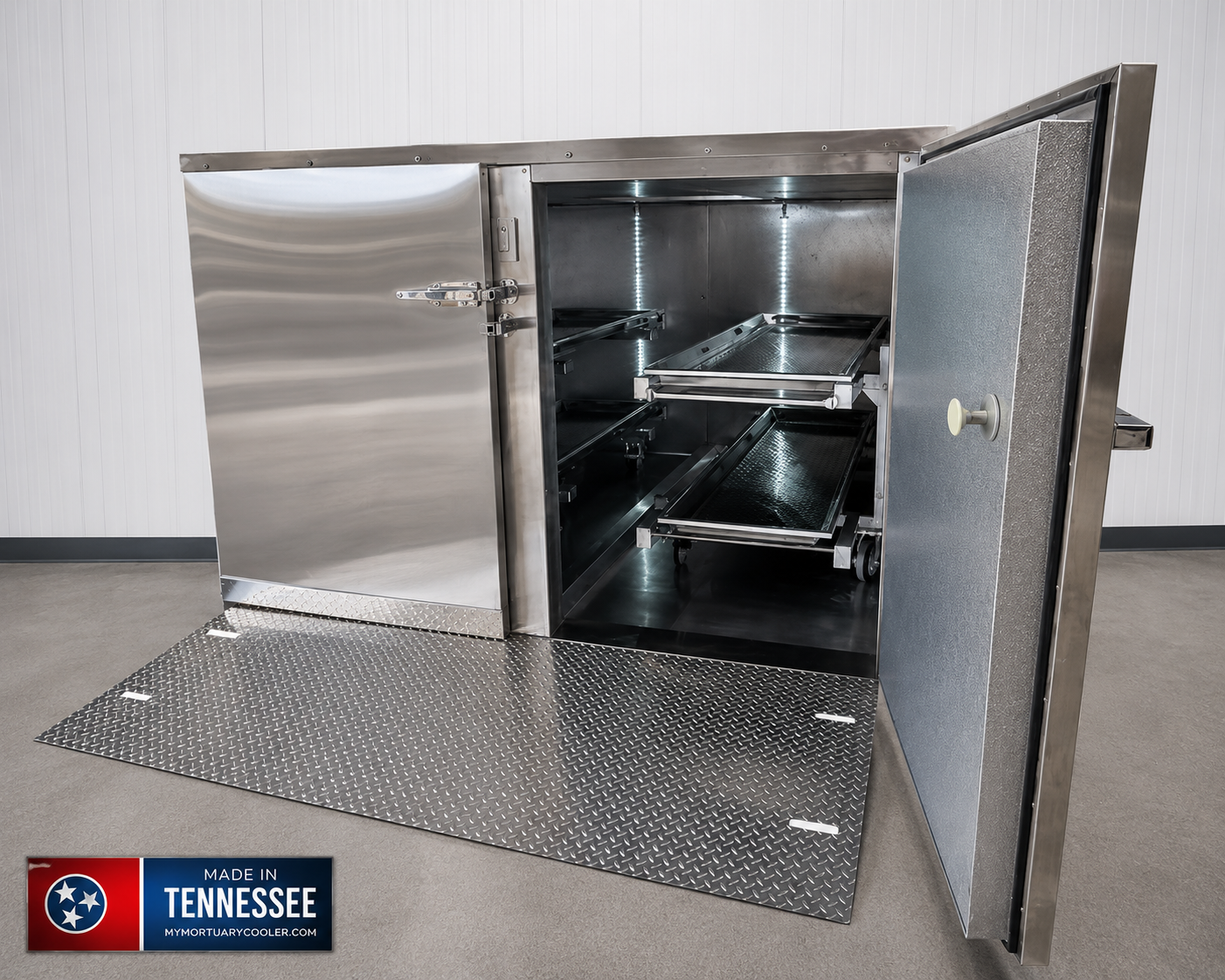

The 4 Body 2-Door Compact Mortuary Cooler (Model 2000-4B2D) is a plug-in, upright morgue cooler that holds four bodies in two independent 2-body compartments. Each door opens only half the cabinet, so every retrieval loses less cold air than a single-door 4-body cooler. That keeps holding temperature steadier for funeral homes, hospital morgues, county medical examiners, crematories and removal services with frequent door openings.

It is a floorless, roll-in style cabinet that ships unassembled as a cam-lock panel kit. Storage is hybrid rack or roll-in, rated 600 lbs per position. Self-contained 115V refrigeration mounts on top of the cabinet, with no hard-wiring required. The listed price is the base unit: lighting, an insulated floor with ramp and other changes are built to order, and Level 1–3 refrigeration upgrades are available for warm rooms.

At a glance

• 4-body capacity: 2 compartments of 2 cadavers each
• Ships unassembled · no floor · customizable: base unit at the listed price
• Dual-door access: cold-loss control per retrieval
• Hybrid storage configuration: rack or roll-in flexibility · 600 lbs per tier
• Modular insulated cabinet, 4″ urethane core
• Self-contained refrigeration: 115V single-phase, NEMA 5-20R plug

Ships Unassembled · No Floor · Built to Order, Read Before You Order

• Ships unassembled. The 4 Body 2-Door arrives as a knock-down panel kit and is assembled on site with cam-lock panels. It is not available factory-assembled. Plan a clear path for the crated panels to the install room, and assembly time on site.
• No floor. The standard cabinet is floorless (roll-in style). It sits directly on your existing floor, so the floor must be level, sealed and cleanable. An insulated floor with a loading ramp is available only as a custom upgrade, by quote.
• Customizable, listed price is the base unit. Interior LED lighting, insulated floor and ramp, door swing and other changes are built to order and quoted separately. Call 1-888-792-9315 or email cool@mymortuarycooler.com before ordering a custom build.

Factory drawings with exterior, interior and door-opening dimensions are provided with your quote. Confirm door width and height, ceiling height (cabinet + top-mount refrigeration + 16″ compressor clearance) and the delivery path before ordering.

Physical Dimensions & Configuration

Customization Options (Quoted)

Specifications

Electrical & Compressor Specifications

Amperage: 4.6 A, 115V · 1-phase · 60 Hz · Plug type: NEMA 5-20R, cord & plug supplied

Plug-and-play on a dedicated 115V / 20-amp circuit, no hard-wiring required. A stamped electrical schedule ships with every quote.

Required Air Clearance & Owner Maintenance, Policy VC-1.1

Standard on all AMC drop-in refrigeration systems.

• 1″–1.5″ minimum air gap around the entire cabinet: all sides and rear, maintained permanently.
• 16″ minimum unobstructed clearance above and around the compressor / condensing unit for airflow, heat rejection, and service access.
• No shelving, cabinetry, soffits, dropped ceilings, boxed enclosures, adjacent equipment, or stored goods may encroach on either envelope.

Owner Maintenance Responsibility

The customer is responsible for ongoing maintenance of the compressor and refrigeration system, including annual professional service as needed, coil cleaning, drain-line clearing, gasket inspection, and verification of refrigerant charge and temperature performance.

Published exterior dimensions do not include required clearance, add it when planning your space.

Ambient Room Temperature & Refrigeration Sizing, Read Before You Order

The temperature of the room around your cooler matters as much as the cooler itself. Every refrigeration system rejects heat into that room. The hotter the room, the longer the compressor runs, and the harder it is to hold a steady 34–40°F . Standard refrigeration is sized for a conditioned, ventilated indoor room . If your space runs warm, upsize the refrigeration when you order.

Why ambient temperature is critical

• Holding temperature: an undersized system in a hot room cannot recover after each door opening, so box temperature drifts above 40°F.
• Compressor life: long, continuous run times in high heat wear out the compressor and fans early.
• Condensation & humidity: warm, humid rooms produce more condensate. Connect the drain line, and route it to the external drain or a condensate pump.

How to choose

• Account for heat from nearby equipment, sun-facing walls, bay doors and how often the cooler is opened.
• Keep the required clearances: 1″–1.5″ around the cabinet and 16″ above and around the compressor. A blocked compressor behaves like a hot room.
• Install indoors only. Unconditioned garages, mechanical rooms and rooms next to crematory retorts need a review before ordering, call 1-888-792-9315.

If the room runs warmer than 75°F, choose a Refrigeration Upsize option above.

Important, Read Before Startup: 2026 Packaged Refrigeration System

Due to the changing refrigerant models under new Freon regulations and updated guidelines, it is critical that you completely read all startup instructions before using your packaged refrigeration system. Please be sure you understand your startup settings and the proper overflow and humidity drainage ports, which require hose adapters.

Condensation Drain Requirement

All 2026 Heatcraft compressors require a drain hose attached to the drain port for condensation, to maximize energy efficiency. Connect the supplied drain line to the drain port before startup.

External Drain Connection

In high-humidity environments or during continuous heavy run-times, the unit may experience overflow. To prevent this, the indoor unit is equipped with a 3/4″ NPT external drain connection that can be routed to an external drain line or a field-supplied condensate pump.

Internal Re-Evaporation

Indoor PRO³ models include a hot-gas re-evaporation pan beneath the compressor, which uses hot refrigerant gas to evaporate condensation naturally during normal operation.

2026 and Forward, Heatcraft PRO³

2026 and later packaged Heatcraft PRO³ systems include many new features made possible by an extremely high-efficiency process. Reviewing the startup documentation ensures these systems perform as designed.

American Mortuary Coolers accepts no liability or responsibility for a customer's failure to properly start up the new AW2 fully packaged, plug-in refrigeration units. If you have specific questions regarding functions and operations, please reach out prior to ordering.

Full startup manuals and tech bulletins: Packaged Refrigeration Manuals & Startup Guide

Questions before you order? Call 1-888-792-9315 or email cool@mymortuarycooler.com.
