4 Tier Side-Loading Mortuary Rack

American Mortuary Equipment American Mortuary Equipment
  • 4 Tier Side-Loading Mortuary Rack

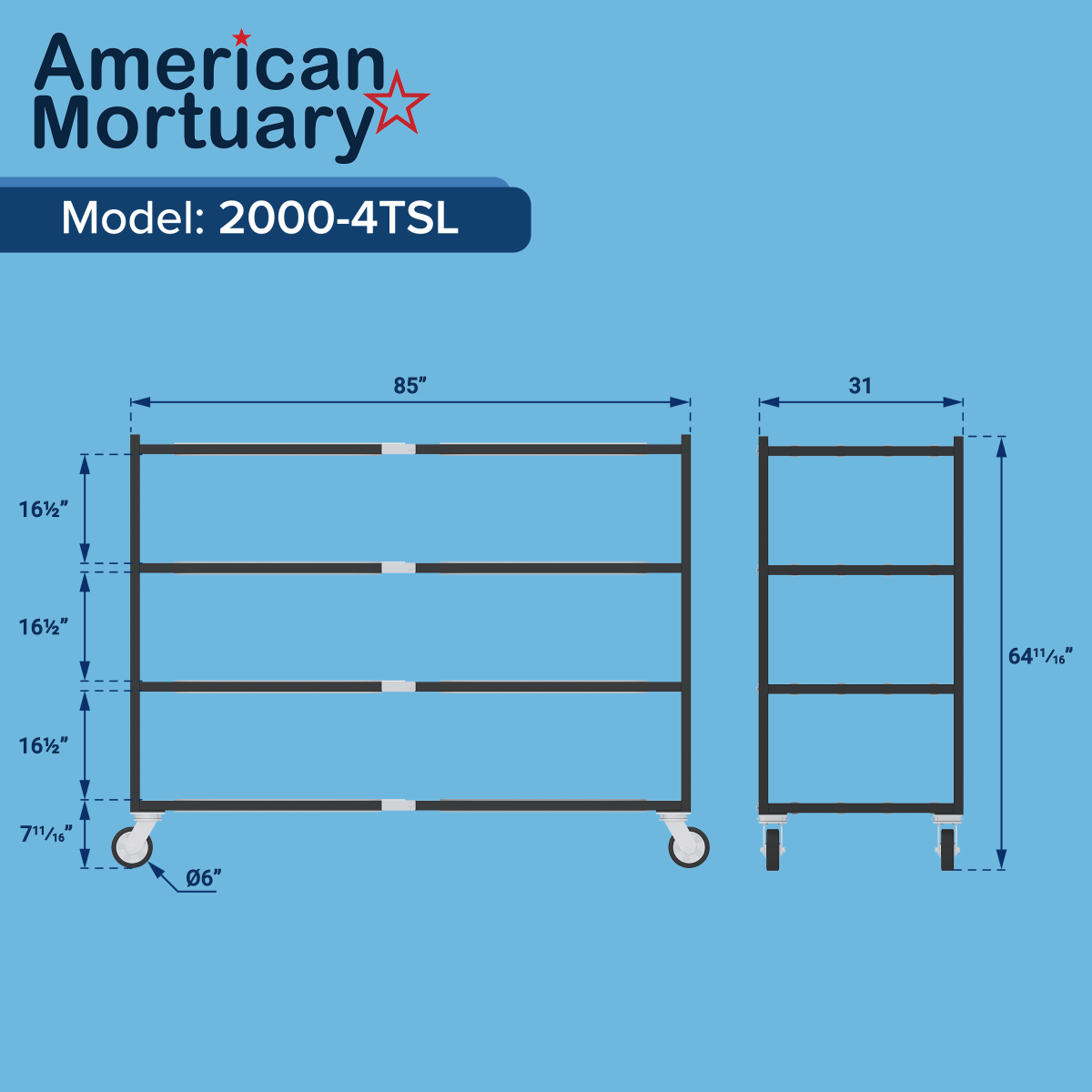

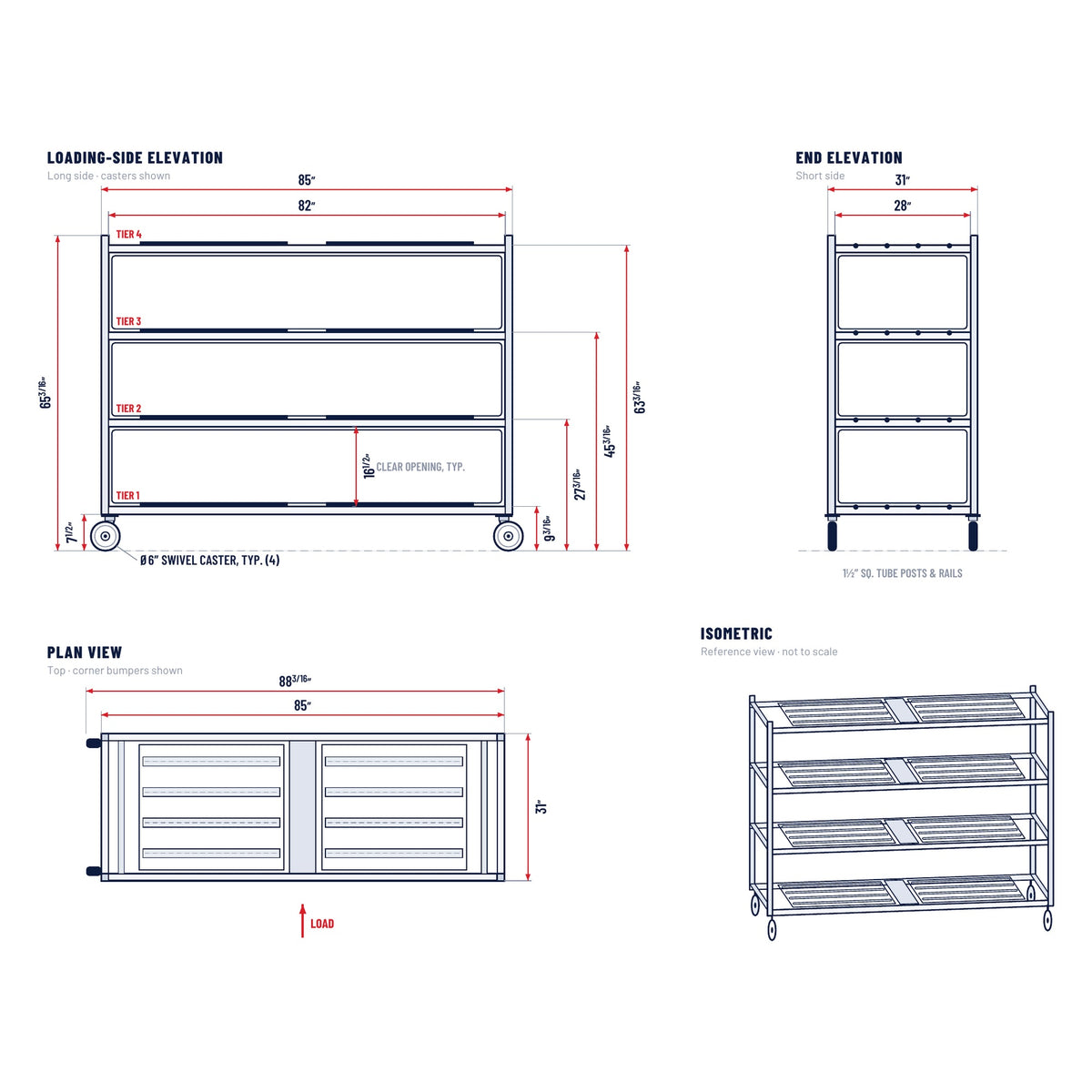

  • AME 2000-4TSL 4-tier side-load mortuary rack dimension drawing, 85 x 31 x 65 3/16 inches

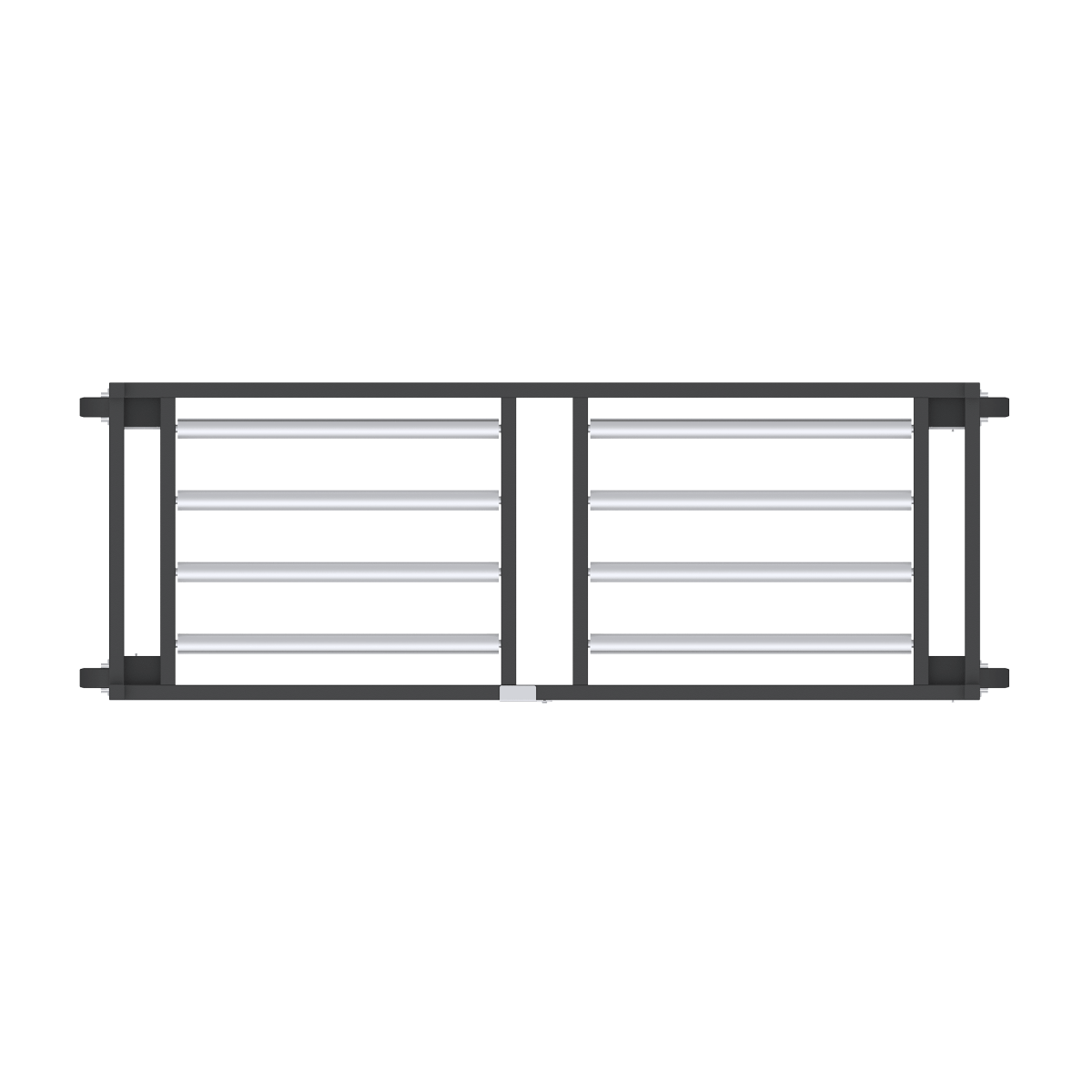

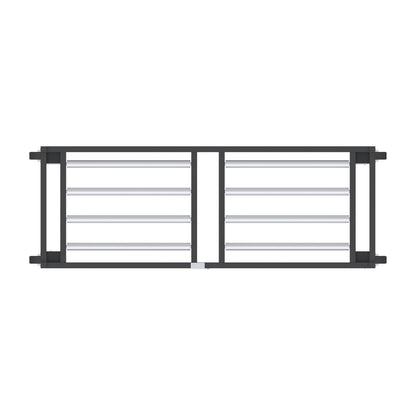

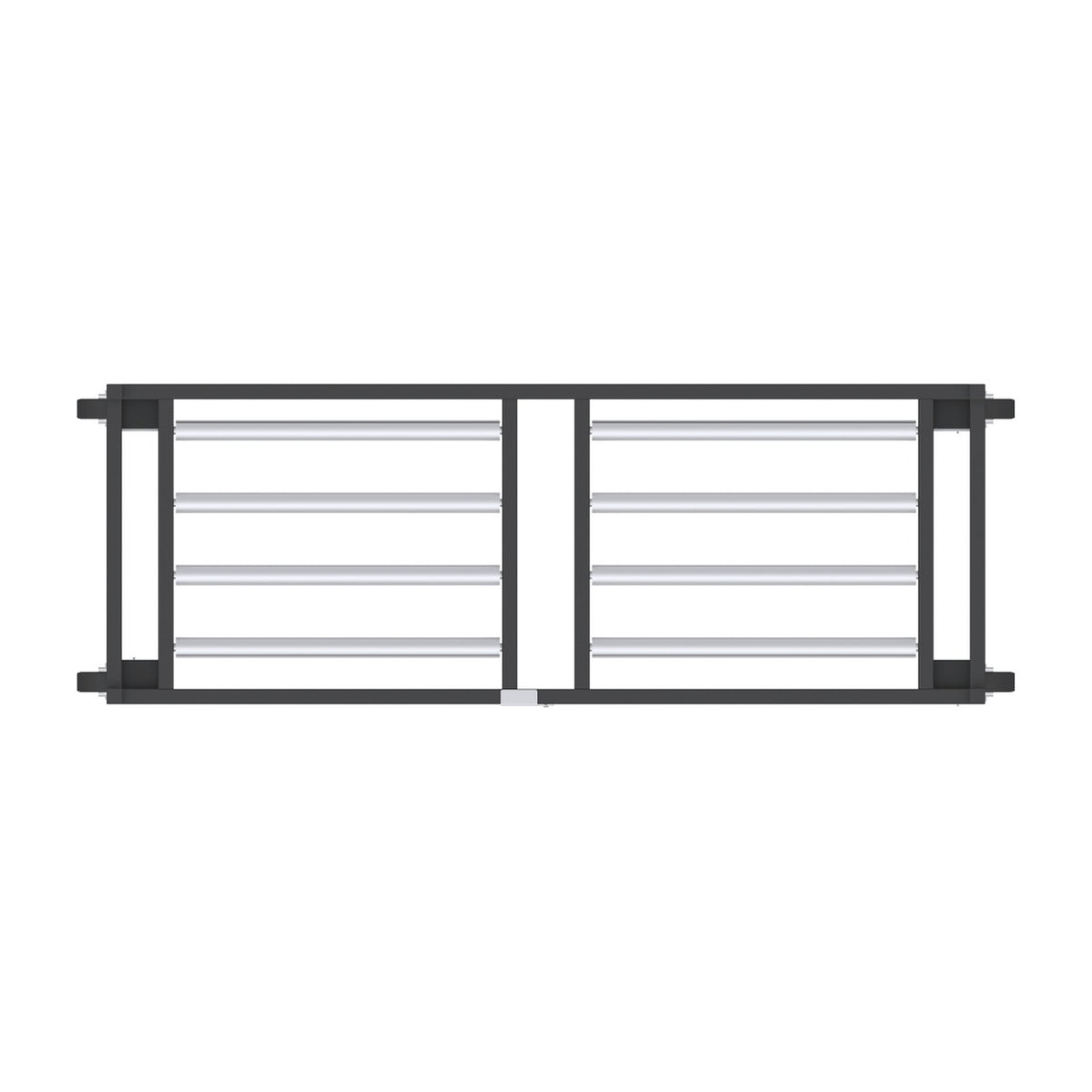

  • AME 2000-4TSL side-load mortuary rack plan view with two roller panels per tier
  • 4 tier side-loading mortuary rack climate-controlled installation, market-leading cadaver storage | American Mortuary Equipment
  • Close-up of the smooth gravity-free roller bars on the mortuary rack, designed for ergonomic handling | American Mortuary Equipment
  • Expandable mortuary rack side loading with casters | American Mortuary Equipment

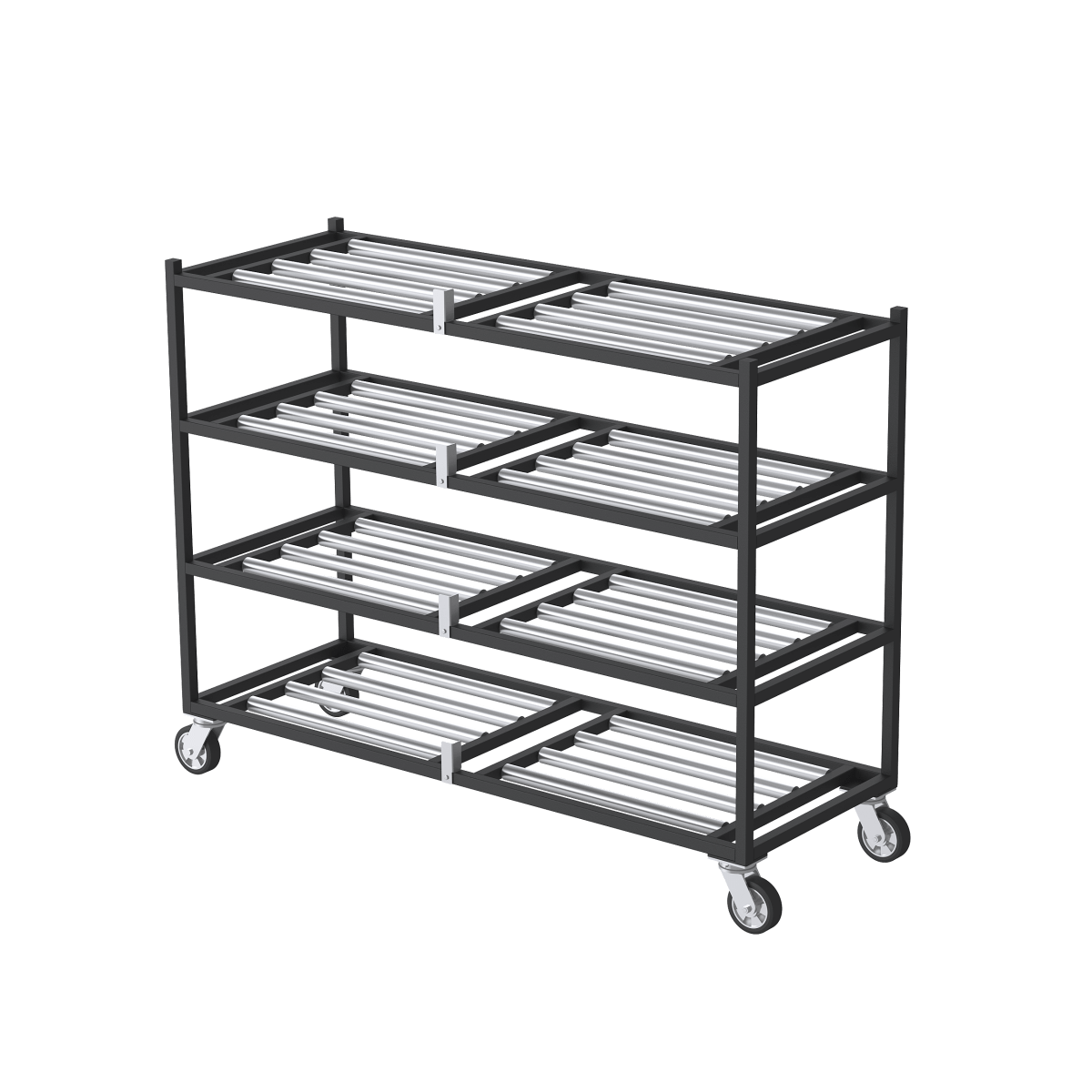

  • 4-tier side-loading mortuary rack, USA-made cadaver storage shipped nationwide | American Mortuary Equipment
  • Side profile of the mortuary rack, emphasizing its side-loading configuration for optimal cooler access | American Mortuary Equipment
1 8
Sale

Model: Model 2000-4TSL · 2026 Model

Documents Drawing & install sheetPDF · Download WarrantyPolicy WR-1.0 All manuals

Model / SKU: Model 2000-4TSL

$1,484.01
$2,021.89 $1,484.01

Pay over time with Shop Pay

Pay in full or choose a flexible payment plan with Shop Pay. Available plans depend on your order and eligibility.

Flexible payments starting at 0% APR. Review the payment options offered to you at checkout.

Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.

Estimated from Apply with TimePayment Apply for financing Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.
American Express DiscoverMastercard Visa Zelle® ACH

Pairs with this rack

The Low Profile Mortuary Lift works with every rack tier and every upright cooler model, for safer, faster body transfers.

Low Profile Mortuary LiftBattery powered · lowers to 13″
Shipping calculated at checkout.

How many racks?

List price

Mix any AMC racks: side-load, end-load, multi-directional and cantilever all count together. Savings apply automatically in the cart.

Add boards & trays

Sold separately
HD plastic mortuary barrier board for supported rack and cooler storage
HD Storage Board 23.5″ × 76″ · standard width $166.32 each
0
TITAN 23 inch stainless steel mortuary body tray
TITAN 23″ Tray Standard · 18 gauge stainless $536.70 each
0
TITAN 27 inch stainless steel mortuary body tray
TITAN 27″ Tray Oversize · 16 gauge stainless $770.40 each
0

HD boards are storage barrier boards, not for lifting or transfer. Trays and boards are quantity per order, not per rack.

Add a loading lift

Optional
Package total
Outfitting a full cooler or several sites? Build a bulk package →

Featured equipment

View all
Purchase terms & policies Shipping, returns, warranty and financing disclosures

Key details

  • Overall length: 88 3/16" with corner bumpers (85" frame outside, 82" inside)
  • Width: 31" outside, 28" inside
  • Overall height: 65 3/16" from the floor
  • Tier heights, floor to top of tier: 9 3/16", 27 3/16", 45 3/16", 63 3/16"
  • Tier spacing: 18" tier to tier, 16 1/2" clear opening
Full description & specifications

Product information

Product details & specifications

Product details

Product description & specifications

A mortuary rack organizes body-storage positions or supports the specified storage accessories. Pricing for 4 Tier Side-Loading Mortuary Rack starts at $1,484.01 for the listed configuration.

Match tray dimensions, position ratings and the loading arrangement to the intended equipment; included components are model-specific. Browse Mortuary Lifts, Racking Systems & Storage Trays for related options.

Cover of the AME TITAN 2000-4TSL 4-Tier Side-Load Mortuary Rack Sign-Off Drawing & Install Sheet, American Mortuary Equipment PDF

Form AME-SO-2000-4TSL · Rev. A · PDF

AME TITAN 2000-4TSL 4-Tier Side-Load Mortuary Rack Sign-Off Drawing & Install Sheet

Dimensioned drawing, order quantities, customer sign-off, lift compatibility by tier and installation steps. Scan the QR code to order or email the signed sheet back.

Download PDF

The 4-Tier Side-Loading Mortuary Rack, Model 2000-4TSL, stores four bodies on tiers that load from the 85" long side. Lengthwise rollers in two panels, split by a center divider, let trays roll sideways onto each tier. It suits coolers where racks sit parallel to the aisle.

Dimensions

  • Overall length: 88 3/16" with corner bumpers (85" frame outside, 82" inside)
  • Width: 31" outside, 28" inside
  • Overall height: 65 3/16" from the floor
  • Tier heights, floor to top of tier: 9 3/16", 27 3/16", 45 3/16", 63 3/16"
  • Tier spacing: 18" tier to tier, 16 1/2" clear opening
  • Four 6" swivel casters
  • Frame: 1 1/2" square tube posts, welded steel, powder-coated

Low-profile build. Every AME 4-tier rack places tier 1 at the very bottom of the frame (9 3/16" from the floor). We do not build a raised first tier on the 4-tier models.

Loading height notice

Tier 1 sits below the lowest deck height of every AME lift. The TITAN 1030-LPL low-profile lift (13" minimum) is the AME lift intended for low-tier work with this rack. Manual lifts with a 20 1/2" minimum, including the H1000-M, cannot reach tier 1. Measure and confirm transfer heights before ordering. American Mortuary Equipment is not responsible for lift selection or ordering errors. See the Returns & Cancellations Policy (RC-1.0) and Terms of Purchase (TC-1.7).

Before you order

  • Cooler interior height clears the 65 3/16" posts plus the evaporator, lights and door header.
  • Floor space for 88 3/16" x 31" per rack, plus wall and evaporator clearance.
  • Leave a clear aisle along the loading side wide enough for the lift and tray to line up square with the rack.
  • Trays and boards are sold separately. TITAN 23" and 27" stainless trays fit the 28" inside width.

Ships unassembled for two-person, stack-together setup. Warranty coverage is listed in the Warranty Policy (WR-1.0).

Custom sizes, signed sheets and purchase orders: 1-888-792-9315 · po@mymortuarycooler.com

Casters and powder-coat finish

The rack rolls on four Ø6″ swivel casters, each mounted on a steel plate at the foot of a corner post. The plate spreads a loaded tier's weight across the caster instead of a single stem, so the rack rolls smoothly across a cooler floor and stays square when it's moved full. Casters sit 7 11/16″ from the floor to the bottom of the frame.

The welded 1½″ square-tube frame is powder-coated after fabrication. The baked finish stands up to tray contact, cold and condensation inside a walk-in cooler and cleans with a mild detergent and water. Custom powder-coat colors and stainless frames are available on request.

Rack warranty

American Mortuary Equipment mortuary racks are warranted part by part, with the longest term on the welded structure that carries each tier.

PartCoverage
Structural frame, including welds, joints and connections (bolts and rivets excluded)15-year limited structural warranty
Roller bearings5-year limited warranty
Powder-coat finish5-year limited finish warranty, with proper maintenance and care
Casters, bolts, rivets and other parts1-year limited warranty

Loads must stay within the rated capacity per tier. Clean painted surfaces with a mild detergent; chlorine bleach, solvents and abrasive pads void the finish warranty, and chips from impact are not covered. Minor cosmetic marks that do not affect fit or function are not defects. On stainless steel racks the welded stainless frame carries the same 15-year structural warranty, and surface scratches or discoloration are not covered.

Coverage applies to defects in materials and workmanship under normal use, starting on the date of delivery to the original end user unless a different start is stated above. It is not transferable, and freight to and from our facility is not covered. Claims are made in writing with the order number, photos and a short description; claim handling follows the Warranty Policy (WR-1.0).

See every American Mortuary Equipment warranty in one place

4 Tier Side-Loading Mortuary Rack: plan the fit before ordering

An affordable mortuary rack must fit the room and the transfer workflow. For the 4 Tier Side-Loading Mortuary Rack, compare the listed number of tiers, loading direction, overall dimensions and rated load with the space and equipment already in use. Check the clearance needed to move trays or boards into position.

Coordinate the rack, trays and lifting equipment

Review the listed tray or board compatibility and confirm which components are included. Do not infer capacity or compatibility from tier count alone. Compare the selected configuration with the other mortuary racks and lifting equipment before choosing the storage layout.

For replacement racks or a phased facility project, request an itemized mortuary-rack quote with the model, quantity, loading requirements and delivery location. Separate current purchasing from future budget phases, and review the equipment price, freight, tax and any financing cost as distinct parts of the decision.

Flexible payment options, with clear terms

Review the payment methods offered at checkout for your order. If a payment plan is available, its options and eligibility are shown by the provider. The equipment price and any financing cost are separate; compare the full payment terms before choosing a plan.

Enter payment details only in checkout or the payment provider's application. Use general customer support for product and order questions, not for sending full card numbers or sensitive financing information.

Specifications & product identity

Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.

Product identity
Brand / vendorAmerican Mortuary Coolers & Equipment
Equipment typeMortuary Rack
SKUModel 2000-4TSL

Dimensions & fit

Published dimensions remain in Product details when a separate dimensions section is not available.

FAQs & buying help

How can I ask a question about this product?

Contact our team with the product name and the specification or option you want to confirm.

What should I include when requesting a quote?

Include the product, quantity, required configuration and delivery location in your quote request.

Where can I review shipping and purchase policies?

Open Shipping & support for the published freight, returns and custom-order policy links.

Resources & documents

Product-specific documents and planning links remain in Product details when a separate resources section is not available.

Plan delivery. Review the details.

Review the published policies and confirm product-specific requirements before placing your order.

Delivery planningFreight & shipping guide Purchase policiesReturns & cancellationsConfigured equipmentCustom built-to-order policy Product questionsContact buyer support

Ordering questions

How can I confirm fit before ordering?
Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.
Where is shipping confirmed?
Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.
