3BXW-RH-STD-KIT

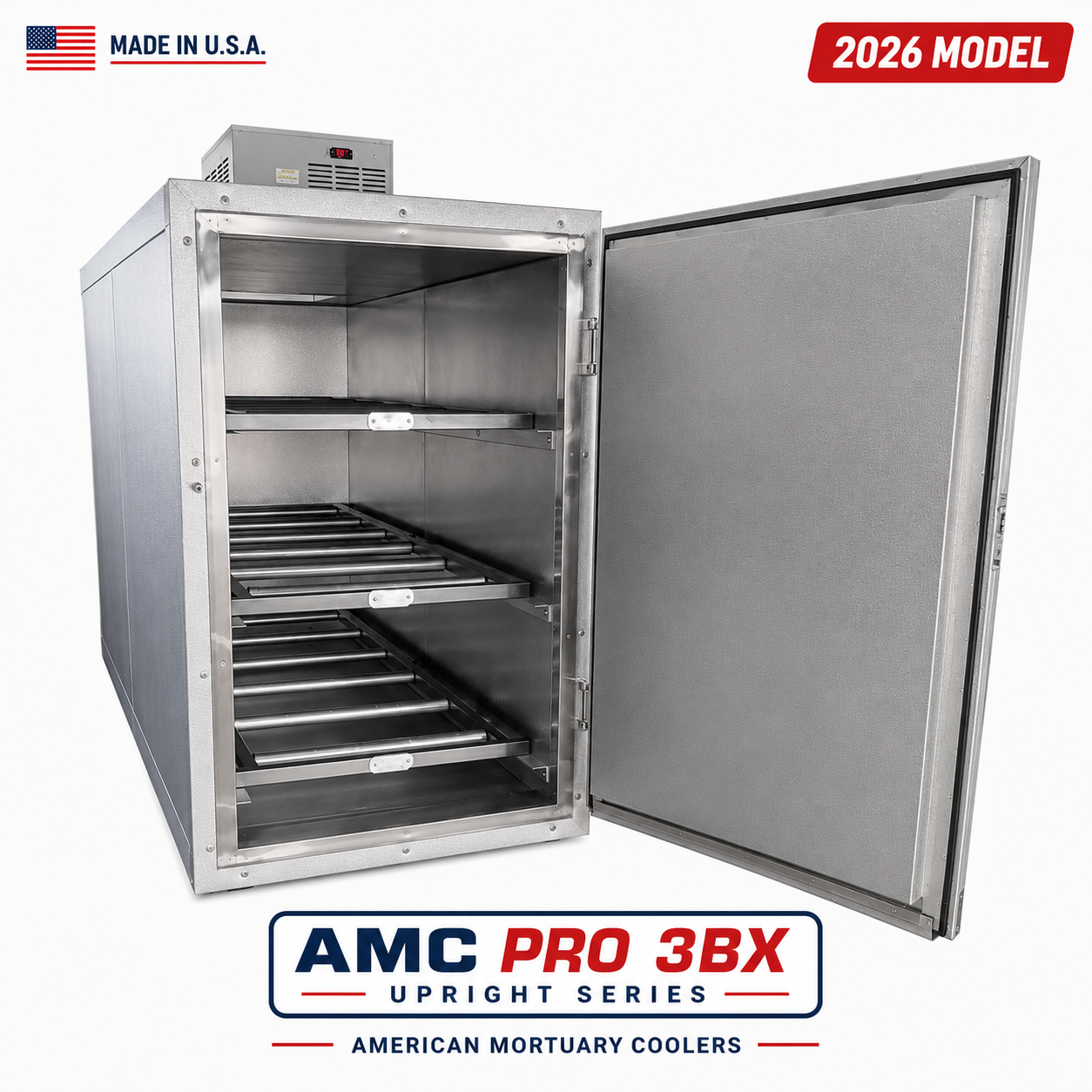

3 Body Bariatric Mortuary Cooler
Regular price $8,596.36Sale price $8,596.36 Regular priceUnit price per$8,999.25Shipping calculated at checkout.β WARRANTY NOTICE β NO EXTENSION CORDS
This unit must plug directly into its own dedicated 115V, 20-amp circuit (NEMA 5-20R receptacle). Use of any extension cord, power strip, or plug adapter immediately voids the warranty and can damage the compressor. Details: Warranty Policy.
Over
21k mortuary products sold since 2009
FREE DOWNLOADSπ A2L Refrigerants & 2026 Price Reality Flyerπ Manuals & Startup GuideBariatric-capable 3-cadaver upright β extra-wide cabinet clearance, 850 lbs per tier, rack-loading, self-contained 115V refrigeration, built in Johnson City, Tennessee.
At a glance
- 3-body capacity β bariatric-width cabinet Β· 850 lbs per tier
- Door hinge β Left, Right, or Either at no charge β specify in order notes at checkout or call 1-888-792-9315
- Modular insulated cabinet, 4β³ urethane core
- Self-contained refrigeration β 115V single-phase, NEMA 5-20R plug
- NSF, UL, ASTM E84 certified
- 15-year structural panel warranty Β· made in the USA
Physical Dimensions
Exterior (no casters) 94"D Γ 44"W Γ 72"H Exterior (with casters) 94"D Γ 44"W Γ 77"H Exterior (with 15" cooling unit) 94"D Γ 44"W Γ 87"H Exterior (casters + 15" unit) 94"D Γ 44"W Γ 92"H Interior usable space 86"D Γ 36"W Γ 60"H Door opening width 36"W Loading method Front door access, upright rack-loading Specifications
Body capacity 3 cadavers, bariatric-width cabinet Door hinge Left, Right, or Either β no charge; specify in order notes at checkout or by phone Cabinet construction Modular insulated, 4β³ urethane core Refrigeration Self-contained Operating range 34β40Β°F body holding Required air clearance 1β³β1.5β³ around entire cabinet Β· 16β³ above compressor β see VC-1.1 Weight per tier 850 lbs maximum per storage position (bariatric-rated) Gross ship weight 1,500 lbs (freight, liftgate delivery included) Voltage 115V / 1-phase / 60 Hz Β· 4.6 A Β· NEMA 5-20R plug Certifications NSF, UL, ASTM E84 Class A, DOE/EPA EISA 2007, Prop 65 Warranty 15-year panel structural β see Warranty Policy (WR-1.0) Country of origin United States β Johnson City, Tennessee Manufacturer American Mortuary Coolers Electrical & Compressor Specifications
Amperage4.6 A115V Β· 1-phase Β· 60 HzPlug TypeNEMA 5-20RCord & plug suppliedSupply voltage 115V / 1-phase / 60 Hz Unit amps (running) 4.6 A Minimum circuit ampacity (MCA) 15.0 A Max overcurrent protection (MOPD) 15 A fuse / breaker Cord & plug Supplied from factory β NEMA 5-20R Compressor system capacity 2,900 BTU/h @ 95Β°F ambient Β· 35Β°F box Refrigerant R-290 (low-GWP hydrocarbon) Defrost Air defrost Evaporator fan motor 2-speed EC Β· 250 CFM Efficiency (AWEF) 5.61 β meets DOE minimum Refrigeration unit size 20.75β³ H Γ 28.56β³ W Γ 29.75β³ D Β· 115 lb package Compressor service clearance 16β³ minimum above and around the condensing unit Listing UL listed β US & Canada Refrigeration platform Heatcraft Climate Control PROΒ³ β factory electrical spec sheet (PT0032MANAPNA) Plug-and-play on a dedicated 115V / 20-amp circuit β no hard-wiring required. A stamped electrical schedule ships with every quote.
Important β Read Before Startup: 2026 Packaged Refrigeration System
Due to the changing refrigerant models under new Freon regulations and updated guidelines, it is critical that you completely read all startup instructions before using your packaged refrigeration system. Please be sure you understand your startup settings and the proper overflow and humidity drainage ports, which require hose adapters.
Condensation Drain Requirement
All 2026 Heatcraft compressors require a drain hose attached to the drain port for condensation, to maximize energy efficiency. Connect the supplied drain line to the drain port before startup.
External Drain Connection
In high-humidity environments or during continuous heavy run-times, the unit may experience overflow. To prevent this, the indoor unit is equipped with a 3/4β³ NPT external drain connection that can be routed to an external drain line or a field-supplied condensate pump.
Internal Re-Evaporation
Indoor PROΒ³ models include a hot-gas re-evaporation pan beneath the compressor, which uses hot refrigerant gas to evaporate condensation naturally during normal operation.
2026 and Forward β Heatcraft PROΒ³
2026 and later packaged Heatcraft PROΒ³ systems include many new features made possible by an extremely high-efficiency process. Reviewing the startup documentation ensures these systems perform as designed.
American Mortuary Coolers accepts no liability or responsibility for a customer's failure to properly start up the new AW2 fully packaged, plug-in refrigeration units. If you have specific questions regarding functions and operations, please reach out prior to ordering.
Full startup manuals and tech bulletins: Packaged Refrigeration Manuals & Startup Guide
Questions before you order? Call 1-888-792-9315 or email cool@mymortuarycooler.com.
Sizing, weight ratings & cot compatibility
The 3-Body Extra Wide is the bariatric-capable upright at the 3-body capacity tier, built for funeral homes, hospital morgues, and coroner offices handling recurring bariatric cases at lower volume than a walk-in justifies. For side-loading workflow, see the 3-Body Extra-Wide Side-Load. Step down to the 2-Body Extra Wide. Step up to the 6-Body Dual-Door.
Weight per tier: rated at 850 lbs maximum per storage tier β the full bariatric case envelope. Extra-wide cabinet clearance accommodates bariatric cot width and case girth.
Cot compatibility: bariatric cot transfer with the 1000E Bariatric. Upright loading with Double Width Removal Tray. Vertical case transfer between tiers: 1,000-lb Hydraulic Scissor Lift.
Background: bariatric capacity planning guide. Full catalog: bariatric coolers Β· extra-wide coolers.
State-by-state availability & shipping
Ships factory-direct from Johnson City, Tennessee to all 50 states β most orders within 2 business days. Gross ship weight 1,500 lbs; liftgate delivery included.
Alabama Β· Arizona Β· Arkansas Β· California Β· Colorado Β· Florida Β· Georgia Β· Illinois Β· Indiana Β· Iowa Β· Kentucky Β· Louisiana Β· Maryland Β· Michigan Β· Minnesota Β· Mississippi Β· Missouri Β· Nebraska Β· Nevada Β· New Jersey Β· New Mexico Β· New York Β· North Carolina Β· Ohio Β· Oklahoma Β· Oregon Β· Pennsylvania Β· South Carolina Β· Tennessee Β· Texas Β· Utah Β· Virginia Β· Washington Β· Wisconsin
Regional desks: Southeast Β· Midwest Β· Northeast Β· Southwest Β· Rocky Mountain Β· Pacific Β· Canada.
Financing & planning guides
- 0% financing at checkout β Shop Pay Installments
- Extended financing on orders over $5,000 β apply here
- Section 179 in-year tax treatment
Frequently asked questions
What is the weight limit per tier?
850 lbs maximum per storage tier β bariatric-rated. Standard 3-body uprights are rated at 600 lbs per tier.
What is the gross ship weight?
1,500 lbs gross. Liftgate delivery included from Johnson City, Tennessee.
What electrical supply does it need?
A dedicated 115V / 20-amp circuit. The unit draws 4.6 running amps and ships with a NEMA 5-20R cord and plug β plug-and-play, no hard-wiring. See the Electrical & Compressor Specifications above.
Do I need a drain line?
In high-humidity or high-temperature environments, yes β attach a hose to the external drain connection and route to a drainage source. See the packaged refrigeration manuals page.
How is this different from the standard 3-body upright?
Extra-wide cabinet clearance, 850 lbs per tier (vs. 600 lbs), and bariatric case envelope support.
What temperature does it maintain?
34β40Β°F body holding standard.
Can it be financed?
Yes. 0% Shop Pay Installments. Qualifies for extended financing.
Where is it made?
Johnson City, Tennessee. American Mortuary Coolers, family-owned since 2009, A+ Rated by the Better Business Bureau.
