What is the working load capacity of the hydraulic crematory lift?

1,000 pounds, sized for bariatric cases and standard rack-tier transfer in funeral home, hospital morgue and crematory work.

What is the height range?

The 62.5 x 25 inch top rises from 20.5 inches to more than 80 inches.

Is the hydraulic crematory lift a one-person lift?

Yes. A foot pump raises the deck, which keeps the operator's hands free to guide the load.

What equipment does the lift pair with?

Walk-in cooler racks, embalming tables, autopsy tables, mortuary cots and cremation retorts.

Is a scale available?

Yes. Choose Add Scale: Yes to order the lift with an integrated scale.

Can the hydraulic crematory lift be financed?

Yes. Financing is available through Shop Pay, including 0% offers with approved credit.

American Mortuary Equipment

MADE IN
THE USA

1 13

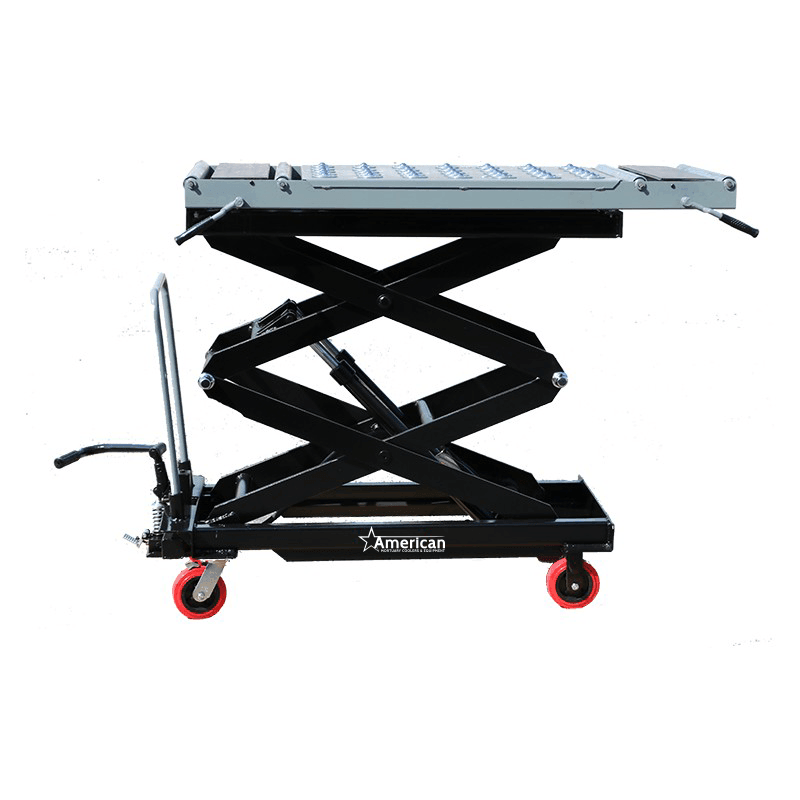

Hydraulic Crematory Manual Scissor Lift

Model: H1000-M-1

$4,803.04

$4,803.04 List Price ~~$5,356.00~~

Save $552.96

Estimated from Apply with TimePayment Apply for financing Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.

Zelle® ACH

Shipping calculated at checkout.

Complete your body-handling setup

Rack-only accessories and individual storage boards. Confirm tray width, rack clearance and transfer height for your facility.

Add HD storage body board

Individual board. Select the number required.

Board

Qty

View board details

American Mortuary EquipmentShop cremation equipment & supplies →

1,000 lb hydraulic mortuary scissor lift
Hydraulic scissor mechanism for smooth elevation
Heavy-duty welded steel frame
Locking casters for stability

Related equipment & policies Related equipment and purchase terms

Buying on a PO or net terms? Send a purchase order Request a formal quote 1-888-792-9315

Ordering questions

How do I select the correct configuration?

Choose the available options before adding the item to your cart. The selected configuration and model are carried through to the cart; check them against the dimensions and included components in the product details.

How can I confirm fit before ordering?

Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.

Where is shipping confirmed?

Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.

Product details

Form AME-OM-H1000-M Rev. B · Last updated October 22, 2026 · PDF

AME TITAN H1000-M Hydraulic Crematory Scissor Lift User Manual

Specifications, illustrated foot-pump and lowering controls, transfers, maintenance, parts identification and service.

Download User Manual All manuals & forms

Loading height notice: confirm before ordering

The H1000-M has a 20.5″ lowest deck height. That is above the bottom tier of most mortuary racks, cantilever racks and vault cooler bays, so it does not meet the minimum loading height for most of our storage products. The TITAN 1030-LPL Low-Profile Lift (13″ lowest deck) is the only AME lift built to reach bottom-tier positions. Measure every height you need to reach before you order. American Mortuary Equipment is not responsible for lift selection or ordering errors; see the Returns & Cancellations Policy (RC-1.0) and Terms of Purchase (TC-1.7).

1,000 lb Hydraulic Crematory Lift & Mortuary Scissor Lift, Model H1000-M

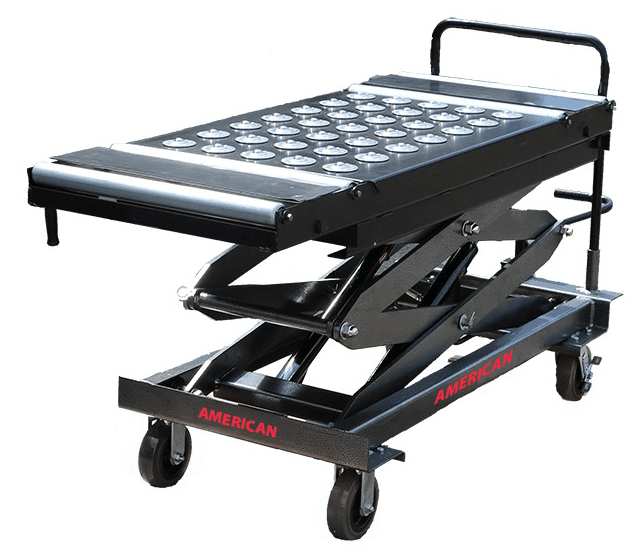

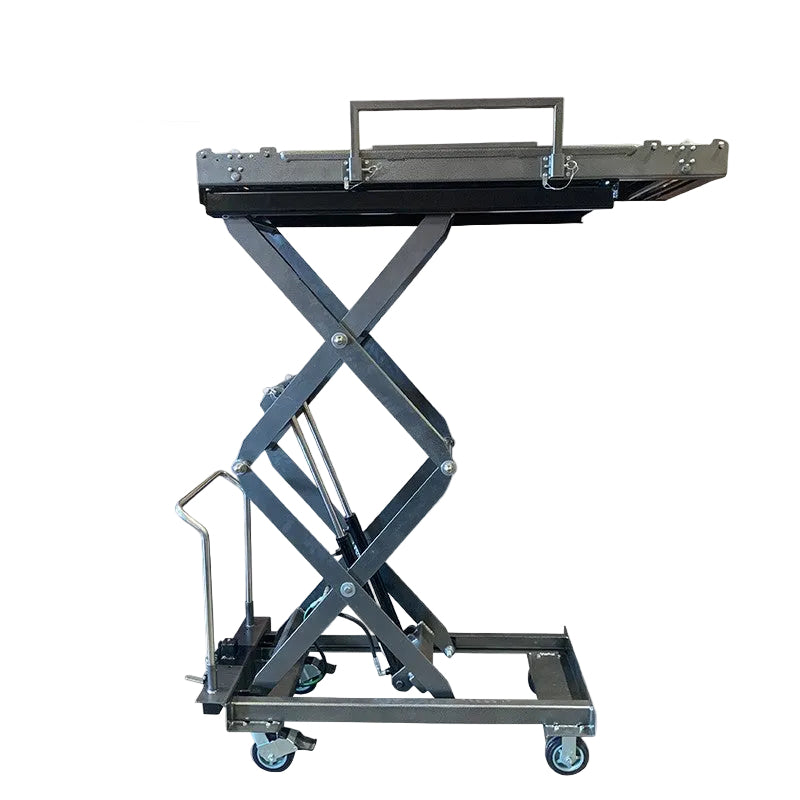

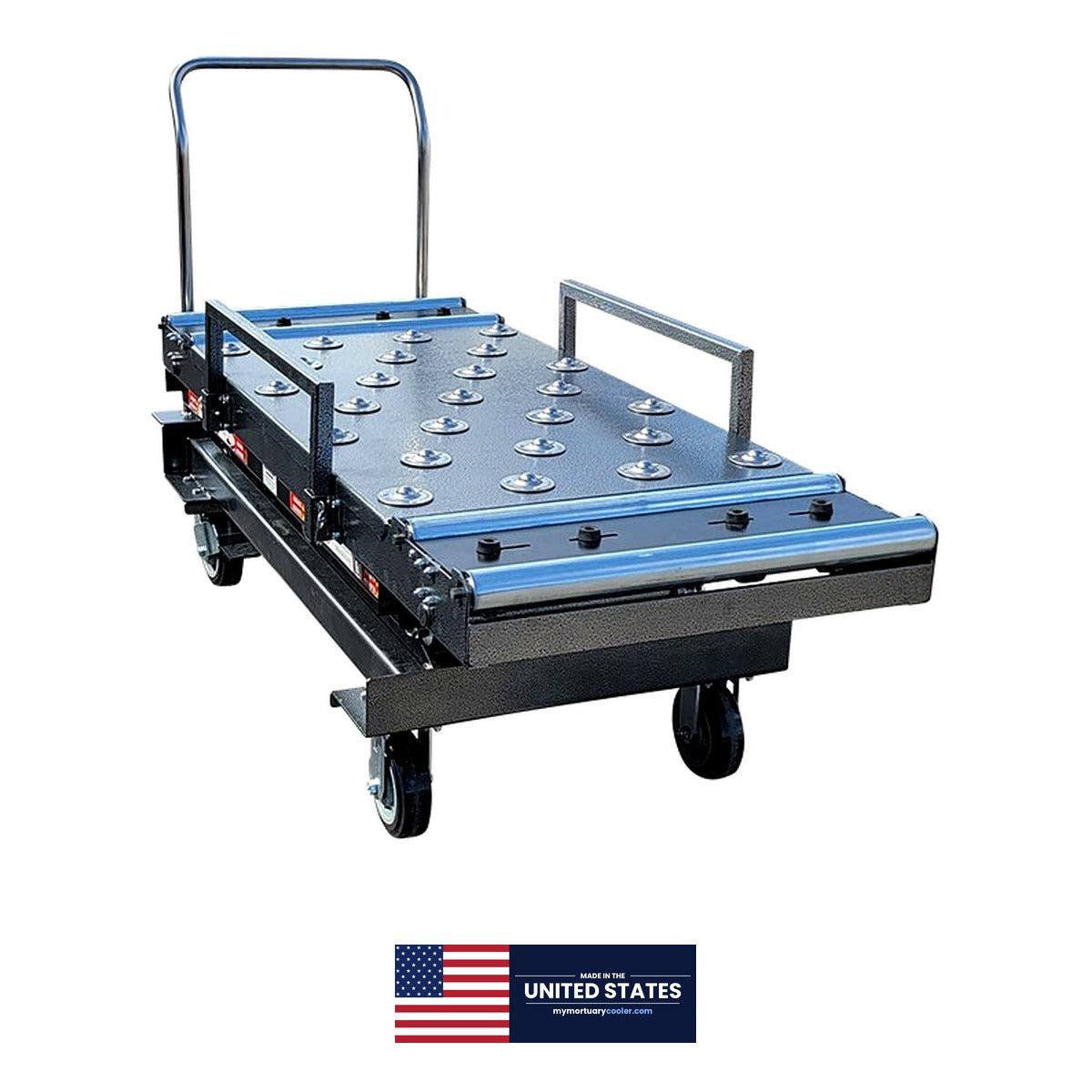

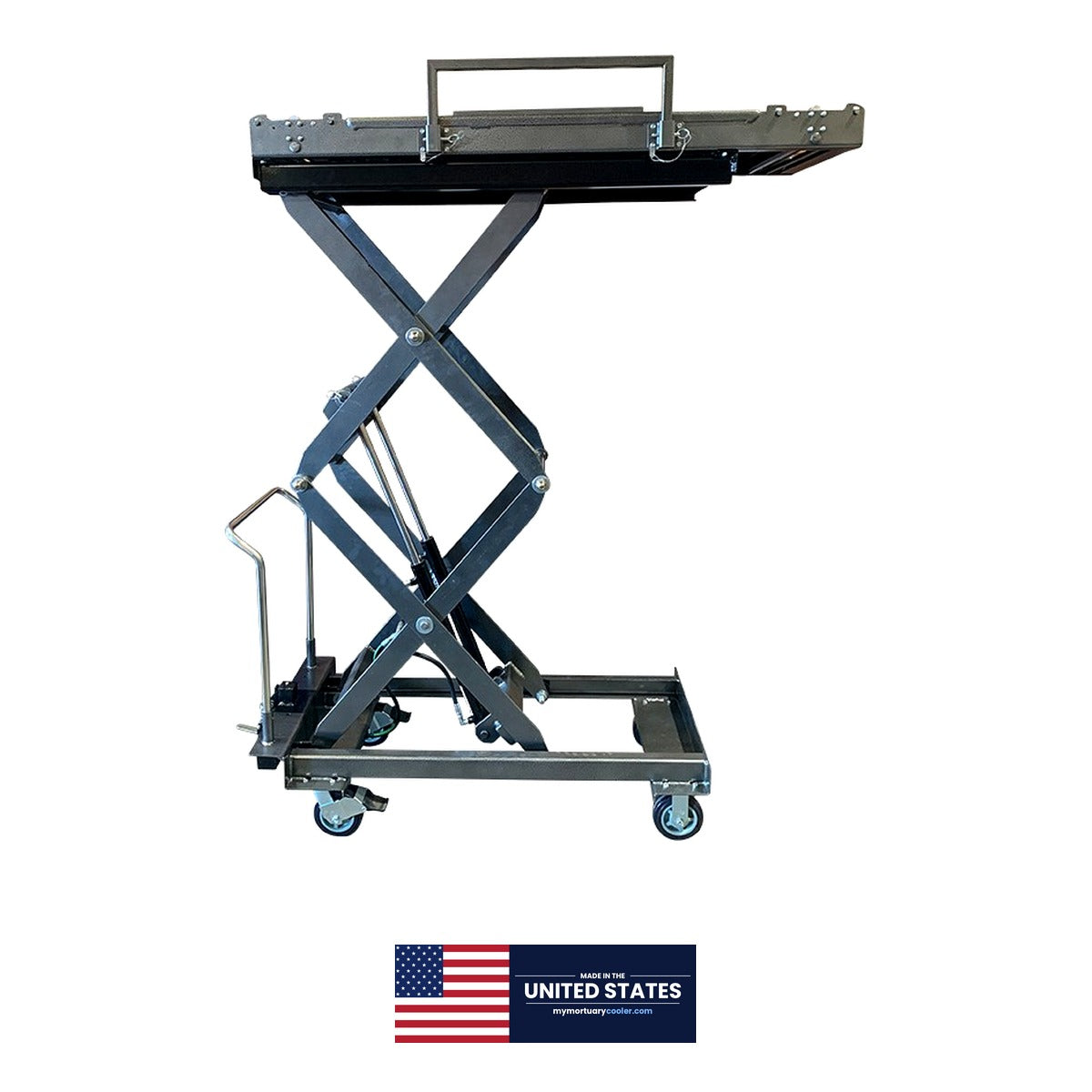

The TITAN H1000-M is a manual hydraulic scissor lift for body transfer in crematories, funeral homes, morgues, hospitals and medical examiner facilities. A foot pump raises the 62.5″ × 25″ deck from 20.5″ to more than 80″, and a silver foot-operated pedal controls lowering. There is no battery to charge and no motor to service.

Key features

1,000 lb rated capacity
Manual foot-pump hydraulic lift; foot-operated lowering pedal
20.5″ to 80″+ deck height for retort doors, tables, cots and upper rack tiers

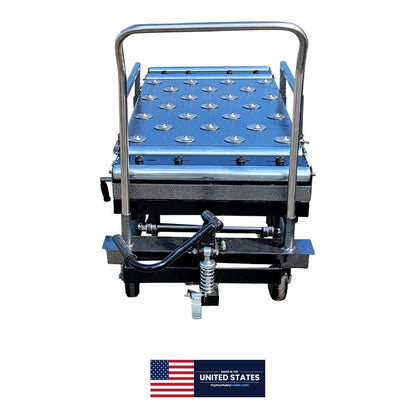

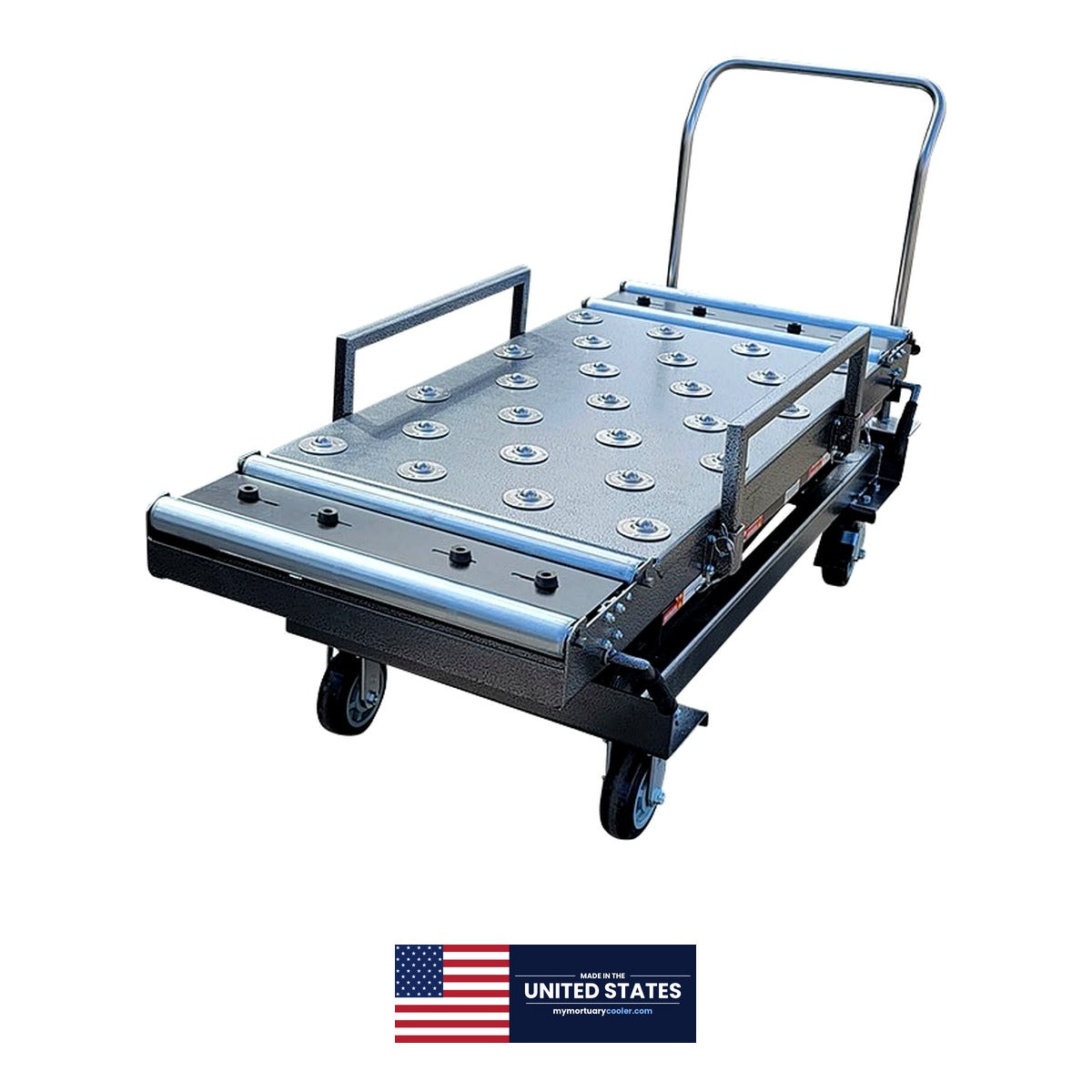

Welded steel scissor frame on locking casters

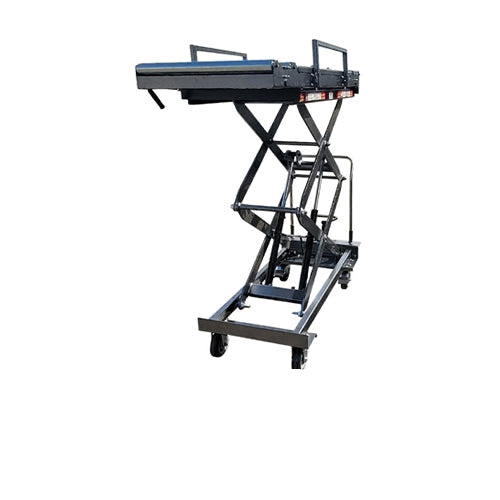

Optional integrated scale to record case weight at the lift

Specifications

Model	H1000-M
Rated capacity	1,000 lb (453 kg), evenly distributed
Deck surface	62.5″ × 25″
Lowest deck height	20.5″
Maximum deck height	80″+
Lift system	Manual hydraulic, foot-pump operated
Lowering	Silver foot-operated lowering pedal
Power	None required
Frame	Welded steel scissor frame
Casters	Locking casters
Scale (optional)	Integrated digital scale (choose “Add Scale: Yes”)
Warranty	1-year limited parts warranty, see Warranty Policy (WR-1.0)

Hydraulic or powered?

Choose the H1000-M for simple, low-maintenance operation at working heights of 20.5″ and up. For bottom-tier rack and vault positions, choose the Low Profile Powered Crematory Lift (13″ to 69″, 12V battery). See every model on our crematory scissor lifts page or the Crematory Lifts collection.

Questions or a formal quote: call 1-888-792-9315 or contact us.
