Review financing optionsBOHN PRO3 3,200 BTU Mortuary Cooler Refrigeration System
Replacement refrigeration for mortuary coolers. BOHN PRO3 3,200 BTU, 115V, R448A, pre-charged top-mount. Fits TR3, 2BRX, 3BX. Call 1-888-792-9315.
Description & specificationsModel / SKU: PT0032MANAESA-1
Regular price
$5,835.85
Sale price
$5,835.85
Regular price
$6,452.71
Save $616.86
Unit price
per
Shipping calculated at checkout.
Shipping & warranty
Set freight pricing — no separate quote requiredCooler freight uses our built-in pricing. Complete your configuration and proceed to cart. Contact us for current lead time or delivery-access questions.
Quick quoteRequest a formal PDF equipment quote by email.
Request an AMC quote
Payment options Cards, Shop Pay & invoice
Secure ways to pay
Checkout online or arrange an invoice payment.
Secure checkout
Shop PayFast checkout; eligible installment terms appear above.
Invoice payment options
Zelle®, ACH/wire, and company or certified check are available by approved invoice. Contact us before sending payment.
Zelle®
ACH
WIRE
CHECK
Arrange payment
Product support, compatible equipment & policies Related equipment, purchasing terms, manuals and planning resources
Commercial equipment planning
Continue your equipment plan
Plan with confidence
Mortuary cooler planning resources
Over
mortuary products sold since 2009
Current sale price
Product description & specifications

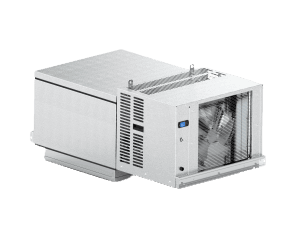

Mortuary Cooler Refrigeration Replacement — BOHN PRO3 3,200 BTU System (115V)

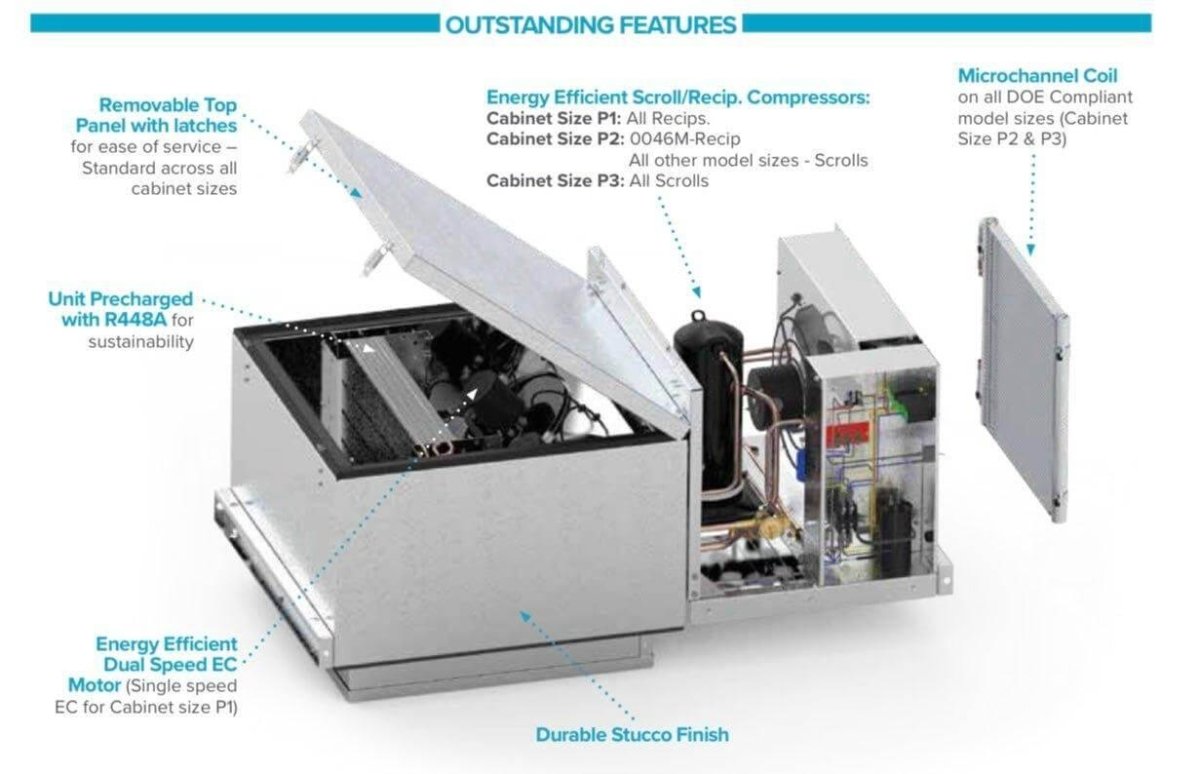

Factory-direct replacement refrigeration system for American Mortuary Coolers upright and roll-in cabinets. The BOHN PRO3 is a pre-charged, top-mounted package unit with the evaporator and condensing unit integrated into a single housing — the fastest route back to temperature when a mortuary cooler compressor fails. Manufacturer part number PT0032MANAESA-1.
Current lead time: 4–6 weeks. Refrigeration replacement systems are allocated and built to order. See Lead Times & Expedited Delivery for expedite options.
Specifications
- Capacity: 3,200 BTU
- Electrical: 115V · 20 amp · single phase
- Refrigerant: R448A — CARB and U.S. climate compliant
- Controls: Microprocessor
- Dimensions: 26.2" H × 33.75" W × 32" D
- Weight: approx. 94 lbs
- Finish: Stucco-aluminum
- Configuration: Top-mounted, pre-charged, integrated evaporator and condensing unit
- Ambient rating: Operates to 95°F in conditioned, ventilated space
- Warranty: Two-year parts — see Warranty Policy
- Manufacturer part: PT0032MANAESA-1
Confirmed Direct Replacement
This 3,200 BTU system is the specified replacement refrigeration unit for the following cabinets:
- 3 Body Triple-Wide Roll-In Mortuary Cooler (TR3)
- 2 Body Extra Wide Mortuary Cooler (2BRX)
- 3 Body Extra Wide Mortuary Cooler (3BX)
Other Upright Mortuary Cooler Models — Confirm BTU Before Ordering
Cabinet size determines required refrigeration capacity. A 3,200 BTU system is sized for two- and three-body cabinets; larger cabinets require a higher-BTU system. Because refrigeration replacements are non-cancelable and non-returnable, confirm the correct capacity for your unit before purchase — call 1-888-792-9315 or email Service@mymortuarycooler.com with your model and serial number and we will size it for you.
- 2 Body Standard Width Mortuary Cooler
- 2 Body Extra Wide Upright Mortuary Cooler
- 2 Body Extra Wide Upright Mortuary Cooler — Shell Only
- 3 Body Standard Upright Mortuary Cooler
- 3 Body Extra-Wide Side-Load Upright Mortuary Cooler
- 4 Body Extra Wide Mortuary Cooler — higher BTU required
- 4 Body 2-Door Compact Mortuary Cooler — higher BTU required
- 6 Body Dual-Door Mortuary Cooler — higher BTU required
- 10 Body Dual-Door Upright Mortuary Cooler — higher BTU required
- 12 Body Triple-Door Mortuary Cooler — higher BTU required
Browse all upright mortuary coolers or refrigeration parts, refrigerants and accessories.
Terms of Sale — Read Before Ordering
- Refrigeration replacement systems are sold non-cancelable, non-returnable, and non-refundable once the order is placed. See Terms of Purchase, Return & Chargeback Policy.
- Built-to-order and allocated stock is governed by our Custom & Built-to-Order Equipment Policy (CO-1.0).
- Incorrect sizing, installation, or placement voids the warranty. Installation must be performed by a licensed refrigeration technician.
- Not rated for extreme ambient conditions — unconditioned garages, mechanical rooms, or spaces adjacent to crematory retorts.
- Refrigerant sale and handling are governed by our EPA §608 Refrigerant Sales Policy and Refrigerant Safety Symbols & Warnings.
- Third-party manufactured components are subject to Third-Party Product Safety & Electrical Responsibility and Product Liability, Assumption of Risk & Release.
- Freight terms per Shipping & Freight Disclosures. All orders subject to Terms & Conditions.
Resources & Support
- Installation & Operation Manual (H-IM-81E, PDF)
- Temperature & Humidity Calculator (NOAA)
- Mortuary Cooler Maintenance Center
- Tech Support & Service Hub
- Request a Quote · POs and government purchasing accepted
Questions on sizing, retrofit, or lead time: 1-888-792-9315, Monday–Friday. Factory-direct from Johnson City, Tennessee.
BOHN PRO3 3,200 BTU Mortuary Cooler Refrigeration System: specifications & ordering details
BOHN PRO3 3,200 BTU Mortuary Cooler Refrigeration System is an AMC walk-in model with selectable refrigeration and configuration options. Plan the layout around your facility’s handling equipment and access route. Review the published measurements below alongside the original model description and selected options.
Model specifications
| Model | BOHN PRO3 3,200 BTU Mortuary Cooler Refrigeration System |
|---|---|
| Item / SKU | PT0032MANAESA-1 |
| Nominal model size | Refer to the model drawing for the specified footprint. |
| Published exterior | Exact exterior dimensions are not published in this model’s verified specification record. Confirm against the factory drawing. |
| Usable interior (W × D × H) | Exact usable interior dimensions are not published in this model’s verified specification record. Confirm against the factory drawing. |
| Refrigeration | A refrigeration selection is required. Choose from the systems listed for this model; electrical requirements and clearances depend on the selected system. |
| Door configuration | Complete the required door selections shown in the configurator. Check the opening, hinge and location against your equipment route. |
| Insulated floor | Optional and priced separately; not included in any walk-in package. |
| External ramp | Optional 36-inch external ramp: $895 separately. Requires an insulated floor and the 36-inch standard door. |
| Freight | Cooler freight uses built-in set pricing; no separate freight quote is required. Review final order charges before payment. |
Nominal size is a model designation, not usable interior space. Use the factory drawing for final fit, including the selected refrigeration equipment, door swing and service clearances. Unpublished measurements are not inferred from the model name.
Installation planning
Measure the receiving entrance and full route to the installation area. Check the finished slab, threshold, ceiling clearance and room for loading equipment to turn. Have qualified trades review the electrical supply, refrigeration installation and condensate handling for the selected equipment before installation.
Frequently asked questions
Is the model size the same as the interior size?
No. Nominal size identifies the model. The published exterior and usable interior dimensions are listed separately above when verified measurements are available. Allow additional room for the door swing, refrigeration equipment and service access shown on the final drawing.
Which choices must I complete before ordering?
Select refrigeration and complete the required door fields shown for this model. Review optional accessories separately. Submit the completed configuration for an itemized AMC quote before ordering the full build.
Is an insulated floor included?
No. An insulated floor is optional and priced separately in every walk-in package. Review your slab and installation conditions before choosing a floor. Where a floor price is not published, obtain the confirmed item price before purchasing that option.
What does the ramp cost, and which door does it fit?
The optional external ramp is $895 and is 36 inches wide. It requires an insulated floor and the 36-inch standard door. It is a separate add-on; selecting a floor does not automatically add a ramp. No internal or 48-inch ramp is offered in this configuration.
What should I check before installation?
Check the delivery and assembly route, slab condition, thresholds, ceiling height and equipment turning space. Review power, condensate handling and service clearance with qualified trades using the selected refrigeration system’s requirements. Do not infer electrical ratings from nominal room size.
Does the displayed price include every accessory?
The base-unit price covers the listed base configuration. Optional flooring, ramp and other selected accessories are planning estimates until confirmed on an itemized AMC quote.
Do I need a freight quote?
Cooler freight uses built-in set pricing; no separate freight quote is required. Review final order charges and available delivery services before payment. Check site access and unloading arrangements against the shipping policy.
Which warranty and order terms apply?
Warranty coverage depends on the supplied equipment and applicable conditions. Review the warranty policy and returns and cancellations policy before ordering. Keep the equipment documentation for installation, operation and any warranty claim.
