American Mortuary Coolers10x20 Walk-In Mortuary Freezer
Model: AMC-1020F-10
ELECTRICAL208/230 Volts
Model: AMC-1020F-10
Regular price
From $24,360.00
Sale price
From $24,360.00
List Price
Base configuration · options shown below
Unit price
per
Estimated from
10x20 Walk-In Mortuary Freezer
$24360.0
Apply with TimePayment (opens in a new tab)
Apply for financing
Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.
Zelle®
ACH
Shipping calculated at checkout.
Buying on a PO or net terms? Send a purchase order Request a formal quote 1-888-792-9315
Product description & specifications
BUILD IT OUT, CONFIGURE THIS 10×20
Insulated R-32 Floor, Included
Your Dream Build
Standard configuration, make selections above to customize.
Base unit$24,360.00
Selected options$0.00
Configured total$24,360.00
Click Add This Build To Cart to send this exact configuration, unit plus every selected option, straight to your cart.

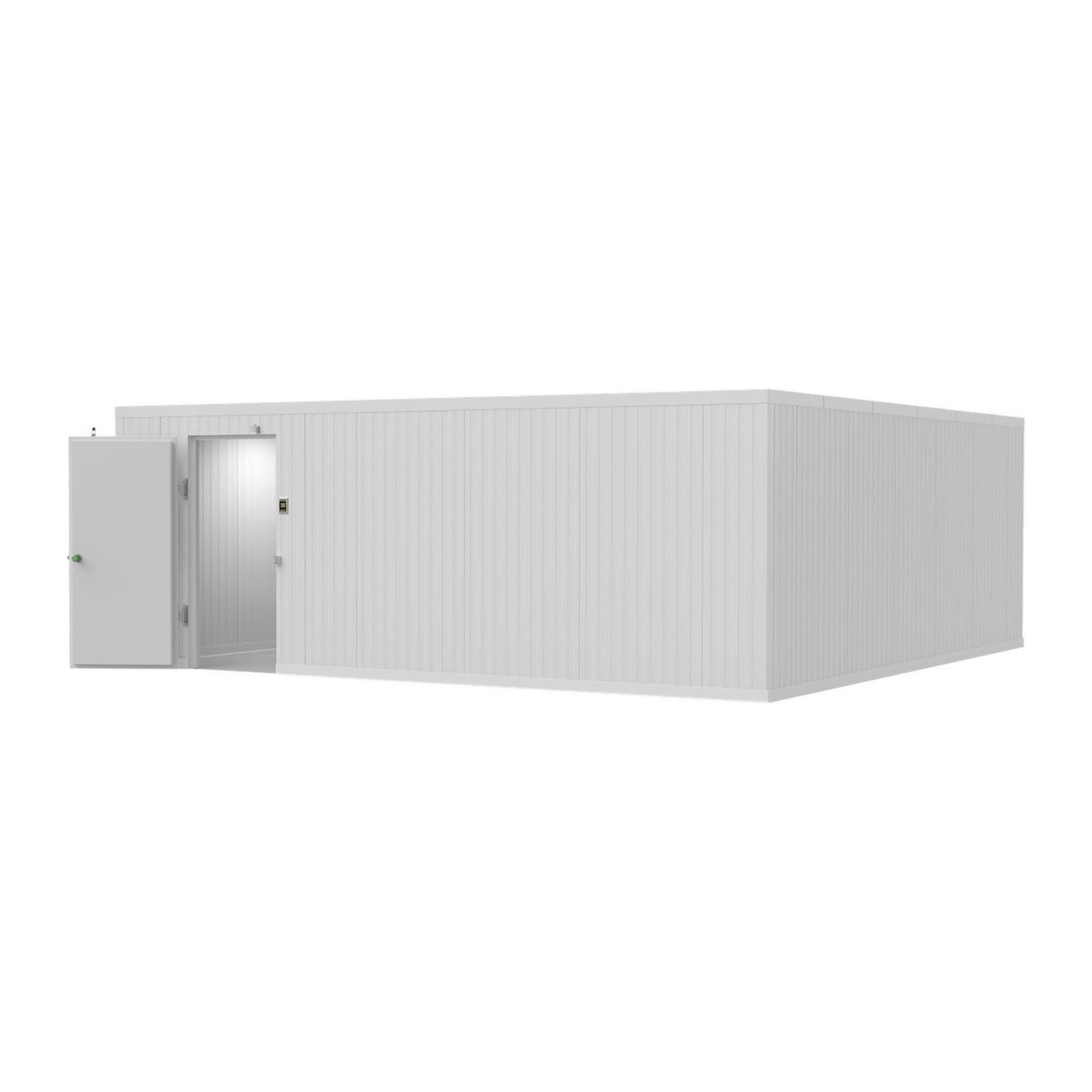

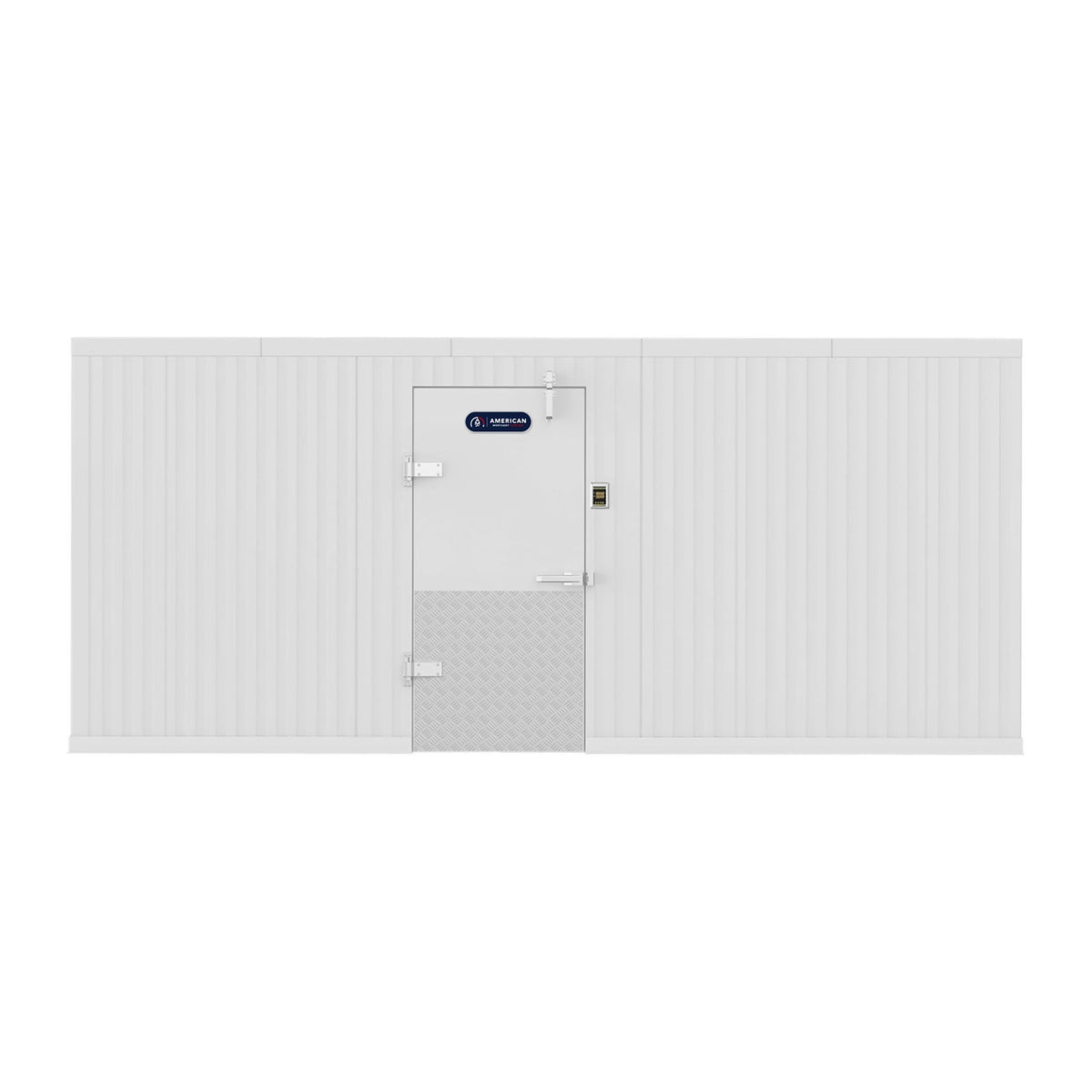

The 10′ × 20′ walk-in mortuary freezer is a 200 sq ft box built from 4.75″ urethane panels rated R-32. Painted 26-gauge steel skins, chrome-plated door hardware and NSF-, UL- and ETL-listed construction make it a commercial-grade freezer built for continuous low-temperature service.
Site requirements
- A solid, flat, level supporting floor (the insulated floor is not a leveling system)
- At least 2″ of clearance around the box
- A 110V outlet for the door heater
Questions about sizing, door placement or freight? Call 1-888-792-9315 (Mon–Fri, 9–5 ET) or email cool@mymortuarycooler.com. Purchase orders are accepted, and business financing is available.
Specifications
| Insulation | 4.75″ foamed-in-place urethane, R-32 walls, ceiling and floor |
|---|---|
| Finish | Painted 26-gauge steel, interior and exterior |
| Refrigeration | Remote two-piece system (condensing unit and evaporator), DOE-compliant and energy-efficient, A2L refrigerant; refrigerant and installation materials by others |
| Panel system | Tongue-and-groove panels with cam-action locks and airtight joints |
| Floor | Insulated R-32 floor included |
| Door | 36″ × 76″ flush-mounted, self-closing door with gasket seal and roller-magnet door closer |
| Door hardware | Chrome-plated hinges and standard heavy-duty, non-lockable handle |
| Door heater | Built in, 110V / 60 Hz, to prevent condensation |
| Safety | Interior safety release |
| Listings | NSF, UL and ETL listed |
| Panel warranty | 10 years |
Description of materials supplied
This walk-in is supplied as a complete insulated panel box with refrigeration equipment. The following materials are included in the price:
- Wall panels. 4.75″ foamed-in-place urethane, R-32 wall panels with painted 26-gauge steel skins inside and out, tongue-and-groove edges and cam-action locks for airtight joints, sized for the 10′ × 20′ box.
- Ceiling panels. 4.75″ foamed-in-place urethane, R-32 ceiling panels of the same painted 26-gauge steel construction, cam-locked to the wall panels.
- Door. One 36″ × 76″ flush-mounted, self-closing door with a standard heavy-duty, non-lockable door handle, chrome-plated hinges, perimeter gasket seal, roller-magnet door closer and interior safety release.
- Insulated floor. 4.75″ R-32 insulated floor panels, included as standard on freezers.
- Refrigeration system. One remote two-piece refrigeration system: condensing unit and evaporator coil. The system is DOE-compliant, energy-efficient and designed for A2L refrigerant. Equipment only.
- Documentation. Panel layout and assembly instructions.
Not included, by others
- Refrigerant (Freon) and the system charge
- Refrigeration line sets, fittings and line insulation
- Electrical wiring, conduit, disconnects and breakers
- Condensate drain line and drain piping
- Installation labor, installation materials and supplies
- Refrigerant leak detection where required by code for A2L systems
- Permits and inspections
LED lighting, ramps and other accessories are optional and are supplied only when listed on your order.
Floor requirements
The insulated R-32 floor is included and is not a leveling system. The supporting floor must be solid, flat and level with no imperfections. For second-story, mezzanine or other above-grade installations, have the structural load confirmed by a qualified professional before ordering.
Refrigeration scope
The remote two-piece refrigeration system is supplied as equipment only. Refrigerant, line sets, wiring, drain and installation materials are not included. A licensed refrigeration contractor installs, evacuates, charges and starts up the system according to local codes and the A2L safety requirements that apply to your site. Panels meet the DOE minimum insulation requirements for walk-in freezers (R-32) under 10 CFR 431.306.
Need a custom walk-in freezer?
We quote custom sizes and door layouts. Send your dimensions and body capacity, and we will return a written quote.
Request a custom walk-in quoteDimensions
| Nominal size | 10′ × 20′ (200 sq ft) |
|---|---|
| Exterior dimensions | 118″ × 236.2″ |
| Exterior height | 90″ with insulated floor |
| Interior (approx.) | 108.5″ × 226.7″ × 80.5″ H |
Interior dimensions are approximate. Final exterior dimensions are confirmed with your order.
Frequently asked questions
What is included with this walk-in mortuary freezer?
Wall panels, ceiling panels and one 36″ × 76″ self-closing door with a standard heavy-duty, non-lockable handle, chrome-plated hinges, a gasket seal and a roller-magnet door closer. A remote two-piece refrigeration system (condensing unit and evaporator) is included, and it is DOE-compliant, energy-efficient and designed for A2L refrigerant. Freezers include a 4.75″ R-32 insulated floor. Lighting, ramps and other accessories are optional.
What is not included?
Refrigerant (Freon), refrigeration line sets and fittings, line insulation, electrical wiring and disconnects, condensate drain lines, installation labor, installation supplies and permits. A licensed refrigeration contractor installs, evacuates, charges and starts up the system. See the electrical and mechanical requirements.
Does a walk-in freezer need an insulated floor?
Yes. Walk-in freezers need an insulated floor, and this freezer includes a 4.75″ R-32 floor. The floor is not a leveling system, so the slab under it must be solid, flat and level. For second-story or other above-grade installations, have a qualified professional confirm the structural load.
What temperature does it hold, and when is a freezer the better choice?
This freezer is built for 0°F to −10°F service. Freezers are used when remains will be held longer than a cooler can support, or when a case is held for identification or investigation. Compare both in mortuary cooler vs. morgue freezer.
Is this walk-in DOE-compliant and energy-efficient?
Yes. The 4.75″ R-32 panels meet the DOE walk-in insulation minimums in 10 CFR 431.306, which call for R-25 cooler and R-32 freezer walls, ceilings and doors. The self-closing door and remote two-piece refrigeration system are DOE-compliant, and the system is designed for lower-GWP A2L refrigerant.
What does A2L refrigerant mean for installation?
A2L refrigerants are lower-GWP and mildly flammable, so the installing contractor follows the A2L safety requirements in the codes that apply to your site, including refrigerant leak detection where required. Read A2L refrigerants explained.
How do I size a walk-in for my body count?
Start from peak census, not the average, and plan the racking before the box. Health-facility planning guides use about 3 m² (roughly 32 sq ft) per body on a loose tray or trolley, and multi-tier mortuary racks store more bodies in the same footprint. Use our capacity planning guide.
Can I order a custom size or layout?
Yes. Send your room dimensions, door location and body capacity through the custom walk-in quote request, and we will return a written quote.
How is shipping charged, and do you accept purchase orders?
Shipping is calculated at checkout for your delivery address. Purchase orders are accepted, and business financing is available.
Product information
Product details & specifications
Product details
Your product information and configuration controls remain together above these tabs. View product details & configuration.
Specifications & product identity
Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.
| Insulation | 4.75″ foamed-in-place urethane, R-32 walls, ceiling and floor |
|---|---|
| Finish | Painted 26-gauge steel, interior and exterior |
| Refrigeration | Remote two-piece system (condensing unit and evaporator), DOE-compliant and energy-efficient, A2L refrigerant; refrigerant and installation materials by others |
| Panel system | Tongue-and-groove panels with cam-action locks and airtight joints |
| Floor | Insulated R-32 floor included |
| Door | 36″ × 76″ flush-mounted, self-closing door with gasket seal and roller-magnet door closer |
| Door hardware | Chrome-plated hinges and standard heavy-duty, non-lockable handle |
| Door heater | Built in, 110V / 60 Hz, to prevent condensation |
| Safety | Interior safety release |
| Listings | NSF, UL and ETL listed |
| Materials supplied | Wall panels, ceiling panels, 36″ door with handle, gasket seal and closer, insulated R-32 floor, remote two-piece refrigeration system |
| Not included | Refrigerant, line sets, wiring, drain, installation labor and supplies, permits |
| Panel warranty | 10 years |
| Brand / vendor | American Mortuary Coolers |
|---|---|
| Equipment type | Mortuary Freezer |
| Model | AMC-1020F-10 |
Dimensions & fit
| Nominal size | 10′ × 20′ (200 sq ft) |
|---|---|
| Exterior dimensions | 118″ × 236.2″ |
| Exterior height | 90″ with insulated floor |
| Interior (approx.) | 108.5″ × 226.7″ × 80.5″ H |
| Door opening | 36″ × 76″ |
| Wall panel thickness | 4.75″ |
FAQs & buying help
Review the original product information & configuration above for product-specific guidance.
How can I ask a question about this product?
Contact our team with the product name and the specification or option you want to confirm.
What should I include when requesting a quote?
Include the product, quantity, required configuration and delivery location in your quote request.
Where can I review shipping and purchase policies?
Open Shipping & support for the published freight, returns and custom-order policy links.
Resources & documents
Product-specific documents and planning links remain in Product details when a separate resources section is not available.
Plan delivery. Review the details.
Review the published policies and confirm product-specific requirements before placing your order.
Financing & purchase orders
Choose how to pay
Purchase through the product options above, or use one of these support paths for a financed or institutionally quoted order.
Formal quotes & purchase orders
Request documented pricing, freight planning, and configuration support before issuing a purchase order.
Request a formal quoteEstimates are for qualified buyers with approved credit (WAC) and reflect the equipment price only. Shipping, freight, and applicable taxes are not included and will increase your total and payments. Final amounts are set at checkout or on your quote.
Government and institutional buyers: request a PO quote.
