Deathcare.Inc Transport Clinical Stretcher

Download Transport Clinical Stretcher BIM, Revit, and CAD Submittal Data [PDF]

The Deathcare.Inc Transport Clinical Stretcher sets the premier institutional standard for heavy-duty patient transfer and post-mortem handling across hospital networks, anatomy laboratories, and pathology divisions. Engineered for maximum structural integrity and effortless maneuverability, this clinical gurney provides an uncompromising, ergonomic solution that safeguards both healthcare personnel and decedents. Available exclusively via medicalstretchers.com, this stretcher integrates advanced hydraulic engineering with surgical-grade components to deliver lifetime performance under demanding institutional workflows.

🛠️ Premium Feature Architecture

Advanced Chassis & Maneuverability

• Retractable 5th Wheel Navigation: Controlled via dual-sided foot pedals, the directional fifth wheel provides precise tracking for long-corridor straight travel and retracts instantly for effortless 360-degree pivoting in tight pathology suites.

• Central-Locking Caster System: Features four heavy-duty, 200mm (8-inch) central-locking casters equipped with a multi-directional brake network and an anti-winding thread guard to prevent debris accumulation.

• Ergonomic S-Shaped Push Handles: Dual, structurally reinforced S-shaped steering handles integrated at the foot end maximize staff leverage and minimize push/pull strain during high-capacity transit.

• Heavy-Duty Collision Bumpers: Four 125mm perimeter bumper wheels positioned at the absolute chassis corners provide resilient, non-marking impact protection against walls and door frames.

Clinical Control & Diagnostics

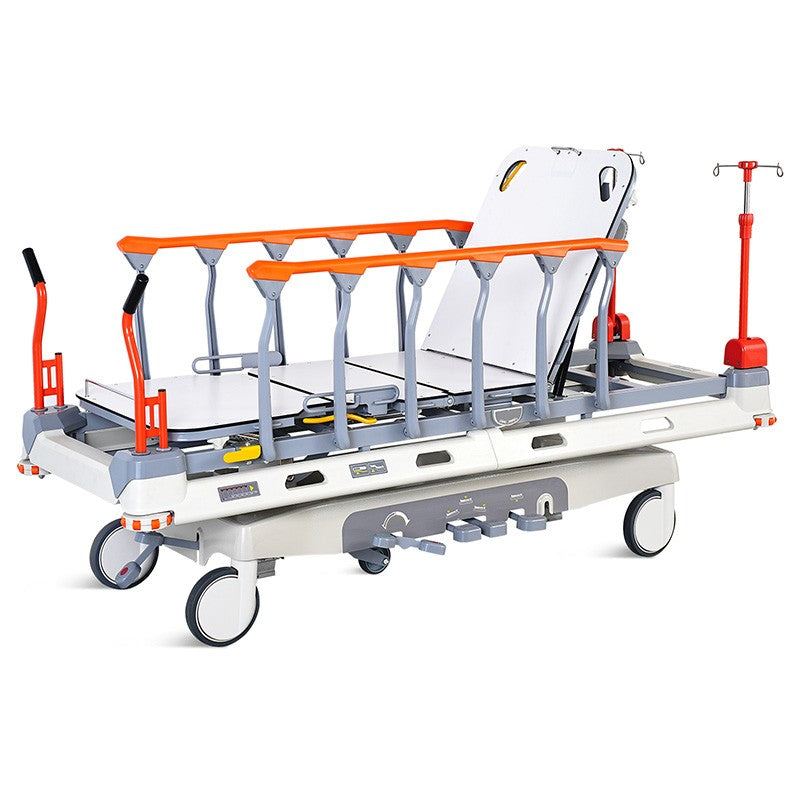

• Dual-Pump Heavy-Duty Hydraulics: Driven by an elite twin-pump hydraulic architecture, allowing operators smooth, independent control over vertical height adjustments, Trendelenburg, and Reverse Trendelenburg positioning.

• Integrated X-Ray Cassette Channel: Formed beneath the backrest platform, accommodating standard 430mm x 590mm (±10mm) imaging cassettes to allow rapid diagnostic screening without repositioning the patient.

• Precision Angle Indicators: Four highly visible, fluid-level structural angle gauges provide real-time, degree-accurate readouts of the backrest articulation and Trendelenburg slopes.

Patient Security & Utility Infrastructure

• Reinforced Side Rails: High-strength, collapsible 6-strut aluminum alloy safety rails fold down flush with the frame for zero-clearance lateral transfers, secured by rapid-activation safety switches.

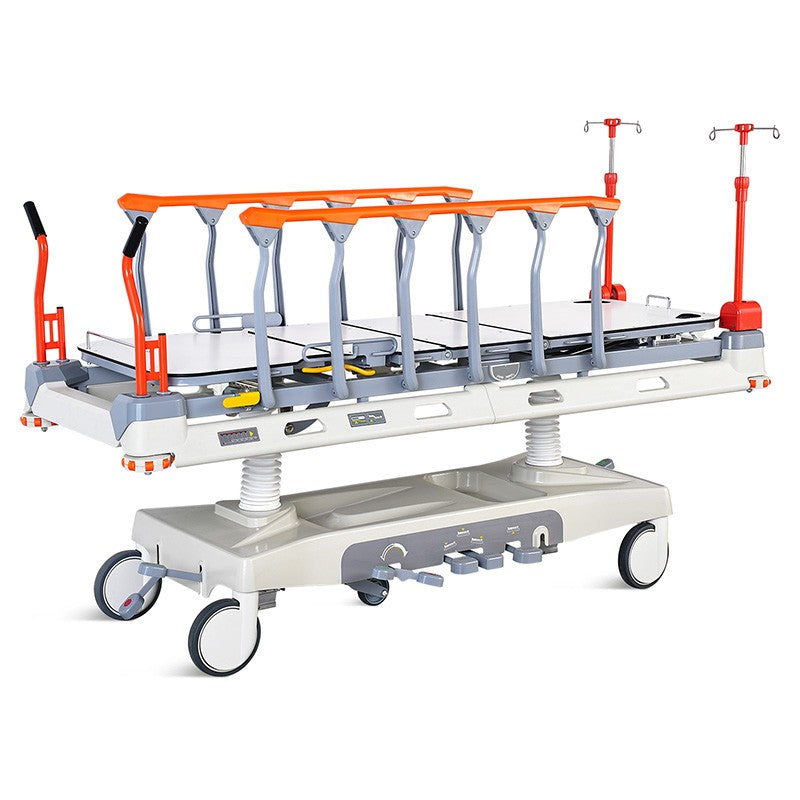

• Molded ABS Sub-Chassis Base: The rugged ABS utility shell features deep-molded storage wells engineered to secure oxygen cylinders and emergency medical gear away from the mechanical lift components.

• X-Ray Transparent Platform: A rigid, fiberglass-insulated mattress deck featuring an adjustable gas-spring assisted backrest.

• Secure Restraint Network: Five strategically welded structural fixtures accommodate heavy-duty safety restraint straps to ensure maximum stability during high-speed or inclined transport.

• Integrated Mattress Retainers & IV Pole: Built-in mechanical retention brackets at the head and foot prevent mattress slippage, paired with a dual-hook, fold-down IV pole that collapses out of sight when not in use.

📊 Technical Specifications
