Facilities searching for a 4-body extra wide cadaver cooler are typically at the same decision point: the current unit no longer handles caseload volume or case size, and the choice is between committing to a walk-in system or finding a high-capacity upright that solves the bariatric clearance and density problem without the infrastructure investment. The American Mortuary Coolers Model 4BX is built for exactly that situation.

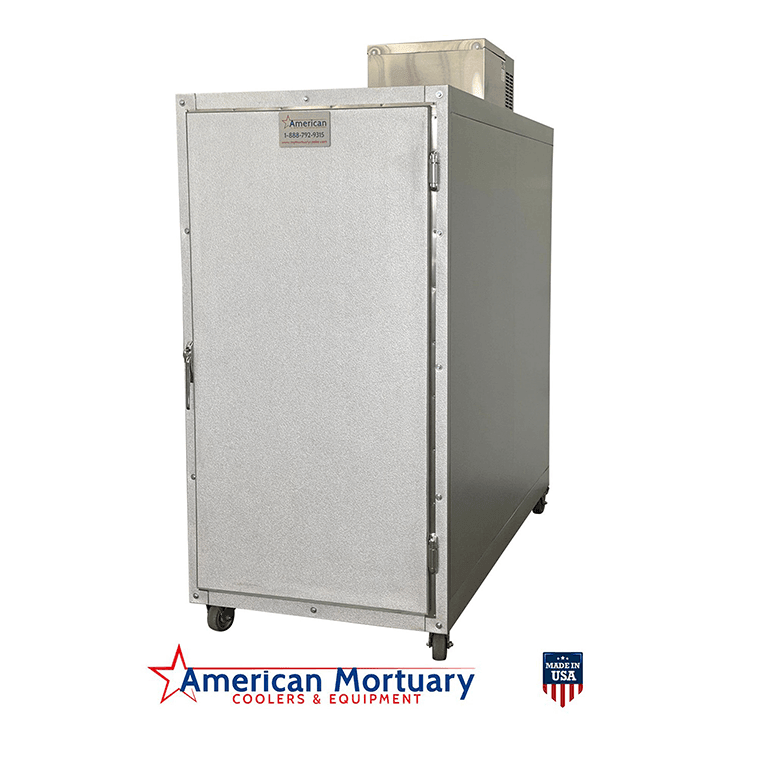

Four-body storage. 36-inch interior clearance. Heavy-duty 4-tier roller rack. 100% self-contained — no drainage, no special electrical systems, no plumber, no HVAC contractor. Standard 110V outlet. Built in Johnson City, Tennessee. Backed by a 15-year panel and door warranty. Priced and delivered factory-direct with no middleman between the facility and the manufacturer.

Who Orders the Model 4BX

• Funeral homes stepping from 3-body to 4-body capacity, with or without bariatric caseload
• Rural county morgues and coroner offices managing 3–6 holds per day who need 4-body vertical density in a standard footprint
• Hospital pathology departments and morgues that need bariatric-capable refrigerated cadaver storage in a conditioned room
• Medical examiner and forensic facilities outfitting a primary or secondary holding room
• Crematories managing surge capacity without adding a full walk-in system
• Government and disaster response facilities requiring procurement-ready OSHA-certified equipment with W-9 and PO support
• Any operation specifically searching for a no drainage 4-body mortuary cooler or a 4-body self-contained morgue cooling system that runs on existing power

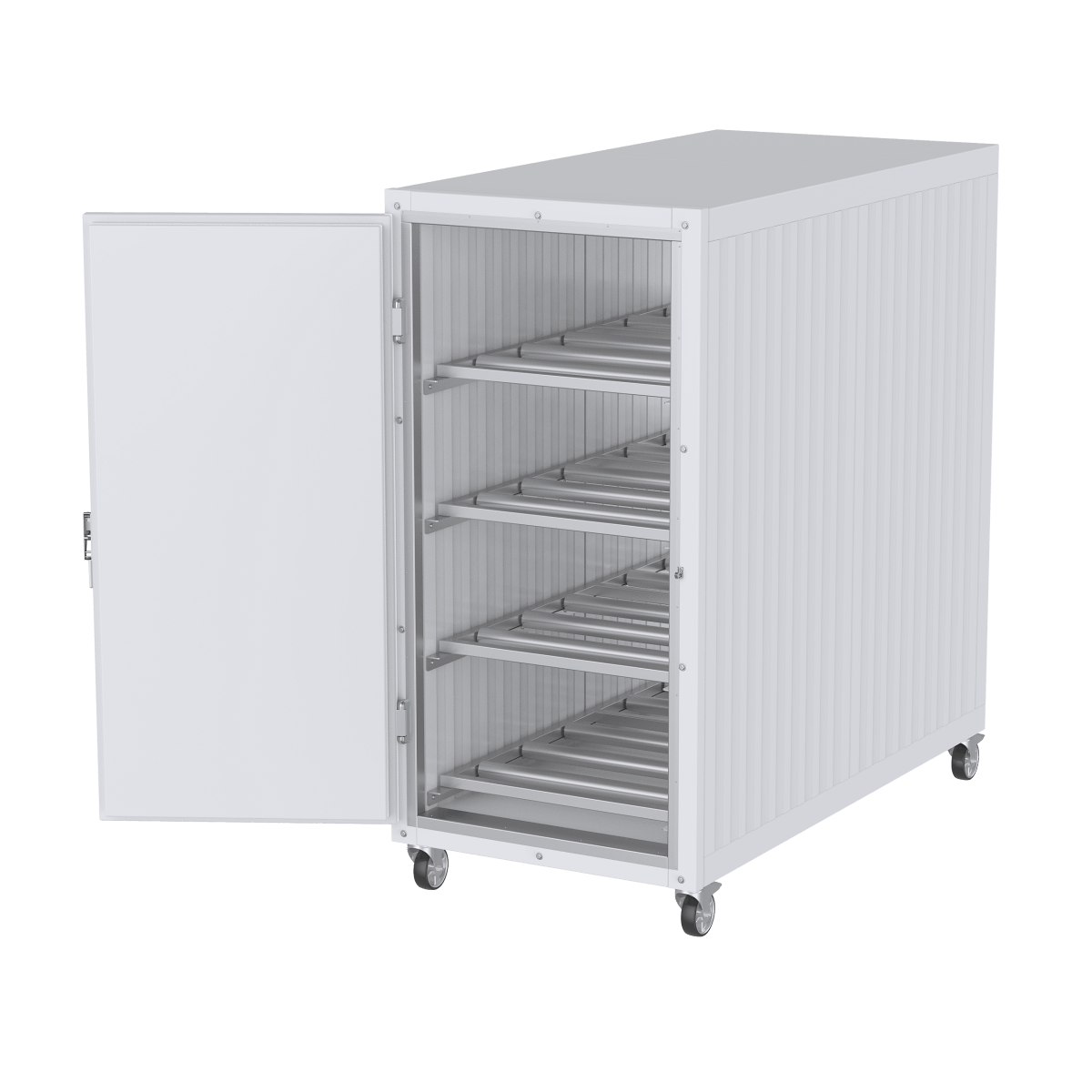

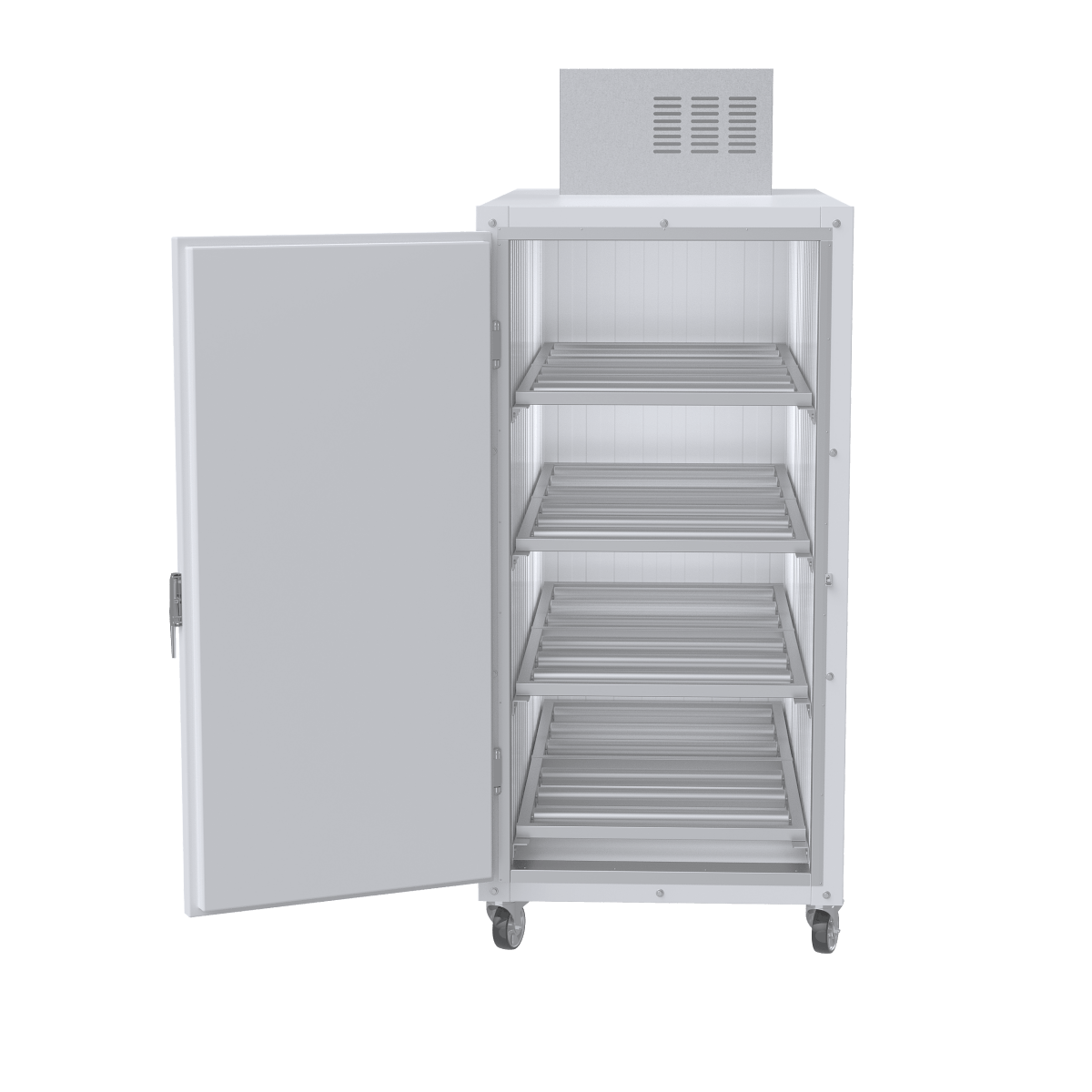

4-Tier Storage at 36-Inch Interior Width

The 4-tier roller rack inside the Model 4BX stacks four bodies vertically within a 94-inch deep by 44-inch wide footprint — maximum storage density without the floor area of a walk-in system. At 80 inches of interior height, each tier has genuine working clearance from the tier above it, which matters when staff are loading and retrieving on a daily schedule. The 36-inch interior door clearance accepts 27-inch cadaver trays and accommodates larger remains without the contorted positioning that standard-width coolers require.

The extra-wide design also reduces cumulative staff strain. Each loading and retrieval at the correct position instead of working around a narrow opening protects your team over the long run — a factor that rarely appears in equipment specs but shows up clearly in worker compensation data for high-volume operations.

For facilities comparing configurations across the full upright series, see Upright Mortuary Cooler Capacity Options or use the Cooler Capacity Calculator to confirm the right body count for your caseload and growth projection.

No Drainage. No Special Electrical. No Contractor.

Three specifications that eliminate the three most common delays in a mortuary cooler installation:

• No drainage required — 100% self-contained sealed system. No floor drain, no drain line, no plumber. Condensate is managed internally within the refrigeration circuit.
• Standard 110V outlet — no dedicated circuit upgrade, no electrician required for most conditioned installations. Customer must verify outlet condition, breaker rating, and facility compatibility before ordering.

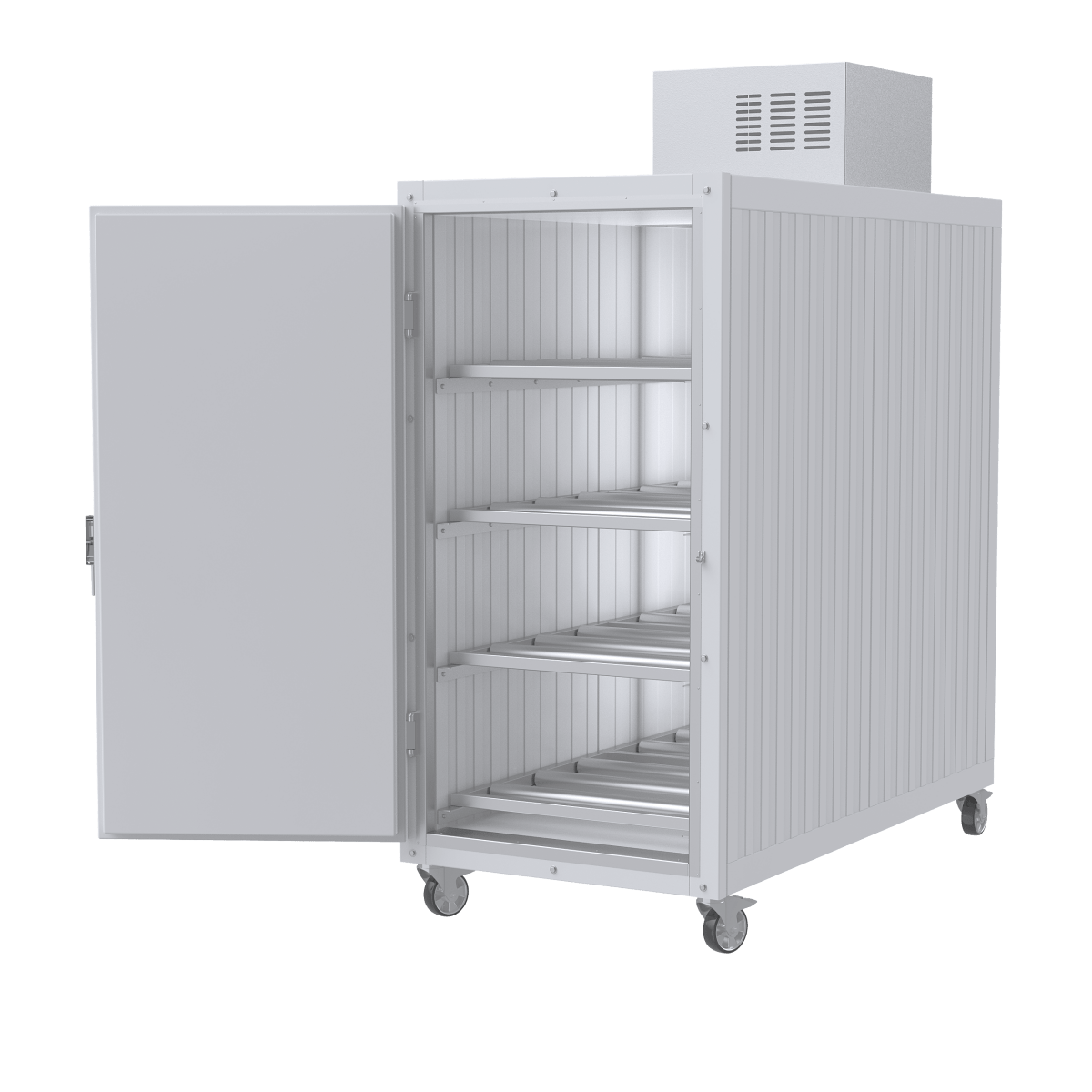

• No HVAC tie-in — drop-in self-contained refrigeration with the compressor sitting on top of the unit. No mechanical room access, no split-system contractor, no HVAC coordination delay.

For the technical context behind why self-contained systems are more ambient-sensitive today than they were five years ago — including refrigerant changes and tighter performance tolerances — see: Self-Contained Mortuary Refrigeration Systems: 2019 vs. 2025.

Ambient Room Temperature — What You Must Confirm Before Ordering

The standard compressor on the Model 4BX is rated for conditioned rooms at or below 80°F ambient temperature. That covers the majority of prep rooms, morgue storage areas, and pathology departments with standard climate control in the continental United States.

The following environments require a high-ambient compressor upgrade before ordering:

• Rooms without air conditioning or active year-round climate control
• Garage-style, semi-outdoor, or basement installations with limited ventilation
• Facilities in Gulf Coast, Southwest, Southeast, or desert-region climates where ambient temperatures regularly exceed 80°F
• Any space where combined temperature and humidity index (THI) exceeds the rated threshold
• Rooms where compressor heat buildup can raise ambient temperature over time due to poor ventilation

The high-ambient compressor upgrade cost is calculated based on your region and specific ambient conditions and is added to your final order total. It is not included in base pricing unless explicitly stated in your written quote. Installing the standard unit in a high-ambient environment will reduce performance, shorten component life, and may void warranty coverage on affected mechanical parts.

Technical background: Self-Contained Mortuary Refrigeration Systems: 2019 vs. 2025. General climate and maintenance guidance: Mortuary Cooler FAQ. Call before ordering if your installation environment is uncertain: 1-888-792-9315.

Key Performance Features

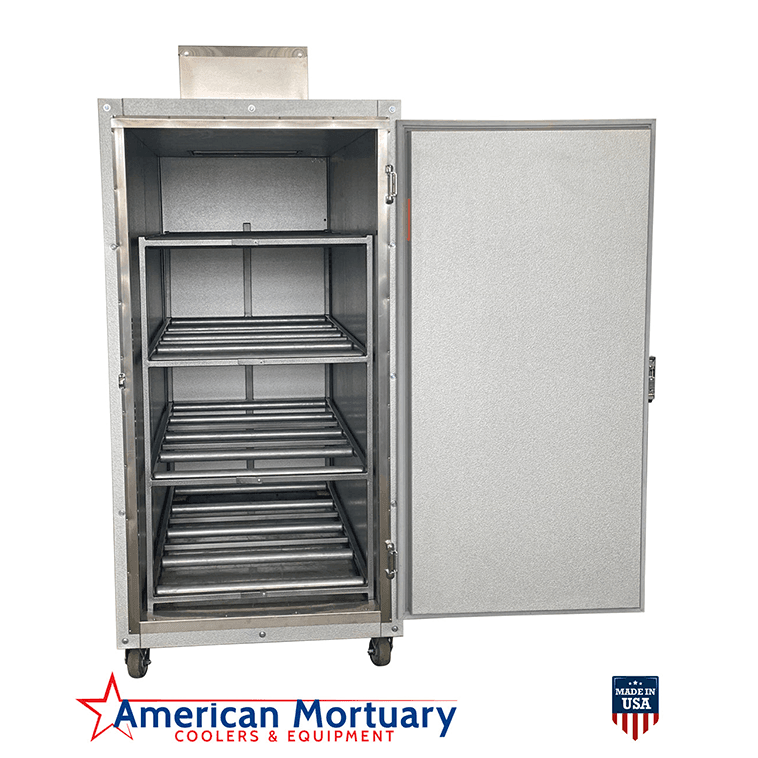

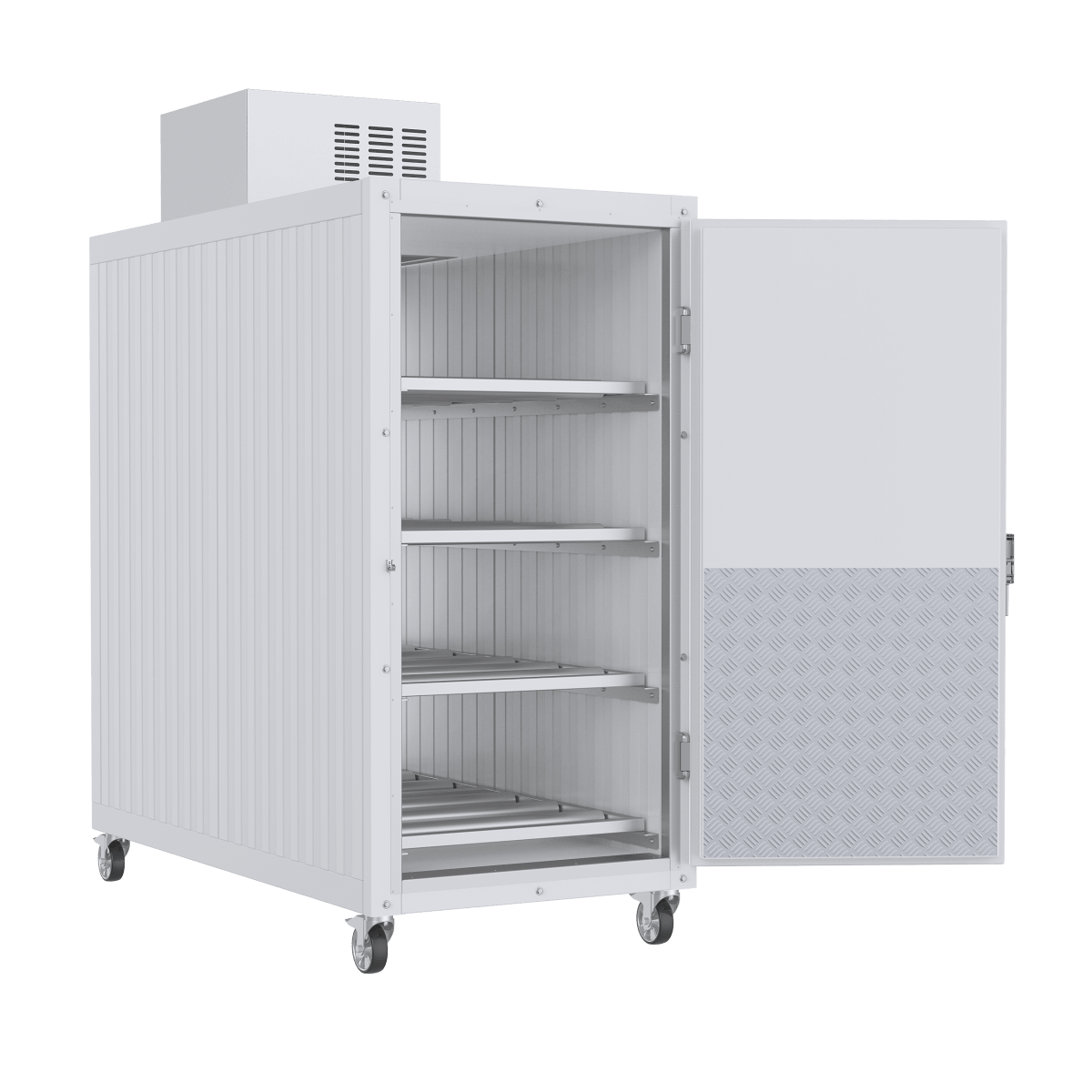

4-tier heavy-duty roller rack — maximum vertical storage density
Integrated 4-tier interior roller rack system included. Roller-bearing rails provide smooth, consistent loading and retrieval at every tier. At 80 inches of interior height, each tier has working clearance — no cramped top-tier access that compromises dignified handling.

36-inch extra wide interior — bariatric cadaver cooler clearance
86.00" D × 36.00" W × 80.00" H interior. The 36-inch side-to-side door clearance accommodates larger remains and 27-inch wide cadaver trays. Facilities handling standard-size cases who prioritize independent-compartment access should review the 4-Body 2-Door Mortuary Cooler. Facilities who need fewer bodies with the same 36-inch clearance should review the 3BX Extra-Wide 3-Body Mortuary Cooler.

Self-contained drop-in refrigeration — no drainage, no plumbing
Drop-in refrigeration package with digital thermometer and easy-adjust temperature controller. Maintains 34–38°F body storage temperature. 100% sealed self-contained system — no drain line, no condensate management by the facility.

110V self-contained morgue cooling system
Standard 110V outlet for most conditioned facility installations. No special electrical systems needed. Customer must verify outlet condition, circuit rating, and facility compatibility before ordering.

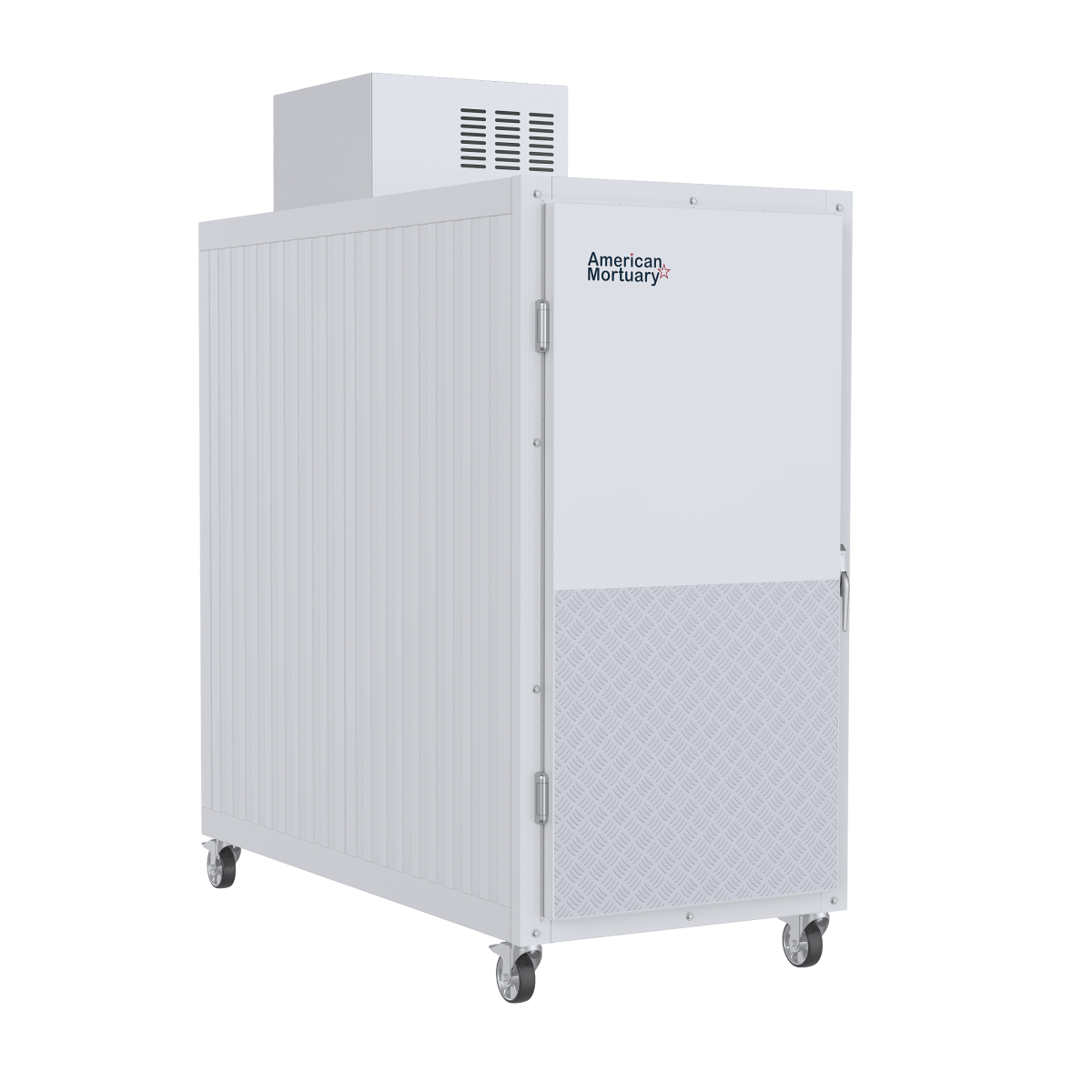

Optional stainless diamond treadplate floor armor
Three plate thickness options to protect the cooler floor against gurney traffic, hydraulic lift wheels, and repeated heavy loading cycles:

• 1/8 inch standard-duty — entry-level reinforcement for daily cot and tray rotation
• 3/16 inch heavy-duty — recommended for active morgues, crematories, and high-use facilities
• 1/4 inch extreme-duty — maximum floor protection for facilities using hydraulic lifts and high-volume loading cycles

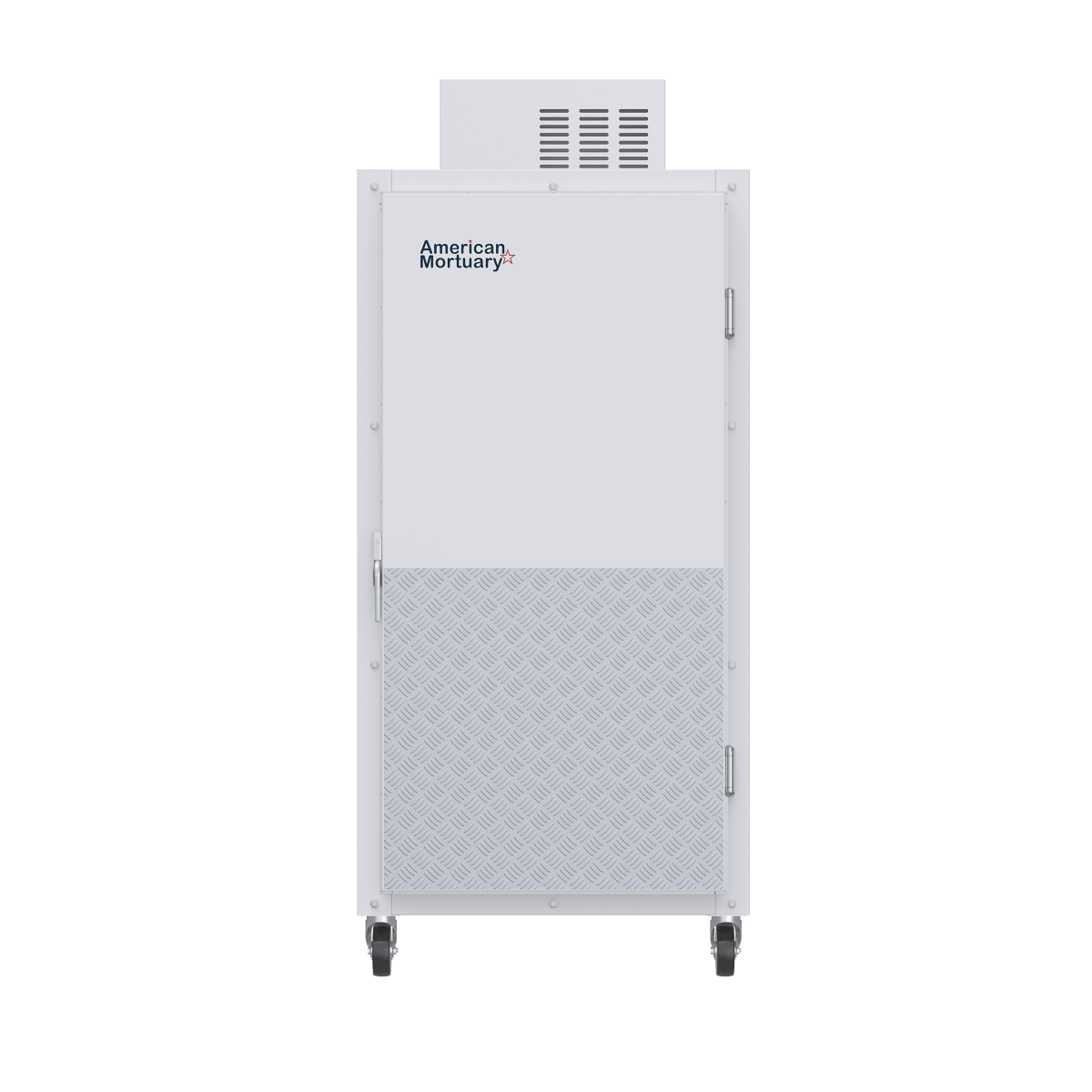

Custom door swing — left or right hand
Specify hinge placement at order. Determined from your position facing the front of the unit.

Optional castors — mobile cadaver cooler configuration
Factory-installed heavy-duty casters convert this unit into a repositionable mobile body cooler for positioning flexibility, overflow placement, or temporary morgue configurations. Castors are required when selecting assembled freight shipment to maintain structural balance during transit.

Heavy-duty chrome hardware — USA-manufactured upright mortuary cooler
Chrome-plated structural hardware, impact-resistant handles, and high-performance pressure-bonded polystyrene insulation panels built for long-term professional use in demanding morgue and mortuary environments. Every Model 4BX is engineered and manufactured at our Johnson City, Tennessee facility.

American Mortuary Coolers — Direct from the Manufacturer

When you purchase the Model 4BX from American Mortuary Coolers, you are buying direct from the facility that designed, built, and will service your equipment. There is no distributor between you and us. That matters in three concrete ways: pricing reflects the factory cost without a distributor layer, warranty support comes directly from the engineering team that built the unit, and any post-installation questions go to people who have hands-on knowledge of the exact unit you received.

Our factory and showroom are located at 140 Kwick Way Lane, Johnson City, Tennessee. Facilities in the region are welcome to view equipment in person before ordering. For all other buyers, our equipment specialists are available Monday through Friday, 9 AM to 4:30 PM Eastern: 1-888-792-9315.

Financing — Split Payments or Extended Terms

Shop Pay Installments — split your purchase into 3 or 4 equal interest-free payments at checkout. Applied automatically for qualifying orders. No separate application, no hidden fees, no redirect from the standard checkout flow.

Traditional equipment financing — extended monthly payment schedules for larger orders, facility packages, and hospital or government procurement. Compressor upgrade costs, where applicable, are included in the financed total. Visit our Financing page or call 1-888-792-9315 to discuss your order before committing.

Technical Specifications

Model	4BX Extra-Wide 4-Body Upright Mortuary Cooler
SKU	4BMC-XW
Capacity	4 bodies
Exterior Dimensions	94.00" D × 44.00" W × 101.00" H
Total Operational Height	Add approx. 30.00" for compressor footprint and required ventilation clearance
Interior Dimensions	86.00" D × 36.00" W × 80.00" H
Interior Door Clearance	36.00" side-to-side bariatric access
Tray Compatibility	27-inch cadaver trays
Rack System	Heavy-duty 4-tier interior roller rack — included
Door Swing	Left-hand or right-hand — specify at order
Electrical	Standard 110V outlet — no special electrical systems needed
Drainage	None required — 100% self-contained
Plumbing	None required
Standard Ambient Rating	Conditioned rooms at or below 80°F
High-Ambient Upgrade	Required for unconditioned, hot-climate, or high-humidity environments — cost added to final total, varies by region
Floor Plate Options	1/8" standard-duty, 3/16" heavy-duty, 1/4" extreme-duty — 304-grade stainless diamond treadplate
Insulation	High-performance pressure-bonded polystyrene
Castors	Optional — required for assembled freight shipment
Origin	USA — Johnson City, Tennessee
Brand Support	Death Care Inc. / American Mortuary Coolers
Lead Time	3–5 weeks for custom configurations, subject to production and order details
Suggested HS Code	8418.50.00.80 — confirm with your customs broker

Warranty

• 15-year warranty on insulation panels and heavy-duty doors
• 5-year warranty on mechanical components
• 2-year warranty on core compressor parts

All coverage subject to written warranty terms, correct installation, proper environmental conditions, and normal professional use. Backed directly by American Mortuary Coolers at our Johnson City, Tennessee manufacturing facility. Warranty on mechanical components requires installation within the rated ambient temperature environment — facilities with conditions above 80°F ambient must order the appropriate compressor upgrade to maintain full warranty coverage.

Shipping and Logistics

• Assembled or unassembled: Ships in either configuration depending on order, freight route, and receiving access.
• Assembled shipments: Castors are mandatory to maintain structural balance during transit. A forklift or equivalent heavy equipment is required for offloading at any location without a commercial loading dock.
• Unassembled shipments: Customer is responsible for moving all panels from the freight drop point to the final installation site.
• Freight estimates: Charges calculated at checkout are estimates and may be adjusted for remote or residential delivery, limited access, fuel surcharges, or accessory weights.

Recommended Accessories

• All-Access Low-Profile Mortuary Lift (1,000 lb) — single-operator multi-tier loading inside upright cadaver coolers
• HD 1000 MAX Mortuary Lift — Model 1030-SLL — 4-way multi-directional 84-inch lift for high-volume facilities
• Mortuary Racks, Cadaver Racks & Lift Systems
• Mortuary Rack Buying Guide
• 27-inch stainless steel cadaver trays — confirm 36-inch interior tray width compatibility before ordering
• HD high-impact plastic storage boards — lightweight, sanitizable, daily-use grade

Planning and Buying Resources

• Upright Mortuary Cooler Capacity Options
• Cooler Capacity Calculator
• 2026 Mortuary Cooler Buyer's Guide
• Mortuary Cooler FAQ — Climate, Electrical & Maintenance
• Self-Contained Mortuary Refrigeration Systems: 2019 vs. 2025
• Mortuary Rack Buying Guide
• Cooler Quartet — Your Guide to 4-Body Mortuary Coolers
• 4-Body Mortuary Cooler Options
• Refrigeration Revelation — A Guide to Mortuary Systems
• Complete Guide to Choosing Mortuary Cold Storage
• Top Rated Mortuary Coolers
• Essential Guide to Mortuary Body Coolers
• 3BX Extra-Wide 3-Body Mortuary Cooler — step down in capacity
• 4-Body 2-Door Mortuary Cooler — independent-compartment alternative at the same capacity
• All Upright Mortuary Coolers
• Walk-In Mortuary Coolers
• Hospital Morgue Coolers
• Funeral Home Coolers
• Side-Load Mortuary Coolers

Frequently Asked Questions

What is the Model 4BX 4-body extra wide cadaver cooler?

The Model 4BX is a 4-body upright mortuary cooler with a 36-inch wide interior, heavy-duty 4-tier roller rack, 100% self-contained 110V refrigeration, and no drainage requirement. It is engineered and manufactured in Johnson City, Tennessee, backed by a 15-year panel and door warranty, and available directly from the manufacturer at factory-direct pricing.

Does this cadaver cooler require drainage or special plumbing?

No. The Model 4BX is 100% self-contained with no drainage required. No floor drain, no drain line, no plumber. Plugs into a standard 110V outlet and is ready to operate immediately after placement and cooling down to operating temperature.

What ambient room temperature is required for this mortuary cooler?

The standard compressor is rated for conditioned rooms at or below 80°F ambient. Hot-climate facilities, unconditioned spaces, garages, and high-humidity environments require a high-ambient compressor upgrade. That upgrade cost varies by region and is added to the final order total. Installing the standard unit above the rated threshold risks performance issues and may void mechanical warranty coverage. Call 1-888-792-9315 before ordering. Full technical guidance: Self-Contained Mortuary Refrigeration Systems: 2019 vs. 2025.

What floor plate options are available?

1/8 inch standard-duty for daily transport cots and tray rotation. 3/16 inch heavy-duty for active morgues and high-use facilities — the most frequently selected option. 1/4 inch extreme-duty for facilities using hydraulic lifts and high-volume loading cycles. All are 304-grade stainless steel diamond treadplate.

What financing is available?

Shop Pay Installments — 3 or 4 interest-free payments at checkout, no separate application. Traditional equipment financing — extended monthly terms for larger orders and facility packages. Upgrade costs are included in financed totals. See Financing page or call 1-888-792-9315.

What is the difference between the 4BX and the 4-Body 2-Door Mortuary Cooler?

The 4BX is a single-door upright with a 4-tier roller rack — best for facilities accessing all four positions from one opening and maximizing vertical storage density. The 4-Body 2-Door Mortuary Cooler provides two independent refrigerated compartments each with their own door — the right choice when accessing one body should not expose the other section to ambient temperature or when chain-of-custody separation is operationally required.

What warranty does the Model 4BX carry?

15 years on panels and doors. 5 years on mechanical components. 2 years on core compressor parts. All coverage backed directly by American Mortuary Coolers in Johnson City, Tennessee. Mechanical warranty is contingent on correct installation within the rated ambient temperature environment.

Do I need a forklift for delivery?

For assembled delivery, a forklift or equivalent heavy equipment is required for offloading at any location without a commercial loading dock. Unassembled delivery does not require a forklift but requires the customer to move panels from the freight drop to the installation site. Call 1-888-792-9315 to confirm the right shipping configuration for your facility's receiving setup.

---
