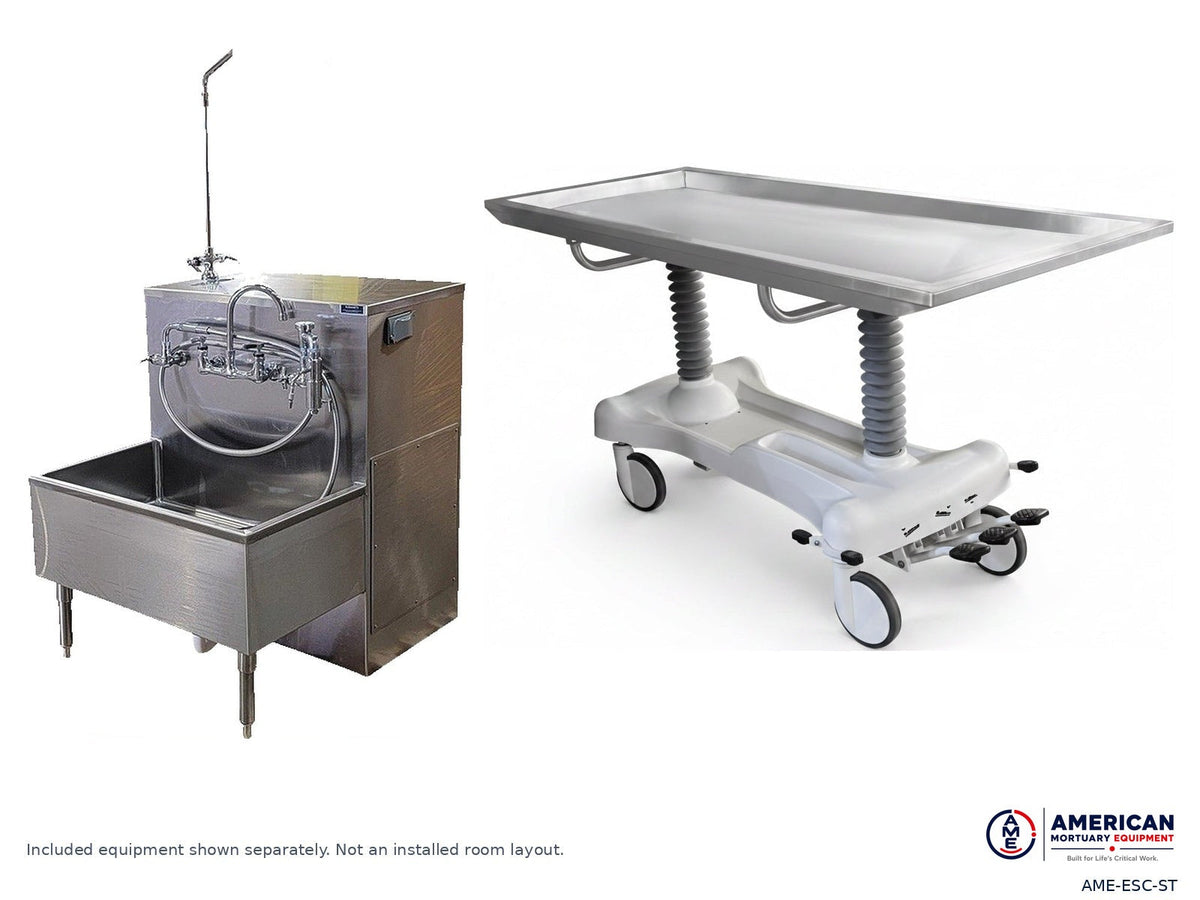

The AME TITAN Embalming System Package pairs one hydraulic embalming table with one 1036-ES stainless steel embalming sink station. Choose the standard 650 lb table or the 1,000 lb bariatric table, then select the station drain configuration for your preparation room.
Exactly what is included
- One selected AME TITAN hydraulic embalming table
- One AME TITAN 1036-ES embalming sink station
- The selected standard drain or 2-inch drain upgrade
- Standard station faucet, hydro aspirator, spray hose and one GFCI duplex receptacle
Package pricing is the current sum of the included table and station configuration, without a package discount. Eyewash, drench hose, extra GFCI receptacles, installation, additional cabinetry and other accessories are not included unless separately specified.
Choose the table for your workflow

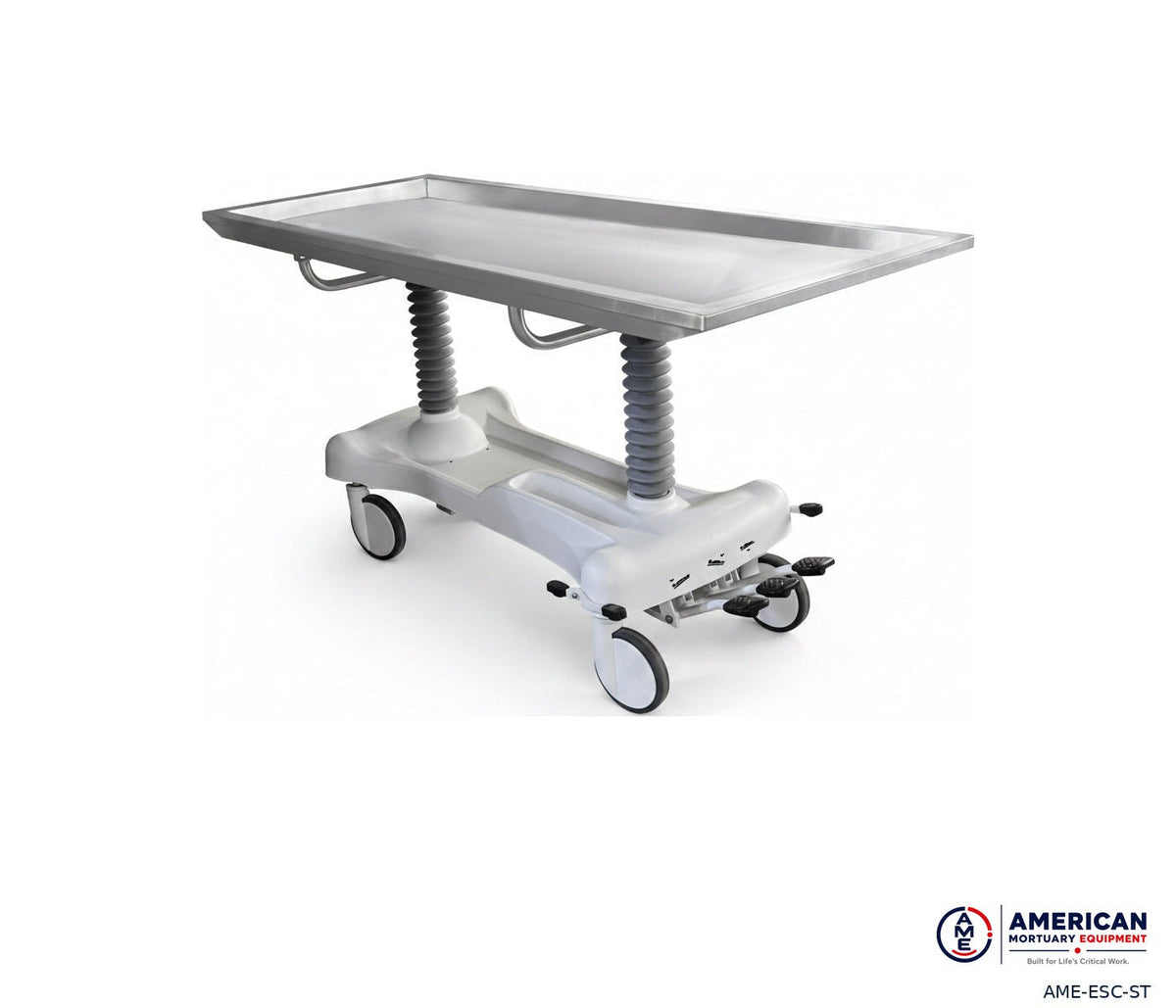

| Standard hydraulic table | 650 lb load capacity; 31.5-inch top width |
|---|
| Standard top dimensions | 80.25 × 31.5 × 4.5 inches |
|---|

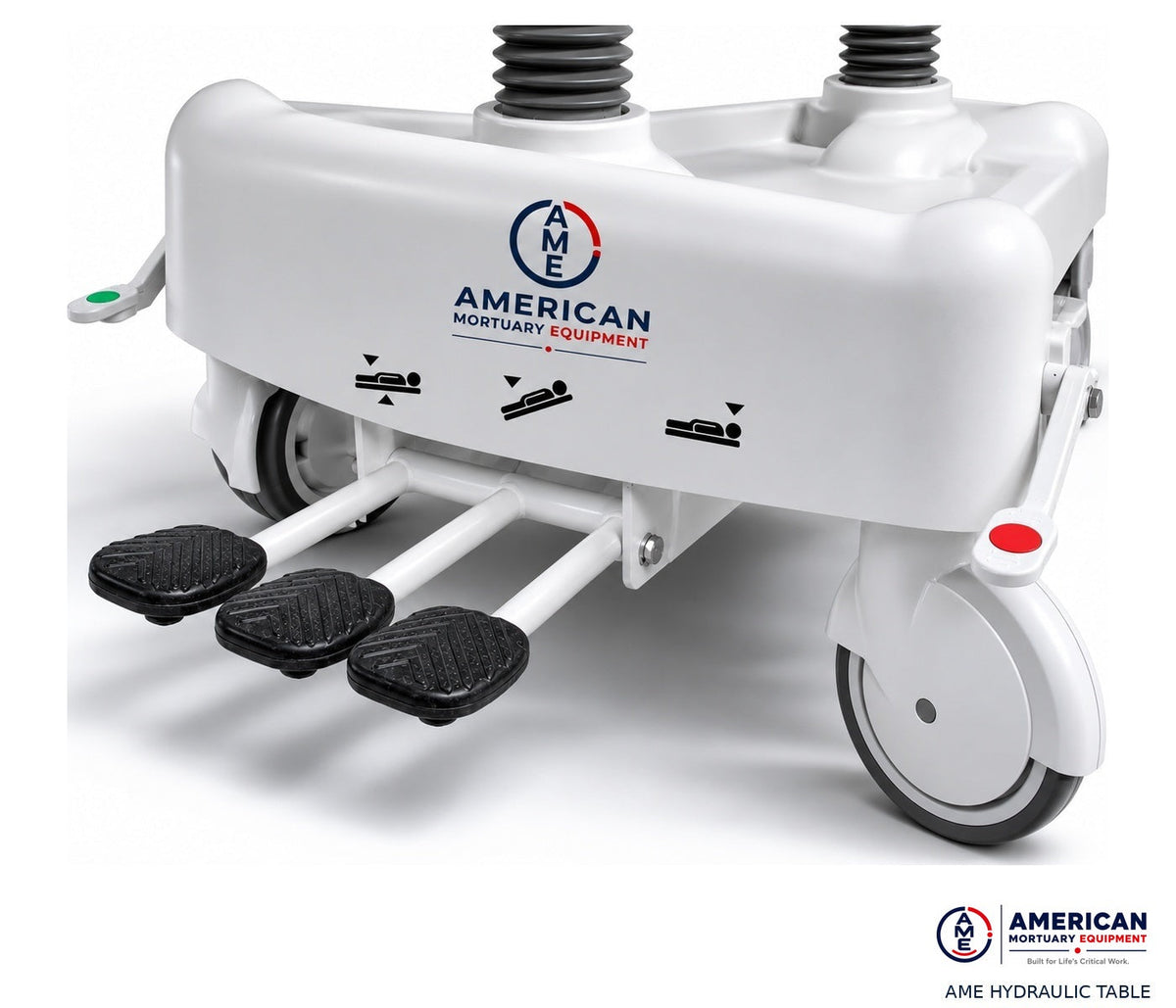

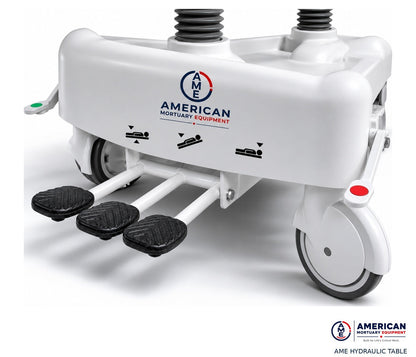

| Standard height adjustment | 27 to 41 inches; three hydraulic foot pedals |
|---|
| Standard drainage | Stainless top with trough on all four sides and centered foot-end drain |
|---|

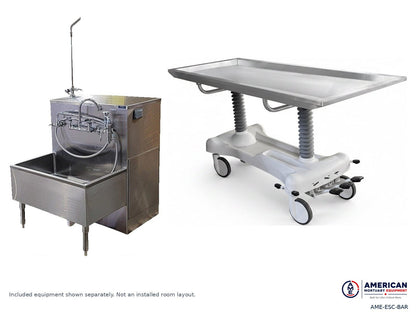

| Bariatric hydraulic table | 1,000 lb working capacity; 35-inch top width |
|---|
| Bariatric height adjustment | Hydraulic foot-pump operation; confirm required transfer height before ordering |
|---|
| Bariatric work surface | Smooth, slightly arched stainless top, centered foot-end drain and bucket hanger |
|---|
| Table mobility | Braking / locking wheels; secure the table before use |
|---|
Compare the full standard hydraulic table specifications and bariatric hydraulic table specifications. The two tables share a hydraulic preparation-room design, but their published width and load ratings differ. Photos are representative; the selected table determines the included configuration.

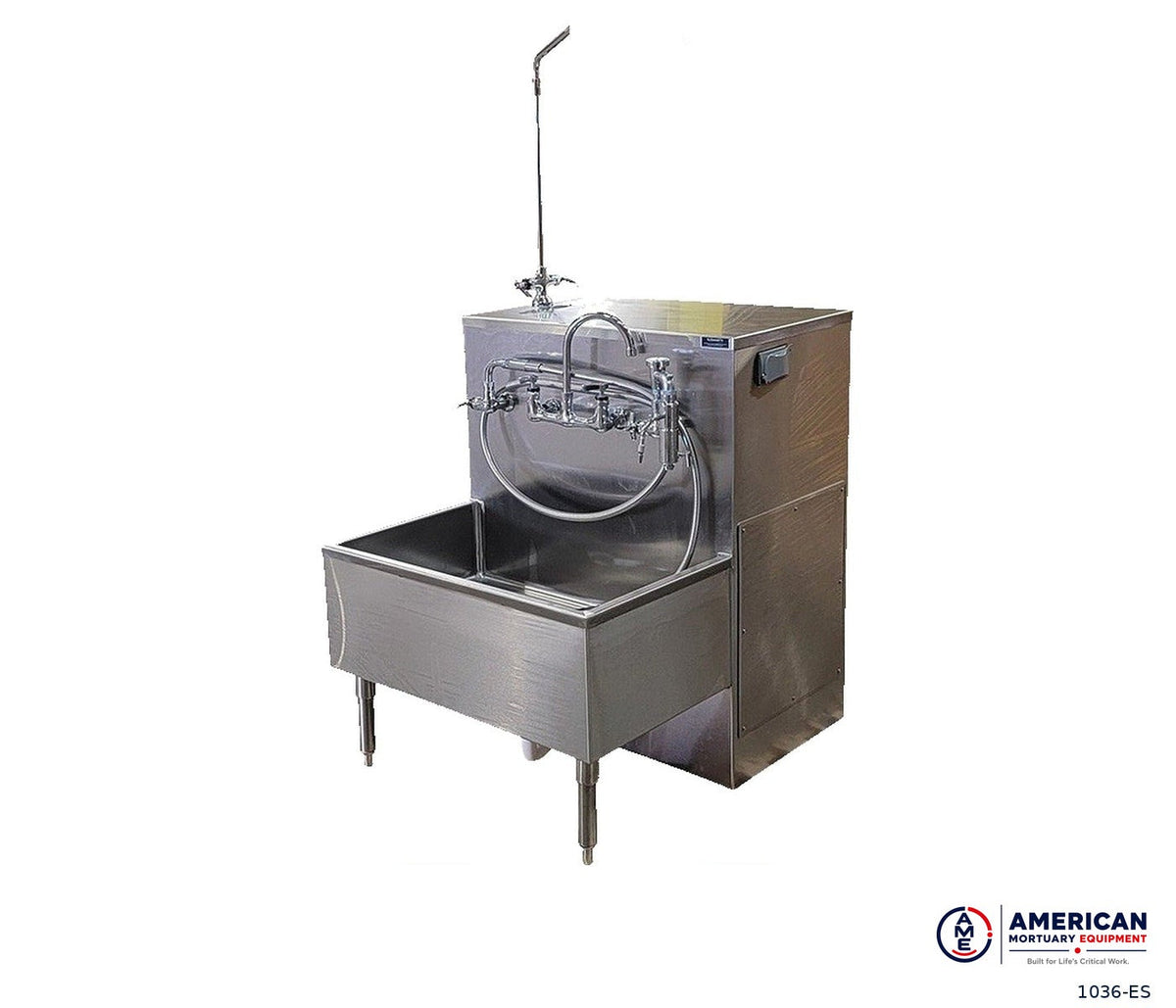

Included 1036-ES embalming sink station
| Construction | 14-gauge 304 stainless steel, heliarc-welded and polished |
|---|
| Overall cabinet / basin envelope | 32 inches W × 40 inches D × 41 inches H |
|---|
| Overall height to faucet spout | 70.5 inches |
|---|
| Sink rim height | 23 inches above floor |
|---|
| Faucet | Hot/cold gooseneck mixing faucet with paddle / wrist-blade controls |
|---|
| Aspiration | Hydro aspirator with vacuum breaker and flexible hose |
|---|

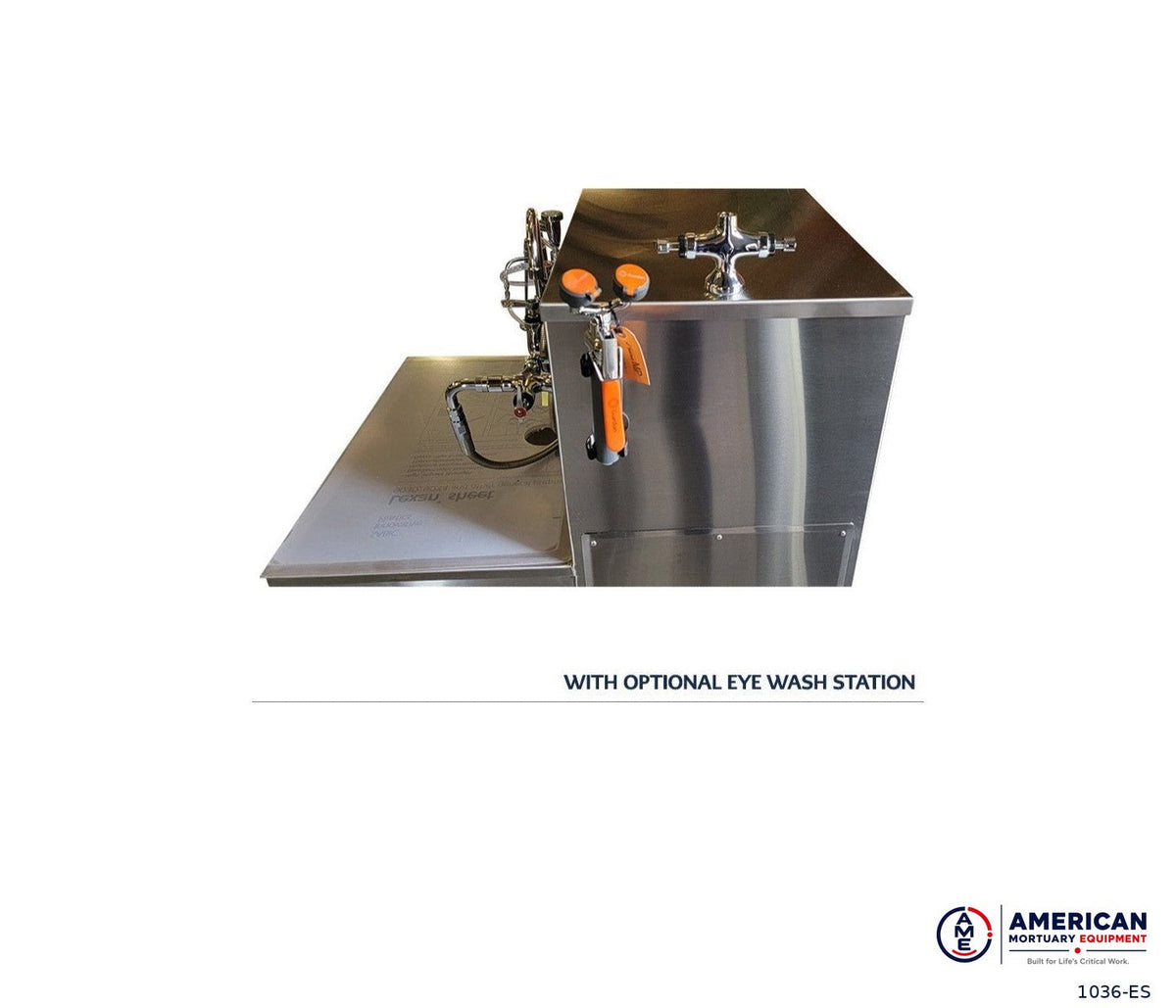

| Spray hose | 8-foot flexible hose |
|---|
| Electrical | 120 V, 60 Hz, single phase, 15 A; standard GFCI duplex |
|---|
| Aspirator water supply | 58-60 psi and 4 GPM |
|---|
| Mounting | Floor or wall mounting; removable rear access cover |
|---|
| Drain selection | Standard drain or selected 2-inch upgrade |
|---|
Review the 1036-ES station details and optional upgrades, its user manual, and the rough-in sheet linked on the station page before planning utilities. Confirm local drain and backflow requirements with your plumbing inspector; selecting a drain option alone does not establish code compliance.
Plan delivery and installation
The package has its own flat-freight checkout rule. Shipping charges are shown at checkout rather than added to the equipment price shown here. Licensed plumbing and electrical installation, site preparation and utility connections are not included.
Confirm doorway clearance, table access, fixture clearances, utility locations and mounting before ordering. Custom room layouts, station modifications and additional equipment are available by quotation; the selected package contains only the items listed above.
Complete the preparation room
Browse embalming tables, embalming stations and water controls, mortuary racks and lifts, and the USPE stainless steel storage rack. For preparation-room storage on a smaller budget, compare the AME 2-tier cantilever rack.
Package questions
Does the price include both the table and the station?
Yes. Each package includes one selected table and one 1036-ES station with the chosen drain. The variant price is the sum of those current item prices, with no package discount.
Are eyewash and installation included?
No. The package includes the standard station fixtures listed above. Eyewash, drench hose, additional GFCI receptacles, installation and utility work require a separate specification and price.
Can I order a custom preparation-room package?
Yes. Send the room layout, utility information, intended table capacity and required equipment. Custom packages are quoted to the approved scope rather than assumed to be part of this product.
