USPE 3-Tier Side-Loading Morgue Cadaver Storage Rack
Model: USPE-CR-SR3-SS-78X23
Quote only
Request a quote for your selected model and configuration.
Production lead time is model- and configuration-specific. Confirm the current schedule in your written quote before ordering.
1-888-792-9315
140 Kwick Way Lane, Building 7, Johnson City, TN 37615
Product details
Available in stainless steel. Quote-only equipment from U.S. Pathology Equipment.
A 3-tier side-loading cadaver storage rack for hospital morgues, medical examiner facilities and institutional body-storage rooms. Coordinate the rack, body trays and lift as one handling system.
Quote only · Model USPE-CR-SR3
Configuration overview
- 3 storage tiers with side-loading access
- Stationary or mobile configuration review
- Roller and body-tray requirements specified separately
- Institutional equipment schedule and room-layout review
Specifications and approval requirements
| Model | USPE-CR-SR3 |
|---|---|
| Storage layout | 3 tiers; side loading |
| Base configuration | Stationary, leveling-foot configuration requested |
| Material requirement | Stainless steel; grade, gauge and finish confirmed in the quotation |
| Roller arrangement | Stainless or PVC-wrapped roller request |
| Tray width | 23, 27 or 30 inches requested; fit requires confirmation |
| Load rating | Must be confirmed for the approved rack and tray combination |
| Trays | Quoted separately unless expressly included |
Options to request
Selections are requests, not confirmed included equipment. Final specifications and compatibility require written approval.
- 23-inch tray-format review
- 27-inch tray-format review
- 30-inch tray-format review
- Matching stainless body trays
- Drain-tray requirement
- Stainless conveyor rollers
- PVC-wrapped roller review
- Positive tray-retention latch
- Adjustable leveling feet
- Caster / floor-lock configuration review
- Lift and roller-pallet compatibility review
- Floor anchorage / seismic review
Frequently asked questions
Are the trays included?
No. Trays are separate quote lines unless the accepted quotation expressly includes them. Specify tray quantity, outside dimensions and drainage needs.
What is the load capacity?
A rating has not been verified for this USPE configuration. Submit the required load per tier and request written confirmation of the complete rack, tray and lift system.
Can I use the rack inside a refrigerated room?
Include the room temperature, door clearances, floor conditions and cleaning protocol. Suitability and any anchorage or movement restrictions require configuration-specific review.
Does the photograph show every variant?

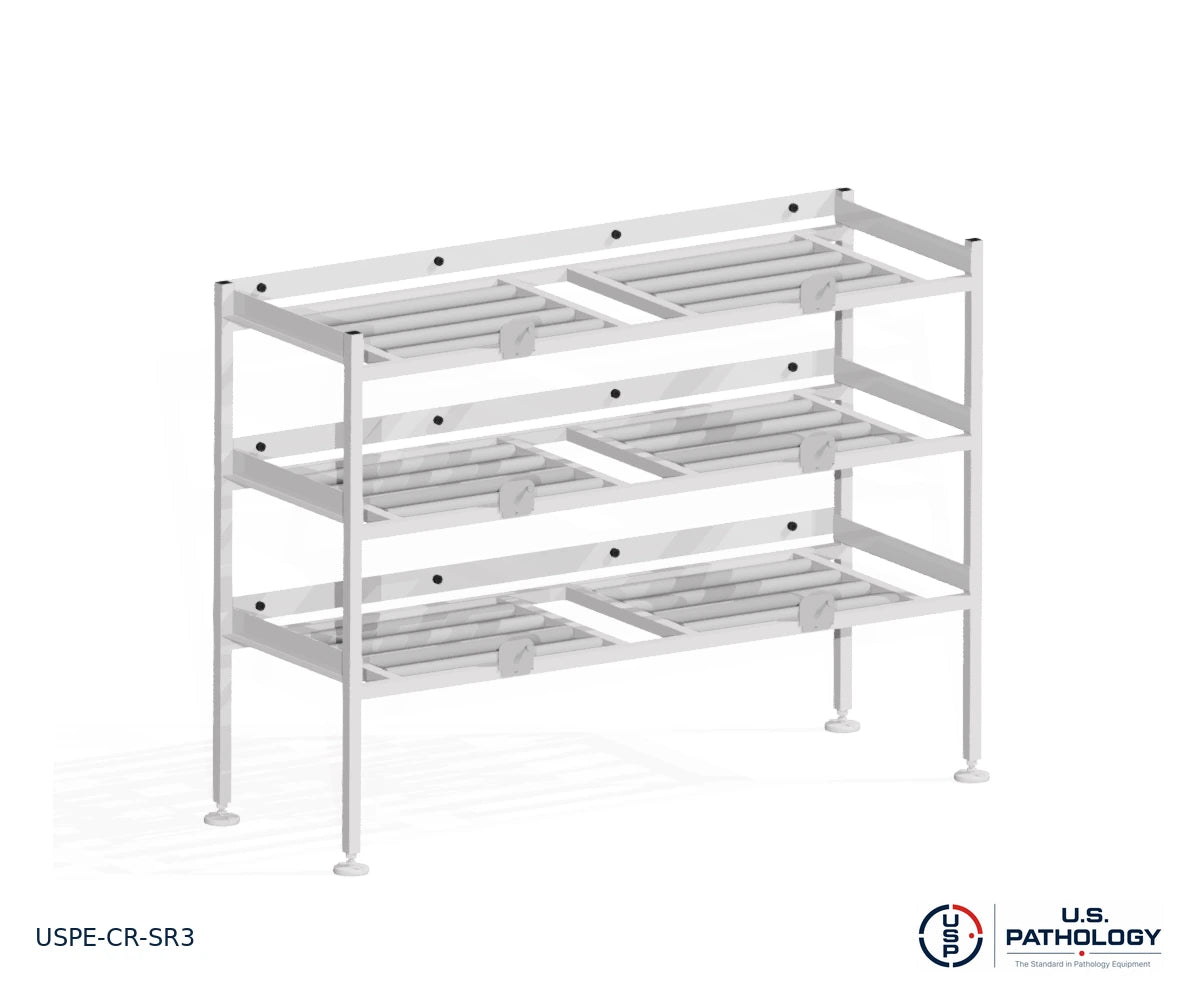

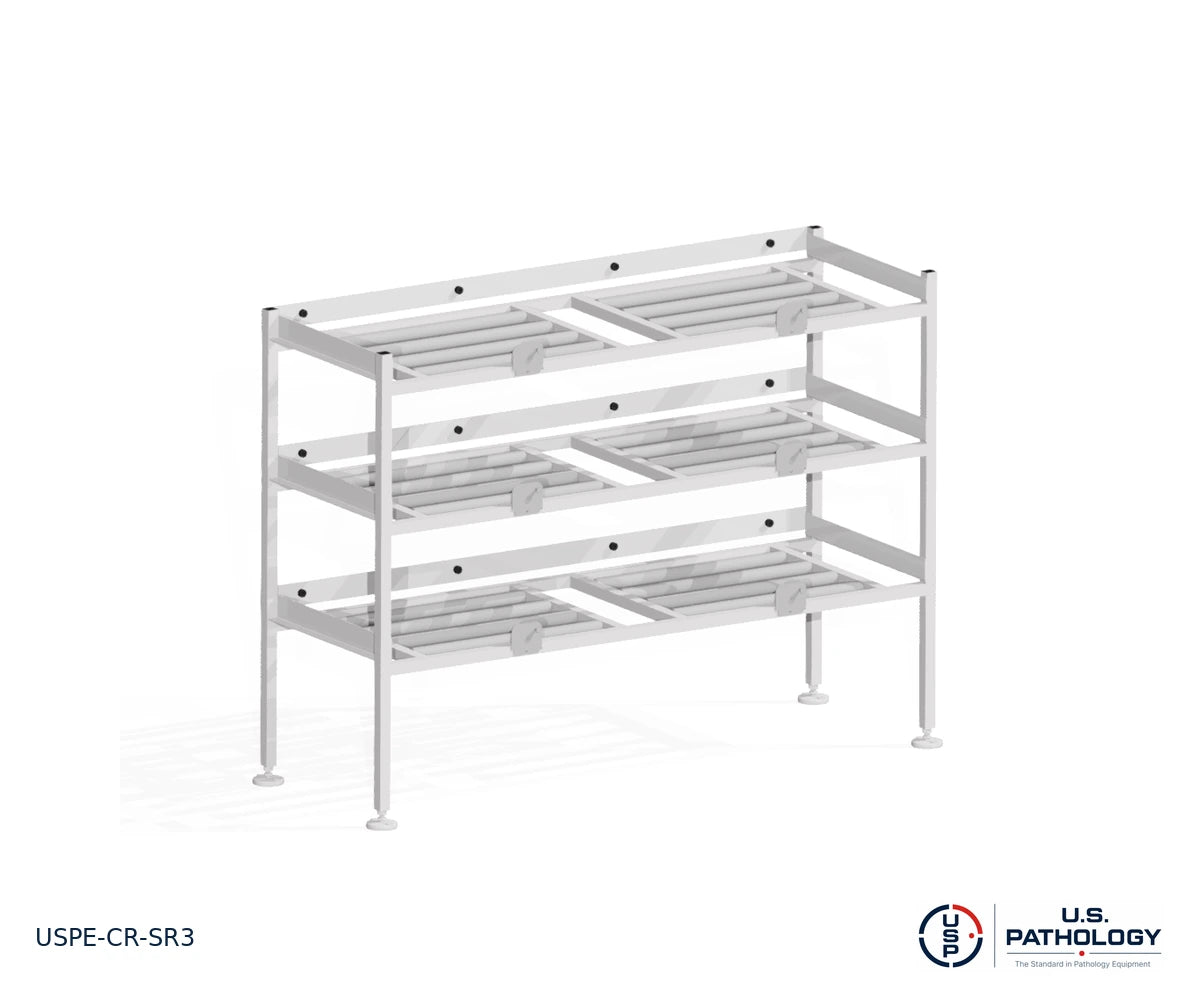

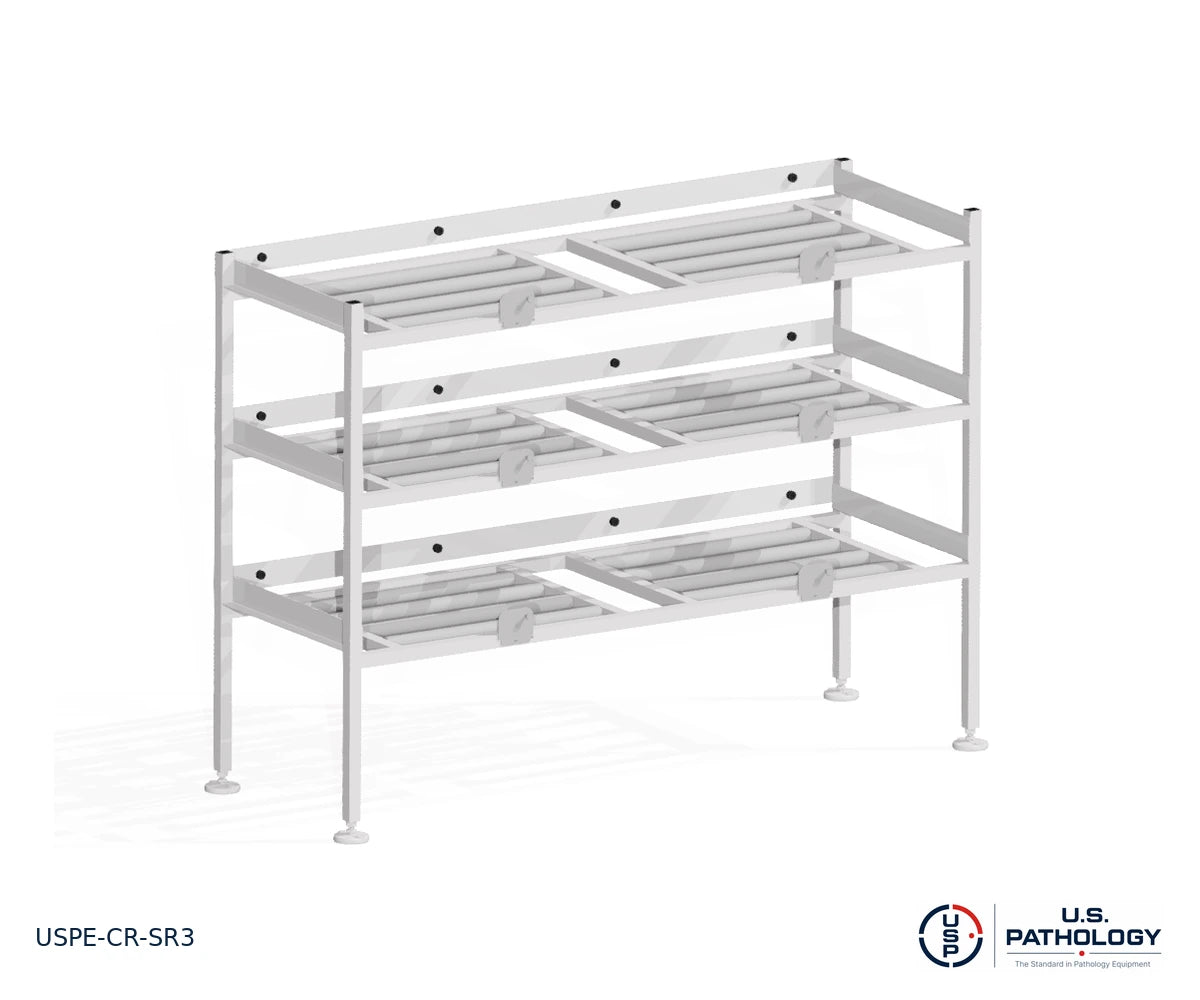

No. The photograph is the reference rack. Roller, caster and custom-size selections are quote requests and may require a different approved drawing.
Related equipment
Forensic pathology equipment · Vault morgue coolers · Laboratory casework
Custom configurations and coordinated RFQs
Custom configurations are available across our equipment and rack lines. Request custom overall dimensions, tray widths, tier count or spacing, bay count, roller arrangement, casters or leveling feet, work surfaces, drainage, utilities and room integration as applicable. Your written quote and approved drawings define the build, materials, load rating and confirmed compatibility; selecting an option is not engineering approval.
Stainless tray and matching rack selections
| Tray selection | Outside tray dimensions | Tray gauge / published load | Rack request |
|---|---|---|---|
| 23-inch width | 78 L × 23 W × 2.75 H inches | 18 gauge / 300 lb | Rack sized and rated for this exact tray; final drawing required |
| 27-inch width | 78 L × 27 W × 2.75 H inches | 16 gauge / 400 lb | Rack sized and rated for this exact tray; final drawing required |
| 30-inch width | 78 L × 30 W × 2.75 H inches | 14 gauge / 500 lb | Rack sized and rated for this exact tray; final drawing required |
Fit approval is required, not implied by nominal width. The quotation must identify the exact tray outside dimensions, usable rack opening, rail/roller support spacing, tray stops and latch engagement, approved tray overhang, tier spacing, loaded transfer height, and per-tier and total rack ratings including tray weight. Confirm cooler doorway, aisle, turning and lift clearances on the approval drawing. A wider tray requires a correctly widened rack, not placement in a narrower standard rack. Rack photos illustrate the equipment format, not every selected width.
All custom equipment RFQs · Stainless rack configurations · 23-, 27- and 30-inch stainless tray RFQ · Storage and transfer package RFQ · Refrigeration project RFQ · Vault cooler project RFQ · Request a coordinated custom quote
Plan this equipment in the room
Storage capacity alone does not determine whether a rack fits the room or works with a lift. The loading direction controls the approach, while each tier has a transfer height and clearance requirement. Plan the rack, tray, support or roller arrangement and handling equipment together, with documented confirmation of the final system ratings.
Check before requesting the final configuration
- Required positions, tier count, loading direction and usable room dimensions.
- Tray outside dimensions: 78 × 23, 78 × 27 or 78 × 30 inches, each 2.75 inches high.
- Every tier transfer height, lift travel, approach clearance and tray retention.
- Casters or leveling feet, supported and moving loads, final system rating and drawings.
