Product details

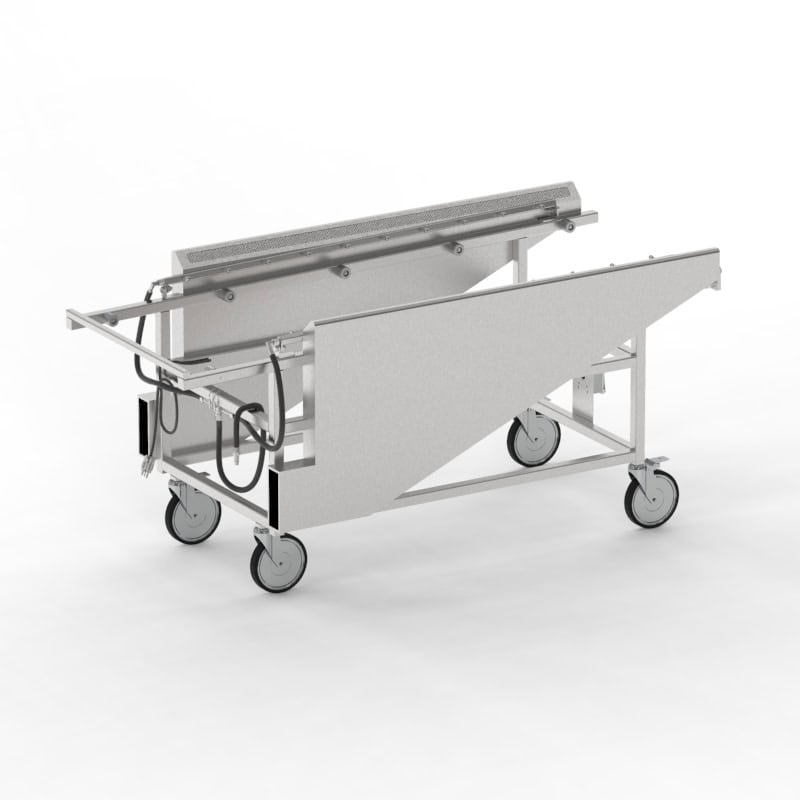

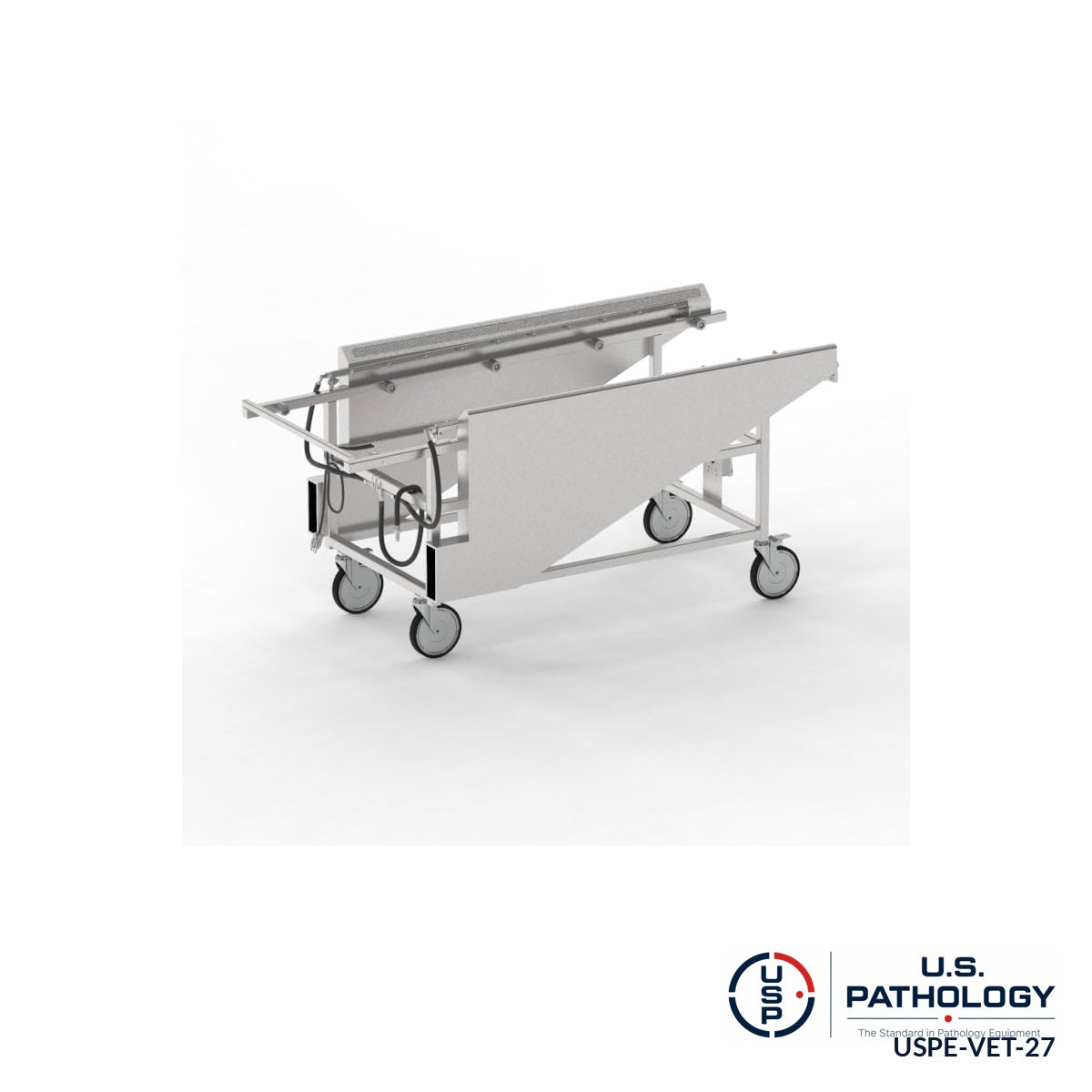

The USPE-ETV-27 is a tray-based ventilated embalming table for a coordinated preparation-room installation. Its nominal 27-inch tray format combines a stainless steel frame, roller-supported loading, rinse bars and downdraft exhaust paths. It is specified by written quotation because the tray, station interface, utilities and room layout must be reviewed together.

Quote-only equipment. The tray is sold separately. This is not a self-contained filtered workstation, and its exhaust paths are not a substitute for a designed and commissioned facility ventilation system.

27-inch ventilated table specifications

Dimensioned drawings and project review

The technical packet retains the authorized source drawing geometry and callouts, with USPE document branding. 81-inch overall length; 37-inch overall width; 34-inch and 4-inch side-view callouts. The current model schedule lists 36–38-inch height; reference points require project confirmation. Dimensions are in inches. Do not scale the illustration or infer powered height adjustment from the listed height range.

Use the model schedule for selection and the final approved project drawing for fabrication, reference elevations, connections and room fit. Neither a nominal tray width nor a rendering proves compatibility with an existing tray, lift or station.

Match the tray, station and building services

Specify the exact tray outside length, width and underside geometry, roller support spacing, latch engagement and loaded transfer height. The table’s published 500 lb capacity is not a combined tray-and-system certification. Confirm the selected tray’s own rating and the complete loaded assembly before approval.

This configuration requires a matched ventilated embalming station interface. The quote must define the connection location and geometry, exhaust duct size, required airflow and static pressure, electrical supply, rinse-water arrangement and drainage routing. No airflow, exposure-control performance, voltage, sanitation certification or universal connection is represented without a model-specific approved submittal.

Facility applications and coordinated purchasing

For a funeral home or centralized preparation center, coordinate tray loading, operator access, clean and soiled routes, and doorway clearance. For hospital mortuaries and medical examiner facilities, review the workflow with facilities staff and confirm whether the required process calls for an embalming table, an autopsy table or another workstation. For anatomy and teaching facilities, evaluate the intended preparation task separately from dissection, grossing or instructional-table requirements.

Build the project around the equipment’s documented function, not the facility label alone. The USPE facility-planning guide organizes the questions to send with a quotation request.

Compare the other tray width

Need the narrower tray format? Compare the USPE 23-Inch Ventilated Embalming Table before setting aisle widths, room access and transfer elevations. The two tables have different outside dimensions; this is not a width-only option on an otherwise identical footprint.

Technical packet and purchasing documents

Original USPE dimensional planning drawing in preparation. Request the current model document. includes specifications, dimensional drawing views, interface-review notes and a purchasing checklist. See the equipment document library for the same packet. This is a selection and project-review document, not an installation or operating manual.

Document cross-reference: 600035-27 project-document reference. References help identify older project files only; they are not an interchangeability, affiliation or parts-availability claim. Order and request service using USPE-ETV-27 and the approved configuration.

Request a quote, send an RFQ or submit a PO for review

Use the quote controls to add USPE-ETV-27 and the required quantity to your USPE quote basket. Include the delivery ZIP, exact tray, existing station, utilities and room constraints. A purchase order is reviewed against an accepted written quote; sending one does not itself confirm an order.

Request a USPE equipment quote · Submit an RFQ / PO request · Email a PO or RFQ with attachments

Buyer questions
