How does an electric immersion dissection table work?

An electric immersion dissection table uses a motorized platform that can be raised out of a fluid-filled tank for dissection, then lowered back into preservative solution between lab sessions. The motor is controlled by a switch or control panel, eliminating manual effort for the immersion/emersion process.

What electrical requirements does an electric immersion table need?

Electrical requirements vary by model. Contact AMC at 1-888-792-9315 for specific voltage and amperage requirements for coordination with your facility's electrical design.

How is the preservative fluid maintained in an immersion table?

The fluid tank requires periodic fluid level checks, fluid quality monitoring, and fluid replacement or replenishment per the program's preservation protocol. Tank drain fittings allow complete fluid change when needed.

What is the tank capacity of AMC's electric immersion table?

Tank capacity specifications vary by model. Contact AMC for specific tank volume data to support your fluid procurement planning.

Can the electric immersion table height be adjusted for different users?

Many electric immersion tables include working height adjustment in addition to fluid-level control. Contact AMC to confirm which height adjustment options are available on specific models.

Electric Immersion Dissection Table — Features, Benefits & Best Use Cases for Medical Schools

May 31, 2026 4 min read

The Electric Advantage in Modern Anatomy Education

The shift from surface-preserved cadavers to fluid-immersion systems represents one of the most significant improvements in anatomy education infrastructure over the past two decades. Electric immersion dissection tables take this advancement a step further by automating the immersion and emersion process, reducing staff labor, improving ergonomics, and enabling the high-frequency lab scheduling that modern medical curricula demand.

AMC's electric immersion dissection table brings motorized platform control to the anatomy lab, making cadaver immersion management practical even for programs with large cadaver inventories and multiple daily lab sections. For a comparison with manual systems, see our complete dissection table guide for anatomy labs.

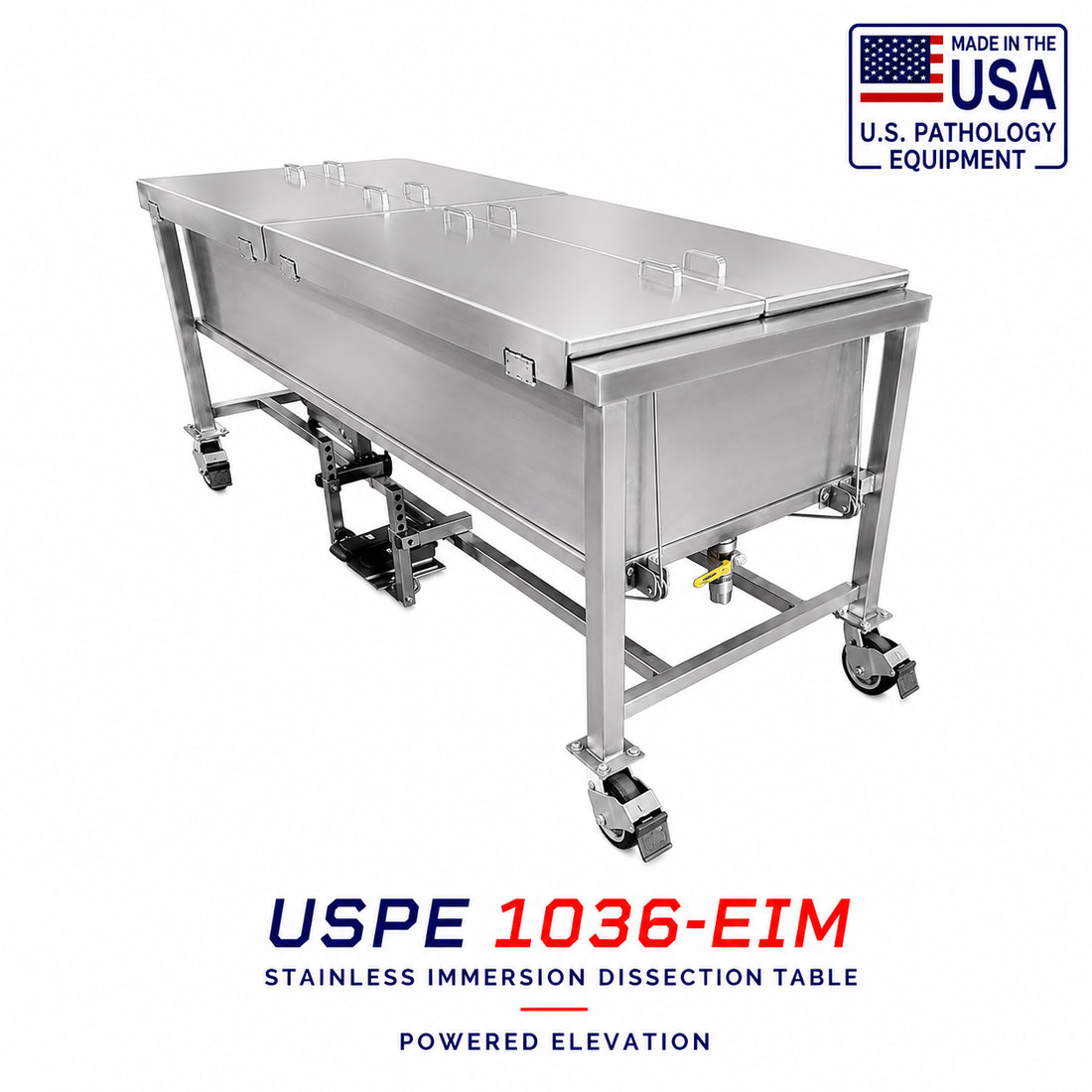

Core Features of AMC's Electric Immersion Table

Motorized Platform System

The heart of the electric immersion table is its motorized platform — the surface on which the cadaver rests during dissection. The motor raises the platform above the fluid level for lab sessions and lowers it below the fluid surface for immersion storage. The motor is activated by a control switch or panel, requiring no physical effort from lab staff. The lifting mechanism is designed for the weight of the cadaver plus the resistance of the preservative fluid — it operates smoothly and without staff strain regardless of cadaver weight.

Sealed Fluid Tank

The fluid tank is constructed from chemical-resistant materials appropriate for extended contact with preservative solutions. A sealed lid or cover reduces evaporation and vapor release when the table is in immersion-storage mode. Drain fittings allow controlled tank drainage for fluid changes or maintenance. Tank geometry is designed to minimize fluid volume requirements while ensuring complete submersion of the cadaver at the lowest platform position.

Stainless Steel Construction Throughout

All surfaces exposed to biological materials and preservative chemicals are stainless steel — the cadaver platform, tank walls and floor, external table surfaces, and drain components. Stainless steel provides the chemical resistance, non-porosity, and cleanability required for anatomy lab environments and meets the material standards required by health department and accreditation inspections.

Working Height Compatibility

When raised to the dissection position, the cadaver platform is at a working height suitable for dissection by standing lab participants. Many electric immersion table models also include table height adjustment (separate from fluid level control) to accommodate instructors and students of varying statures. See our adjustable height autopsy table guide for ergonomic height selection guidance that also applies to anatomy lab settings.

Workflow Benefits for High-Volume Anatomy Programs

Multi-Section Lab Scheduling

Modern medical curricula often schedule multiple anatomy lab sections per day — morning and afternoon sections using the same tables and cadavers. Between sections, tables must transition from dissection mode (platform raised, surface cleaned, cadaver re-draped) to storage mode (platform lowered, cadaver immersed, tank lid closed). The electric mechanism makes this transition fast and effortless, enabling tight turnaround schedules between sections that would be impractical with manual systems.

Reduced Physical Demand on Lab Staff

Lab technicians and anatomy lab managers who oversee cadaver management perform dozens of immersion/emersion cycles per week. Manual operation of immersion systems imposes cumulative physical load on these staff — particularly problematic in programs with large cadaver inventories. Electric operation eliminates this physical demand, reducing musculoskeletal injury risk for lab staff and allowing staff attention to focus on cadaver quality management rather than equipment operation.

Consistent Immersion Quality

Electric operation produces consistent, complete immersion with each cycle — the motor drives the platform to the same position every time, ensuring complete fluid submersion. Manual operation may result in incomplete immersion if staff are fatigued or rushed, potentially compromising tissue quality in incompletely submerged areas.

Installation Requirements

Electrical Service

Electric immersion tables require electrical service at each table position — a planning requirement that must be addressed during lab design. Coordinate electrical rough-in with your electrician and AMC's technical team before construction. Floor-mounted or conduit-routed electrical service to table positions is standard; determine the appropriate routing for your floor structure and layout.

Plumbing Connections

Fluid fill and drain connections are required at each table position or provided via portable fluid management equipment. Consult AMC's installation specifications for drain fitting dimensions and recommended drain connection configurations. Coordinate with your plumber during the construction phase to ensure drain rough-in is properly positioned.

Floor Load Considerations

A fully loaded immersion table (table + fluid + cadaver) is substantially heavier than a standard autopsy table. Verify that your anatomy lab floor structure is rated for the concentrated point load of loaded immersion tables — particularly important for upper-floor anatomy labs in multi-story buildings. Consult your structural engineer.

Complementary Anatomy Lab Equipment

Pair your electric immersion tables with AMC's full anatomy education equipment line:

For storage solutions appropriate to anatomy programs, see our vault cooler collection and our cadaver storage guide.

Ready to specify electric immersion dissection tables for your anatomy program? Call 1-888-792-9315 or email service@mymortuarycooler.com. AMC's team will provide complete specifications, installation requirements, and pricing for your anatomy lab build or renovation. Section 179 deductions up to $1,250,000 apply, with 24-hour financing approval available. Qualifying orders include FREE Level 2 White-Glove Installation. Visit our contact page.
