16×16 Walk-In Mortuary Cooler

01 Overview & at a glance

The 16×16 is the large-format square dual-axis-format walk-in cooler in the AMC line — 256 sq ft of insulated cadaver cold storage built in Johnson City, Tennessee. All 16′ nominal panel runs measure 15′8″ actual — stated exactly so your slab and clearances are right the first time.

NSFUL ListedASTM E84 Class AMade in USABBB A+

Family-owned American manufacturer, 7,500+ customers since 2009. Direct procurement: 1-888-792-9315 · po@mymortuarycooler.com.

02 Full specifications

03 Electrical & compressor

The 16×16 runs its refrigeration on a 208–230V, single-phase dedicated circuit, with a required second low-voltage line for the internal evaporator-fan circuit, and a 115V lighting circuit if the LED package is added. A stamped electrical schedule ships with every quote so your electrician can size circuits and disconnects before delivery.

04 Sizing & capacity

256 sq ft delivers 21-to-28-body holding with 4 Tier Side-Loading Mortuary Racks. Plan rack banks from the interior dimensions — 15′0″ of clear width runs parallel rack rows with a full center aisle.

Step the size to your caseload

• Step down: 12×20 (240 sq ft)
• Step up: 14×20 (280 sq ft)
• Browse the full ladder: Walk-In Mortuary Coolers

Methodology: size guide · capacity planning · 2026 cost guide.

05 Door configuration & handing

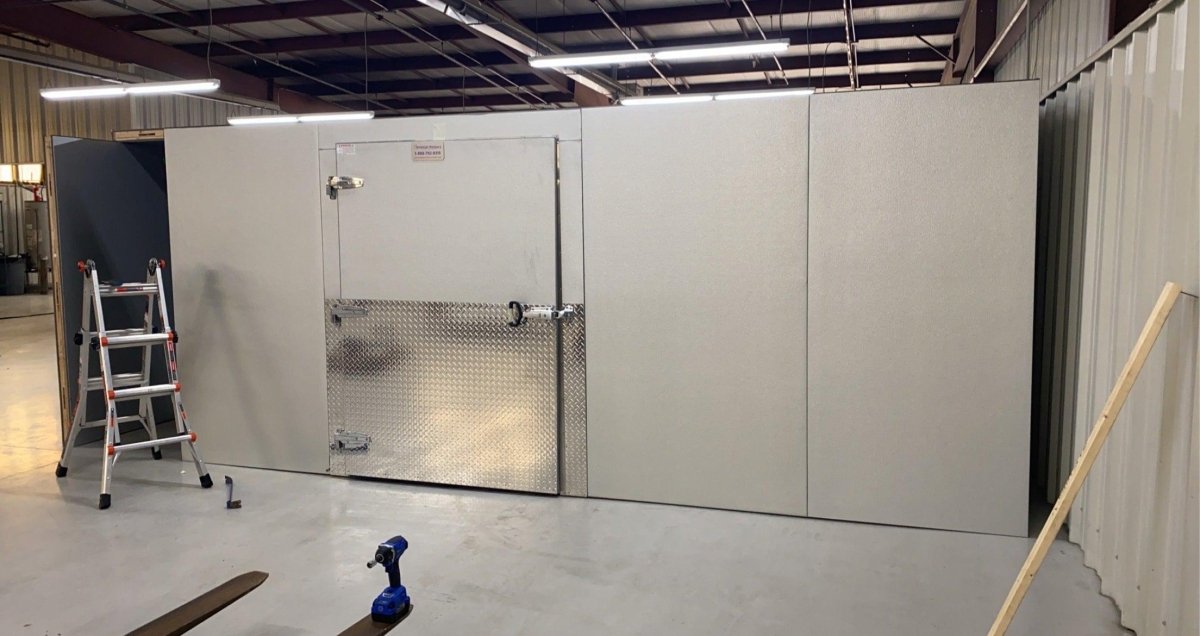

On the 16×16’s square footprint both walls are equal — choose a corner or off-center placement. Your Door Location selection in the Build-It-Out configurator above is transmitted with your order and the unit is built to it at no charge. Match hinge side (right or left) to the swing that clears your prep-room flow; a lockable door handle is a factory option (+$125).

06 Construction & panels

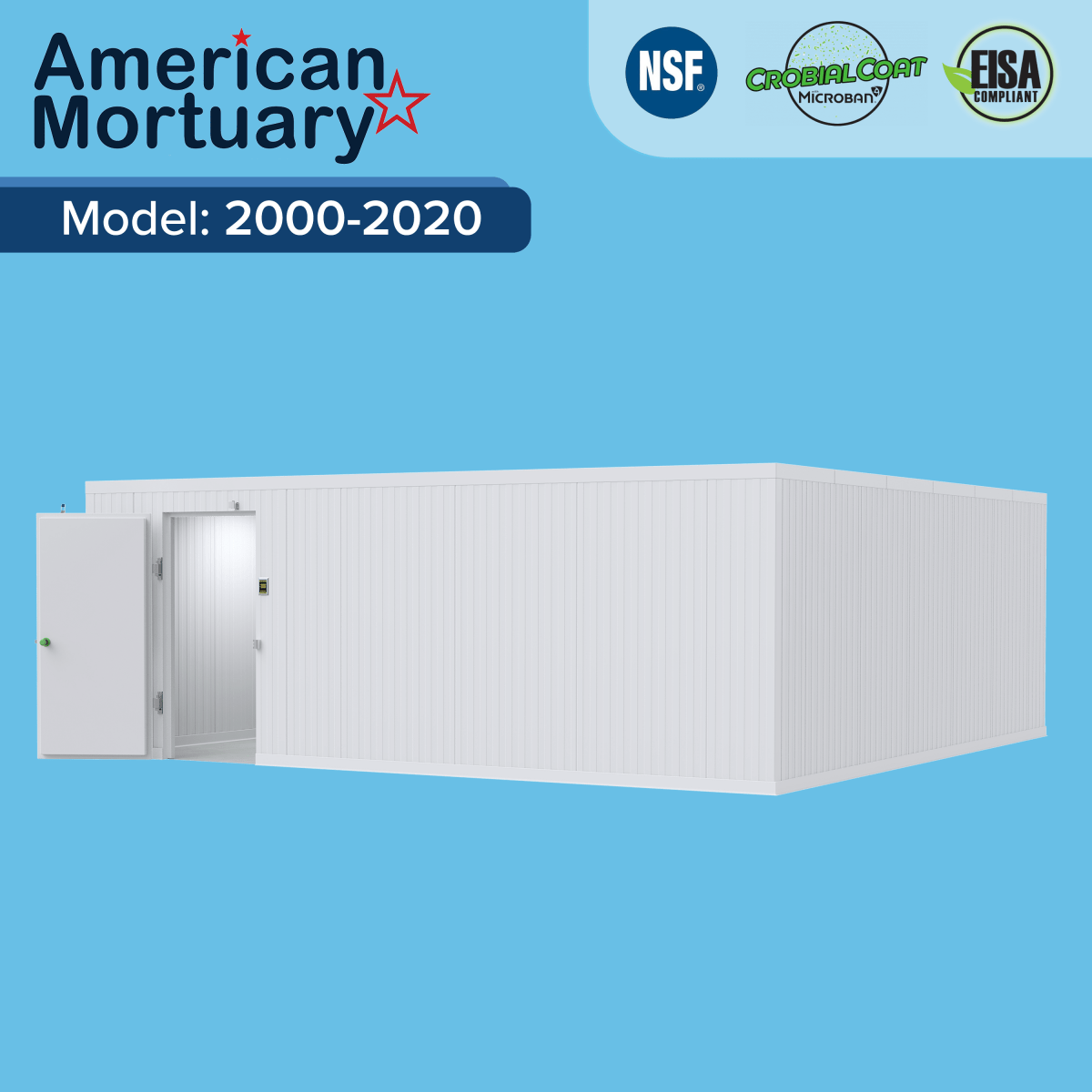

Quick Ship prefabricated modular construction for easy field assembly. Polyurethane foamed-in-place insulation for superior water resistance and the highest possible R-value. Floorless design with durable vinyl screeds standard; optional insulated floor available above. The interior clears the exterior by 8″ in width and depth. Cam-lock panels assemble with two people and no specialty tools. All 16′ nominal panel runs are 15′8″ actual.

07 Refrigeration options

The 16×16 ships with a matched two-piece refrigeration system standard. High-ambient upgrades (Level 1–90°F through Level 4–110°F) are priced live in the Build-It-Out configurator above and added to your cart with the unit. Remote-split builds available. Compressor selection is workflow-dependent:

• Copeland scroll — high door-cycle facilities
• Heatcraft — tropical-climate / high-ambient installs
• R-290 hydrocarbon — low-GWP jurisdictions

08 Installation & lead time

Ships as a flat-pack panel kit on palletized LTL freight from Tennessee — buyer provides forklift or fork-equipped unloading. Standard lead time runs 5–15 business days for in-stock configurations (4–6 weeks for custom builds). Installation is not included unless exclusively stated in writing on your quote. Pre-order site survey: installation guide; regional transit: delivery times by region; in-stock units: ready-to-ship inventory.

09 Compliance & certifications

Certified to NSF, UL, and ASTM E84 Class A flame spread, and compliant with DOE/EPA EISA 2007 and Prop 65. ASTM E84 Class A on the interior face matters under county morgue requirements and state body-storage code. Certificates and cut sheets available on request for AHJ submittals and PO packages.

10 Warranty & returns

Backed by a 15-year structural panel warranty — full terms in the Warranty Policy (WR-1.0).

11 Financing & procurement

Starts at $20,843.00 factory direct — and through July 18, 2026, code SAVE5 takes 5% off at checkout. Benchmark against the 2026 cost guide.

• 0% financing at checkout — Shop Pay Installments for qualified buyers
• 1% back on every Shop Pay purchase
• Extended financing on orders over $5,000 — apply here
• Section 179 in-year tax treatment — guidance here

Government & institutional buyers: POs accepted — quote packets with full specifications, W-9 and insurance certificates on request. Send to po@mymortuarycooler.com or call 1-888-792-9315. Ships factory-direct to all 48 contiguous states. Regional desks: Southeast · Midwest · Northeast · Southwest · Rocky Mountain · Pacific · Canada.

12 Competitor benchmarks

Compared against MOBI, Mopec, and Mortech equivalents, the 16×16 leads on factory-direct pricing, American manufacturing, faster lead times, and a published 15-year panel warranty. Full comparisons: MOBI vs AMC · Mopec alternative · Mortuary Mall alternative.

13 Who it's for

• Regional funeral operations & multi-location consolidation
• County & metro medical examiner offices
• Hospital and university systems
• High-volume crematories

Complete the room: racking systems · HD 1000 MAX mortuary lift · body & casket lifts · trays & boards — quoted together, shipped together.

14 FAQ & contact

How many bodies fit in a 16×16 walk-in cooler?

21 to 28 with 4-tier side-loading racks, depending on case mix.

What are the interior dimensions?

15′0″ W x 15′0″ D x 7′0″ H usable - the 4-inch panels reduce each exterior run by 8 inches. All 16-foot nominal runs are 15 feet 8 inches actual.

Can I choose the exact door location?

Yes - corner or off-center placement, selected in the Build-It-Out configurator; both walls are equal on this square footprint. Built to your pick at no charge.

What temperature does it maintain?

34-40 F body holding; for long-term storage see our mortuary freezers.

Do you accept purchase orders?

Yes - municipal, county, state, university, and hospital POs accepted; email po@mymortuarycooler.com for quote packets with W-9 and insurance certificates.

Where is it manufactured?

Johnson City, Tennessee. American Mortuary Coolers, family-owned since 2009, A+ rated by the Better Business Bureau.
