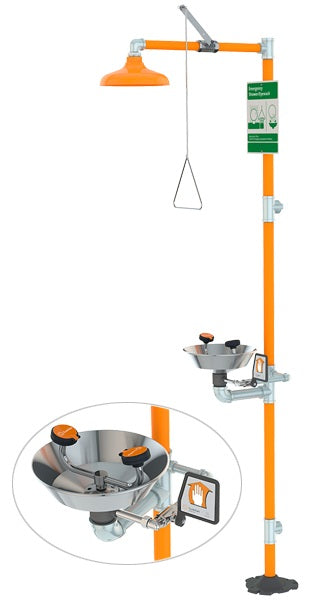

Guardian G1950 Combination Safety Shower & Eye/Face Wash

Guardian specifies a 10-inch orange ABS shower head with 20 GPM flow control, two FS-Plus spray heads, an 11-1/8-inch stainless steel bowl, Schedule 40 galvanized piping with orange polyethylene covers, 1-1/4-inch NPT female supply and 1-1/4-inch NPT female waste. It is not an all-stainless assembly.

USPE-SF-G1950 is the USPE quote SKU; the manufacturer model remains G1950. Request applicable ANSI/ISEA documentation, location, tepid-water provision, supply capacity, simultaneous operation and installation requirements. OSHA does not approve commercial products. Optional components are separately quoted, and the manufacturer's current alarm option is AP275-200.

Current manufacturer reference

Manufacturer image retained; no USPE manufacturing claim.

GC

Powder-coated galvanized pipe/fittings: orange, yellow, red or green.

HS

Auxiliary hand-held drench hose.

GRN / YEL

Green or yellow ABS shower head.

SSH

Stainless steel shower-head request; does not make the entire station stainless.

AP275-200

Flashing light and alarm-horn unit.

AP250-015

Modesty curtain.

G6040

Thermostatic mixing valve, separately sized and quoted.

Guardian's published G1950 sheet states Listed 8116, tested to ANSI Z358.1-2014 and the Uniform Plumbing Code. The sheet carries 2018/2019 revision markings; confirm current listing and the quoted configuration before release. This is not an NSF, UL or OSHA approval claim.

USPE quote SKU

USPE-SF-G1950

BIMobject category alignment

Plumbing - Valves

CSI MasterFormat reference

22 45 00 Emergency Plumbing Fixtures

Taxonomy references support the architectural schedule. They do not establish BIMobject publication, released Revit/IFC files or compliance certification. Purchasing and customs codes require order-specific review.

Provide the project destination, jurisdiction, use, required documentation language and applicable approval schedule. For electrically equipped configurations, confirm voltage, frequency, phase, wiring method and plug/socket standard before order. Delivery, import requirements and availability require written destination review.

Shop drawings, dimensions, load data, installation instructions, model approvals and final sign-offs remain release requirements where applicable; this listing is not a substitute for those records.
