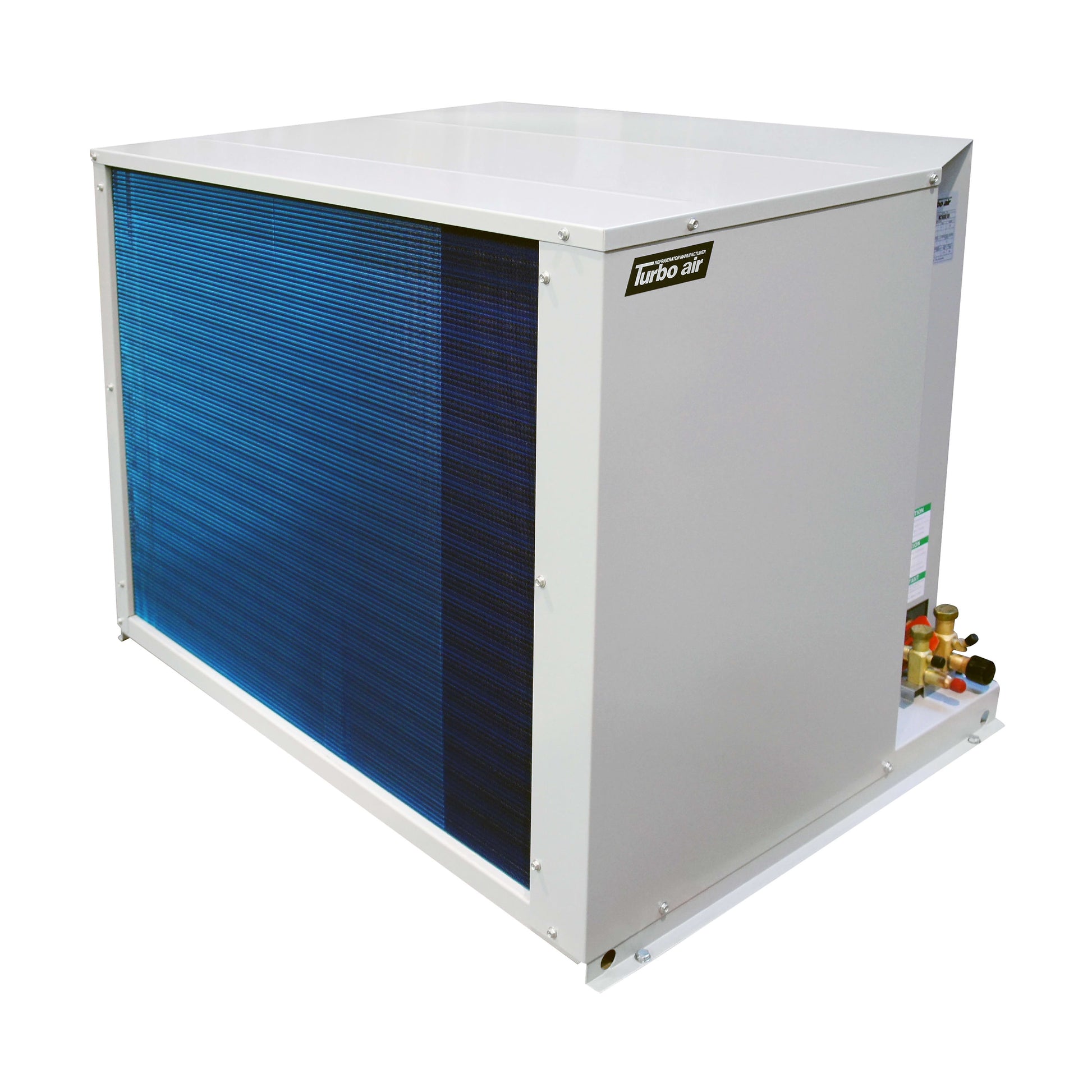

Turbo Air TS030XR404A3A Walk-In Cooler Condensing Unit

Turbo Air TS030XR404A3A is a commercial walk-in cooler condensing unit configured for professional walk-in refrigeration systems. Its published model-specific capacity, electrical requirements, and refrigerant information help contractors and facility teams evaluate system compatibility before ordering.

Featuring a scroll compressor and seamless inner-groove copper tubing, the Turbo Air TS030XR404A3A remote outdoor refrigeration system delivers smooth heat removal using R448A or R404A refrigerant. A control box and wiring harness support fast adjustment and convenient upkeep. To reduce flash gas formation, it pairs low-pressure control with a head pressure control system. Measuring 38 1⁄2 inches wide by 28 1⁄4 inches deep by 20 3⁄4 inches high, the prepainted galvanized steel body incorporates 2 1⁄6-inch legs that elevate components above rainwater and debris. Two fans push air across anti-corrosion fins to preserve coil surfaces and discharge absorbed heat.

Turbo Air TS030XR404A3A specifications

• Model: TS030XR404A3A
• Equipment type: Walk-In Cooler Condensing Unit
• Capacity: 3 HP
• Power supply: 208-230V/60Hz/3Ph
• Refrigerant: R404A, R407C, R448A / R449A
• Compressor / application: ZF09K4E-TF5
• Application: Outdoor
• Depth (in): 28.25
• For Use With: Walk-In Refrigeration
• HP: 3
• Height (in): 20.75
• Hertz: 60
• Manufacturer: Turbo Air
• Mounting Location: Remote

Ordering and application support

This equipment ships free within the applicable service area. Because commercial refrigeration components must be matched to the intended box load, operating temperature, refrigerant, voltage, and paired equipment, confirm the complete application before installation. Review our shipping and freight disclosures and warranty policy before purchase.

Need help confirming fit? Contact an equipment specialist for model and application support. You can also browse the complete commercial walk-in cooler evaporators and condensing units collection.

Manufacturer specifications can change. Verify current requirements and installation suitability with a qualified refrigeration professional before ordering.
