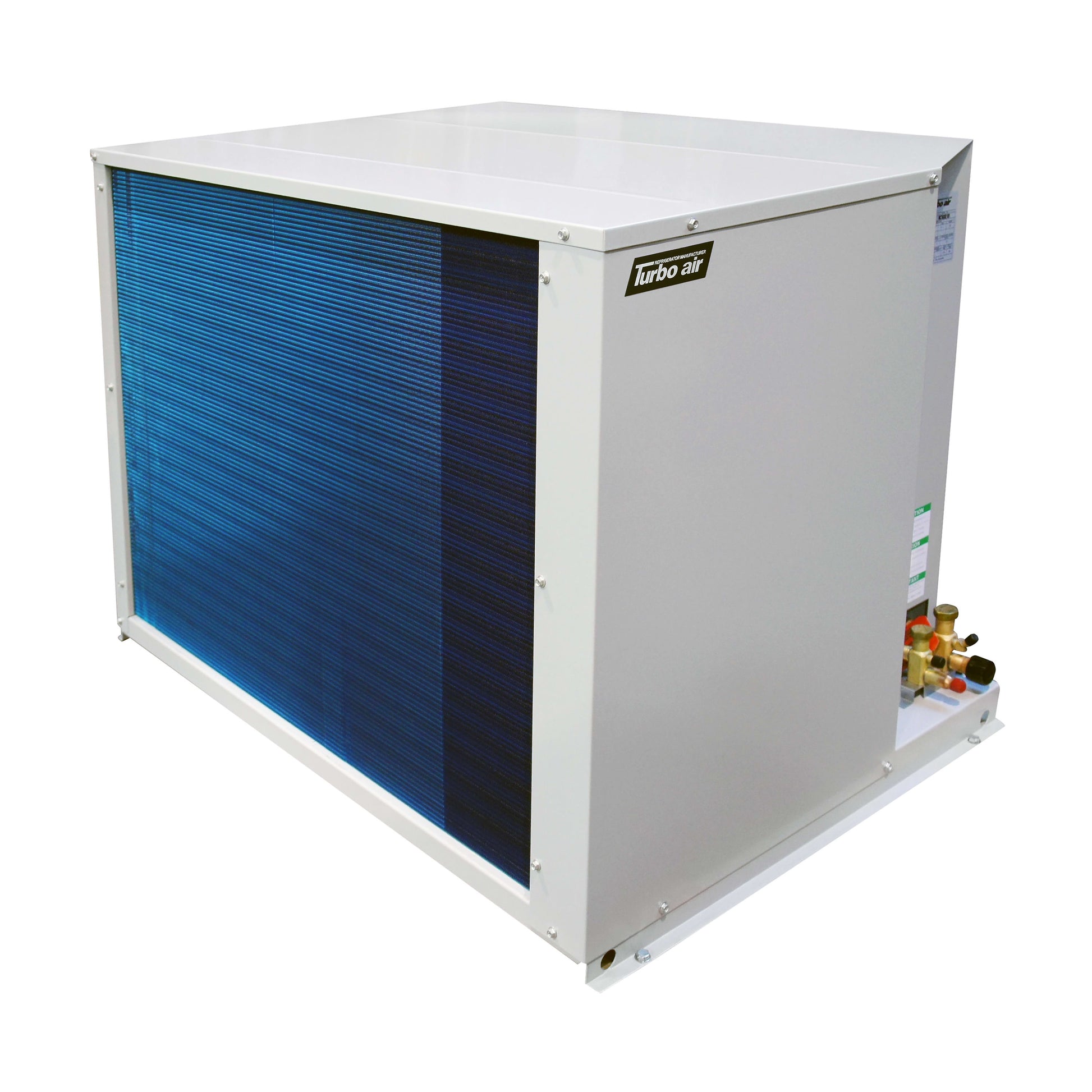

Turbo Air TS035XR404A2A Walk-In Cooler Condensing Unit

Turbo Air TS035XR404A2A is a commercial walk-in cooler condensing unit configured for professional walk-in refrigeration systems. Its published model-specific capacity, electrical requirements, and refrigerant information help contractors and facility teams evaluate system compatibility before ordering.

The Turbo Air TS035XR404A2A remote refrigeration system's seamless inner-groove copper tubing expands surface area to maximize heat transfer with R448A or R404A refrigerants. Protected by blue anti-corrosion fins, the dual-fan condenser sheds accumulated heat for dependable cooling performance. Its 38 1⁄2-inch-wide by 28 1⁄4-inch-deep by 20 3⁄4-inch-high prepainted galvanized steel cabinet sits on 2 1⁄6-inch legs and resists warping through constant heat exposure. A wiring harness secures connections during vibration, while an external control box eases setup and maintenance. Built around a scroll compressor, the circuit uses adjustable low-pressure and head pressure controls to adapt to shifting outdoor conditions.

Turbo Air TS035XR404A2A specifications

• Model: TS035XR404A2A
• Equipment type: Walk-In Cooler Condensing Unit
• Capacity: 3.5 HP
• Power supply: 208-230V/60Hz/1Ph
• Refrigerant: R404A, R407C, R448A / R449A
• Compressor / application: ZF11K4E-PFV
• Application: Outdoor
• Depth (in): 28.25
• For Use With: Walk-In Refrigeration
• HP: 3.5
• Height (in): 20.75
• Hertz: 60
• Manufacturer: Turbo Air
• Mounting Location: Remote

Ordering and application support

This equipment ships free within the applicable service area. Because commercial refrigeration components must be matched to the intended box load, operating temperature, refrigerant, voltage, and paired equipment, confirm the complete application before installation. Review our shipping and freight disclosures and warranty policy before purchase.

Need help confirming fit? Contact an equipment specialist for model and application support. You can also browse the complete commercial walk-in cooler evaporators and condensing units collection.

Manufacturer specifications can change. Verify current requirements and installation suitability with a qualified refrigeration professional before ordering.
