Turbo Air TS035XR404A3A Walk-In Cooler Condensing Unit

Turbo Air TS035XR404A3A is a commercial walk-in cooler condensing unit configured for professional walk-in refrigeration systems. Its published model-specific capacity, electrical requirements, and refrigerant information help contractors and facility teams evaluate system compatibility before ordering.

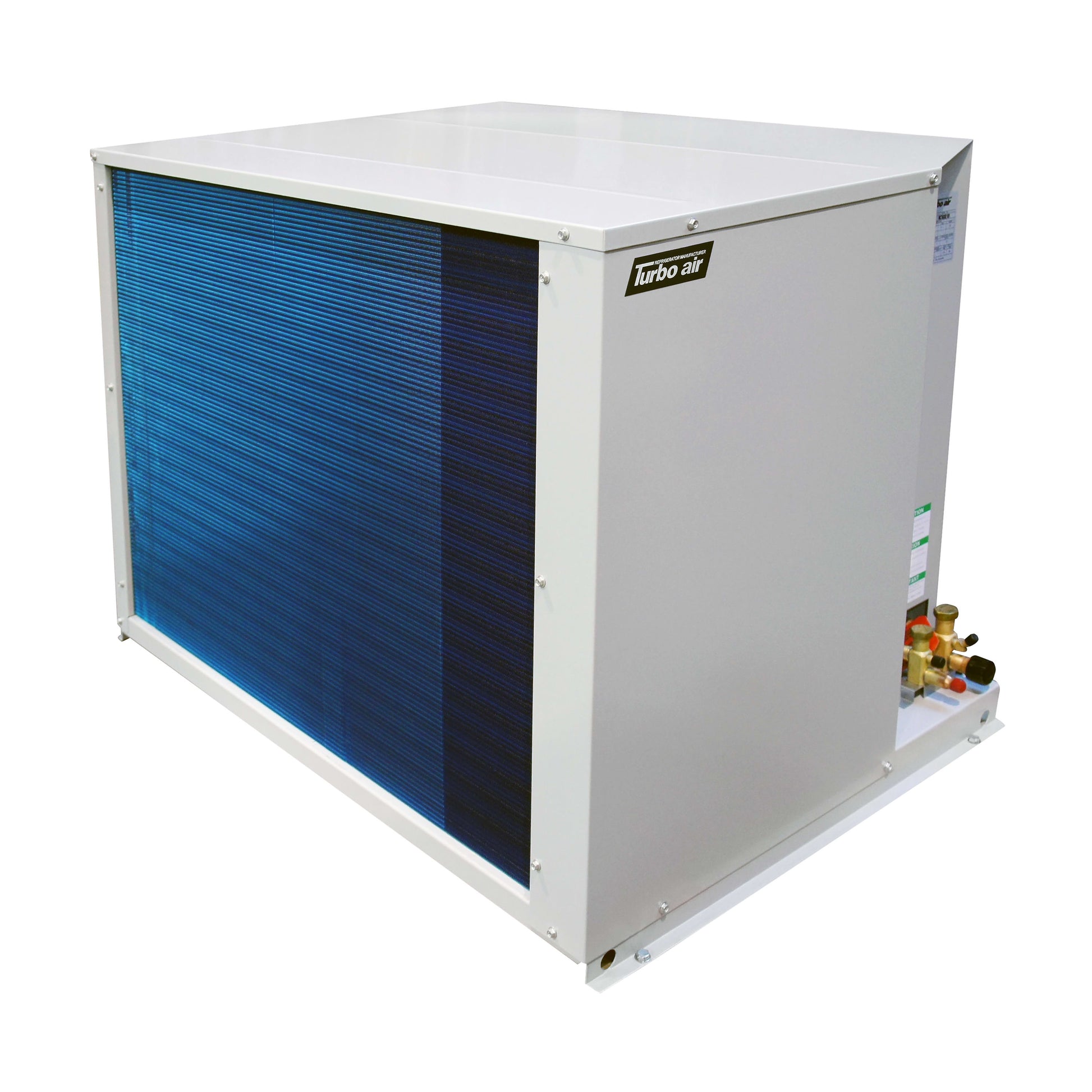

Measuring 38 1⁄2 inches wide by 28 1⁄4 inches deep by 20 3⁄4 inches high, the Turbo Air TS035XR404A3A remote outdoor refrigeration system houses dual condenser fans with blue anti-corrosion fins that promote steady heat rejection. 2 1⁄6-inch legs raise the prepainted galvanized steel frame off the ground to avoid pooled moisture, and low-pressure control combines with a head pressure control system to stabilize refrigerant pressures. Powered by R448A or R404A refrigerant, it integrates seamless inner-groove copper tubing for enhanced thermal transfer. The external control box and wiring harness place electrical components within easy reach for quick servicing.

Turbo Air TS035XR404A3A specifications

• Model: TS035XR404A3A
• Equipment type: Walk-In Cooler Condensing Unit
• Capacity: 3.5 HP
• Power supply: 208-230V/60Hz/3Ph
• Refrigerant: R404A, R407C, R448A / R449A
• Compressor / application: ZF11K4E-TF5
• Application: Outdoor
• Depth (in): 28.25
• For Use With: Walk-In Refrigeration
• HP: 3.5
• Height (in): 20.75
• Hertz: 60
• Manufacturer: Turbo Air
• Mounting Location: Remote

Ordering and application support

This equipment ships free within the applicable service area. Because commercial refrigeration components must be matched to the intended box load, operating temperature, refrigerant, voltage, and paired equipment, confirm the complete application before installation. Review our shipping and freight disclosures and warranty policy before purchase.

Need help confirming fit? Contact an equipment specialist for model and application support. You can also browse the complete commercial walk-in cooler evaporators and condensing units collection.

Manufacturer specifications can change. Verify current requirements and installation suitability with a qualified refrigeration professional before ordering.
