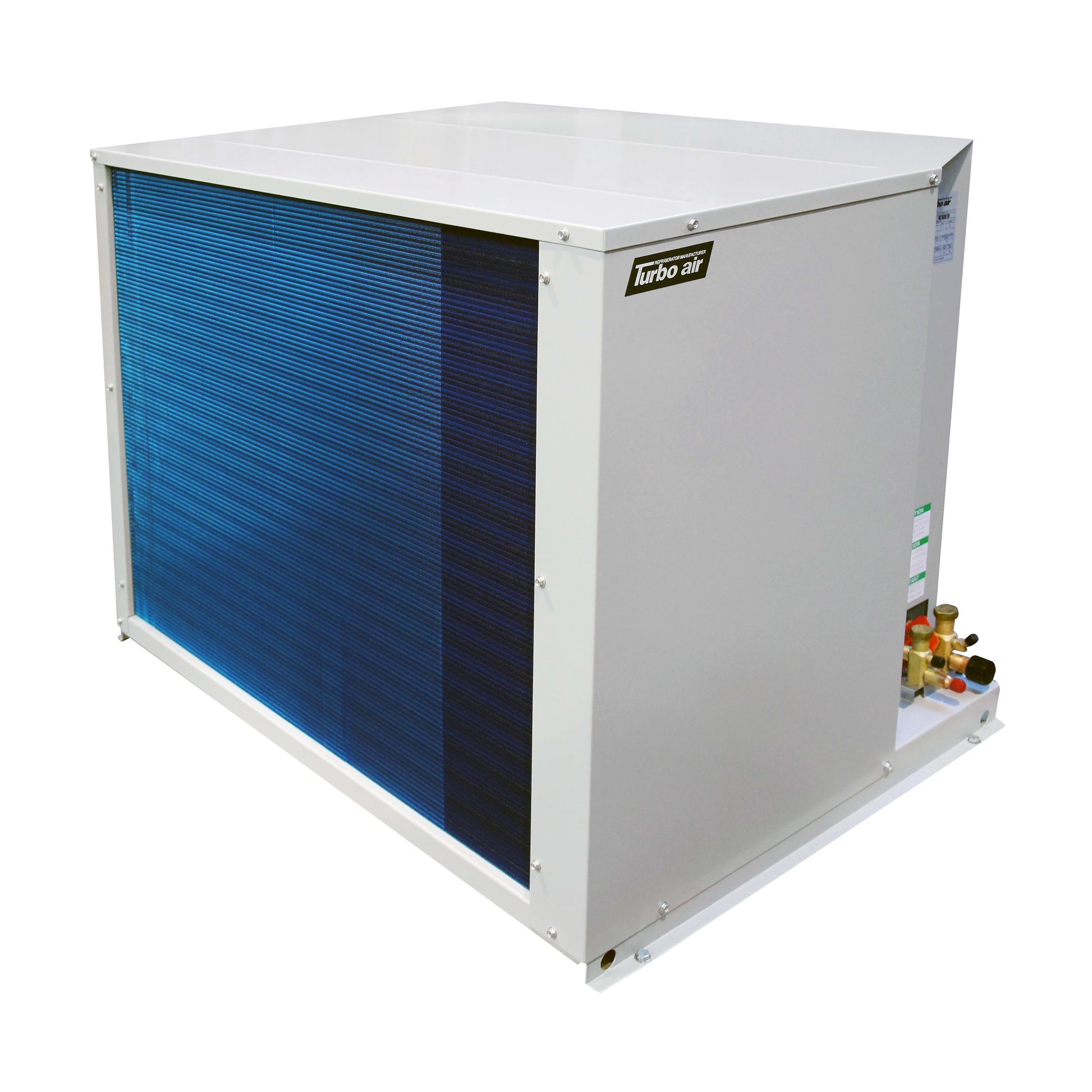

Turbo Air TS045XR404A2A Walk-In Cooler Condensing Unit

Turbo Air TS045XR404A2A is a commercial walk-in cooler condensing unit configured for professional walk-in refrigeration systems. Its published model-specific capacity, electrical requirements, and refrigerant information help contractors and facility teams evaluate system compatibility before ordering.

Built with prepainted galvanized steel construction, the Turbo Air TS045XR404A2A remote refrigeration system stands on 2 1⁄6-inch legs that elevate the 39 1⁄16-inch-wide by 30 1⁄4-inch-deep by 27 1⁄4-inch-high frame for improved drainage. The adjustable low-pressure control and head pressure control system modify refrigeration performance according to fluctuating outdoor conditions. A scroll compressor spreads R448A or R404A refrigerant through seamless inner-groove copper tubing, while a single condenser fan draws air across blue anti-corrosion fins to eliminate excess heat and prevent chemical degradation. Featuring an external control box with wiring harness connections, this model consolidates electrical components for streamlined servicing.

Turbo Air TS045XR404A2A specifications

• Model: TS045XR404A2A
• Equipment type: Walk-In Cooler Condensing Unit
• Capacity: 4.5 HP
• Power supply: 208-230V/60Hz/1Ph
• Refrigerant: R404A, R407C, R448A / R449A
• Compressor / application: ZF13K4E-PFV
• Application: Outdoor
• Depth (in): 30.25
• For Use With: Walk-In Refrigeration
• HP: 4.5
• Height (in): 27.25
• Hertz: 60
• Manufacturer: Turbo Air
• Mounting Location: Remote

Ordering and application support

This equipment ships free within the applicable service area. Because commercial refrigeration components must be matched to the intended box load, operating temperature, refrigerant, voltage, and paired equipment, confirm the complete application before installation. Review our shipping and freight disclosures and warranty policy before purchase.

Need help confirming fit? Contact an equipment specialist for model and application support. You can also browse the complete commercial walk-in cooler evaporators and condensing units collection.

Manufacturer specifications can change. Verify current requirements and installation suitability with a qualified refrigeration professional before ordering.
