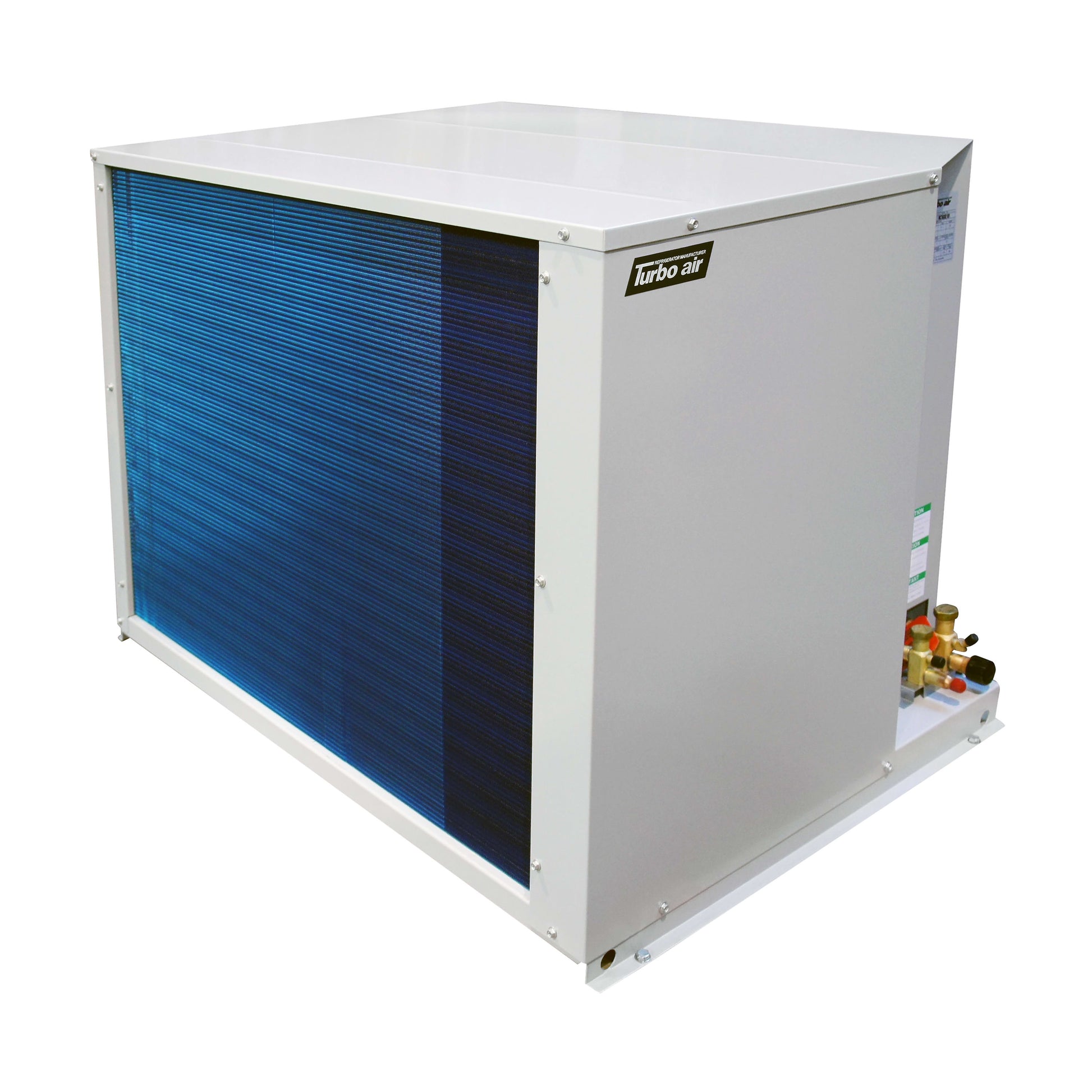

Turbo Air TS100XR404A3 Walk-In Cooler Condensing Unit

Turbo Air TS100XR404A3 is a commercial walk-in cooler condensing unit configured for professional walk-in refrigeration systems. Its published model-specific capacity, electrical requirements, and refrigerant information help contractors and facility teams evaluate system compatibility before ordering.

The Turbo Air TS100XR404A3 remote outdoor refrigeration system uses a scroll compressor to pressurize R448A or R404A refrigerant before it enters the single-fan condenser, ensuring continual heat rejection. An adjustable low-pressure control works alongside the head pressure control system to stabilize operating pressures throughout the circuit. Built with seamless inner-groove copper tubing, it increases refrigerant contact, while blue anti-corrosion fins safeguard the assembly from constant moisture exposure. The 46 3⁄8-inch-wide by 39-inch-deep by 39 1⁄4-inch-high prepainted galvanized steel cabinet mounts on 2 1⁄6-inch legs and incorporates a control box and wiring harness connections to streamline installation.

Turbo Air TS100XR404A3 specifications

• Model: TS100XR404A3
• Equipment type: Walk-In Cooler Condensing Unit
• Capacity: 10 HP
• Power supply: 208-230V/60Hz/3Ph
• Refrigerant: R404A, R407C, R448A / R449A
• Compressor / application: ZF33K4E-TFC
• Application: Outdoor
• Depth (in): 39
• For Use With: Walk-In Refrigeration
• HP: 10
• Height (in): 39.25
• Hertz: 60
• Manufacturer: Turbo Air
• Mounting Location: Remote

Ordering and application support

This equipment ships free within the applicable service area. Because commercial refrigeration components must be matched to the intended box load, operating temperature, refrigerant, voltage, and paired equipment, confirm the complete application before installation. Review our shipping and freight disclosures and warranty policy before purchase.

Need help confirming fit? Contact an equipment specialist for model and application support. You can also browse the complete commercial walk-in cooler evaporators and condensing units collection.

Manufacturer specifications can change. Verify current requirements and installation suitability with a qualified refrigeration professional before ordering.
