USPE Adjustable Cantilever Mortuary Rack, 3-5 Tiers

U.S. Pathology Equipment USPE

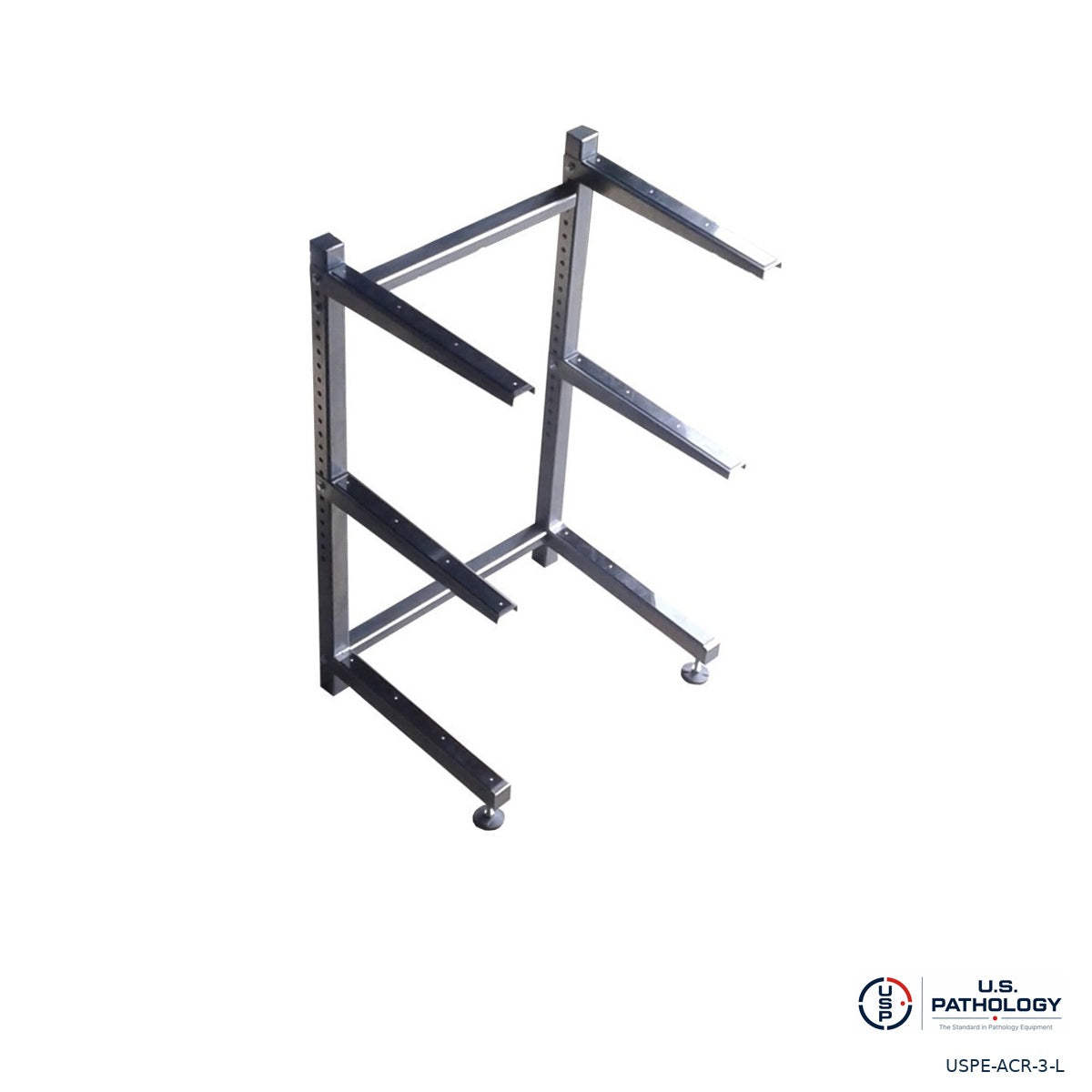

  • USPE adjustable 3-tier cantilever mortuary rack on leveling feet, angled view

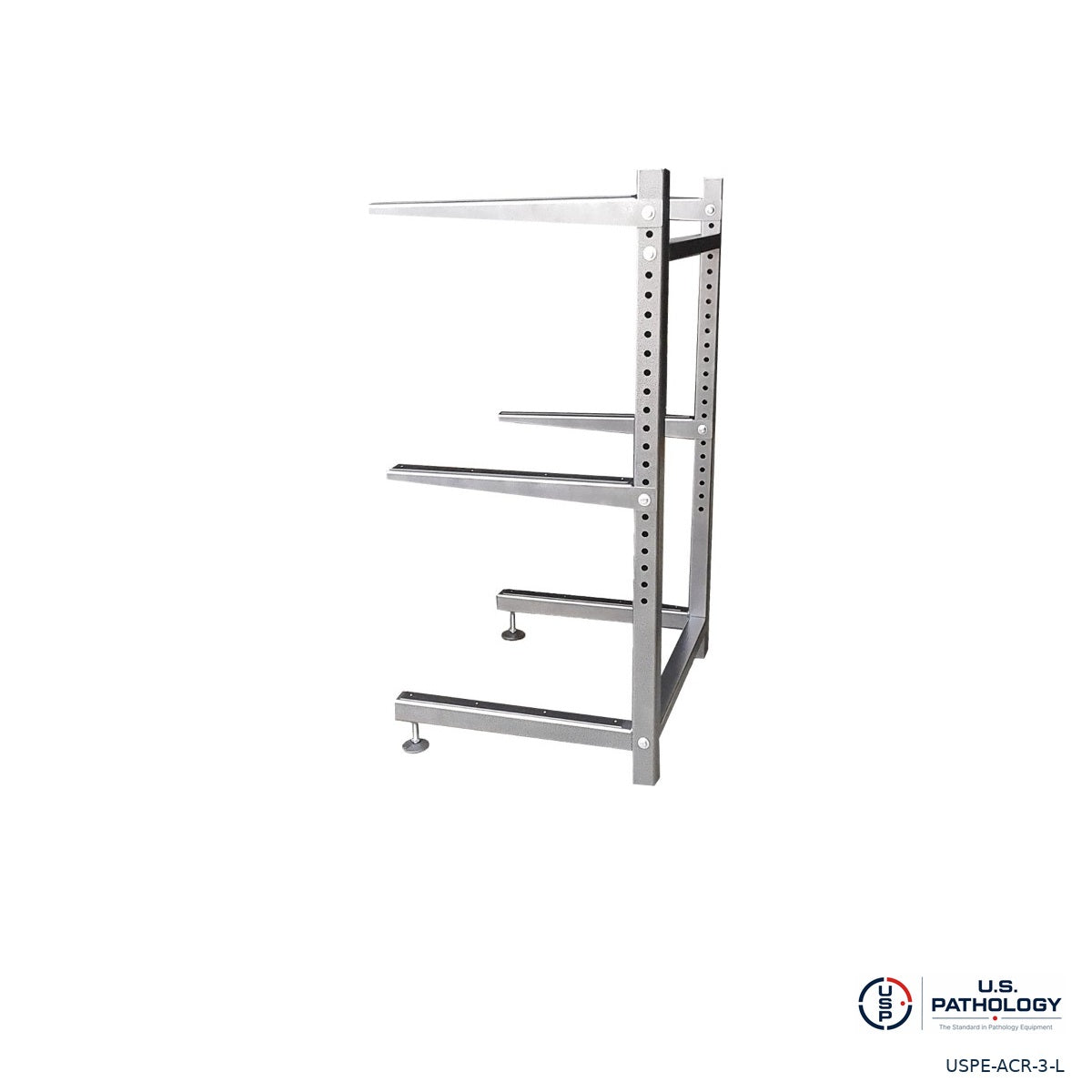

  • USPE adjustable 3-tier cadaver storage rack, side view of steel uprights and arms

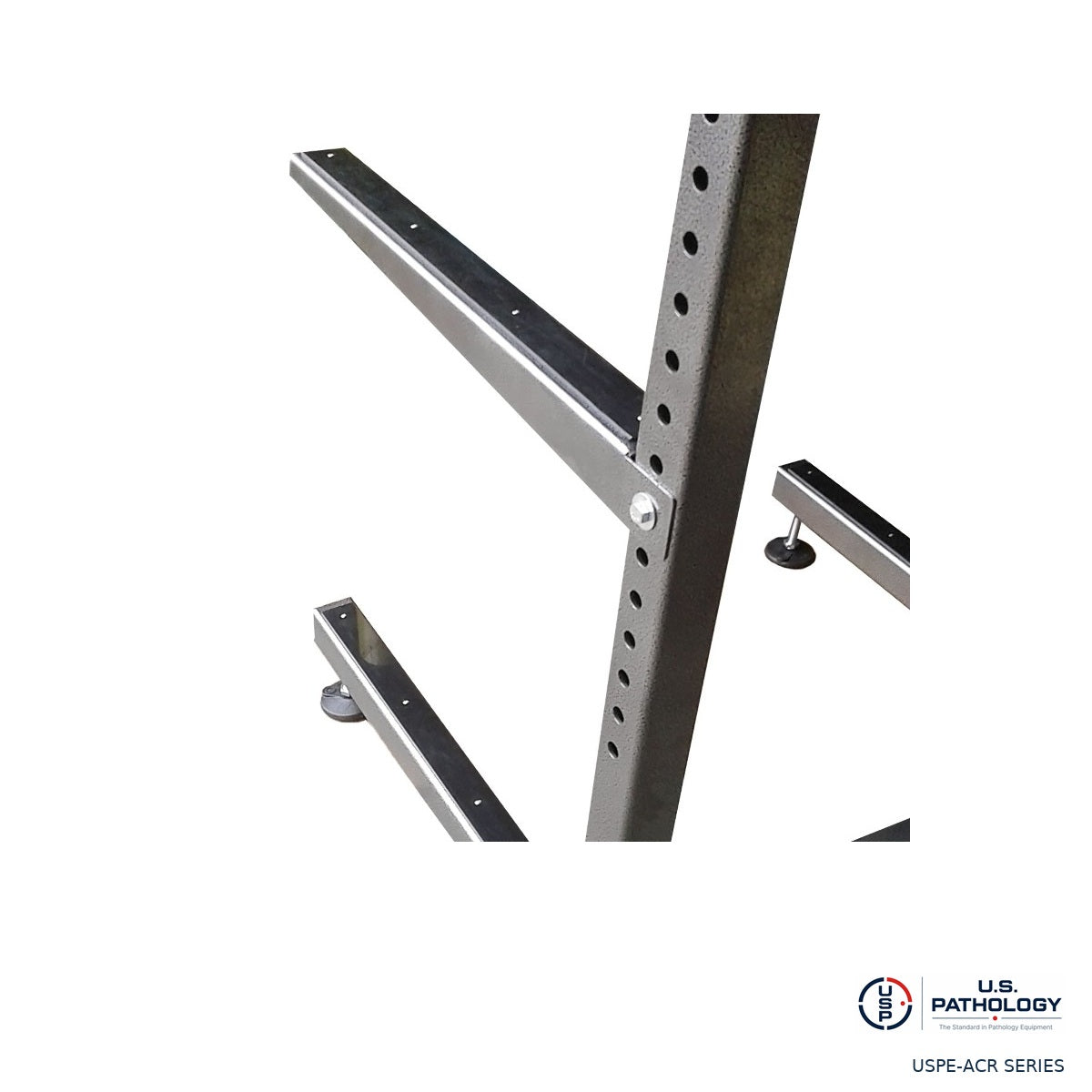

  • USPE adjustable mortuary rack, close-up of arm mounting bolts and upright adjustment holes
1 3

Model: USPE-ACR-3-L-R · 2026 Model

$1,288.53
$1,288.53
Estimated from Apply with TimePayment Apply for financing Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.
American Express DiscoverMastercard Visa Zelle® ACH
Shipping calculated at checkout.

Featured equipment

View all
Purchase terms & policies Shipping, returns, warranty and financing disclosures

Product information

Product details & specifications

Product details

The USPE ACR Series adjustable cantilever mortuary rack offers open-arm cadaver storage with three, four or five tiers. Choose leveling feet for a stationary layout or casters for a mobile-base configuration.

Configure tier count and base

Adjustable arm mounting helps plan a rack layout around the selected trays and storage heights. Confirm the approved arm positions and rack load rating before use.

Nominal footprint 42 in W × 32 in D
Between uprights 36 in
Arm length 32 in
3-tier height, feet / casters 46 in / 48 in
4-tier height, feet / casters 65 in / 66 in
5-tier height, feet / casters 83½ in / 84⅛ in
Origin Made in the USA

Dimensions follow the matching cantilever configuration and must be checked against the final order drawing. Low rack levels can sit below a lift’s minimum transfer height; a caster base does not make every tier lift-accessible.

Choose the rack and tray package

Choose Rack only or a 23-, 27- or 30-inch stainless steel body tray package. A tray package includes one tray per tier: two trays with a 2-tier rack, three with a 3-tier rack, four with a 4-tier rack or five with a 5-tier rack. The displayed variant price includes the rack and the full selected tray set.

Tray width alone does not establish compatibility. Confirm the overall tray envelope, support/contact points, loading direction and load capacity on the order drawing before use. Optional trays pictured are not included with Rack only.

Custom sizes and installation planning

Custom sizes and build configurations are available by quotation. Send room dimensions, door clearance, intended tray size, loading direction and required tier heights before ordering a custom rack. Changes to width, depth, height or base may change the final specification and price.

Freight is calculated at checkout using the rack shipping hierarchy. Confirm delivery access and installation requirements before ordering. Load the lowest usable position first and follow the approved operating and installation instructions.

Compare racks, lifts and body trays

For a lower-priced open-arm storage option, compare AME 2-tier cantilever rack · AME 4-tier cantilever rack · AME 5-tier cantilever rack. Confirm the base configuration and current price on each listing.

USPE truck and portable rack · USPE stainless steel cantilever rack.

Plan transfers with AME powered body and casket lift or Low Profile Powered Crematory Lift. A lift must reach every selected rack level and support the tray and intended load. Confirm actual lift range, tray dimensions, arm or roller contact and rated capacity before ordering.

23-inch stainless steel body tray · 27-inch stainless steel body tray · 30-inch stainless steel body tray. Storage barrier boards are not lifting devices or substitutes for a structural body tray.

Ordering USPE Adjustable Cantilever Mortuary Rack, 3-5 Tiers

Review the listed specifications, selected options and included items before ordering. Use the configuration selector for the current price and availability; do not assume that accessories pictured with a product are included unless the listing says so.

Source funeral supplies and mortuary equipment from one supplier, with nationwide shipping. For an equipment package or a multi-location order, request an itemized quote with the selected products, quantities and delivery ZIP codes. Confirm freight and delivery requirements for the equipment you choose.

Flexible payment options, with clear terms

Review the payment methods offered at checkout for your order. If a payment plan is available, its options and eligibility are shown by the provider. The equipment price and any financing cost are separate; compare the full payment terms before choosing a plan.

Enter payment details only in checkout or the payment provider's application. Use general customer support for product and order questions, not for sending full card numbers or sensitive financing information.

Specifications & product identity

Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.

Key specifications
Tiers options3 tiers, 4 tiers, 5 tiers
Base optionsLeveling Feet, Casters
Tray package optionsRack only, 23-inch trays: one per tier, 27-inch trays: one per tier, 30-inch trays: one per tier
Product identity
Brand / vendorUSPE
Equipment typeMortuary Storage Rack

Dimensions & fit

Published dimensions remain in Product details when a separate dimensions section is not available.

FAQs & buying help

How can I ask a question about this product?

Contact our team with the product name and the specification or option you want to confirm.

What should I include when requesting a quote?

Include the product, quantity, required configuration and delivery location in your quote request.

Where can I review shipping and purchase policies?

Open Shipping & support for the published freight, returns and custom-order policy links.

Resources & documents

Product-specific documents and planning links remain in Product details when a separate resources section is not available.

Plan delivery. Review the details.

Review the published policies and confirm product-specific requirements before placing your order.

Delivery planningFreight & shipping guide Purchase policiesReturns & cancellationsConfigured equipmentCustom built-to-order policy Product questionsContact buyer support

Ordering questions

How do I select the correct configuration?
Choose the available options before adding the item to your cart. The selected configuration and model are carried through to the cart; check them against the dimensions and included components in the product details.
How can I confirm fit before ordering?
Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.
Where is shipping confirmed?
Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.
USPE Adjustable Cantilever Mortuary Rack, 3-5 Tiers

$1,288.53
Financing & purchase orders

Choose how to pay

Purchase through the product options above, or use one of these support paths for a financed or institutionally quoted order.

For institutions

Formal quotes & purchase orders

Request documented pricing, freight planning, and configuration support before issuing a purchase order.

Request a formal quote
Financing disclosures

Estimates are for qualified buyers with approved credit (WAC) and reflect the equipment price only. Shipping, freight, and applicable taxes are not included and will increase your total and payments. Final amounts are set at checkout or on your quote.

Government and institutional buyers: request a PO quote.

Related equipment

Complete the Morgue Storage System

Explore mortuary handling equipment, trays and body boards. Five-tier racks are not compatible with coolers or freezers.
