Review financing options6x22 Walk-In Mortuary Freezer
Item #: AMC-713509678 Model: AMC-0622F
ELECTRICAL208/230 Volts
Model / SKU: AMC-0622F
Regular price
From $20,535.00
Sale price
From $20,535.00
List Price
Base configuration · options shown below
Unit price
per
Zelle®
ACH
Shipping calculated at checkout.
- Set freight rates, calculated at checkoutFreight
- 15-year panel and 2-year refrigeration parts warranty Warranty
- Buying on a purchase order? PO // RFQ
Related equipment & policies Related equipment and purchase terms
Over
mortuary products sold since 2009
Product description & specifications
BUILD IT OUT — CONFIGURE THIS 6×22
Insulated R-32 No floor — optional floor priced separately
Your Dream Build
Standard configuration — make selections above to customize.
Base unit$20,535.00
Selected options$0.00
Configured total$20,535.00
Click Add This Build To Cart to send this exact configuration — unit plus every selected option — straight to your cart.

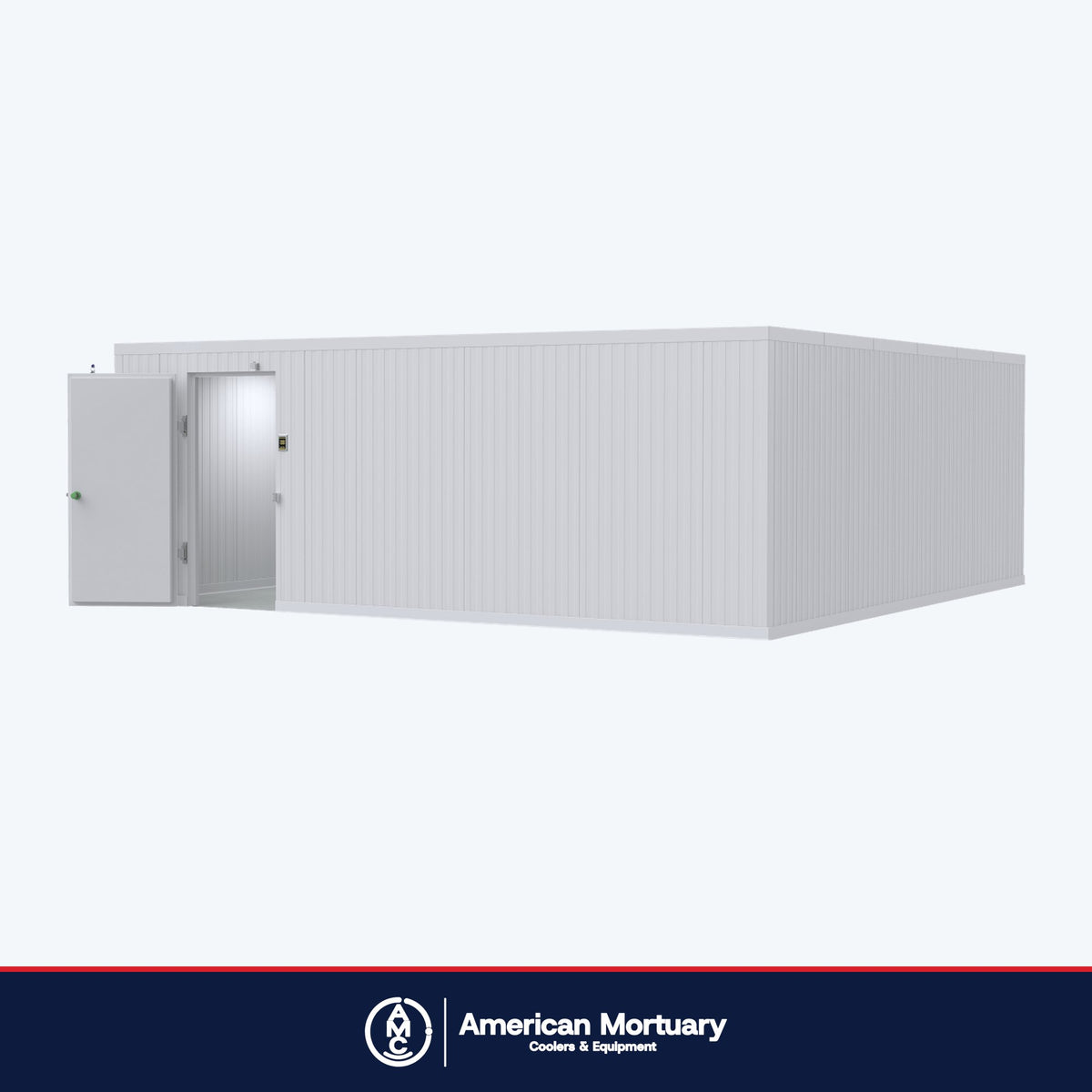

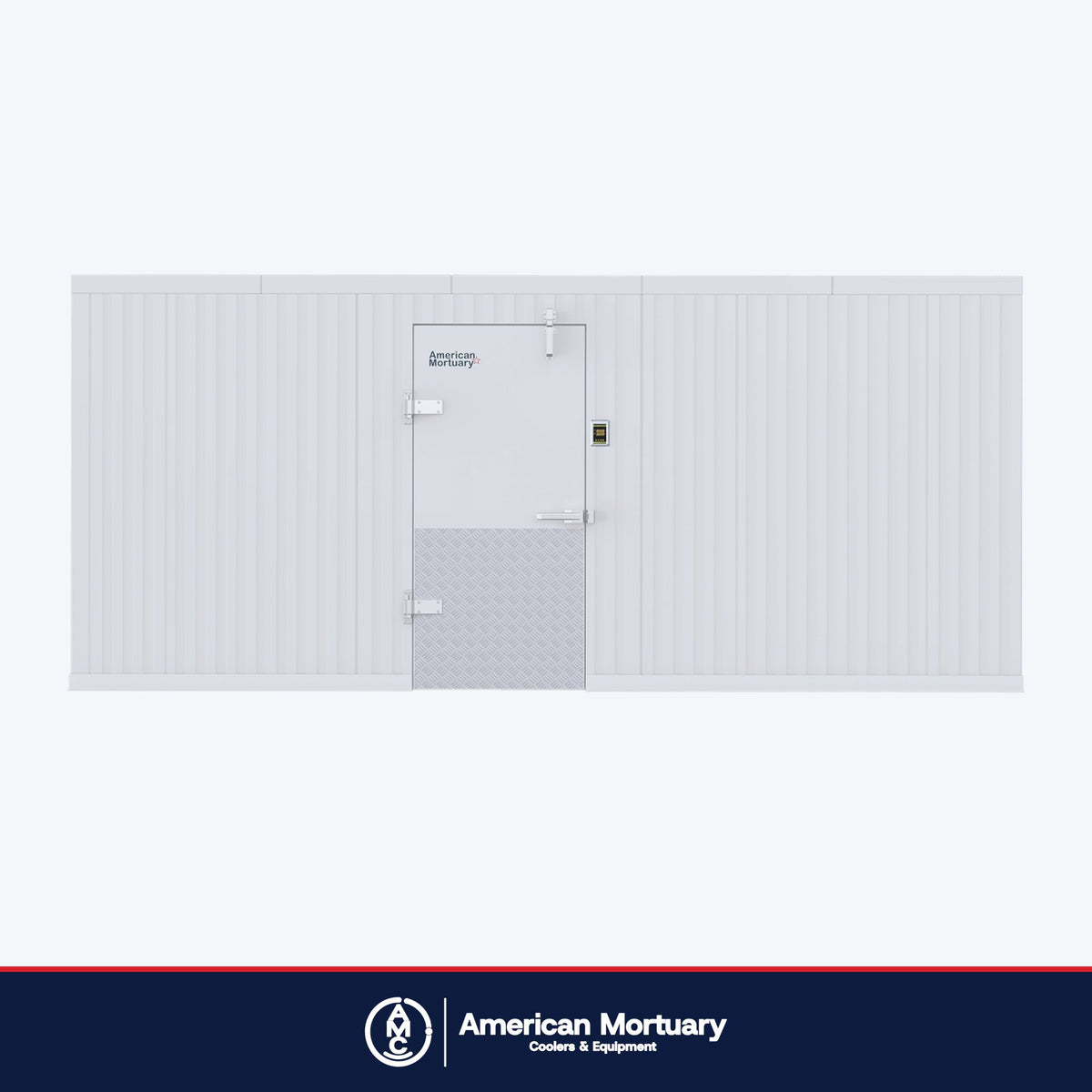

The 6′ × 22′ walk-in mortuary freezer is a 132 sq ft box built from 4.75″ urethane panels rated R-32, with an insulated R-32 floor included, for long-term storage at 0°F to −10°F. A standard refrigeration system is included in the price. Choose the door location, hinge side, door size, ramp and lighting in the configurator above.
Build options
- Door location: corner or off-center on either wall, at no charge
- Door hinge: right-hand or left-hand swing, at no charge
- Door size: 36″ standard or 48″ wide upgrade (+$795.55)
- Lockable door handle (+$125)
- Diamond plate on the lower door: +$425 (36″ door) or +$605 (48″ door)
- Refrigeration: standard two-piece system included; Level 1–4 higher-ambient upgrades available
- Insulated R-32 floor: included
- 36″ external ramp (+$595) or 48″ ramp (+$894.55)
- LED lighting package: 4× 4-ft LED Fixtures (+$636.00)
Refrigeration included
The base price includes a standard two-piece refrigeration system sized for this box, so you are not shopping for a condensing unit and evaporator separately. If the condensing unit will sit somewhere hot, choose a higher-ambient upgrade in the configurator above:
- Level 1, rated for 80°F ambient: +$2,321.59
- Level 2, rated for 90°F ambient: +$2,785.90
- Level 3, rated for 100°F ambient: +$3,095.45
- Level 4, rated for 110°F ambient: +$3,559.77
Site requirements
- A level, solid floor
- At least 2″ of clearance around the box
- A 110V outlet for the door heater
- A 115V lighting circuit if you add the LED package
Before your box is built
Your door location and hinge selections are confirmed with you before production, along with the exact exterior dimensions for this size.
Questions about sizing, door placement or freight? Call 1-888-792-9315 (Mon–Fri, 9–5 ET) or email cool@mymortuarycooler.com. Purchase orders are accepted, and business financing is available. 0% financing offers are through Shop Pay, with approved credit.
Specifications
| Insulation | 4.75″ foamed-in-place urethane, R-32 walls, ceiling and floor |
|---|---|
| Finish | Corrosion-resistant coated steel, interior and exterior |
| Panel system | Tongue-and-groove panels with cam-action locks and airtight joints |
| Operating temperature | 0°F to −10°F |
| Refrigeration | Standard two-piece refrigeration system included; higher-ambient upgrades available |
| Floor | Insulated R-32 floor included |
| Door | 36″ × 76″ flush-mounted, self-closing door with door closer; 48″ wide door available |
| Door heater | Built in, 110V / 60 Hz, to prevent condensation |
| Safety | Interior safety release |
| Panel warranty | 10 years |
Standard features
- 4.75″ foamed-in-place urethane panels, R-32
- Insulated R-32 floor
- Corrosion-resistant coated steel interior and exterior
- Standard two-piece refrigeration system
- Tongue-and-groove, cam-action locking panels with airtight joints
- Flush-mounted, self-closing door with door closer
- Built-in 110V / 60 Hz door heater
- Interior safety release
- Panel assembly instructions included
Dimensions
| Nominal size | 6′ × 22′ (132 sq ft) |
|---|---|
| Exterior dimensions | Exact exterior dimensions for this size are confirmed with your order |
| Exterior height | 90″ with the included insulated floor |
| Door opening | 36″ × 76″ standard; 48″ wide door available |
| Wall panel thickness | 4.75″ |
Final exterior dimensions are confirmed with your order.
6x22 Walk-In Mortuary Freezer: specifications & ordering details
6x22 Walk-In Mortuary Freezer is an AMC walk-in model with selectable refrigeration and configuration options. Plan the layout around your facility’s handling equipment and access route. Review the published measurements below alongside the original model description and selected options.
Model specifications
| Model | 6x22 Walk-In Mortuary Freezer |
|---|---|
| Item / SKU | AMC-0622F |
| Nominal model size | Refer to the model drawing for the specified footprint. |
| Published exterior | Exact exterior dimensions are not published in this model’s verified specification record. Confirm against the factory drawing. |
| Usable interior (W × D × H) | Exact usable interior dimensions are not published in this model’s verified specification record. Confirm against the factory drawing. |
| Refrigeration | A refrigeration selection is required. Choose from the systems listed for this model; electrical requirements and clearances depend on the selected system. |
| Door configuration | Complete the required door selections shown in the configurator. Check the opening, hinge and location against your equipment route. |
| Insulated floor | Optional and priced separately; not included in any walk-in package. |
| External ramp | Optional 36-inch external ramp: $595 separately. Requires an insulated floor and the 36-inch standard door. |
| Freight | Cooler freight uses built-in set pricing; no separate freight quote is required. Review final order charges before payment. |
Nominal size is a model designation, not usable interior space. Use the factory drawing for final fit, including the selected refrigeration equipment, door swing and service clearances. Unpublished measurements are not inferred from the model name.
Installation planning
Measure the receiving entrance and full route to the installation area. Check the finished slab, threshold, ceiling clearance and room for loading equipment to turn. Have qualified trades review the electrical supply, refrigeration installation and condensate handling for the selected equipment before installation.
Frequently asked questions
Is the model size the same as the interior size?
No. Nominal size identifies the model. The published exterior and usable interior dimensions are listed separately above when verified measurements are available. Allow additional room for the door swing, refrigeration equipment and service access shown on the final drawing.
Which choices must I complete before ordering?
Complete every field marked required in the configurator and review optional accessories separately. You can then add the complete configured build to your cart, or request an itemized AMC quote for procurement review.
Is an insulated floor included?
No. An insulated floor is optional and priced separately in every walk-in package. Review your slab and installation conditions before choosing a floor. Where a floor price is not published, obtain the confirmed item price before purchasing that option.
What does the ramp cost, and which door does it fit?
The optional external ramp is $595 and is 36 inches wide. It requires an insulated floor and the 36-inch standard door. It is a separate add-on; selecting a floor does not automatically add a ramp. No internal or 48-inch ramp is offered in this configuration.
What should I check before installation?
Check the delivery and assembly route, slab condition, thresholds, ceiling height and equipment turning space. Review power, condensate handling and service clearance with qualified trades using the selected refrigeration system’s requirements. Do not infer electrical ratings from nominal room size.
Does the displayed price include every accessory?
The configured price includes the base unit and each published-price option you select. Any preference identified as unpriced requires confirmation on an itemized AMC quote. Freight, tax and installation are shown or confirmed separately as applicable.
Do I need a freight quote?
Cooler freight uses built-in set pricing; no separate freight quote is required. Review final order charges and available delivery services before payment. Check site access and unloading arrangements against the shipping policy.
Which warranty and order terms apply?
Warranty coverage depends on the supplied equipment and applicable conditions. Review the warranty policy and returns and cancellations policy before ordering. Keep the equipment documentation for installation, operation and any warranty claim.
Product information
Product details & specifications
Product details
Your product information and configuration controls remain together above these tabs. View product details & configuration.
Specifications & product identity
Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.
| Brand / vendor | American Mortuary Coolers |
|---|---|
| Equipment type | Mortuary Freezer |
| Model | 2001-0622F |
| SKU | AMC-0622F |
Dimensions & fit
Published dimensions remain in Product details when a separate dimensions section is not available.
FAQs & buying help
Review the original product information & configuration above for product-specific guidance.
How can I ask a question about this product?
Contact our team with the product name and the specification or option you want to confirm.
What should I include when requesting a quote?
Include the product, quantity, required configuration and delivery location in your quote request.
Where can I review shipping and purchase policies?
Open Shipping & support for the published freight, returns and custom-order policy links.
Resources & documents
Product-specific documents and planning links remain in Product details when a separate resources section is not available.
Plan delivery. Review the details.
Review the published policies and confirm product-specific requirements before placing your order.
Financing & purchase orders
Choose how to pay
Purchase through the product options above, or use one of these support paths for a financed or institutionally quoted order.
Formal quotes & purchase orders
Request documented pricing, freight planning, and configuration support before issuing a purchase order.
Request a formal quoteEstimates are for qualified buyers with approved credit (WAC) and reflect the equipment price only. Shipping, freight, and applicable taxes are not included and will increase your total and payments. Final amounts are set at checkout or on your quote.
Government and institutional buyers: request a PO quote.
