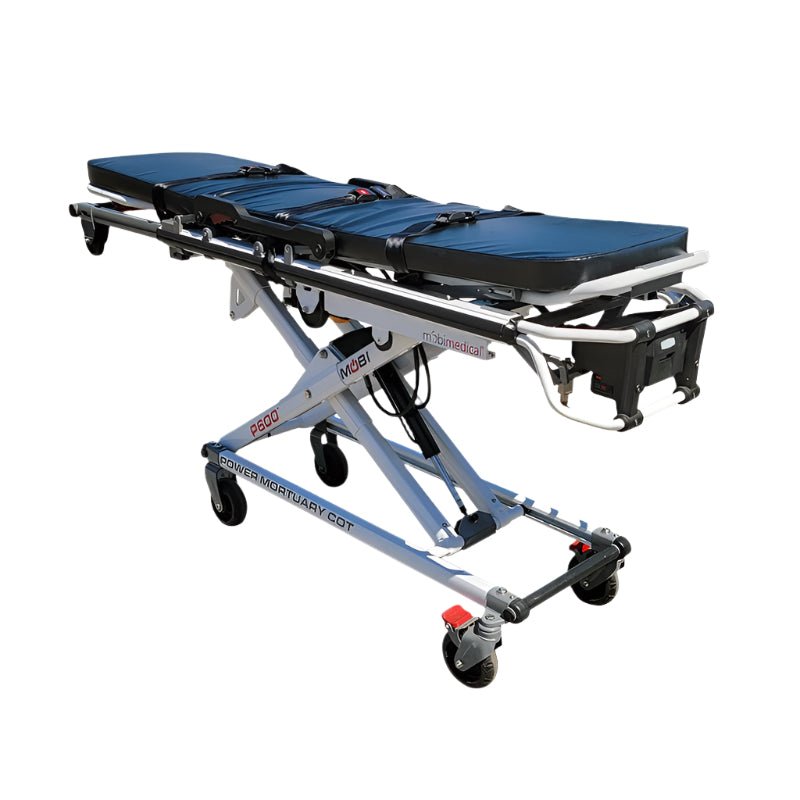

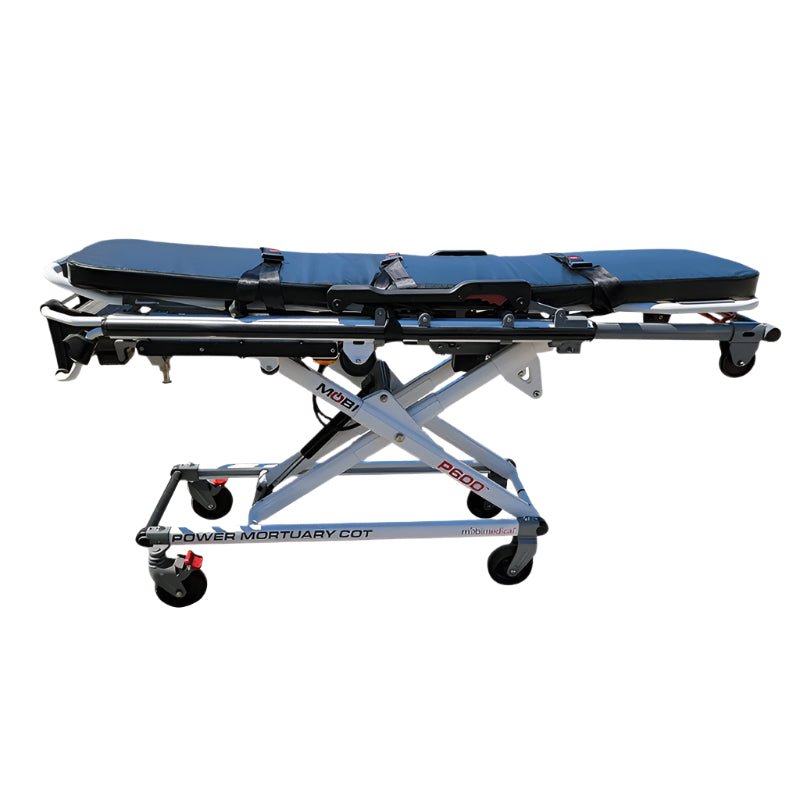

A 600 lb-rated powered mortuary cot with a 63–78-inch adjustable length, 22.5-inch width and included vehicle loading track.
TITAN Powered Mortuary Stretcher, 600 lb: where it fits

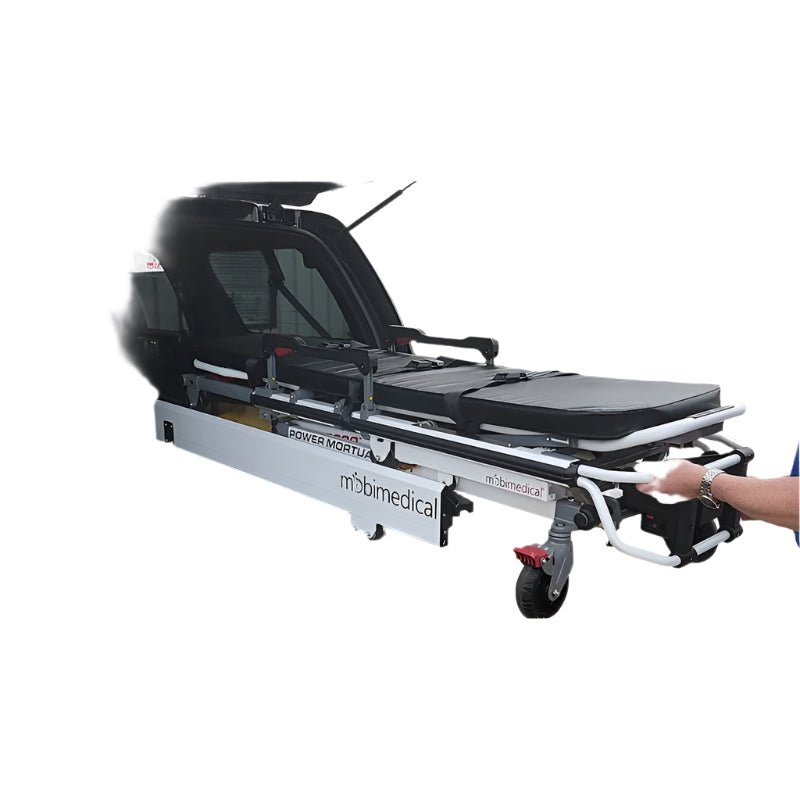

This TITAN powered cot combines battery-powered elevation with a dedicated loading track. Measure for the track as well as the stretcher: the track is 26.75 inches wide and 87.5 inches long, which is larger than the cot itself.
Specifications and vehicle fit
- Rated capacity
- 600 lb
- Length
- 63–78 in adjustable
- Width
- 22.5 in
- Loading height
- Up to 28 in
- Construction
- High-strength aluminum alloy
- Loading system / configuration
- Included loading track

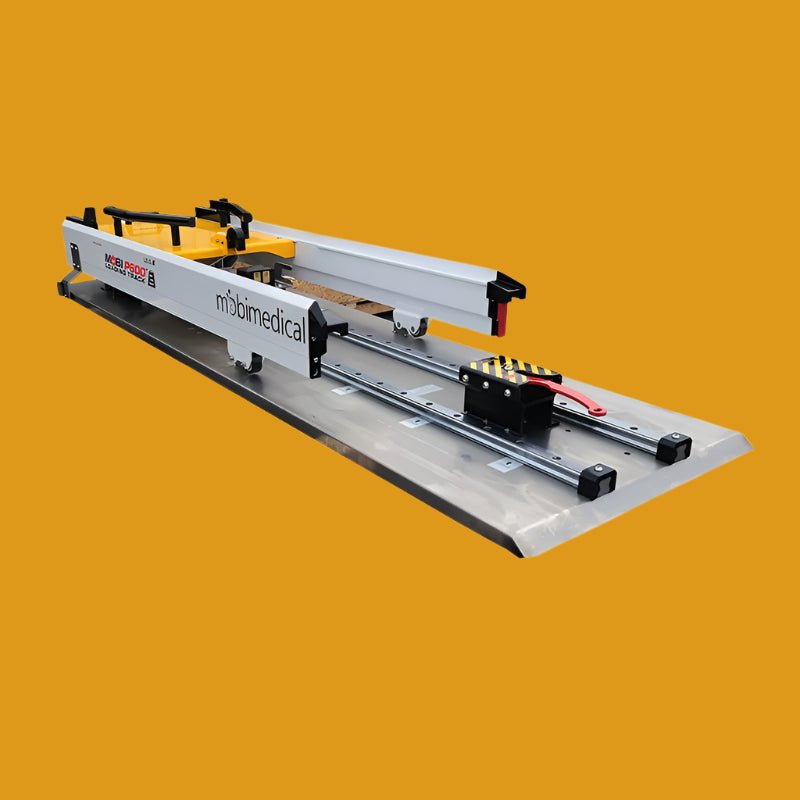

- Included track dimensions
- 26.75 in wide × 87.5 in long
Minimum and maximum working heights, net cot weight, wheel diameter, mattress dimensions and a complete folded envelope are not published. Request the current dimensional drawing before finalizing vehicle or storage fit.
Loading height describes the vehicle interface, not the maximum working height. Check the deck height, rear-door opening, cot-tray width and locking system before ordering. The load rating does not determine safe staffing for every removal.
Included equipment
Mattress pad, straps, basic cot cover, loading track, two 20V lithium batteries and charger. Optional quilted textiles and transfer boards are separate items unless selected with your order.
Choose your first-call accessories
Textile sizes, side rails, transfer boards and vehicle mounts must be matched to this exact configuration. We do not offer a direct-fit cover, pouch or slider dropdown where compatibility has not been established. Send the cot revision and vehicle measurements with your quote request.
Browse quilted cot covers, full-zip cot pouches and vehicle decks and loading systems for a fit review. A slider board is for a supported sliding transfer, not lifting or carrying.
Compare TITAN mortuary cots or build your complete first-call setup. For help matching a cot to a vehicle, request a configuration quote with your deck measurements.
Can I choose accessories by the TITAN model name alone?
No. Confirm the operating revision, actual cot dimensions, mattress, rails and loading arrangement. A Standard or XL textile label does not establish fit, and a model number is not a substitute for a published load rating.
Can a cot cover replace a containment body bag?
No. A decorative cover or reusable cot pouch is not a substitute for a body bag selected for the case. See body bags and disaster pouches separately.
What should I check for vehicle loading?
Measure the vehicle deck at the loading point and confirm the doorway, tray, loading system and restraint clearances. Do not assume that every SUV or van has the same deck.
