Mortuary Racks & Body Lifts
Mortuary cooler racks and morgue racks in 2 to 5 tiers, plus body lifts and storage trays. Match tray size, loading direction and transfer height before ordering.
-
On Sale
Extra Large Mortuary Rack Storage Boards – 24 Pack
On SaleList Price:$2,983.25$2,580.00Each$2,983.25Save $403.25You Save $403.25Body transferPO accepted
-
-
-
On Sale
HD Mortuary Plastic Storage Board
On SaleList Price:$229.00$184.75Each$229.00Save $44.25You Save $44.25Body transferPO accepted
-
On Sale
Mortuary Rack Storage Board – HDPE
On SaleList Price:$198.98$169.84Each$198.98Save $29.14You Save $29.14Body transferPO accepted
-
-
-
On Sale
Cadaver Lift Trolley
On SaleList Price:$18,403.26From $14,845.05$18,403.26Save $3,558.21You Save $3,558.21Lift systemPO accepted
-
On Sale
5-Tier Side-Loading Mortuary Rack
On SaleList Price:$2,283.91$1,987.00Each$2,283.91Save $296.91You Save $296.91Cooler rackingPO accepted
-
-
-
-
On SaleFuneral Source OneReplacement Body Lift Straps
On SaleList Price:$134.00$96.03Each$134.00Save $37.97You Save $37.97PO accepted
-
MADE IN
THE USA -
MADE IN
THE USA -
MADE IN
THE USA -
MADE IN
THE USA -
MADE IN
THE USA -
-
-
-
-
On SaleFuneral Source OneHigh-Impact Plastic Body Boards, Set of 6
On SaleList Price:$1,374.00$949.30Each$1,374.00Save $424.70You Save $424.70Body transferPO accepted
-
On Sale
Hydraulic Body Casket Lift Straps
On SaleList Price:$108.79$96.03Each$108.79Save $12.76You Save $12.76PO accepted
Shop the Mortuary Coolers department
All Mortuary Coolers 119More categories
Mortuary rack buying guide
Choose a mortuary rack in three steps: how many tiers, which way it loads, and which tray width you use. Every tier holds one body.
- Step 1
Pick the tier count
Racks come in 2 to 5 tiers. More tiers hold more bodies in the same floor space. On the standard frame the first tier sits at 21" and each tier is 16.25" above the last, so plan a lift for the upper tiers.
- Step 2
Choose the loading direction
End-loading suits narrow rooms with racks side by side. Side-loading suits a lift that approaches from the aisle. Multi-directional takes both. Cantilever racks have 42" arms and no front posts for open lift access.
- Step 3
Match the tray width
Stainless trays come in 23", 27" and 30" widths for standard, larger and bariatric cases. HDPE rack boards are barriers on the rollers and are not for lifting or transfer.
| Rack | Bodies per rack | Loading styles and current price |
|---|---|---|
| 2-tier mortuary rack | 2 | Side-load from $1,063.65Side or end from $974.10Multi-directional from $1,275 |
| 3-tier mortuary rack | 3 | End-load from $1,378.07Side-load from $1,441.75Multi-directional from $1,797.26Cantilever from $939.55 |
| 4-tier mortuary rack | 4 | End-load from $1,589.96Side-load from $1,698.39Multi-directional from $2,451.67Cantilever from $949 |
| 5-tier mortuary rack | 5 | End-load from $1,935.27Side-load from $1,987Multi-directional from $2,559Cantilever from $1,323.35 |
How many racks fit? Three 4-tier racks fit inside a 10x10 walk-in mortuary cooler for 12 bodies. Read the morgue racking guide, or send your room size to get a rack layout and quote · 1-888-792-9315.
About Mortuary Lifts, Racking Systems & Storage Trays
Cadaver racks, mortuary lifts and storage trays for professional body-storage workflows. We supply storage racks, lifts, racking systems and trays for funeral homes, hospital morgues, medical examiner offices and anatomy programs. Compare construction, loading direction, tier count and lift range below, or call 1-888-792-9315 for rack-count and compatibility planning.
Cadaver Storage Racks
Each rack holds one decedent per tier on 1.9" gravity-free rollers. The standard frame is welded 10-gauge steel on 5" locking casters, 31" x 85" outside and 28" x 82" inside, with the first tier at 21" and tiers 16.25" apart. Two-tier racks carry 850 lb per tier and the stainless 5TMD-SST carries 1,000 lb per tier. See the cadaver handling and storage racks guide.
4-Tier End-Loading Mortuary RackLoads from the foot end, narrow aisles
4-Tier Side-Loading Mortuary Rack31" x 85" footprint, 21" first tier

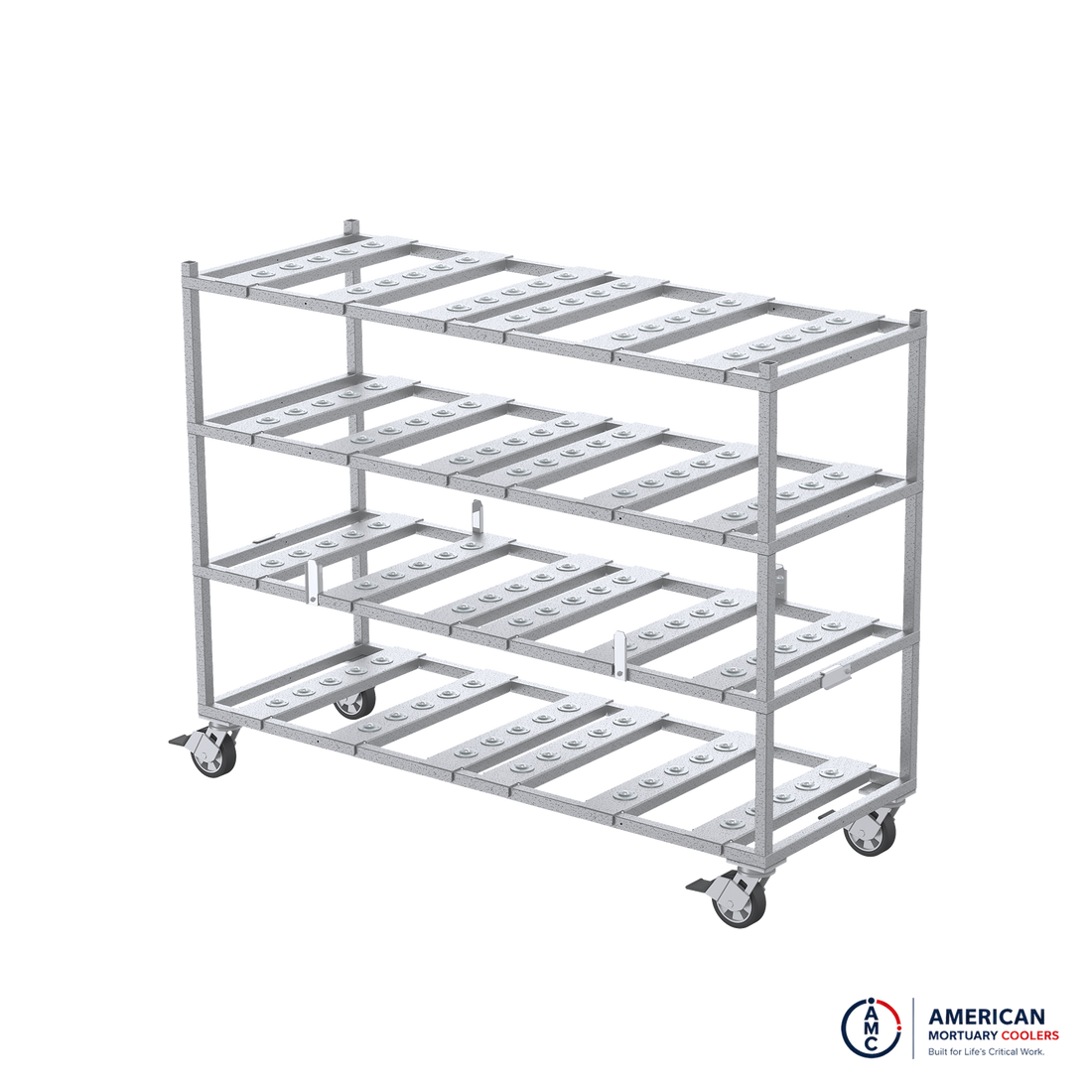

4-Tier Multi-Directional RackLoads from the end or the side
5-Tier Multi-Directional Rack 5TMD-SST1,000 lb per tier, about 94" tall
5-Tier Mortuary RackFive bodies on one footprint
4-Tier Cantilever Mortuary Rack42" open-front arms, mobile or stationary
5-Tier Cantilever Storage RackOpen front for lift access
2-Tier Side or End Loading Rack850 lb per tier, fits smaller rooms
Mortuary Lift Systems
A lift brings each tier to working height so staff never lift a body by hand. Choose manual foot-pump hydraulic for no charging, or 12V battery power for frequent transfers. See mortuary lift systems, casket lifts and crematory scissor lifts.
Hydraulic Crematory Scissor LiftManual foot-pump hydraulic, 1,000 lb, 20.5" to 80"+
Low Profile Powered Crematory Lift12V battery, 12" to 71" load height, 67" x 27" top

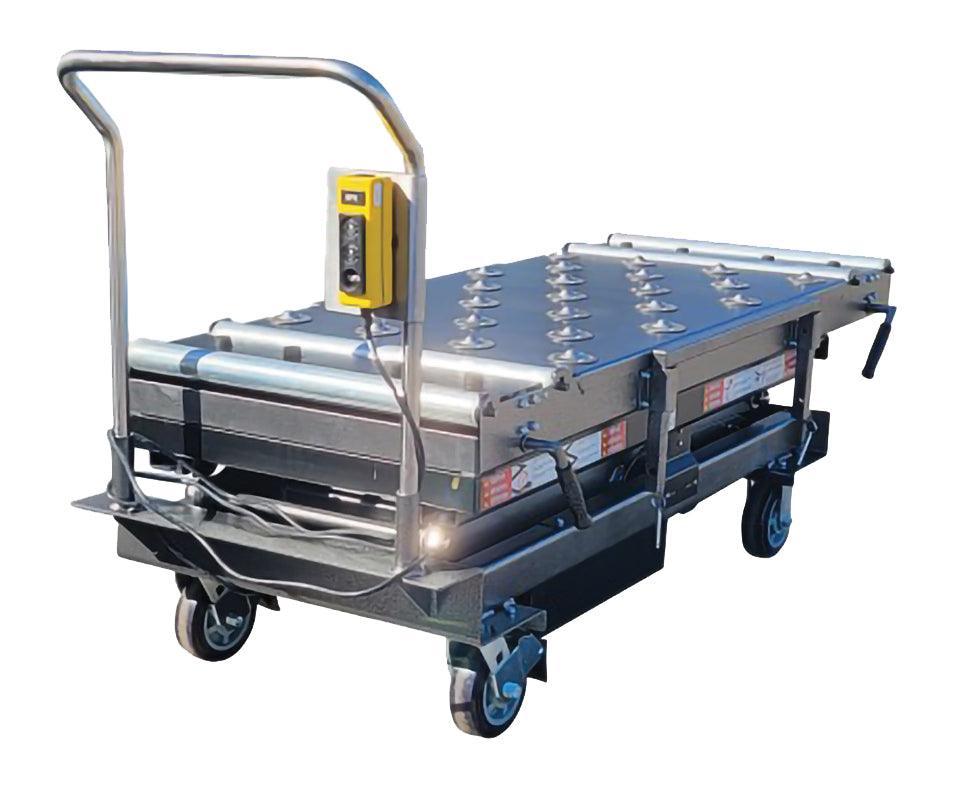

HD 1000 MAX Mortuary Lift G1Powered, multi-directional roller top, 21" to 80"+
HD 1000 LowLoad Powered LiftLow-clearance powered loading for coolers and carts
Powered Scissor Lift, Aluminum AlloyHD-1000-AA, 1,000 lb, lighter frame to move
Covered Cadaver Scissor LiftBattery powered, 800 lb, 78" max height, halo frame

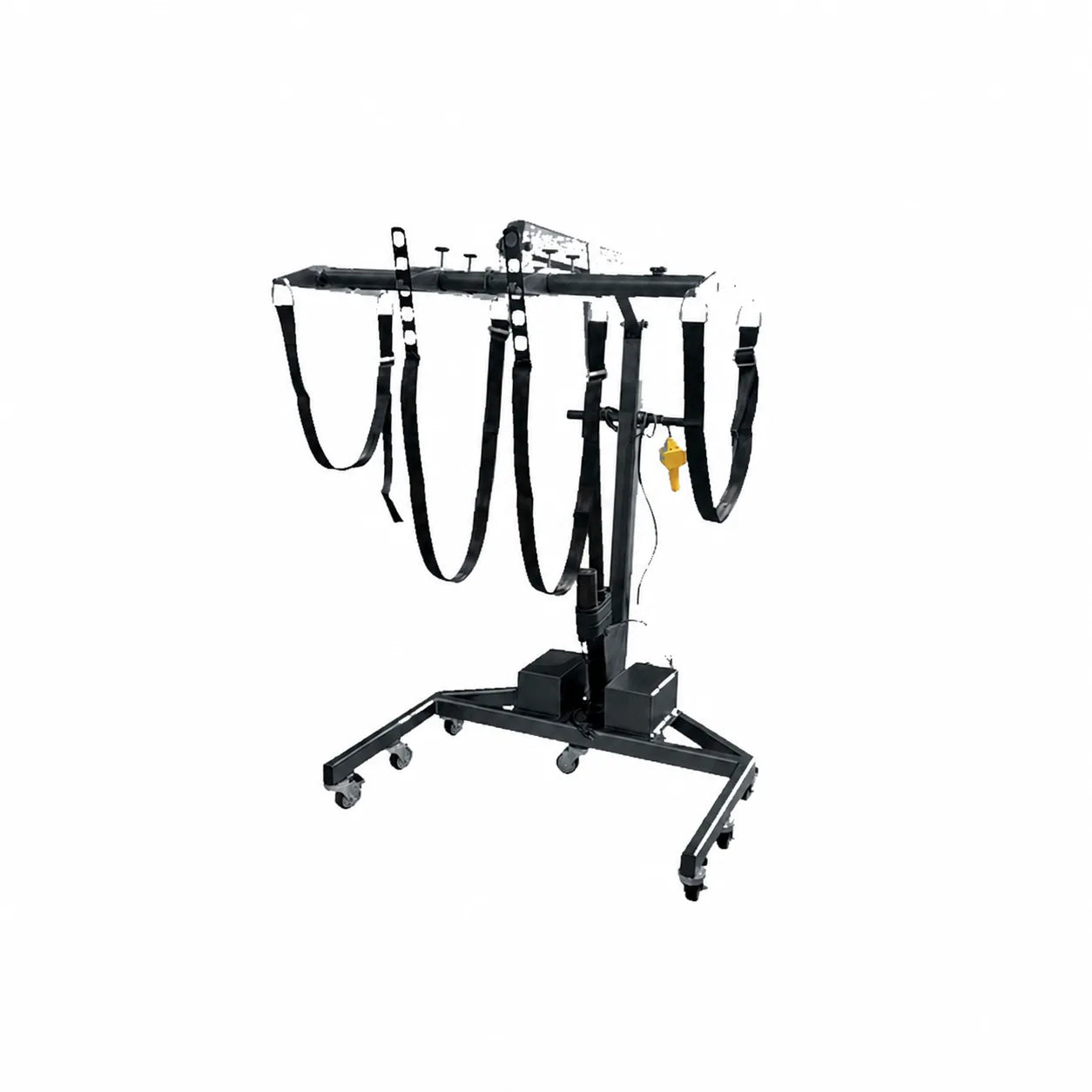

Body Casket Lift XL900 lb battery-electric body and casket lift
1,000 lb Heavy-Duty Casket & Body LifterFour nylon straps, nine 4" casters
| Lift | Type and power | Capacity | Height range | Top |
|---|---|---|---|---|
| Hydraulic Crematory Scissor Lift | Scissor, manual foot-pump hydraulic | 1,000 lb | 20.5" to 80"+ | 62.5" x 25" |
| Low Profile Powered Crematory Lift | Double scissor, 12V DC battery | Over 1,000 lb | 12" to 71" | 67" x 27" multi-directional rollers |
| HD 1000 MAX Mortuary Lift G1 | Scissor, 12V DC powered | Over 1,000 lb | 21" to 80"+ | 62.5" x 25" roller top with locks |
| Powered Scissor Lift, Aluminum Alloy | Scissor, powered, aluminum frame | 1,000 lb | See product page | Stainless top |
| Covered Cadaver Scissor Lift | Scissor, battery powered, halo frame | 800 lb | Up to 78" | 28" bi-directional |
| Body Casket Lift XL | Battery-electric body and casket lift | 900 lb | See product page | Body and casket carriage |
| 1,000 lb Casket & Body Lifter | Mobile boom strap lifter | 1,000 lb | Boom 31" to 72" | Four 2" nylon straps |
| Easy Lift Casket Jacks | Manual casket jacks, set of 2 | 600 lb | 18" to 24" | Casket supports |
Mortuary Racking Systems
Racks, trays, lifts and the cooler opening work as one system. Match the loading direction to your room and your lift.
| Rack style | Loads from | Best for |
|---|---|---|
| End-loading | Foot end of the tray | Narrow rooms, racks placed side by side against a wall |
| Side-loading | Long side of the tray | Shallow rooms where the lift approaches from the aisle |
| Multi-directional | End or side | Rooms that change layout, or mixed lift types |
| Cantilever | Open front, no front posts | Fast lift access, high-volume rooms |
Cantilever racks carry each tier on 42" arms with no front posts. The 4-tier model comes mobile (2000-4TC-C, 46" W x 90" D x 99" H) or stationary (2000-4TC-L) on leveling feet.
Mortuary Storage Trays
Stainless trays carry a body between rack, lift and table. HDPE boards are barriers on the rack rollers and are not for lifting or transfer. See the cooler racks and body trays guide and all body trays and boards.
TITAN 23" Stainless Body Tray78" long, 18 gauge
TITAN 27" Stainless Body Tray78" long, 16 gauge
TITAN 30" Stainless Body Tray78" long, 14 gauge, bariatric
Low Profile Cadaver Tray 1038-LPTStainless, sold as a 2-pack
HD Mortuary Plastic Storage Board23.5" x 76" HDPE barrier board
Oversized Plastic Storage Board29" wide HDPE board
Laminated Mortuary Body Board78" x 24", plywood core, rubber edge
Laminated Storage Boards, Set of 5Stock a full rack at once
| Tray or board | Size | Use |
|---|---|---|
| TITAN 23" tray | 23" x 78", 18 ga stainless | Standard storage and rack transfer |
| TITAN 27" tray | 27" x 78", 16 ga stainless | Larger decedents |
| TITAN 30" tray | 30" x 78", 14 ga stainless | Bariatric cases |
| HDPE storage board | 23.5" x 76" | Barrier board on rollers; not for lifting or transfer |
| Oversized HDPE board | 29" wide | Barrier board for wider cases |
| Laminated body board | 78" x 24" | Rigid board with plywood core and rubber edge |
Complete Walk-In Cooler & Racking Configurations
Racking systems, lifts, trays and walk-in coolers should be matched as one handling system. Confirm dimensions, loading direction, tray interface, lift range, cooler opening and aisle clearance before ordering.
Facilities We Equip
- Funeral homes and mortuaries of all sizes
- Hospital morgues and pathology departments
- County and state medical examiner offices
- Forensic science laboratories
- University anatomy programs
- Crematories and cremation providers
Complete Your Facility
Frequently Asked Questions — Cadaver Storage Racks & Mortuary Lifts
What is a cadaver storage rack?
A cadaver storage rack is a tiered frame that holds body trays or boards inside a mortuary cooler or body storage room. Our racks come in 2 through 5 tiers with end-loading, side-loading, multi-directional and cantilever options.
What is the difference between end loading and side loading racks?
End loading racks take trays from the foot end, which suits narrow rooms. Side loading racks take trays from the long side, which suits wider rooms with open lateral access. Multi-directional racks accept both.
How many bodies does a 4-tier rack hold?
One 4-tier rack holds 4 bodies. Three 4-tier racks fit inside a 10x10 walk-in cooler for 12-body storage. Call 1-888-792-9315 to plan the right rack count for your room.
How fast do cadaver storage racks ship?
Lead time varies by model and current inventory. Confirm freight timing on the product page or your written quote.
Do you ship outside the United States?
Call 1-888-792-9315 to discuss freight options for your location.
Is financing available?
Yes. Financing is available through Shop Pay, including 0% offers with approved credit. See our financing page or call us directly.
Mortuary Rack & Lift Compatibility Checklist
Before ordering, confirm:
- Rack geometry: width, depth, tier count, loading direction and aisle clearance
- Tray fit: tray width, length, roller interface and bariatric needs
- Lift range: lowered height, maximum height, top style, rated capacity and wheel clearance
- Cooler interface: interior dimensions, door opening, threshold, floor level and turning space
- Receiving: liftgate or forklift needs, inspection and damage documentation
See tech support or call 1-888-792-9315 before finalizing the order.
Plan your racks and lifts
Send your room size and body count and we will lay out racks, trays and a lift that fit. Financing is available through Shop Pay, including 0% offers with approved credit.
