Product description & specifications

📄 Download Spec Sheet (PDF)One-page factory spec sheet — specifications, compatibility, and QR link. RFQ & PO ready.

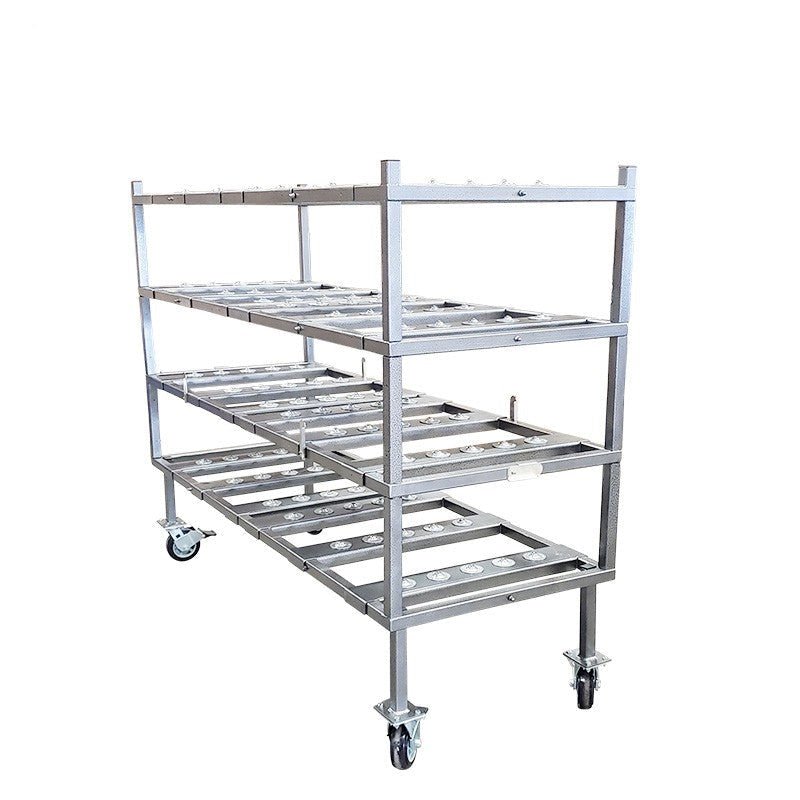

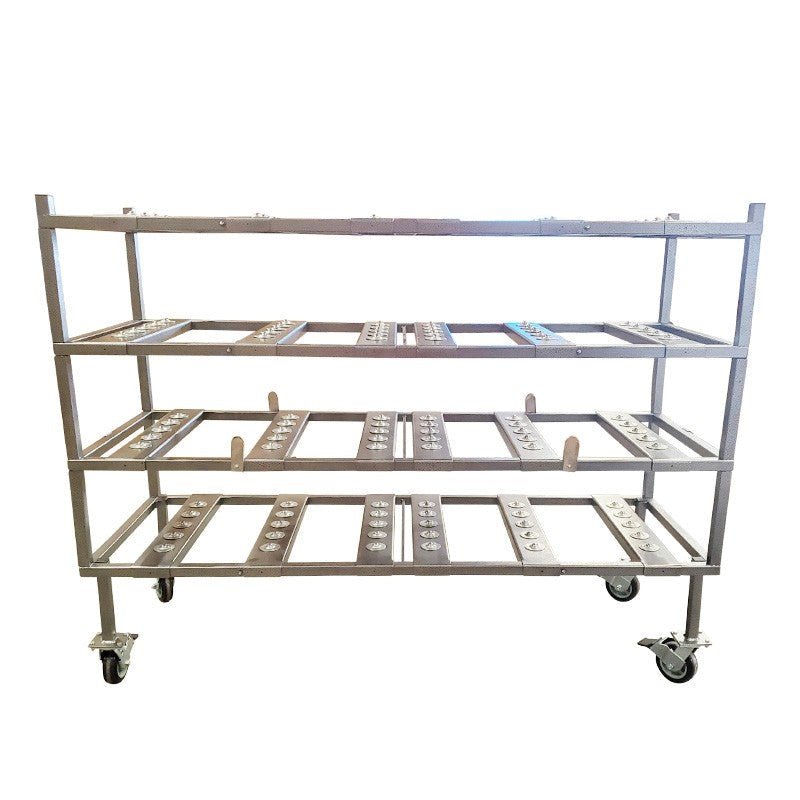

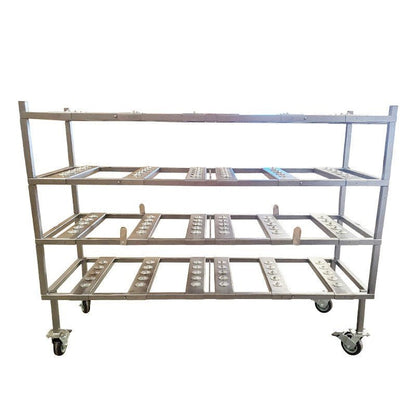

The 4-Tier Multi-Directional Loading Mortuary Rack (2-in-1) – Model 2000-4TMD-SST is the most versatile storage solution in the industry. Designed to eliminate the choice between side-loading and end-loading, this 4-tier system features a specialized roller configuration that allows for effortless loading from either direction. Proudly Made in the USA, this rack is engineered for high-volume facilities that require maximum flexibility and structural integrity.

The 2-in-1 Advantage

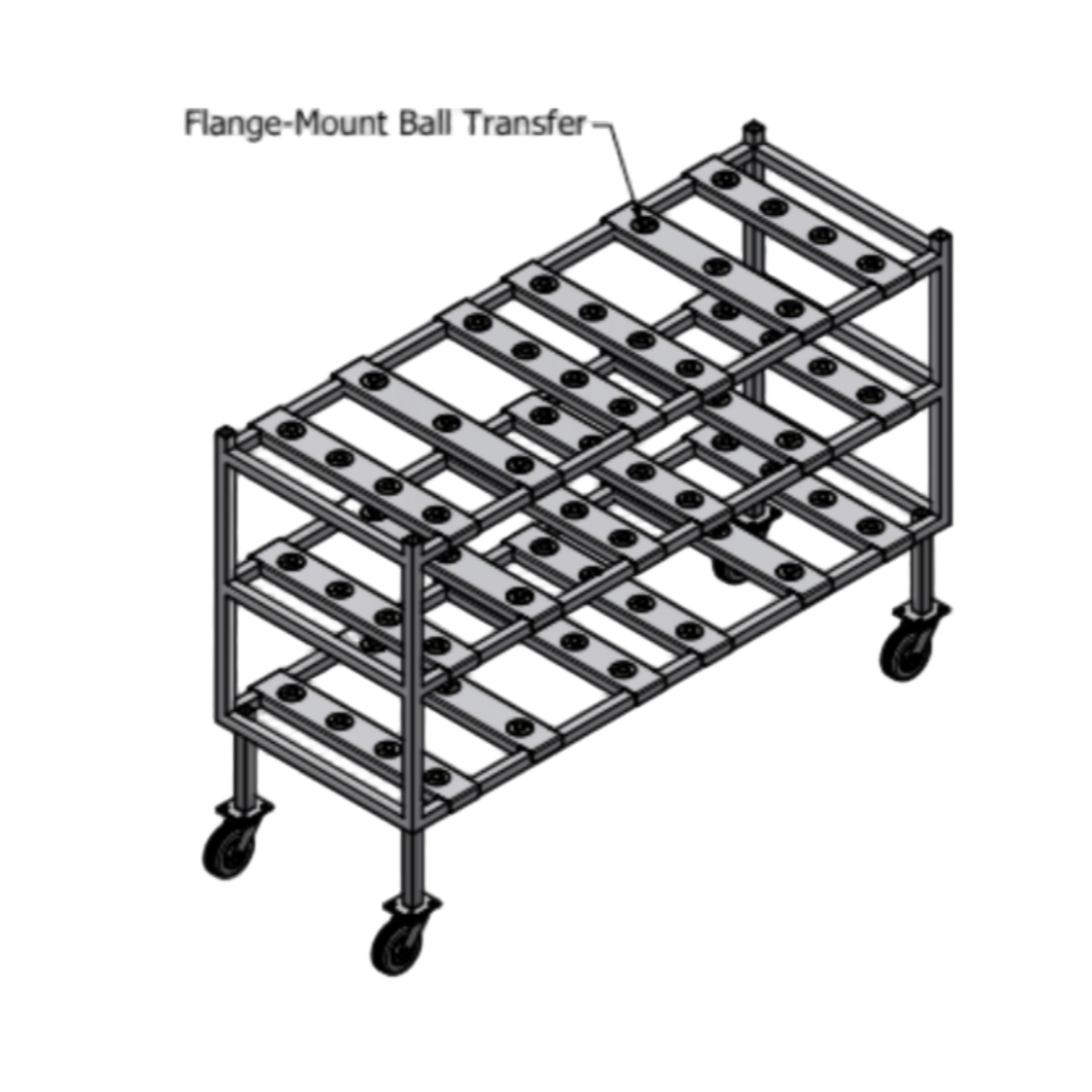

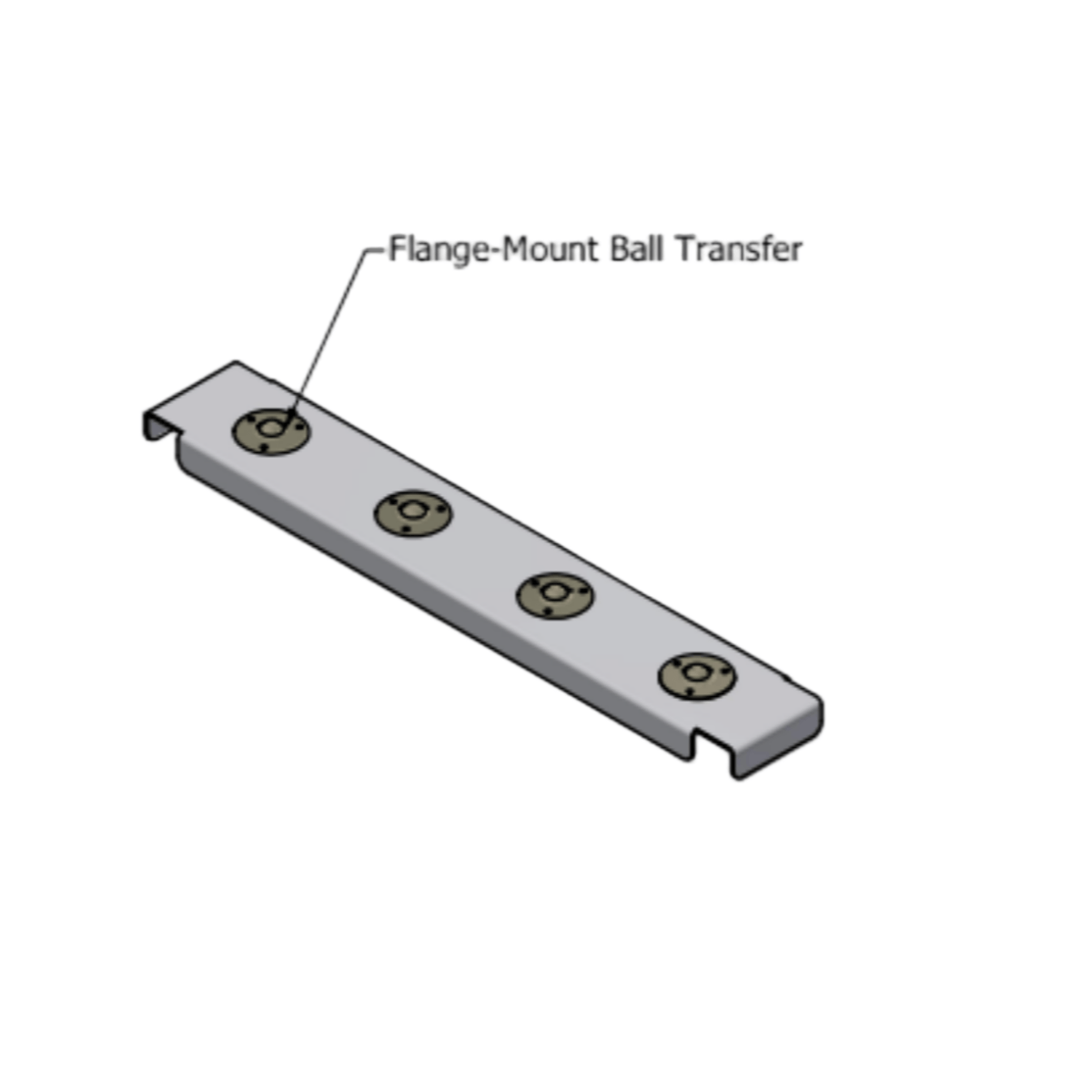

Dual-Directional Flow: The unique roller system supports both side-loading and end-loading, making it the perfect all-in-one rack for varying facility layouts or mixed storage needs.
Optimized Low-Profile Loading: The first tier is set at a 9.00" standard height, making it compatible with low-profile mortuary lift systems and standard mortuary cots.
High-Capacity Storage: A 4-tier vertical design that maximizes storage density while maintaining a compact floor footprint.
Industrial Construction: Built with 1.50" square steel tubing, welded for heavy-duty use, and finished with a triple-layer, anti-corrosive powder coating.
Operator Safety: The multi-directional rollers minimize physical strain, allowing a single operator to maneuver trays or boards with precision.

Quality & Compliance

20-Year Workmanship Warranty: An industry-leading guarantee of American craftsmanship.
OSHA Compliant & ADA Accessible: Lower tiers are engineered to meet handicap accessibility standards and federal safety regulations.
Heavy-Duty Casters: Equipped with high-impact, smooth-rolling casters for easy repositioning within the morgue or walk-in cooler.

Technical Specifications

Specification	Detail
Model Number	2000-4TMD-SST (2-in-1 Series)
Type	4-Tier Multi-Directional (End & Side Loading)

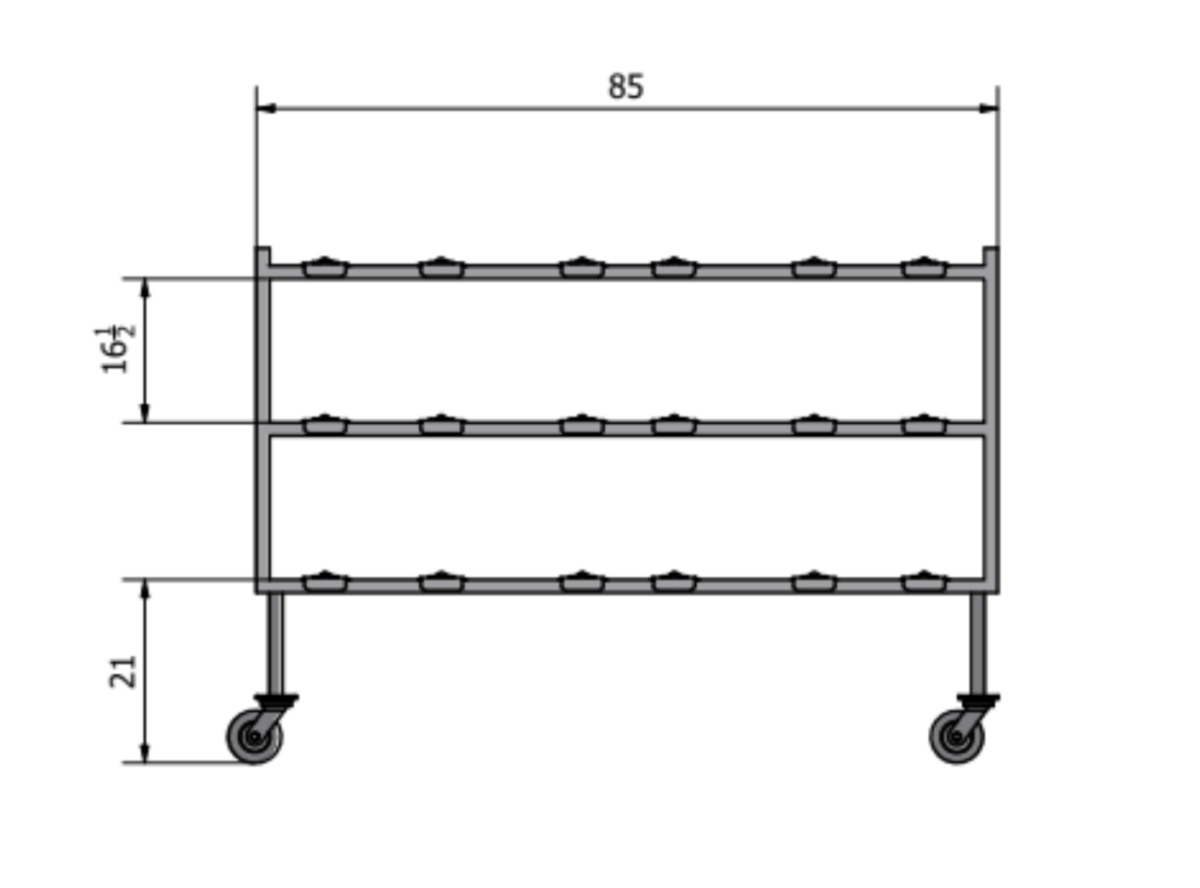

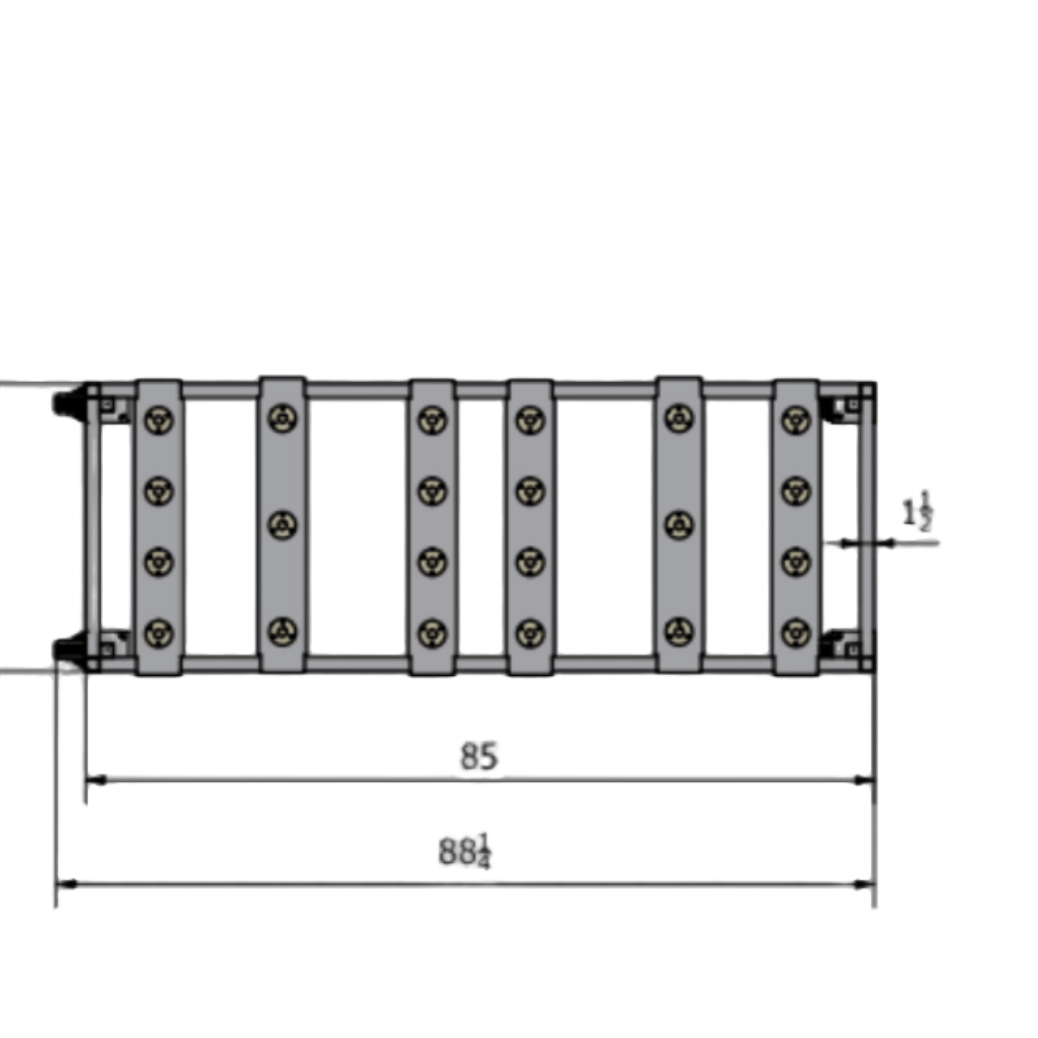

Overall Dimensions	85.00" L x 31.00" W x 65.00" H (Includes Casters)

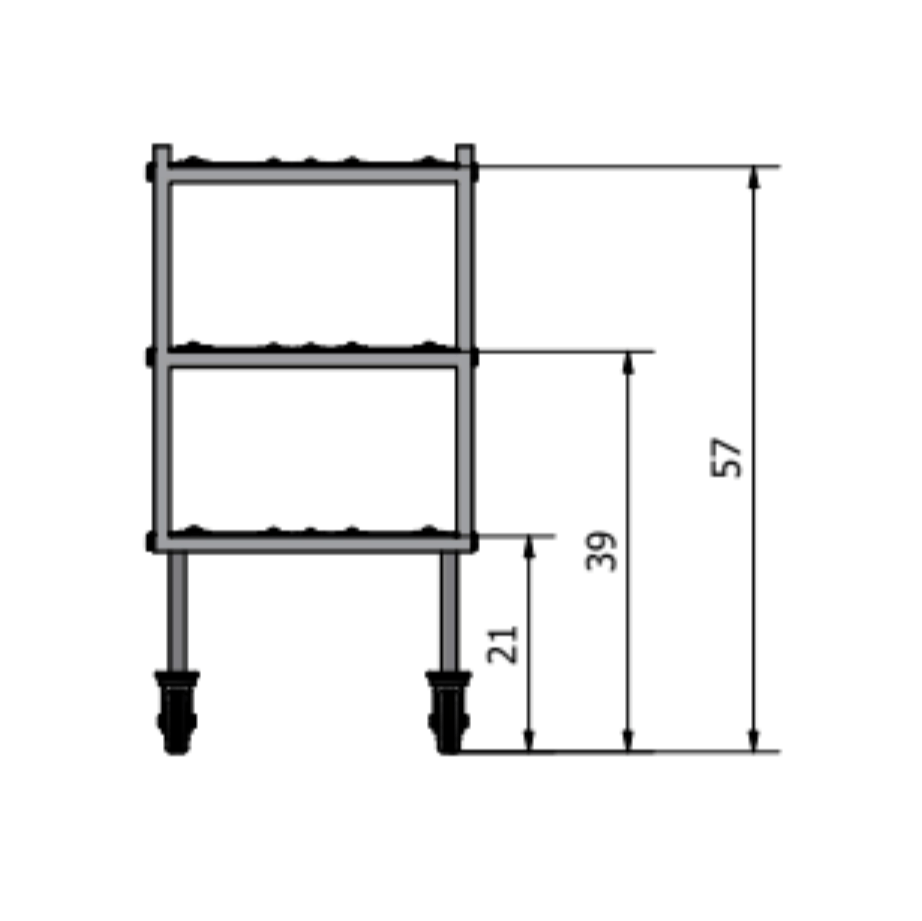

1st Tier Load Height	9.00" (Optimized for Lift Systems/Cots)
Clearance Between Tiers	16.25" Clear loading space per level
Standard Inside Width	28.00"
Load Limit	500+ lbs. per tier
Construction	1.50" Welded square steel tube; Triple-finish powder coat
Origin	100% USA Made – Johnson City, Tennessee

Shipping & Facility Requirements

Knock-Down Design: This rack features a break-apart design for shipping efficiency and to allow passage through narrow hallways. Light assembly is required.
Doorway Clearance: Designed to pass through standard commercial doorways with no building modifications required.
Nationwide Shipping: Direct shipping available to all points in the USA.

BULK SAVINGS: Ordering 4 or more units? You may be eligible for Discounted Freight Rates. Do not check out online — call our logistics team at 1-888-792-9315 for a custom shipping quote to your facility.

SHIPPING TERMS & CONDITIONS: Shipping charges provided at the time of online checkout are estimates only and are based on standard freight variables. Certain geographical locations, limited-access areas, or specific accessory configurations may require shipping charges outside of the initial estimate. American Mortuary Coolers reserves the right to adjust final shipping invoices to reflect actual carrier costs. Customers are responsible for providing a forklift or equivalent equipment for offloading at the time of delivery if a loading dock is not available.

Call 1-888-792-9315 or email po@mymortuarycooler.com for financing, custom sizes, and purchase orders.
