USPE Hand-Crank Material Lift | USPE-HCL16

Product details

USPE-HCL16 | Quote Only

Request a hand-crank material-lift configuration for pathology handling planning. This is a separate platform from USPE-HCL10. Its reference chassis and any tray, pallet or lifting attachment require a written model, interface and load-rating review.

Published reference-chassis data

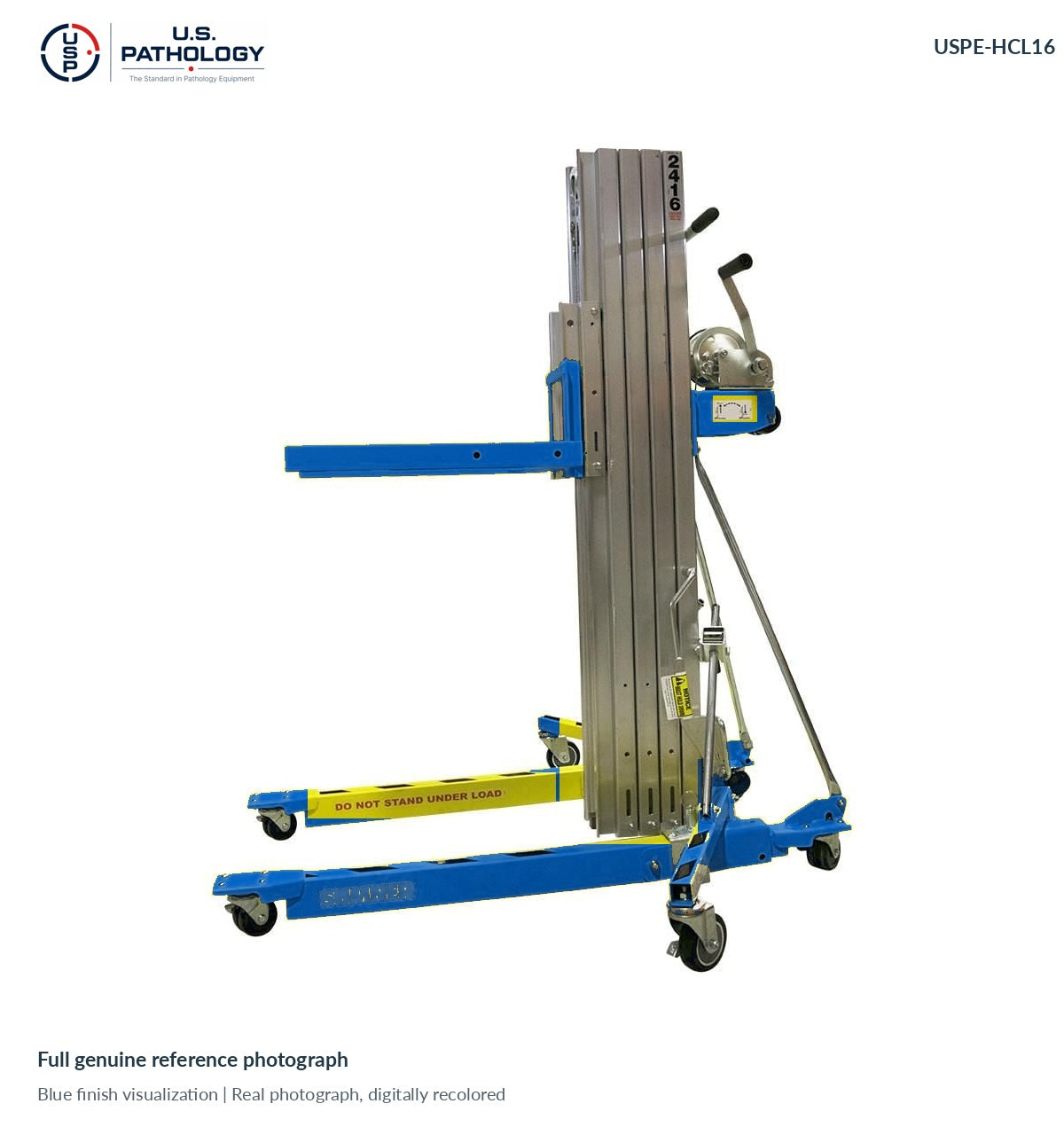

The selected reference chassis specifies a 450 lb base capacity, 16 ft 11⅜ in maximum height with forks up, and 15 ft 11⅝ in with forks down. Published stowed dimensions are 62¾ in high × 23 in long × 26⅜ in wide. Its listed deployed footprint is 48 × 26⅜ in. These reference values do not rate a modified cadaver-handling assembly.

Compact storage is not aisle clearance

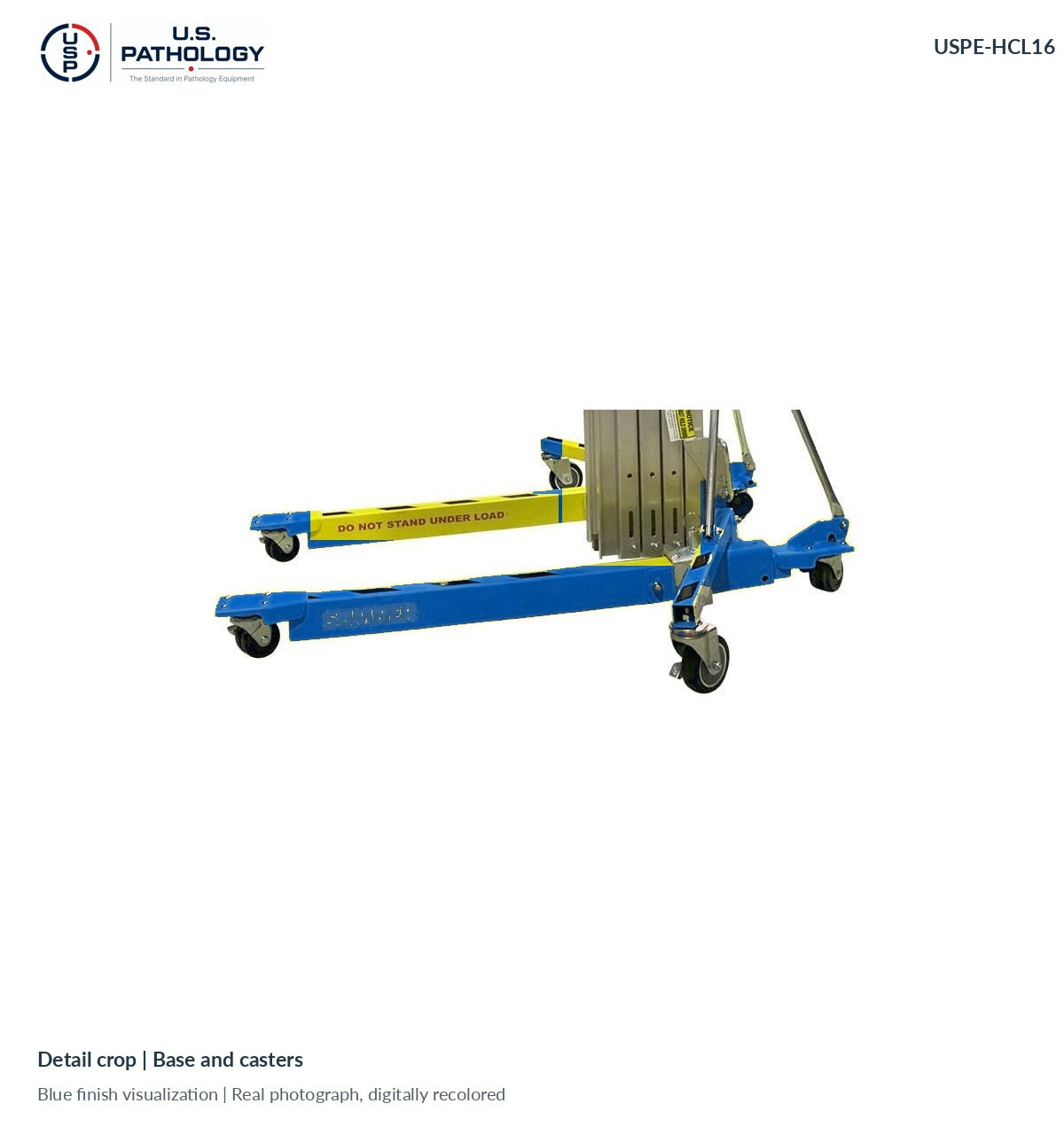

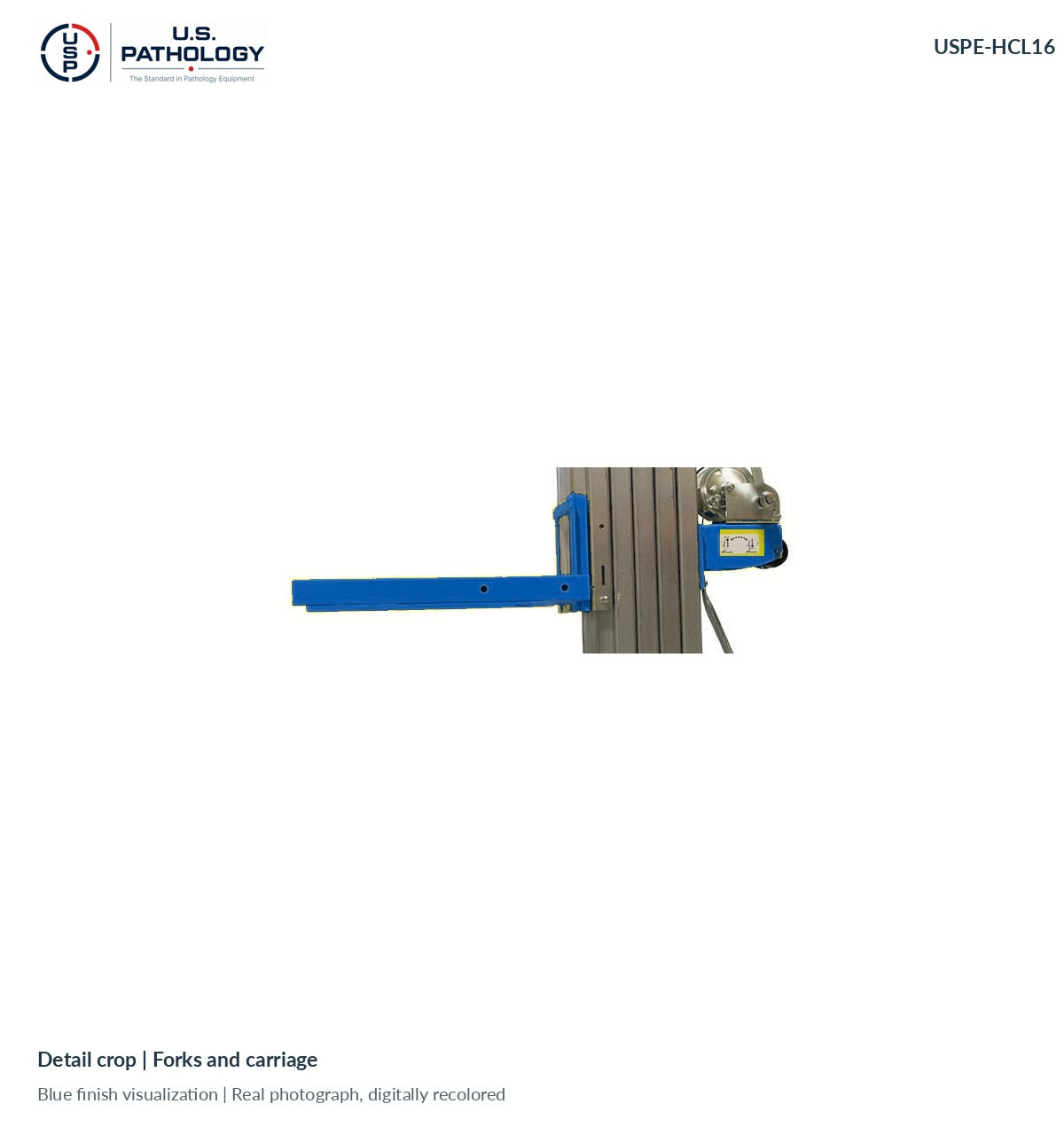

Stowed width alone does not establish working clearance. Check the deployed base, extended mast, tray and attachment envelope, turning space and receiving approach. Reference-chassis features include internal cable routing, reversible forks and tool-free plunger-pin adjustments.

Configuration requests

Provide required fork height, load and load center, tray size, deployed floor space, turning and approach clearance, and quantity. No cadaver-handling attachment or combined-system capacity is included or approved by this draft.

Request the linked roller-pallet and weighing options below. Genuine photographs are blue-finish visualizations; supplied finish, rating and model-specific instructions must be confirmed before release.
