Mortuary Storage Racks for Walk-In Coolers — 4-Tier Systems, Capacity Planning & Installation Guide
Mortuary storage racks for walk-in coolers are the backbone of high-capacity body storage — the difference between a facility that can efficiently hold 12 decedents and one that struggles to organize 6. American Mortuary Coolers designs and manufactures cadaver storage racks built specifically for integration with AMC walk-in cooler systems, with 4-tier configurations, bariatric options, and pull-out tray designs engineered for real-world funeral home workflow.
Why Walk-In Cooler Racking Matters
A walk-in mortuary cooler without an optimized rack system is like a warehouse without shelving — the footprint is used inefficiently, and body access requires more staff effort than necessary. Properly engineered 4-tier rack systems in an 8x10 walk-in cooler can hold 8–12 decedents depending on configuration, compared to 4–6 with floor-only or 2-tier systems. Maximizing the vertical space of your walk-in cooler directly multiplies your investment.
See our walk-in mortuary coolers 2026 guide for a full capacity and sizing reference.
4-Tier Rack Systems — Configuration and Capacity
Standard 4-Tier Configuration

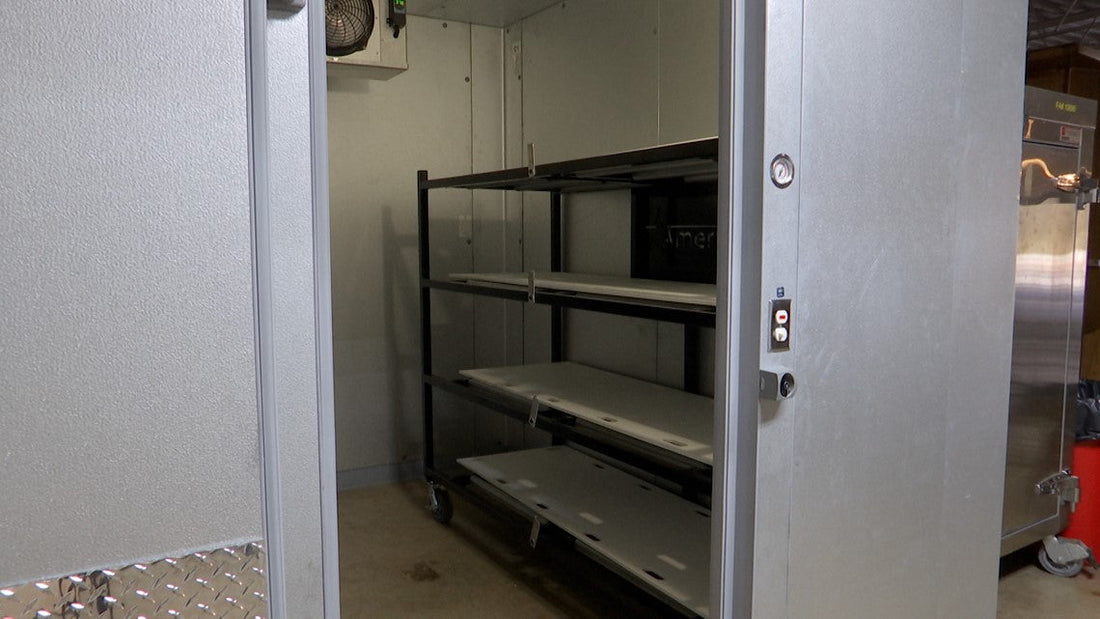

Standard 4-tier rack systems use 18-gauge stainless steel frames with full-extension slide-out trays at each level. Tier spacing is typically 18–20 inches, accommodating standard adult decedents in body bags or pouches. A single 4-tier rack section in an 8x10 walk-in cooler holds 4 decedents per section, with 2–3 sections possible per side depending on aisle clearance requirements.
Extra-Wide 4-Tier Configuration
For facilities with bariatric cases or those requiring wider tray clearance, extra-wide rack sections match the tray width of AMC's extra-wide mortuary coolers and bariatric upright units. Extra-wide trays typically measure 36–40 inches wide, accommodating decedents up to 700+ lbs depending on tray reinforcement specification.
Mixed-Configuration Racks
Many larger facilities opt for mixed rack configurations — a standard-width section on one side and an extra-wide section on the other — allowing efficient storage of both standard and bariatric cases in the same walk-in cooler. AMC's design team helps plan optimal rack layouts for your specific walk-in model during the order process.
Capacity Planning for Walk-In Rack Systems
| Walk-In Size | Rack Config | Body Capacity |
|---|---|---|
| 8x10 | 4-Tier, 2 sections | 8 standard |
| 8x10 | 4-Tier, 3 sections | 12 standard |
| 10x10 | 4-Tier, 4 sections | 16 standard |
| 10x10 mixed | 3 std + 1 wide | 12 std + 4 bariatric |
View the full walk-in mortuary coolers collection and the 10x10 walk-in model for complete specification sheets.
Material Specifications and Sanitation
Stainless Steel Construction
All AMC rack systems use 304 stainless steel construction — the same grade used in commercial food service equipment and hospital environments. 304 stainless resists corrosion in the cold, humid environment of a walk-in cooler, is non-porous for sanitation purposes, and withstands repeated cleaning with hospital-grade disinfectants without degrading surface finish.
Full-Extension Tray Design
Full-extension slide-out trays allow the decedent to be slid fully into the aisle for transfer without requiring staff to reach into the rack structure. This reduces injury risk and improves workflow speed, particularly relevant when coordinating with the All-Access lift systems or when using mortuary cots for transfer.
Welded vs. Bolted Construction
Welded rack frames provide higher rigidity and long-term durability compared to bolted assemblies, which can loosen over time under repeated loading cycles. AMC's rack systems use welded main frames with bolted tray slides for field-adjustability, providing the best of both approaches.
Integration with All-Access Lift Systems
The All-Access racking and lift system integrates powered lift capability directly into the rack structure, allowing single-operator access to all four tiers without manual lifting. This system is particularly valuable for upper-tier access in a 4-tier configuration, where the top tray level sits at approximately 66–72 inches above the floor — well above safe manual transfer height for most staff. See our full guide on cadaver lift systems for lift-rack integration details.
Installation and Compliance
AMC rack systems ship with complete installation hardware and instructions and are covered under the same free Level 2 White-Glove Installation available on qualifying cooler orders. Our installation team ensures racks are properly anchored to the cooler floor, leveled, and all tray slides operate smoothly before sign-off. Review our compliance roadmap for OSHA and sanitation compliance requirements specific to your state.
All rack systems are covered under AMC's warranty — see the warranty and service policy for terms.
Plan Your Walk-In Rack System Today
Call American Mortuary Coolers at 1-888-792-9315 or email service@mymortuarycooler.com to discuss your walk-in cooler rack configuration. Founded in Johnson City, Tennessee in 2009, A+ BBB rated, factory-direct to 7,500+ customers — AMC builds the racks and the coolers together so they work as a system. Financing approvals within 24 hours; Section 179 deduction up to $1,250,000 available. Browse the full cadaver storage racks collection and the cadaver racks and lifts catalog.
