Optimizing Small-Scale Funeral Homes: 3 Layouts using the Model 4BX

As cremation rates stabilize at record highs in 2026, funeral directors are pivoting from sprawling chapels to high-efficiency, small-scale back-of-house operations. The challenge? Fitting high-capacity refrigeration into legacy floor plans. The Model 4BX has emerged as the industry standard for 4-tier vertical storage, allowing facilities to quadruple their storage capacity without moving a single structural wall.

By American Mortuary Coolers
3 min read

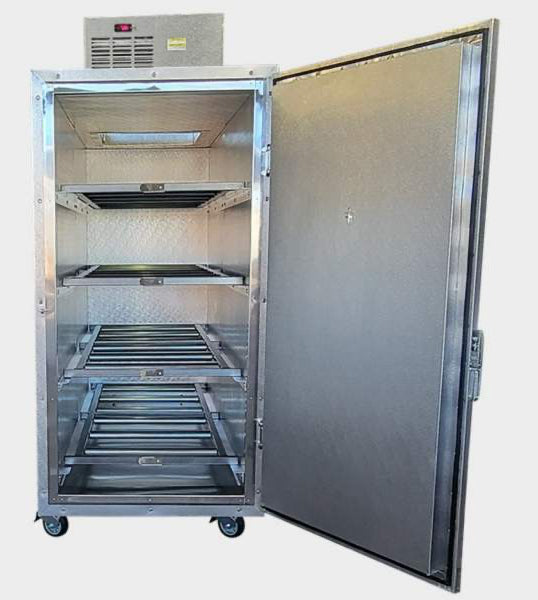

American-made Model 4BX 4-body mortuary cooler with 304 stainless steel finish and 4-tier vertical storage rack for funeral home space optimization.

Efficiency is the primary currency of the modern funeral home. With the 2026 shift toward "micro-facilities" and specialized cremation boutiques, the traditional morgue layout is being reimagined. At the center of this revolution is the Model 4BX 4-Body Extra Wide Mortuary Cooler.

Designed to provide maximum density in a minimal footprint, the 4BX allows you to store four cases vertically using an integrated 4-tier roller rack. Below are three optimized layouts to help you integrate this American-made powerhouse into your facility.




Layout 1: The "Sidewall Slim-Down" (Best for Narrow Prep Rooms)

Many historic funeral homes have long, narrow preparation rooms where every inch of floor space is contested.

  • The Setup: Place the Model 4BX flush against the side wall, ideally near the rear entrance.

  • Why it Works: Because the 4BX utilizes a vertical 4-tier system, it only occupies 94" D x 44" W of floor space.




  • Operational Tip: Pair this layout with a Mobi HD 1000 Series Lift. This ensures that even in narrow hallways, your staff can safely load and unload the upper tiers without needing a wide turning radius for a traditional stretcher.




Layout 2: The "Cornerstone" Configuration (Best for Multi-Purpose Spaces)

If your prep room also serves as your shipping/receiving and dressing area, the corner layout is the most efficient.

  • The Setup: Anchor the Model 4BX in a back corner. Use a Right-Hand or Left-Hand door swing (customized at the time of order) to ensure the door opens away from the main work zone.

  • The Advantage: By tucking the refrigeration into a corner, you open up the center of the room for dressing tables or restorative art stations.

  • 2026 Compliance Note: The 4BX features a self-contained "Plug-and-Play" refrigeration system. Placing it in a corner doesn't require specialized plumbing or drainage, making it the fastest way to pass a 2026 facility inspection.




Layout 3: The "Tandem Power" (Best for High-Volume Cremation Hubs)

For small-scale facilities that handle high volumes of direct cremation, storage is the bottleneck.

  • The Setup: Place two Model 4BX units side-by-side or "back-to-back" if space allows.

  • The Math: In a footprint of roughly 8 feet by 8 feet, you achieve 8-body storage capacity. * The Benefit: This layout provides redundancy. If one unit requires maintenance, your other 4-body unit remains fully operational, protecting your facility from "down-time" during peak seasons.




Why the Model 4BX is the 2026 Industry Standard

The 4BX isn't just a cooler; it's a structural investment in your business's scalability.

  • American-Made Durability: Forged in Johnson City, TN, using 304 stainless steel, it is built to withstand the rigors of 2026 clinical environments.




  • Eco-Efficiency: Modern Danfoss compressors and 3-inch thick polyurethane foam insulation keep utility costs low, aligning with the "Green Funeral" movement.

  • Plug & Play: No specialized electricians or plumbers are required—it plugs into a standard 110v outlet.

  • The Verdict

Don't let a small floor plan limit your case volume. By utilizing vertical storage and the 4-tier density of the Model 4BX, you can transform a cramped prep room into a high-capacity morgue.

Design Your Layout Today: Ready to see how the 4BX fits into your specific floor plan?
