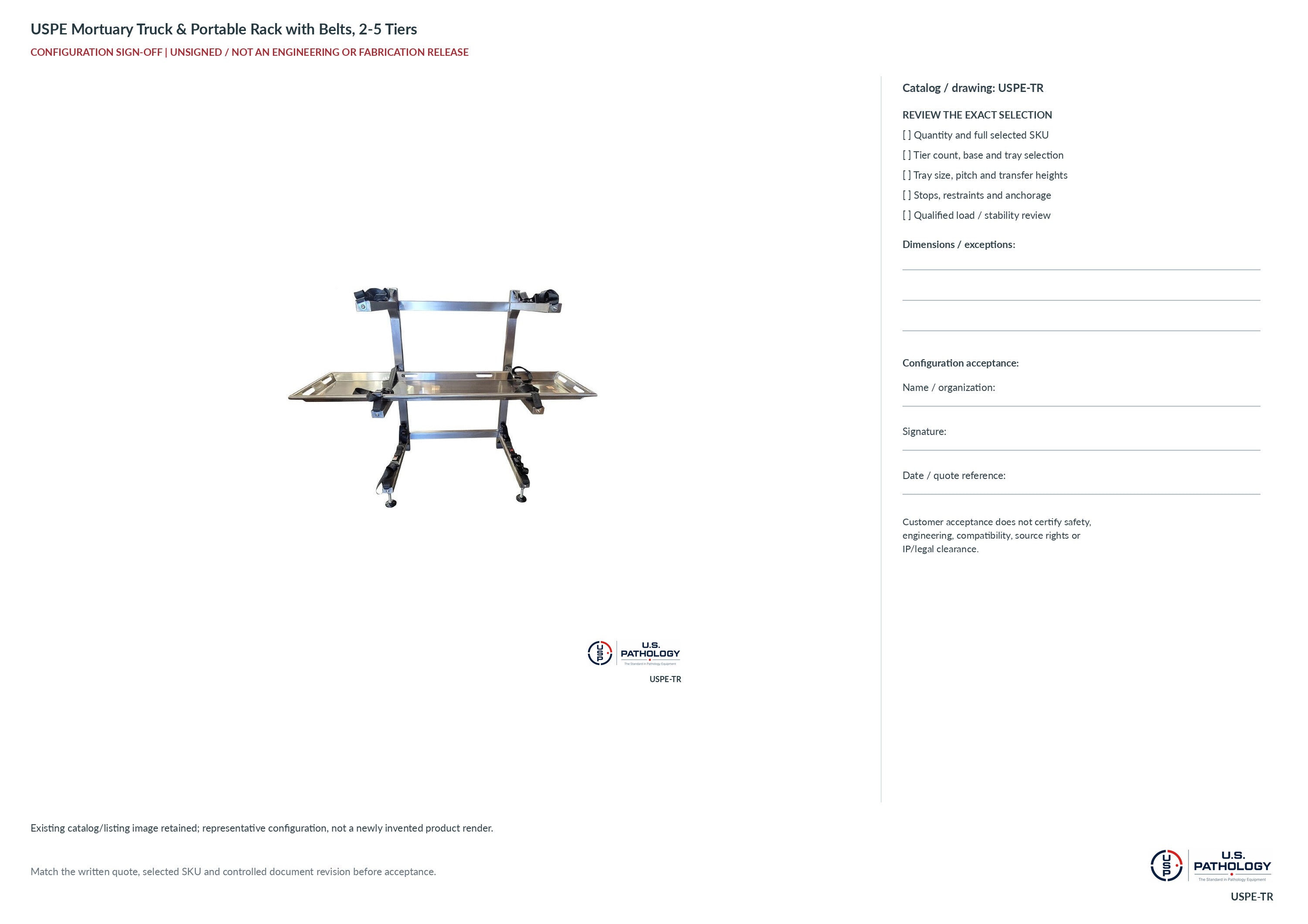

USPE Mortuary Truck & Portable Rack with Belts, 2-5 Tiers

Mortuary rack storage, arranged around your loading route

Build cadaver storage capacity around the usable height, aisle and transfer route. Side-, end- and multi-directional loading solve different access problems; tier count alone does not establish tray fit or lift access. A portable mortuary rack needs the specified caster base, while stationary configurations use their stated feet or supports.

Compare 2-, 3-, 4- and 5-tier rack layouts

Choose stainless trays or the correct storage board

Compare the 23-inch stainless tray, 27-inch tray and 30-inch tray by overall size, gauge and rated load. Check support spacing, underside clearance, handholds and retaining arrangements against the rack. A wider tray is not automatically approved for the same tier.

For board storage, review the HD plastic body board, HDPE rack storage board and 29-inch oversized board. The rubber-edge laminated board and 78 × 24-inch laminated board provide other storage-surface choices. Select the board for the documented support arrangement, not simply its width.

Compare the lift models before pairing equipment

Start with the H1000 manual hydraulic lift, G1 powered multi-directional lift or 1030-LPL low-profile powered lift. Compare the lowest and highest transfer surfaces with every intended tier; the low-profile name does not establish bottom-tier access.

Other platform choices include the aluminum-alloy powered lift, stainless mortuary lift trolley, USPE cadaver lift trolley, USPE cadaver transport scissor lift, covered cadaver lift and LowLoad powered lift listing. Each has its own deck, load and height requirements.

Frame finish, wheels and the written equipment scope

Powder-coated rack frames and their trays, rollers or boards have separate material specifications. A stainless tray does not make a steel rack frame stainless. Coating colors and cosmetic details can change as products are improved; use the selected model's stated construction and accepted order for the required finish.

For a new facility or phased replacement, list the tier count, side or end access, stationary or caster base, tray or board quantities, cooler opening and intended lift. Identify existing equipment so support surfaces and transfer heights can be checked together. Request country-of-origin documents and the applicable written warranty for the models being ordered.

Get an instant priced quoteRequest a rack-and-lift fit reviewSubmit a purchase orderRoller construction guideCaster factsEquipment financing

Roller-equipped cadaver handling and storage

Plan the route from mortuary lift to roller storage rack and cooler as a coordinated equipment selection. Compatible rolling surfaces can let a supported tray move between components without being lifted clear of its support. That benefit depends on the selected equipment, not simply on both products having rollers.

Compare the actual rolling-surface heights, tray underside, usable width, roller or ball-transfer spacing, loading direction and retaining stops at both ends of the transfer. Positioning, brake use and the release or engagement of stops must follow each model's instructions. Keep the load supported throughout the transfer, and determine staffing from the task, load and facility procedure rather than assume one-person operation.

Choose a low-profile powered lift for the required lower transfer points, or review the G1 multi-directional lift and stainless medical lift trolley for other loading requirements. Match trays and boards individually; a board that fits one platform is not automatically approved for a rolling tray system.

Request a coordinated lift, roller-rack and tray quote with the lowest and highest transfer points, tray dimensions, loads and existing equipment drawings. This roller-transfer guidance does not describe a cantilever support-arm rack.
