USPE Stainless Steel Cantilever Mortuary Rack, 2-5 Tiers
Specifications, drawings & manualsModel: USPE-SSCR-2-R
Quote only
Request a quote for your selected model and configuration.
Configuration review only; confirm selected options in your quote.
Confirm custom dimensions, materials, load ratings, tray and rack compatibility, and freight in your written quote before ordering.
1-888-792-9315
140 Kwick Way Lane, Building 7, Johnson City, TN 37615
Product details
The USPE SSCR Series stainless steel cantilever mortuary rack provides open-arm cadaver storage in two-, three-, four- and five-tier configurations. Choose the tier count and optional stainless steel tray set without moving between separate product pages.
Stainless steel storage configuration
- Stainless steel frame and open cantilever arms
- Two through five tiers
- Made in the USA
- Custom sizes and build layouts available by quotation
Confirm the required leveling-foot or caster base on the order drawing. Photos show representative caster-base configurations; they are not a promise that every base option is included at the same price.
Space planning
| Nominal footprint | 42 in W × 32 in D |
|---|---|
| Between uprights | 36 in |
| Cantilever arms | 32 in |
| Tier heights | Confirm tier count and base on the final drawing |
The matching cantilever layout is used for preliminary space planning. Confirm clearances, tray support and the finished rack drawing before installation.
Choose the rack and tray package
Choose Rack only or a 23-, 27- or 30-inch stainless steel body tray package. A tray package includes one tray per tier: two trays with a 2-tier rack, three with a 3-tier rack, four with a 4-tier rack or five with a 5-tier rack. The displayed variant price includes the rack and the full selected tray set.
Tray width alone does not establish compatibility. Confirm the overall tray envelope, support/contact points, loading direction and load capacity on the order drawing before use. Optional trays pictured are not included with Rack only.
Custom sizes and installation planning
Custom sizes and build configurations are available by quotation. Send room dimensions, door clearance, intended tray size, loading direction and required tier heights before ordering a custom rack. Changes to width, depth, height or base may change the final specification and price.
Freight is calculated at checkout using the rack shipping hierarchy. Confirm delivery access and installation requirements before ordering. Load the lowest usable position first and follow the approved operating and installation instructions.
Compare racks, lifts and body trays
For a lower-priced open-arm storage option, compare AME 2-tier cantilever rack · AME 4-tier cantilever rack · AME 5-tier cantilever rack. Confirm the base configuration and current price on each listing.
USPE truck and portable rack · USPE adjustable cantilever rack.
Plan transfers with AME powered body and casket lift or Low Profile Powered Crematory Lift. A lift must reach every selected rack level and support the tray and intended load. Confirm actual lift range, tray dimensions, arm or roller contact and rated capacity before ordering.
23-inch stainless steel body tray · 27-inch stainless steel body tray · 30-inch stainless steel body tray. Storage barrier boards are not lifting devices or substitutes for a structural body tray.

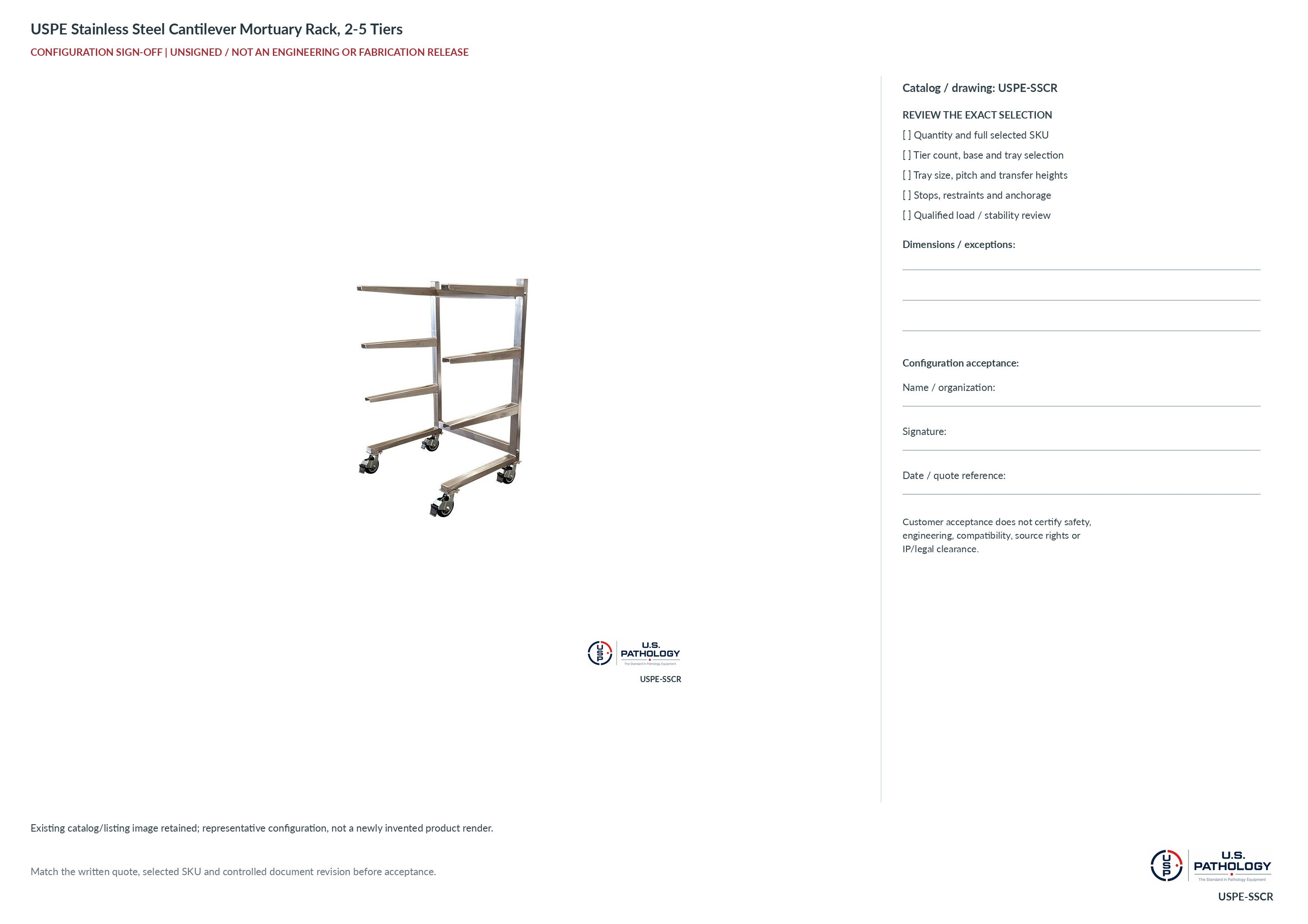

Configuration drawing and sign-off
Match the model and selected options to your written quote. These are unsigned review documents, not operating manuals, approved shop drawings or safety certifications.
No approval or signature has been supplied. Final dimensions, purchased parts, engineering, supply and applicable legal/IP review remain separate release requirements.
Your quote basket 0
Saved on this browser only. Adding models does not submit a request or place an order.
Review and request a quoteModel-specific purchasing information
Plan your USPE Stainless Steel Cantilever Mortuary Rack, 2-5 Tiers purchase
Product type: Mortuary Storage Rack
Review the selected configuration, included components and product specifications above. Add eligible items through this product’s cart or quote controls; custom and quote-only equipment use the request action provided for this model.
Read the applicable written warranty information. Ask a documentation question and include the product name and selected configuration.
Cantilever mortuary racks: plan the tray, board and lift together
Cantilever support arms leave the loading side open for the specified tray or board. Compare 2-tier, 3-tier, 4-tier and 5-tier cantilever racks by storage positions, support spacing and available height. These support-arm racks are not roller-transfer racks.
Choose leveling feet for a stationary installation or the specified caster configuration for a portable rack. Mobility does not establish permission to move a loaded rack; follow the instructions and load limits for the selected configuration.
Compare 2-, 3-, 4- and 5-tier rack layouts
Side-loading racks: compare the 2-tier, 3-tier, 4-tier 4TSL and 5-tier side-loading models.
End-loading racks: review the 2-tier end-load configuration, 3-tier, 4-tier 4TEL and 5-tier end-loading racks.
For access from more than one direction, compare 2-tier, 3-tier, 4-tier and 5-tier multi-directional racks.
Review 2-tier side-or-end loading, the USPE 2–5 tier side-load range and USPE end-load range for another layout. Cantilever racks offer support-arm storage rather than rolling tiers.
Choose stainless trays or the correct storage board
Compare the 23-inch stainless tray, 27-inch tray and 30-inch tray by overall size, gauge and rated load. Check support spacing, underside clearance, handholds and retaining arrangements against the rack. A wider tray is not automatically approved for the same tier.
For board storage, review the HD plastic body board, HDPE rack storage board and 29-inch oversized board. The rubber-edge laminated board and 78 × 24-inch laminated board provide other storage-surface choices. Select the board for the documented support arrangement, not simply its width.
Board packs and additional stainless tray choices
HD board packs: 5 boards, 6 boards, 48 boards or 74 boards. Oversized board packs are listed as 12 boards and 24 boards. Laminated boards are also available in sets of 3 and sets of 5.
Compare the stainless storage tray, stainless body tray range, low-profile tray pair and 3-pack. Additional package listings include five 23-inch trays and six stainless trays. Confirm each listing's included quantity and dimensions.
Compare the lift models before pairing equipment
Start with the H1000 manual hydraulic lift, G1 powered multi-directional lift or 1030-LPL low-profile powered lift. Compare the lowest and highest transfer surfaces with every intended tier; the low-profile name does not establish bottom-tier access.
Other platform choices include the aluminum-alloy powered lift, stainless mortuary lift trolley, USPE cadaver lift trolley, USPE cadaver transport scissor lift, covered cadaver lift and LowLoad powered lift listing. Each has its own deck, load and height requirements.
Body and casket handling equipment
Review the heavy-duty body and casket lifter, TITAN Power Body & Casket Lift XL, casket jack set and lift straps for their intended handling tasks. These are not automatic substitutes for a tray-supporting rack lift.
Frame finish, wheels and the written equipment scope
Powder-coated rack frames and their trays, rollers or boards have separate material specifications. A stainless tray does not make a steel rack frame stainless. Coating colors and cosmetic details can change as products are improved; use the selected model's stated construction and accepted order for the required finish.
For a new facility or phased replacement, list the tier count, side or end access, stationary or caster base, tray or board quantities, cooler opening and intended lift. Identify existing equipment so support surfaces and transfer heights can be checked together. Request country-of-origin documents and the applicable written warranty for the models being ordered.
