3-Body Mortuary Cooler Configurations — Standard, Extra-Wide, Roll-In & TR3 Hybrid Compared
Not all 3-body mortuary coolers are built the same — and the configuration you choose will determine how your staff works with the unit every day for the next decade. American Mortuary Coolers offers four distinct 3-body configurations: Standard, Extra-Wide, Roll-In, and the TR3 Hybrid. Here is an honest comparison of each.

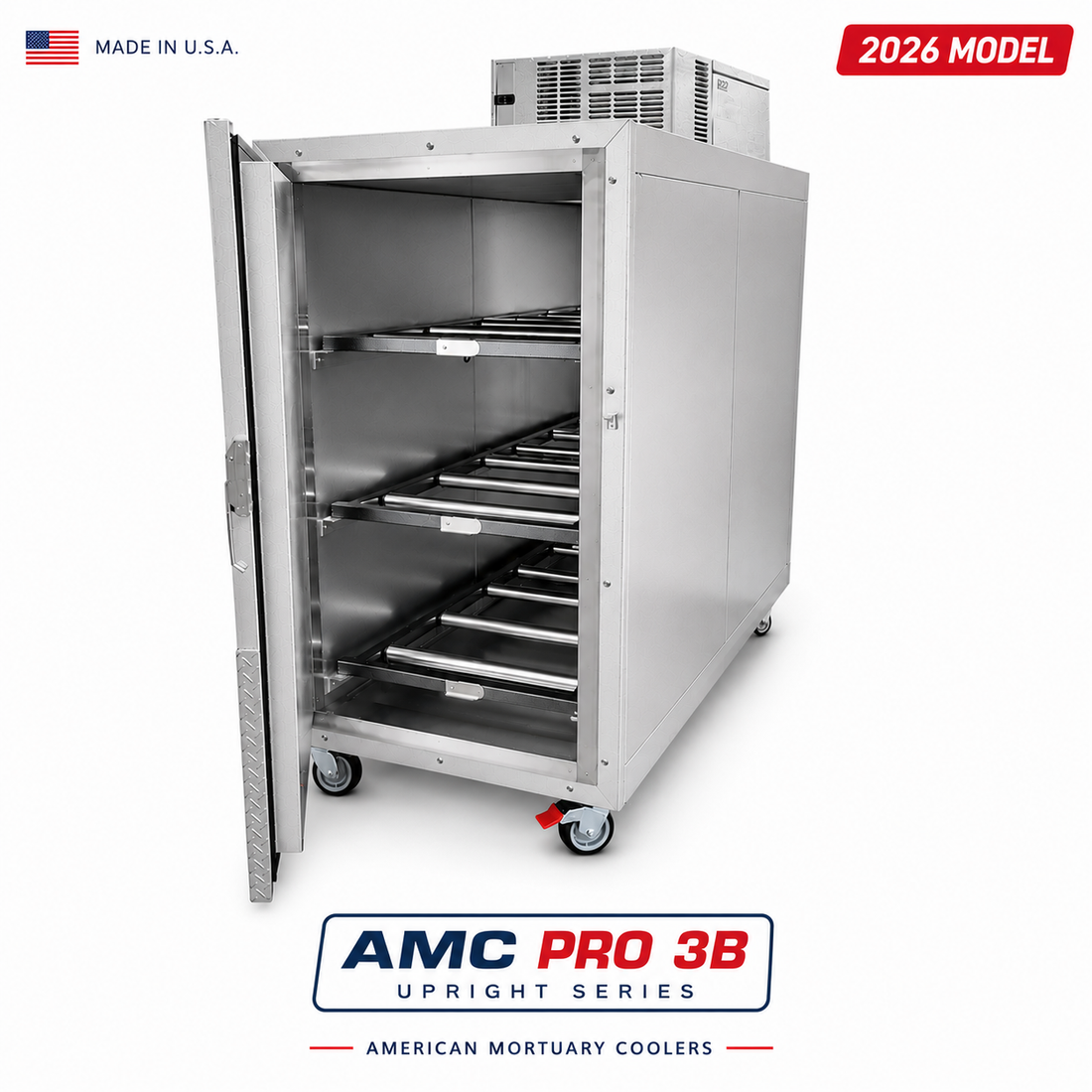

Configuration 1: Standard 3-Body Upright
The standard 3-body upright is the baseline configuration — front-loading stainless steel trays, full-extension slides, and a compact footprint that fits most preparation room walls. It is the right choice when the majority of decedents are standard adult body dimensions and your staff has the personnel for two-person tray loading. This is the most common unit we ship and the most cost-effective entry into 3-body capacity.
Best for: Funeral homes with 75–175 cases/year, standard adult decedents, adequate staffing for tray transfers.
Configuration 2: Extra-Wide 3-Body
The extra-wide 3-body configuration increases interior tray width to accommodate larger decedents without requiring a dedicated bariatric mortuary cooler. If your facility regularly receives decedents over 300 pounds or with broader shoulder widths, the extra-wide model prevents the uncomfortable improvisation of fitting an oversized body into a standard tray. Browse extra-wide mortuary coolers for current pricing and availability.
Best for: Facilities in regions with higher bariatric decedent frequency, or any funeral home wanting future-proofed capacity without going full bariatric-spec.
Configuration 3: Roll-In 3-Body
The roll-in 3-body is designed for facilities that want to eliminate manual body transfers entirely. The cot rolls directly into the cooler — the decedent remains on the cot throughout the storage period. This is the highest-ergonomic-benefit configuration, significantly reducing staff musculoskeletal injury risk over years of operation. It requires more floor clearance than an upright configuration.
See our dedicated roll-in mortuary cooler collection and the blog post on the Roll-In Mortuary Coolers Reviewed for detailed specifications and comparison to standard upright configurations.
Best for: Facilities with ergonomic priority, high bariatric case frequency, or OSHA compliance focus on manual lifting reduction.
Configuration 4: TR3 Hybrid
The TR3 Hybrid combines standard tray storage for two positions with a roll-in bay for the third position — giving facilities the flexibility to handle both standard and bariatric intakes within a single 3-body unit. This is a purpose-built compromise for funeral homes that see occasional bariatric cases but do not want to invest in a full roll-in unit or separate bariatric cooler.
Best for: Mid-sized funeral homes with mixed decedent profiles seeking maximum operational flexibility.
Side-by-Side Comparison
| Configuration | Access Method | Bariatric Ready | Footprint | Staff Lift Required |
|---|---|---|---|---|
| Standard | Front-loading tray | No | Smallest | Yes (2-person) |
| Extra-Wide | Front-loading tray | Partial | Moderate | Yes (2-person) |
| Roll-In | Cot roll-in | Yes | Largest | No |
| TR3 Hybrid | Mixed tray + roll-in | 1 bay | Moderate-large | Partially |
All Configurations: Shared Features
Across all four 3-body configurations, every unit from American Mortuary Coolers maintains CDC-mandated 34°F–38°F storage temperatures with compressors rated for 95°F ambient environments. Stainless steel interiors meet NSF sanitation standards. FREE Level 2 White-Glove Installation is included on qualifying orders. In-stock units ship within 48 hours. All units qualify for IRS Section 179 expensing and 24-hour financing approval. Details at our financing page.
Get Help Choosing Your Configuration
Call our refrigeration specialists at 1-888-792-9315 — we will walk through your caseload, preparation room dimensions, and decedent profile to recommend the best 3-body configuration for your facility. Browse the 3-body cooler collection or the full cooler catalog. For the 3-vs-4 capacity decision, read our dedicated 3-Body vs. 4-Body guide. American Mortuary Coolers — founded 2009, Johnson City, Tennessee, A+ BBB rated, 7,500+ customers served.
