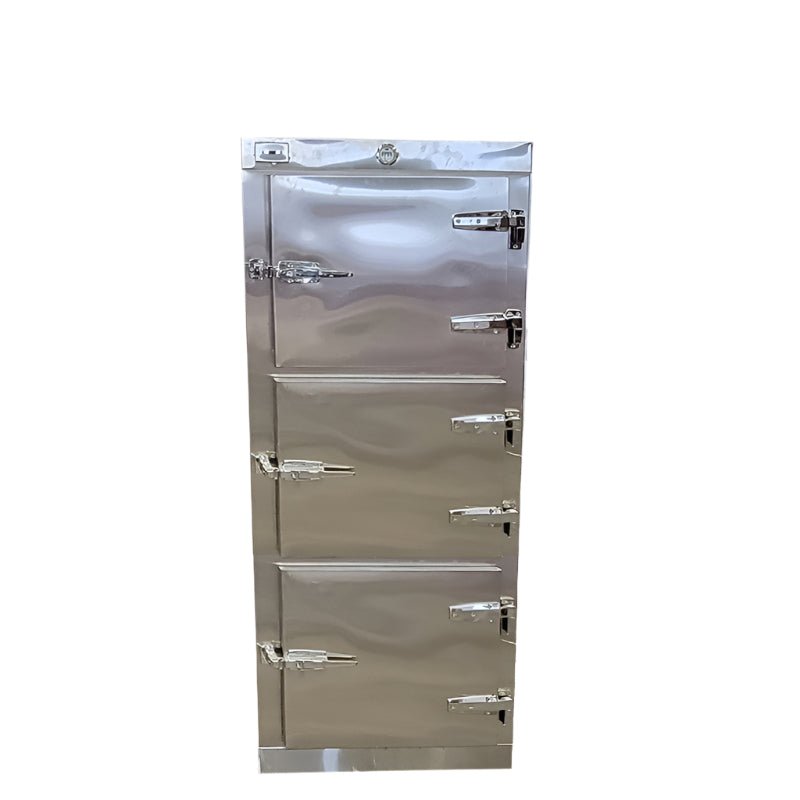

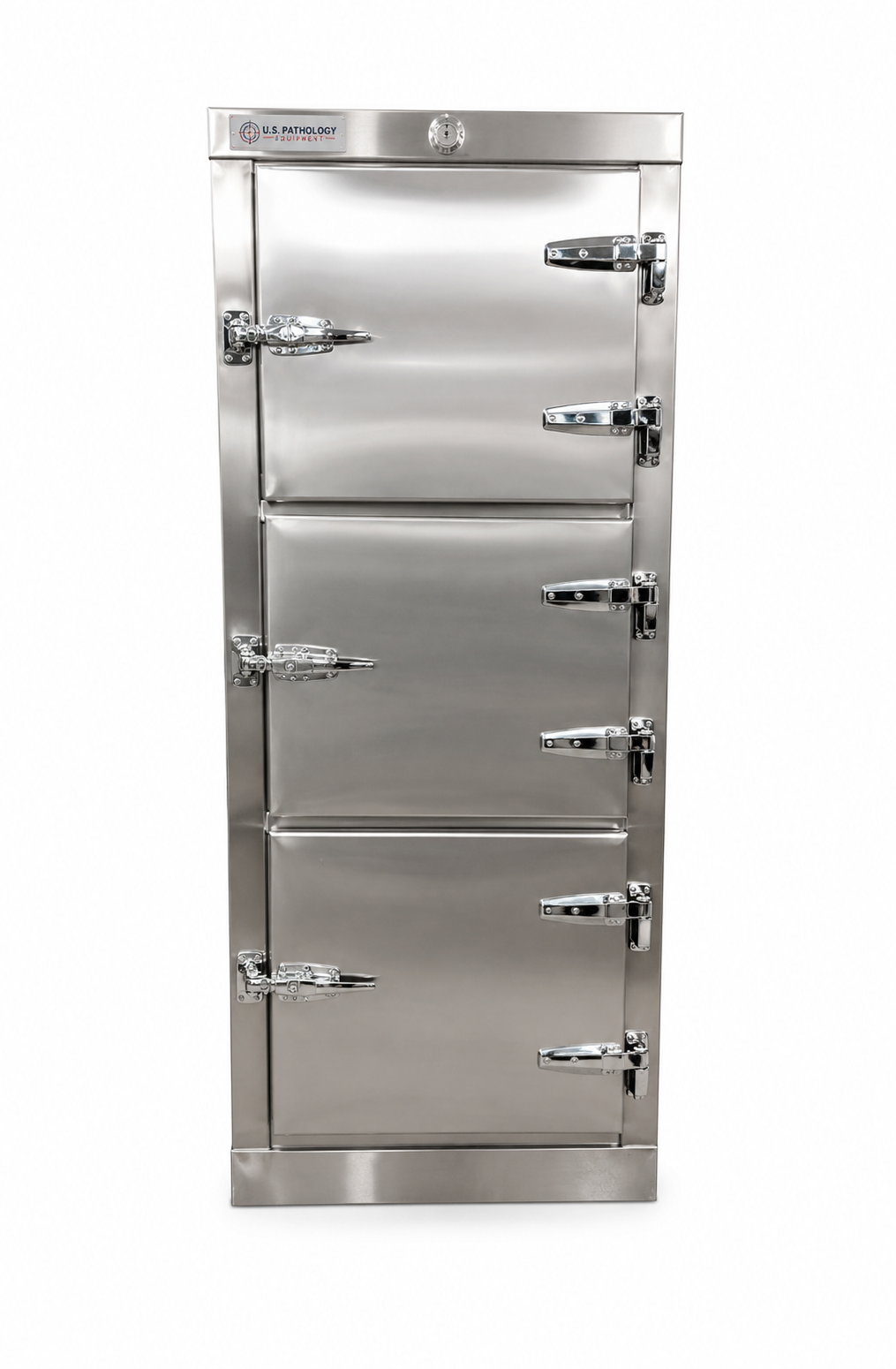

3 Bay Vertical Morgue Cooler – Model 1070-3BVU

Maximum Capacity in a Minimal Footprint

The 3 Bay Vertical Morgue Cooler – Model 1070-3BVU is the ideal solution for facilities that need to maximize decedent storage capacity in a limited space. This unit's vertical, stacked configuration offers a three-body capacity with the footprint of a single bay. Featuring a self-contained cooler unit and durable stainless steel construction, this cooler is a reliable and efficient workhorse.

Proudly engineered and built in our Tennessee facility, this cooler provides a turnkey, space-saving preservation solution for any professional facility.

Key Features

• USA-Made Craftsmanship – Fully fabricated and assembled in Tennessee with a focus on durability and performance.

• Space-Saving Vertical Design – The 3-bay stacked configuration maximizes storage capacity while minimizing the required floor space.

• Self-Contained Cooler Unit – A powerful, integrated cooler unit is built-in for simple, plug-and-play operation.

• Stainless Steel Body Trays – Includes three 78" x 23" stainless steel body trays.

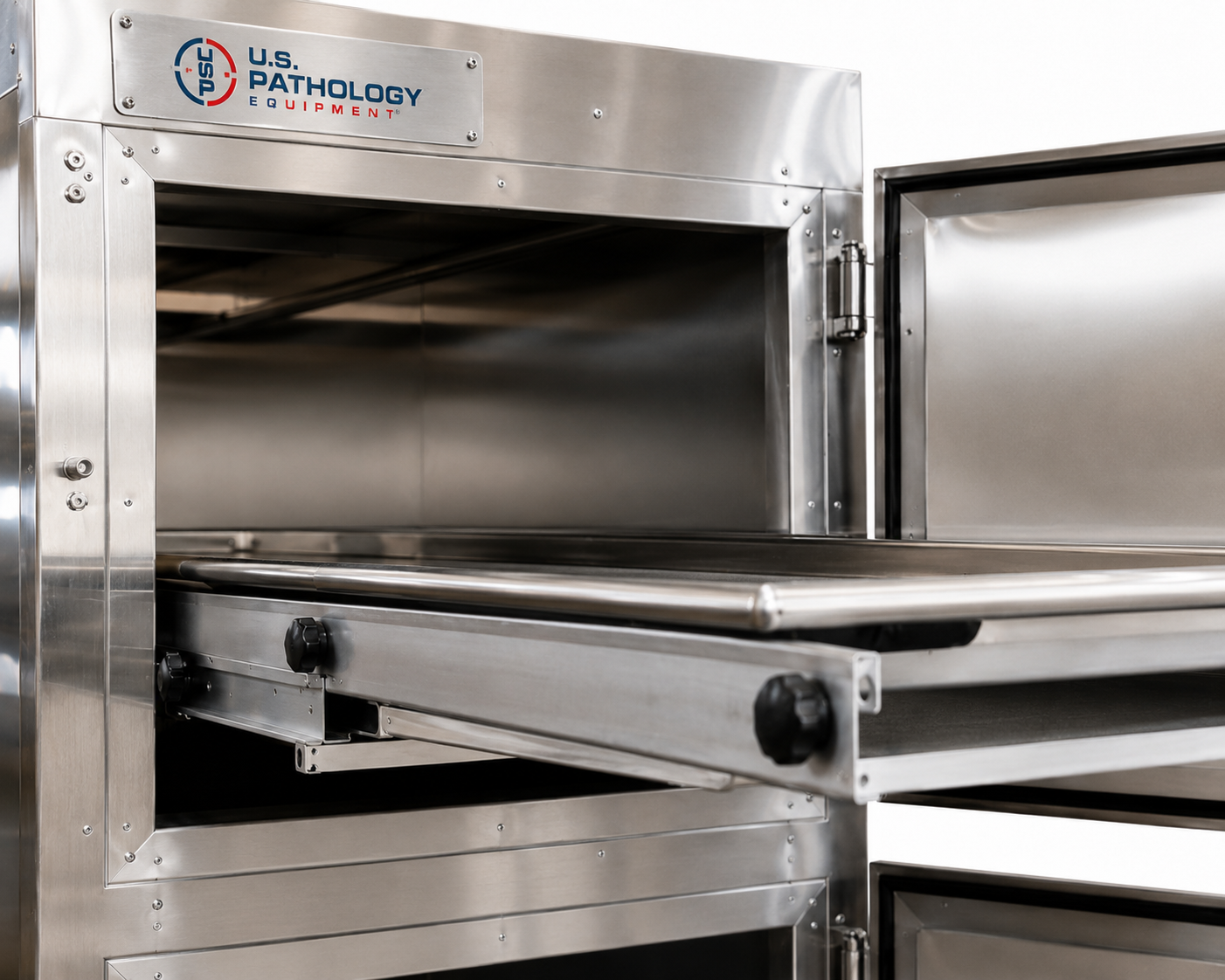

• Telescopic Rail System – Each bay is equipped with a heavy-duty telescopic rail system for smooth, safe, and ergonomic access.

• Individual Locking Doors – Three individual, insulated doors (Top, Middle, and Bottom) ensure temperature stability and security.

• Digital Thermostat – An easy-to-read digital display ensures precise temperature management.

Technical Specifications

• Model: 1070-3BVU

• Capacity: 3 Bodies

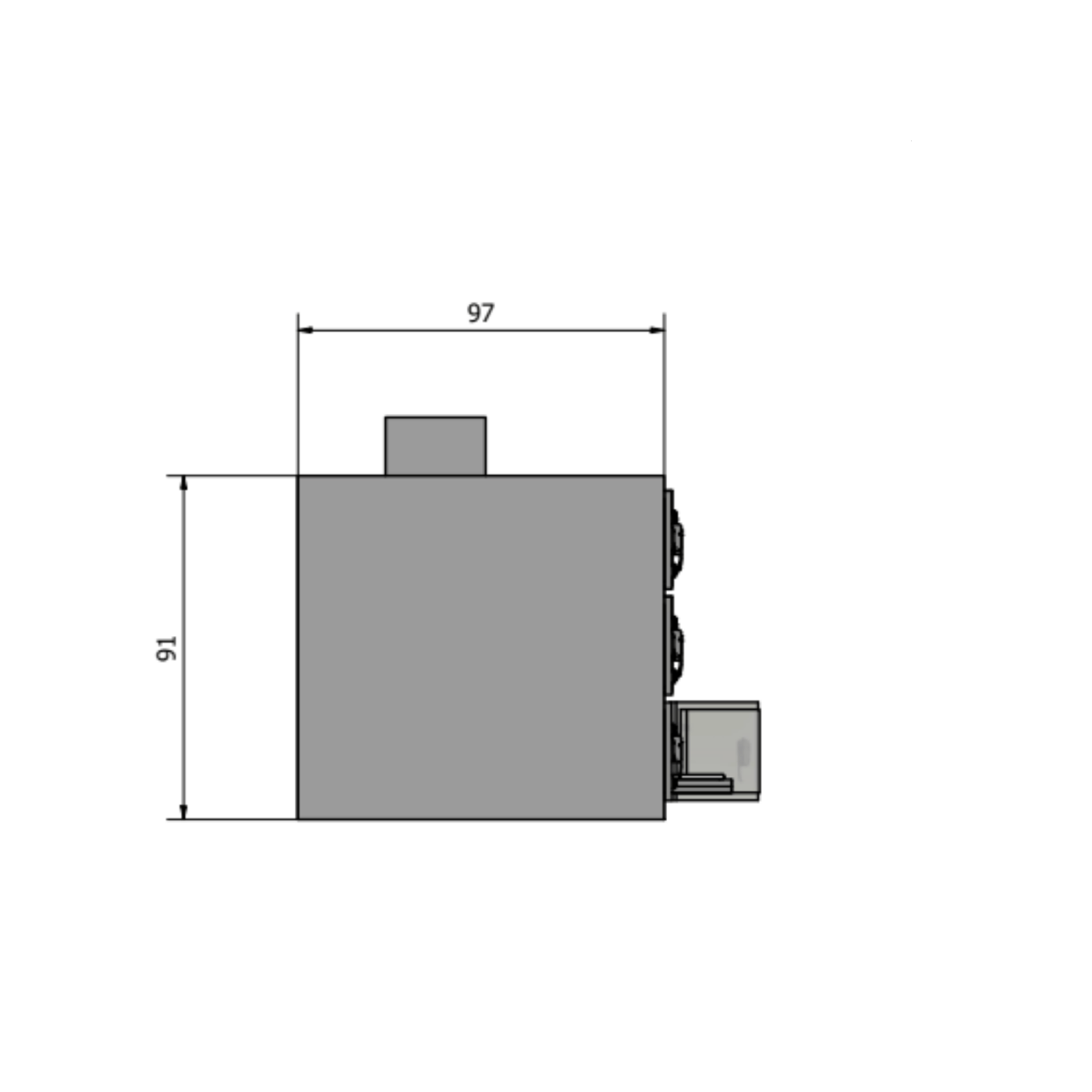

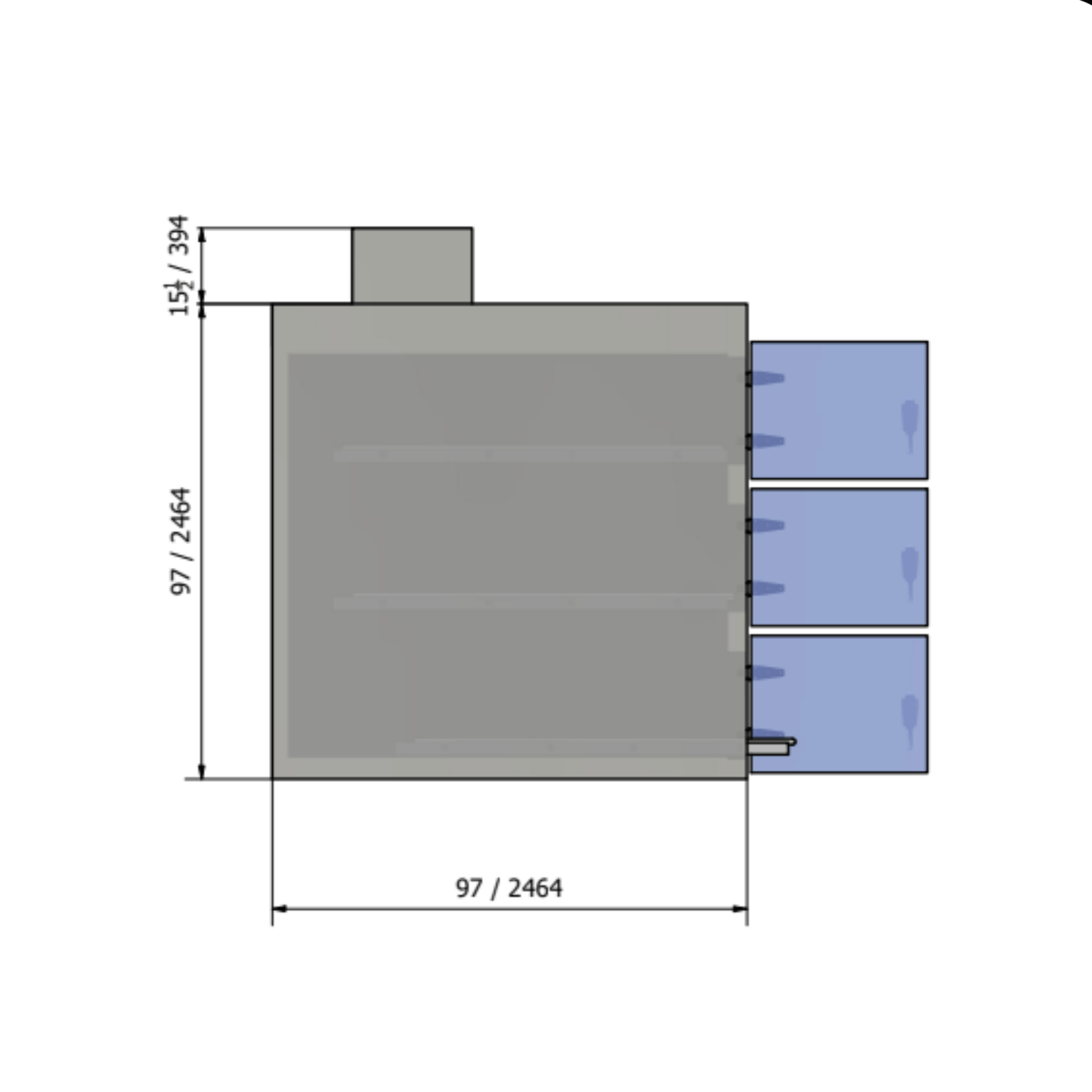

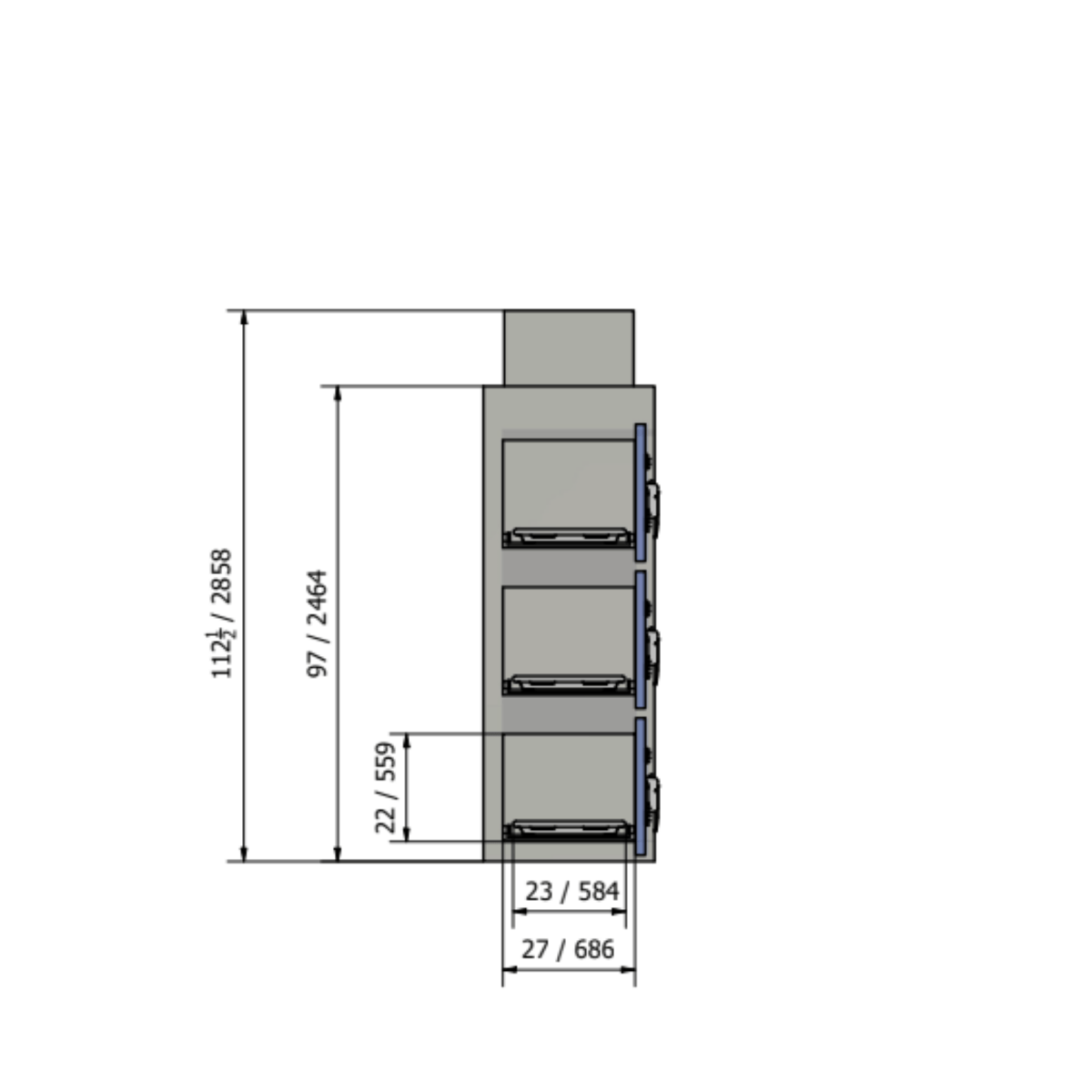

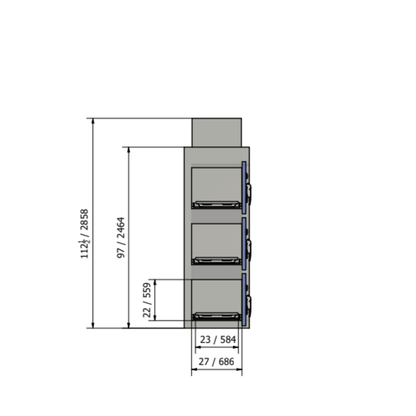

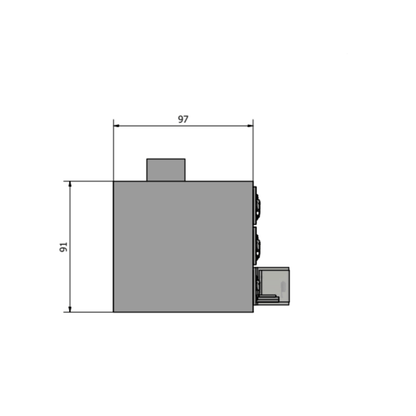

• Exterior Dimensions (Inches): 35" W x 97" D x 112" H

• Exterior Dimensions (Feet): Approx. 2' 11" W x 8' 1" D x 9' 4" H

• Body Tray Dimensions: 78" L x 23" W

• Construction: Stainless Steel with 4" Urethane Insulation

• Refrigeration: Self-Contained, Integrated Cooler Unit

• Electrical: 115V (Dedicated Circuit Recommended)

• Door System: Three (3) individual doors in a vertical stack.

Perfect For

• Facilities with limited floor space

• Small to mid-size funeral homes

• Hospital pathology labs

• Clinics and private practices

• University research and anatomy labs

Industry-Leading Warranty

• 15-Year Structural Frame Warranty

• 5-Year Door Warranty

• 1-Year Parts & 90-Day Labor on Refrigeration System

Add Extended Warranty Coverage for Peace of Mind

Protect your investment with one of our Extended Care Plans — perfect for facilities where uptime is critical.

• Option 1: No Extended Care – “We’ll Take the Risk” Included with every purchase. Enjoy the standard warranty coverage listed above. After the warranty period, all repairs are out-of-pocket.

• Option 2: 1-Year Extended Warranty – Parts & Labor Add 12 full months of worry-free protection beyond the standard warranty. Covers mechanical breakdowns, labor, and refrigeration support.

• Option 3: 2-Year Extended Warranty – Maximum Protection Get 2 full years of total coverage — our most popular plan. From diagnostics to repairs, we’ve got your back.

Add your plan at checkout or call us at 1-888-792-9315 to customize your protection.

Installation & Setup

• Ready to Use: This unit ships fully assembled and ready for operation.

• Placement: Must be installed on a solid, level floor. Requires adequate ceiling clearance to ensure proper air circulation for the cooler unit.

• Electrical: Requires a dedicated 115V circuit. All electrical work should be verified by a licensed electrician.

• Delivery: Freight delivery requires inspection for any potential shipping damage before signing the delivery receipt.
